1. Instruccions de seguretat importants
Please read these instructions carefully before using your VonShef 7-Egg Electric Cooker. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Assegureu-vos sempre que l'aparell estigui desendollat de la presa de corrent abans de netejar, muntar o desmuntar peces.
- No submergiu la unitat principal, el cable ni l'endoll en aigua ni en cap altre líquid.
- Aquest aparell només és per a ús domèstic. No utilitzar a l'aire lliure.
- Mantingueu l'aparell fora de l'abast dels nens i de les mascotes.
- No feu funcionar l'aparell si el cable o l'endoll estan danyats, o si l'aparell no funciona correctament o ha estat danyat de qualsevol manera.
- Utilitzeu només accessoris recomanats pel fabricant.
- Avoid contact with hot surfaces. Use handles or knobs. Steam released during operation is hot.
- Assegureu-vos que l'aparell estigui col·locat en una superfície estable i resistent a la calor.
- No col·loqueu l'aparell sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
- No deixeu que el cable d'alimentació pengi de la vora d'una taula o taulell, ni toqui superfícies calentes.
- Always add water to the heating plate before placing eggs or other accessories.
- The appliance will automatically shut off when the water has evaporated.
2. Producte acabatview
The VonShef 7-Egg Electric Cooker is designed for convenient and efficient preparation of boiled, poached, and steamed eggs. Its compact design and stainless steel finish make it a practical addition to any kitchen.
Components:
- Main Unit with Heating Plate
- Tapa d'acer inoxidable
- Egg Tray (holds up to 7 eggs)
- Poaching Bowl
- Tassa de mesurar amb perforador d'ous
Figura 2.1: The VonShef 7-Egg Electric Cooker with its main unit, stainless steel lid, egg tray, poaching bowl, and measuring cup with egg piercer.
3. Configuració
- Desembalar: Traieu amb cura tots els components de l'embalatge.
- Neteja: Wash the stainless steel lid, egg tray, and poaching bowl in warm, soapy water. Rinse thoroughly and dry. Wipe the main unit with a damp tela. No submergiu la unitat principal a l'aigua.
- Col·locació: Place the main unit on a dry, stable, and heat-resistant surface, away from the edge of the counter. Ensure there is adequate ventilation around the appliance.
4. Instruccions de funcionament
4.1. Boiling Eggs (Soft, Medium, Hard)
- Perfora els ous: Use the egg piercer located at the bottom of the measuring cup to gently pierce the large end of each egg. This prevents cracking during cooking.
- Afegeix aigua: Fill the measuring cup with cold water according to your desired egg consistency. The cup has markings for soft, medium, and hard-boiled eggs (for 1-7 eggs). Pour the measured water onto the heating plate of the main unit.
- Col·locar els ous: Place the egg tray onto the heating plate. Arrange the pierced eggs on the egg tray with the pierced end facing upwards. The cooker can accommodate up to 7 eggs.
- Portada: Place the stainless steel lid over the egg tray and main unit.
- Comença a cuinar: Plug the appliance into a suitable power outlet. Press the power button. The indicator light will illuminate, signaling that the cooker is operating.
- Apagat automàtic: The cooker will automatically turn off once all the water has evaporated, and the indicator light will extinguish.
- Cool Eggs: Carefully remove the lid (beware of hot steam). Using oven mitts or a towel, remove the egg tray and immediately rinse the eggs under cold water or place them in an ice bath to stop the cooking process and make them easier to peel.

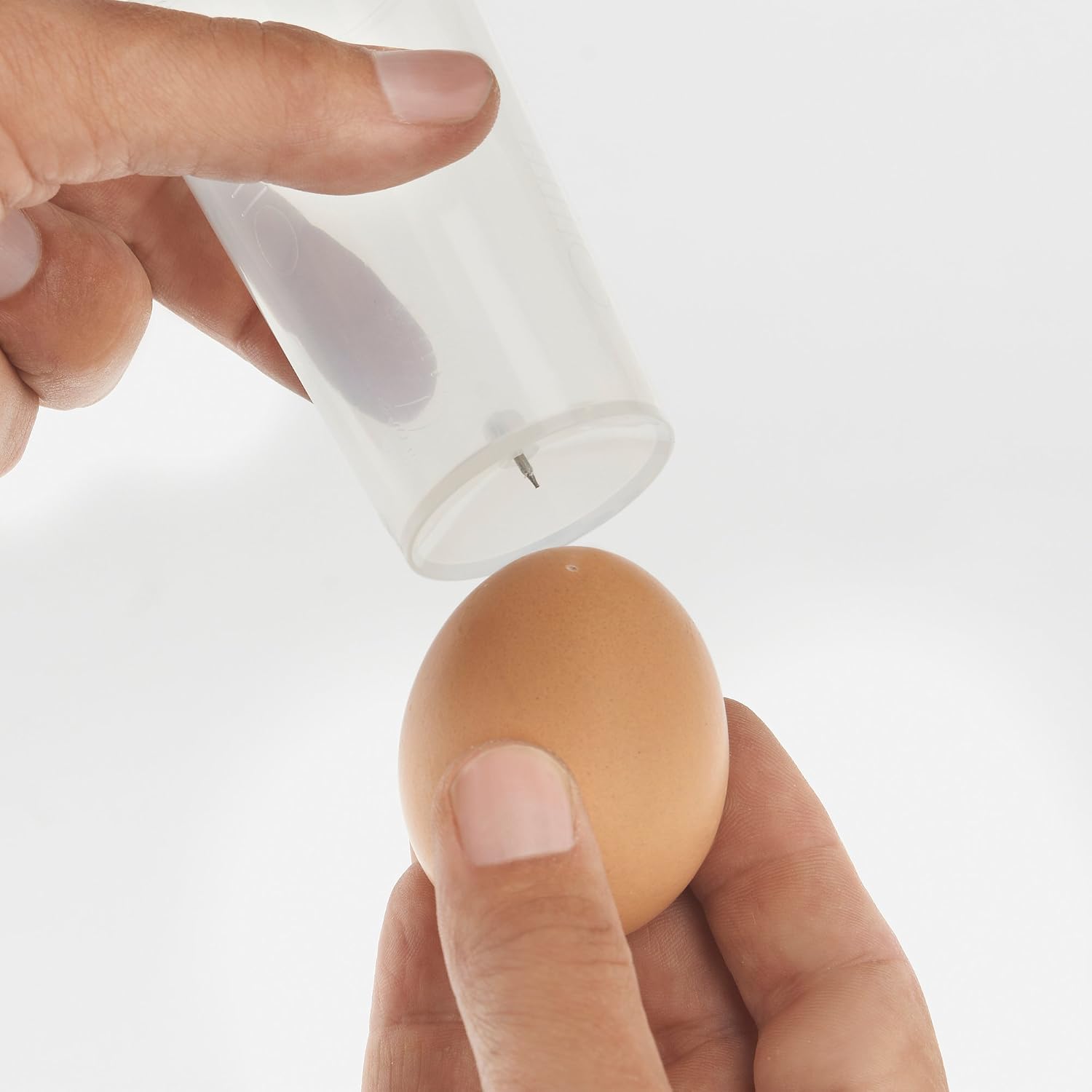

Figura 4.1: Gently pierce the large end of each egg using the integrated egg piercer on the measuring cup.
Figura 4.2: Place up to 7 eggs in the egg tray after piercing them.

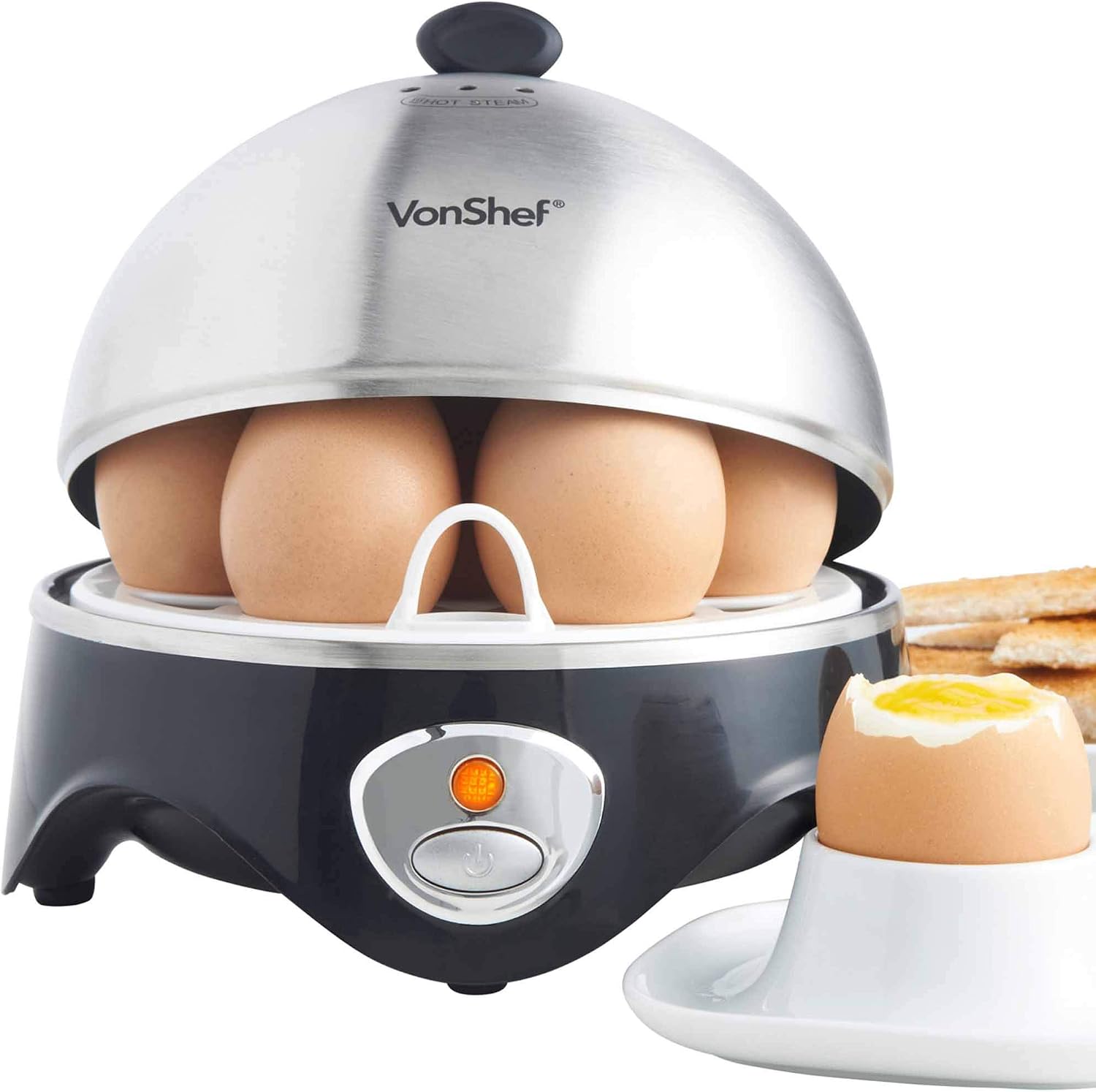

Figura 4.3: A perfectly cooked soft-boiled egg, ready to serve.
4.2. Poaching Eggs
- Prepare Poaching Bowl: Lightly grease the poaching bowl with butter or cooking spray to prevent sticking.
- Crack Eggs: Crack one or two eggs directly into the poaching bowl.
- Afegeix aigua: Fill the measuring cup with water up to the 'Hard' line (for 1-7 eggs) and pour it onto the heating plate.
- Place Poaching Bowl: Place the egg tray onto the heating plate, then place the poaching bowl into the center of the egg tray.
- cuiner: Cover with the lid, plug in, and press the power button. The cooker will automatically shut off when done.
- Servir: Carefully remove the poaching bowl using a heat-resistant utensil.
Figura 4.4: The poaching bowl placed in the egg cooker, ready for use.
4.3. Steaming Other Foods
The egg cooker can also be used to steam small quantities of vegetables or other foods. Place the food in the poaching bowl, add water to the heating plate (use the 'Hard' line for 1-7 eggs as a general guide), cover, and cook until the water evaporates. Cooking times will vary based on the food type and quantity.
4.4. Vídeo de demostració del producte
Vídeo 4.1: An official demonstration video showcasing the features and operation of the VonShef Egg Boiler, including boiling and poaching eggs.
5. Manteniment i Neteja
Regular cleaning will ensure the longevity and optimal performance of your egg cooker.
- Desconnectar: Desendolleu sempre l'aparell de la presa de corrent i deixeu-lo refredar completament abans de netejar-lo.
- Rentar les peces desmuntables: The stainless steel lid, egg tray, and poaching bowl can be washed in warm, soapy water. Rinse thoroughly and dry. These parts are generally dishwasher safe, but hand washing is recommended to prolong their life.
- Neteja la unitat principal: Netegeu l'exterior de la unitat principal amb un drap suau i sec.amp drap. No utilitzeu productes de neteja abrasius ni fregalls. No submergiu mai la unitat principal en aigua ni en cap altre líquid.
- Neteja la placa calefactora: If mineral deposits (scale) accumulate on the heating plate, fill the measuring cup with a mixture of water and white vinegar (1:1 ratio) up to the 'Hard' line. Pour this mixture onto the heating plate, close the lid, and turn on the cooker until the liquid evaporates. Unplug, let cool, and wipe clean with a damp drap. Repetiu si cal.
- Emmagatzematge: Guardeu l'aparell net i sec en un lloc fresc i sec.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Eggs not cooked to desired consistency. | Incorrect water amount used. | Ensure you use the correct water level indicated on the measuring cup for your desired egg hardness and number of eggs. |
| Eggs cracking during cooking. | Eggs not pierced, or pierced incorrectly. | Always pierce the large end of each egg with the provided piercer before cooking. |
| Indicator light remains on after cooking. | This appliance automatically turns off when all water has evaporated. If the light remains on, it indicates the unit is still powered. | The indicator light will turn off when the water has fully evaporated and the heating cycle is complete. If it remains on and the water is gone, unplug the unit. |
| White residue on heating plate. | Mineral deposits from water (limescale). | Descale the heating plate as described in the Maintenance and Cleaning section (Section 5). |
7. Especificacions
- Número de model: 07/034US
- Marca: VonShef
- Capacitat: Fins a 7 ous
- Material: Acer inoxidable, plàstic
- Característiques: Automatic shut-off, over-temperature protection, indicator light
8. Garantia i Suport
Your VonShef 7-Egg Electric Cooker comes with a standard manufacturer's warranty. For detailed warranty information, product support, or to inquire about replacement parts, please refer to the warranty card included with your purchase or visit the official VonShef weblloc.
If you experience any issues with your appliance, please contact VonShef customer service for assistance. Do not attempt to repair the appliance yourself.
