Introducció
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Zanussi replacement oven/stove lamp holder, glass cover, and bulb. This product is designed to restore proper illumination within your appliance. Please read these instructions carefully before proceeding with installation or maintenance.
Informació de seguretat
Prioritzeu sempre la seguretat quan treballeu amb aparells elèctrics. Si no seguiu aquestes pautes de seguretat, podeu patir descàrregues elèctriques, lesions o danys a l'aparell.
- Desconnecteu l'alimentació: Always ensure the appliance is completely disconnected from the main power supply before attempting any installation, removal, or maintenance.
- Permetre la refrigeració: Ensure the oven and existing lamp assembly have cooled down completely before handling to prevent burns.
- Utilitzeu les peces correctes: Only use replacement parts that match the specifications of your appliance. This kit is specifically designed for Zanussi ovens/stoves.
- Manejar amb cura: Glass components can break. Handle the glass cover and bulb carefully to avoid injury.
- Instal·lació professional: Si no esteu segurs de cap pas, consulteu un tècnic qualificat.
Producte acabatview
This replacement kit includes a complete lamp holder, a protective glass cover, and a 15W E14 bulb, designed for direct replacement in compatible Zanussi oven and stove models.

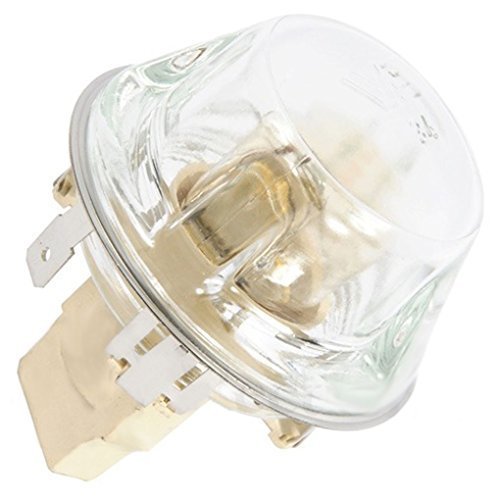

Image: The Zanussi replacement kit, showing the lamp holder, glass cover, and bulb components.
Instruccions d'instal·lació
Abans de començar
- Ensure the oven is unplugged or the circuit breaker for the oven is switched off.
- Allow the oven cavity and existing lamp assembly to cool completely.
- Gather any necessary tools, such as a screwdriver or gloves, if required for your specific oven model.
Instal·lació pas a pas
- Localitza la Lamp Muntatge: Open the oven door and locate the existing lamp assembly, typically on the rear or side wall of the oven cavity.
- Remove Old Glass Cover: Carefully unscrew or unclip the old glass cover. Some covers may twist counter-clockwise, while others may pull straight off.
- Traieu la bombeta antiga: Unscrew the old bulb counter-clockwise from the lamp holder. Dispose of the old bulb responsibly.
- Elimina la L antigaamp Holder (if replacing the entire unit): If your existing lamp holder is damaged and you are replacing the entire assembly, disconnect any wiring and unscrew the lamp holder from its mounting. Note the wiring configuration before disconnecting.
- Instal·la la nova Lamp Holder (if applicable): If replacing the holder, connect the wiring to the new lamp holder and secure it in place. Ensure connections are firm and correct.
- Instal·lar una bombeta nova: Carefully screw the new 15W E14 bulb into the lamp holder clockwise until it is snug. Do not overtighten.
- Attach New Glass Cover: Place the new glass cover over the bulb and secure it by twisting clockwise or clipping it into place. Ensure it is firmly seated to protect the bulb from heat and food splashes.
- Torneu a connectar l'alimentació: Plug the oven back into the power outlet or switch the circuit breaker back on.
- Prova la llum: Open the oven door or activate the oven light function to ensure the new bulb illuminates correctly.
Funcionament
Once correctly installed, the oven light will operate according to your specific Zanussi oven model's design. Typically, the light will turn on automatically when the oven door is opened, or it can be manually activated via a dedicated oven light button on the control panel.
Manteniment
Cleaning the Glass Cover
- Ensure the oven is cool and disconnected from power.
- Remove the glass cover as described in the installation steps.
- Wash the glass cover with warm, soapy water. Avoid abrasive cleaners that could scratch the glass.
- Rinse thoroughly and dry completely before reattaching.
Substitució de la bombeta
If only the bulb needs replacement, follow steps 1-3 and 6-9 from the "Step-by-Step Installation" section. Always use a replacement bulb with the correct specifications (E14/SES fitting, 15W, 240V) to ensure proper function and safety.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Oven light does not turn on. | Sense energia al forn. | Check if the oven is plugged in and the circuit breaker is on. |
| La bombeta està defectuosa o no està ben cargolada. | Ensure the bulb is screwed in tightly. Replace the bulb with a new one if necessary. | |
| Lamp holder connections are loose or damaged. | With power disconnected, check the wiring connections to the lamp holder. If damaged, professional repair may be required. | |
| La llum parpelleja. | Bombeta solta o connexió defectuosa. | Ensure the bulb is screwed in tightly. Check lamp holder connections. |
Especificacions
- Número de peça: 3570384069 (also referred to as DST3570384069)
- Marca: Zanussi
- Bulb Fitting: E14/SES (Small Edison Screw)
- Bombeta Wattage: 15 W
- Voltage: 240 V
- Dimensions aproximades del paquet: 11.3 x 10.4 x 9 cm
- Pes aproximat del paquet: 120 g
- Models compatibles: ZOS5, ZBM878B, ZOB141W, ZCM661NM, ZOU141W, and many other Zanussi oven and stove models. Refer to your appliance's manual or the product listing for a comprehensive list of compatible models.
Garantia i Suport
Specific warranty information for this replacement part is not provided in the product details. For any warranty claims or technical support, please contact the retailer from whom you purchased the product or refer to the official Zanussi customer support channels for your region.
