SENCO S200BN 18 Gauge Brad Nailer User Manual

1. Introducció

The SENCO S200BN 18 Gauge Brad Nailer is a robust and lightweight tool designed for precision fastening in various woodworking applications. It is engineered to drive 18-gauge brads into even the hardest woods, making it suitable for a wide range of finishing tasks.

Key features include an adjustable drive depth for precise fastener placement, a comfortable grip for extended use, and a no-mar pad to protect delicate work surfaces. The tool comes with a convenient carrying case for portability and storage.

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your SENCO S200BN brad nailer. Please read it thoroughly before using the tool.

Informació de seguretat

Prioritzeu sempre la seguretat quan feu servir eines elèctriques. Si no seguiu les instruccions de seguretat, podeu patir lesions greus.

• Llegeix el manual: Enteneu totes les instruccions i advertències abans de l'operació.
• Protecció ocular: Utilitzeu sempre ulleres de seguretat amb protectors laterals homologades per ANSI Z87.1.
• Protecció auditiva: Use hearing protection in noisy environments.
• Disconnect Air: Disconnect the tool from the air supply before making adjustments, clearing jams, or performing maintenance.
• Vestuari adequat: No porteu roba ampla ni joies que es puguin enganxar a les peces mòbils.
• Àrea de treball: Keep the work area clean and well-lit. Keep bystanders away.
• Condició de l'eina: Do not operate a damaged tool. Inspect it before each use.

2. Configuració

Connecting to Air Supply

1. Ensure the air compressor is off and the air hose is depressurized.
2. Connect a 1/4" NPT air hose to the tool's air inlet. Ensure a secure connection.
3. Set the air compressor's output pressure to the recommended operating range (typically 70-120 PSI, refer to tool markings if present).
4. Turn on the air compressor and allow it to build pressure.

Càrrega de fixacions

The S200BN uses 18-gauge brads. Fastener lengths typically range from 5/8" to 2" (16mm to 50mm).

1. Desconnecteu l'eina del subministrament d'aire.
2. Locate the magazine latch at the rear of the magazine.
3. Pull the magazine follower back until it locks in place.
4. Insert a strip of 18-gauge brads into the magazine with the points facing down.
5. Release the magazine follower, allowing it to push the brads forward.
6. Ensure brads are seated correctly and move freely within the magazine.

Adjusting Drive Depth

The S200BN features an adjustable drive depth mechanism to control how deep the brad is driven into the material.

• Locate the depth adjustment dial or lever, usually near the nose of the tool.
• Turn the dial or move the lever to increase or decrease the drive depth. Test on a scrap piece of material to achieve the desired depth.
• For flush driving, adjust until the brad head is level with the surface. For countersinking, adjust further.

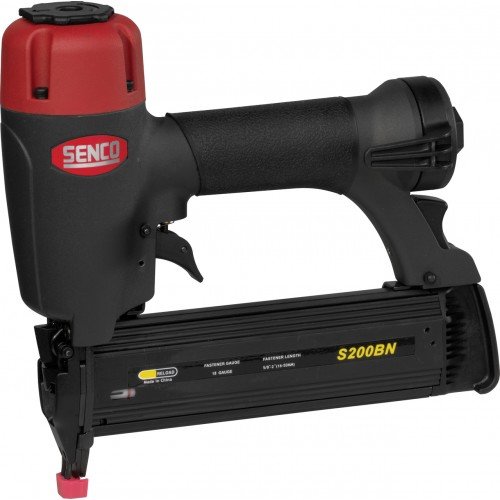

Image: The SENCO S200BN 18 Gauge Brad Nailer, showcasing its black body, red top, and yellow model designation on the magazine. This image provides a full view of the tool, highlighting its compact design and ergonomic grip.

3. Funcionament de l'eina

Funcionament bàsic

1. Ensure the tool is connected to the air supply and loaded with fasteners.
2. Hold the tool firmly against the workpiece, ensuring the nose is flush with the surface.
3. Depress the safety contact element (if present) against the workpiece.
4. Pull the trigger to drive a brad.
5. Deixeu anar el gallet i aixequeu l'eina de la peça de treball.

Sequential Firing

The S200BN typically operates in sequential firing mode, meaning the safety contact must be depressed against the workpiece before the trigger can be pulled to drive a fastener. This enhances safety by preventing accidental firing.

Eliminació d’embús

If a brad jams in the tool:

1. Immediately disconnect the tool from the air supply.
2. Open the magazine and remove any remaining fasteners.
3. Locate the jammed brad in the nosepiece. Use pliers or a small screwdriver to carefully remove the brad. Do not force it.
4. Inspect the nosepiece for any damage before reloading and reconnecting the air supply.

4. Manteniment

Regular maintenance ensures the longevity and optimal performance of your SENCO S200BN.

Lubricació

Pneumatic tools require lubrication to keep internal components operating smoothly.

• Apply 3-5 drops of pneumatic tool oil into the air inlet daily before use, or after every few hours of continuous operation.
• Use only non-detergent pneumatic tool oil. Do not use motor oil or other lubricants.

Neteja

• Keep the tool clean and free of debris. Use a clean, dry cloth to wipe down the exterior.
• Periodically clean the magazine to ensure smooth feeding of fasteners.

Air Filter and Regulator

• Ensure your air compressor system has a functioning air filter and regulator to prevent moisture and debris from entering the tool.
• Drain moisture from your air compressor tank daily.

5. Solució De Problemes

This section addresses common issues you might encounter with your brad nailer.

6. Especificacions

• Model: S200BN
• Tipus de fixació: Claus Brad de calibre 18
• Entrada d’aire: 1/4" NPT
• Fabricant: SENCO
• ASIN: B00NSZNOT8
• First Available on Amazon.de: 13 de juliol de 2018

7. Garantia i Suport

The SENCO S200BN comes with a 1-year warranty, as stated in the product description. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or service inquiries, please contact SENCO customer service or an authorized SENCO service center. Keep your proof of purchase for warranty validation.

For the most up-to-date support information, please visit the official SENCO website or refer to the documentation included with your product packaging.
