1. Introducció
This manual provides essential information for the installation, operation, and maintenance of your SOMFY Soliris Sensor 9154080. The Soliris Sensor is designed to automatically control your motorized awnings, blinds, or other compatible Somfy equipment based on detected wind speed and sun intensity. Please read this manual carefully before installation and use to ensure proper function and safety.
2. Informació de seguretat
AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions o danys al producte.
- Ensure all electrical connections are made by a qualified professional and comply with local regulations.
- Desconnecteu l'alimentació abans de realitzar qualsevol instal·lació, manteniment o resolució de problemes.
- Mount the sensor securely to prevent it from falling, especially in windy conditions.
- Do not expose the sensor to extreme temperatures outside its specified operating range (5°C to 40°C).
- Keep the sensor away from sources of strong electromagnetic interference.
- This product is intended for professional and personal use as specified.
3. Configuració
3.1 Desembalatge
Carefully remove the Soliris Sensor from its packaging. Verify that all components are present and undamaged.
3.2 Muntatge
The Soliris Sensor is designed for flange mounting. Choose a location that provides unobstructed exposure to wind and sun, typically on an exterior wall or roof. Ensure the mounting surface is stable and capable of supporting the sensor's weight (approximately 235 grams).
- Secure the flange mount using appropriate fasteners for your chosen surface.
- Ensure the sensor is level and oriented correctly according to the installation diagram (if provided with the physical product).

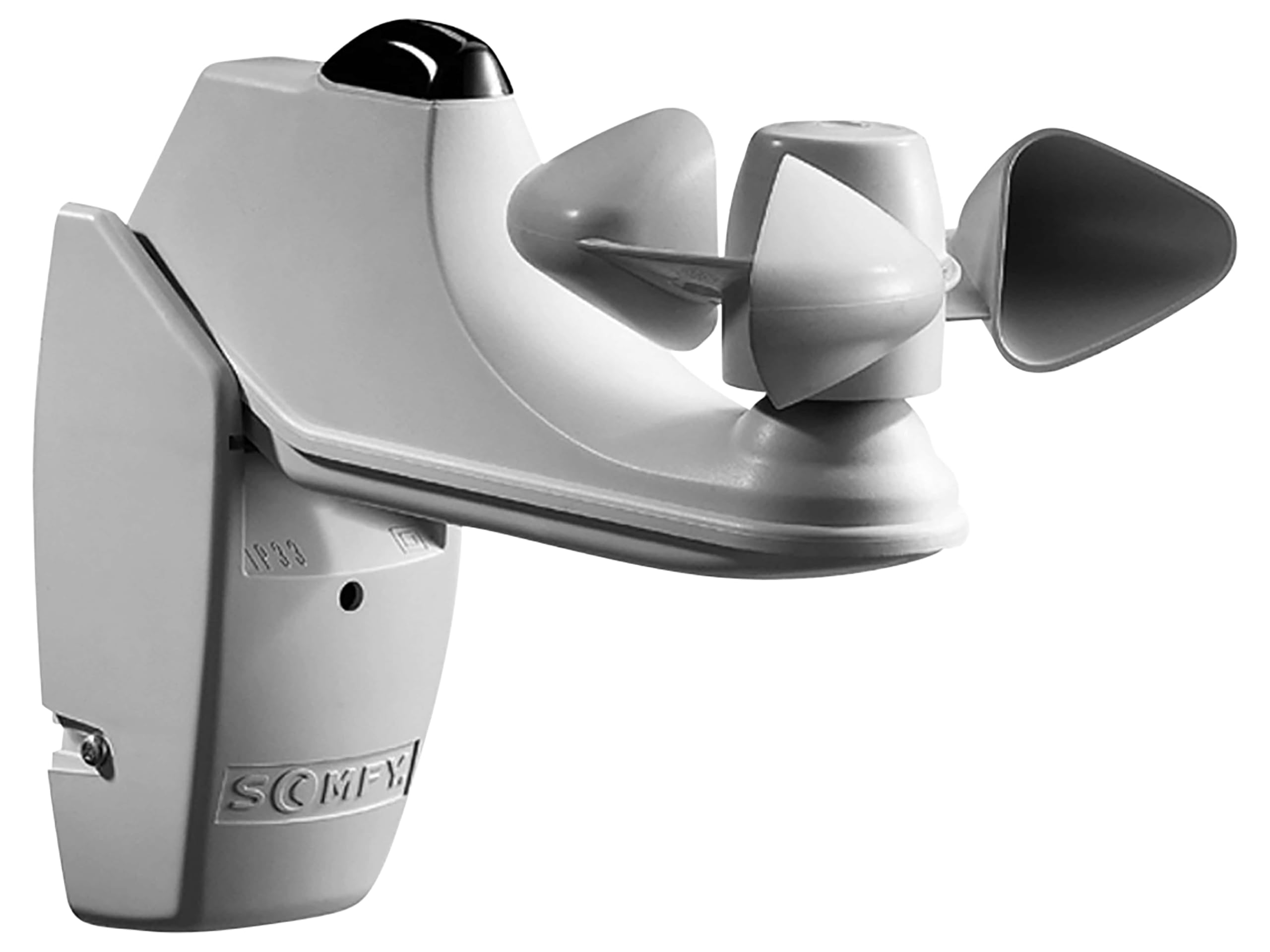

Image: The SOMFY Soliris Sensor 9154080, typically mounted on an exterior surface to detect environmental conditions.
3.3 Connexió elèctrica
The sensor features a digital output and operates with a maximum supply voltage of 50 Volts (DC). Connect the sensor to your Somfy control unit or compatible system according to the wiring diagram provided with your specific control unit. Ensure correct polarity and secure connections.
- Verify that the power supply matches the sensor's requirements.
- Route cables safely, protecting them from damage and environmental exposure.
3.4 Configuració inicial
After physical installation and electrical connection, refer to your Somfy control unit's manual for instructions on pairing the Soliris Sensor and setting desired wind and sun thresholds. The sensor will begin detecting conditions within its measurement range (min - max m/s for wind, min - max W/m2 for sun).
4. Funcionament
The SOMFY Soliris Sensor 9154080 operates autonomously once configured with a compatible control unit. It continuously monitors ambient wind speed and sun intensity.
- Wind Detection: When wind speed exceeds the pre-set threshold, the sensor signals the control unit to retract awnings or blinds to protect them from damage.
- Sun Detection: When sun intensity exceeds the pre-set threshold, the sensor signals the control unit to extend awnings or blinds to provide shade and reduce heat gain.
- Funcionament automàtic: The sensor provides automatic control, enhancing comfort and protecting your installations without manual intervention.
The detection distance for the sensor is approximately 15 meters, ensuring accurate readings within its operational range.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of your Soliris Sensor.
- Neteja: Periodically clean the sensor's plastic housing with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the material. Ensure the wind cups and sun sensor lens are free from dirt, dust, or obstructions.
- Inspecció: Annually inspect the mounting for security and check all electrical connections for signs of wear or corrosion.
- Condicions ambientals: The sensor is designed to operate within a temperature range of 5°C to 40°C. Ensure it is not exposed to conditions outside this range for extended periods.
6. Solució De Problemes
If you experience issues with your Soliris Sensor, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El sensor no respon | No power, loose connection, sensor obstruction, incorrect pairing. | Check power supply to the control unit. Verify all electrical connections are secure. Ensure the sensor is free from physical obstructions. Re-pair the sensor with the control unit as per its manual. |
| Awnings/blinds not reacting to wind/sun | Thresholds set too high/low, sensor malfunction, control unit issue. | Adjust wind/sun thresholds in the control unit settings. Clean the sensor. If the issue persists, contact Somfy support. |
| Lectures inconsistents | Sensor location, partial obstruction, environmental factors. | Ensure the sensor has an unobstructed view of the sky and is not affected by nearby structures or foliage. Verify the mounting is stable. |
7. Especificacions
| Característica | Especificació |
|---|---|
| Marca | SOMFY |
| Model | 9154080 |
| Dimensions (L x A x A) | 32 x 39 x 7 cm |
| Material | Plàstic |
| Pes de l'article | 235 grams |
| Estil | Sensor de vent |
| Temperatura nominal mínima | 5 graus centígrads |
| Volum de subministrament màximtage | 50 volts (CC) |
| Interval de mesura | min - max m/s (wind), min - max W/m2 (sun) |
| Tipus de muntatge | Muntatge de brides |
| Tipus de sortida | Digital |
| Distància de detecció | 15 metres |
| Product Specific Uses | Professional and Personal Use |
| Maximum Rated Temperature | 40 graus centígrads |
| UPC | 609207705888 |
| ASIN | B00OBIHSSY |
8. Garantia i Suport
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Somfy website. You can also contact Somfy customer service directly for assistance with your Soliris Sensor 9154080.
Per obtenir més ajuda, visiteu el Botiga de la marca Somfy.
