Introducció
This manual provides instructions for the installation, operation, and maintenance of the Danco MO-8 Faucet Cartridge, designed as a replacement part for compatible Moen hot and cold water faucets. This cartridge is essential for controlling water flow and temperature in your faucet.
Informació important de seguretat
Advertència de la Proposició 65 de Califòrnia:
Components of this product contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always wash hands thoroughly after handling this product.
Always turn off the main water supply to the faucet before beginning any installation or maintenance. Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
Contingut del paquet
- 1 x Danco MO-8 Faucet Cartridge (Model: 9D0088431E)
- (Additional components may vary based on packaging)

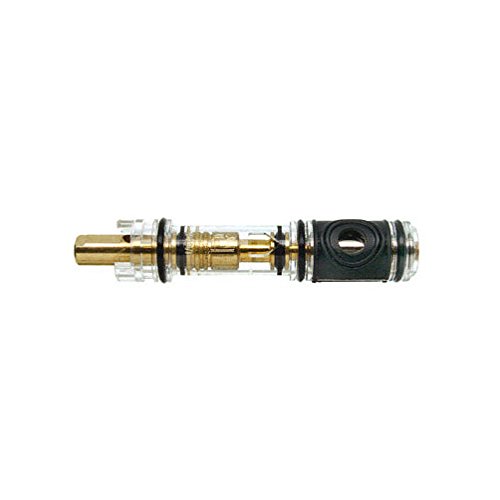

Image: Danco MO-8 Faucet Cartridge. This image displays the white plastic cartridge, featuring a black O-ring and a metal stem, ready for installation.
Instruccions d'instal·lació
Follow these general steps for replacing your faucet cartridge. Specific faucet models may have slight variations.
- Tanqueu el subministrament d'aigua: Locate the shut-off valves for your faucet (usually under the sink) and turn them off completely. Turn on the faucet to drain any remaining water.
- Treure la maneta de l'aixeta: Depending on your faucet model, you may need to pry off a decorative cap to access a screw (often a Phillips head or Allen screw). Unscrew and remove the handle.
- Remove Trim and Retaining Nut/Clip: Remove any decorative trim, escutcheon, or retaining nut/clip that secures the old cartridge in place. Some Moen faucets use a brass retaining nut or a small metal clip.
- Extreure el cartutx antic: Use pliers or a cartridge puller tool (if necessary) to carefully pull out the old cartridge. Note its orientation for proper installation of the new cartridge.
- Cos net de l'aixeta: Inspect the faucet body for any debris or mineral buildup. Clean the area thoroughly before inserting the new cartridge.
- Instal·leu un cartutx nou: Insert the Danco MO-8 cartridge into the faucet body, ensuring it is oriented correctly (e.g., hot and cold markings align, or the stem is positioned as the old one was).
- Cartutx segur: Reinstall the retaining nut/clip and any trim pieces.
- Reattach Faucet Handle: Place the faucet handle back onto the stem and secure it with the screw.
- Restaurar el subministrament d'aigua: Obriu lentament les vàlvules de subministrament d'aigua calenta i freda.
- Comproveu si hi ha fuites: Turn on the faucet and check for any leaks around the handle or spout. Test both hot and cold water flow.
Funcionament
The Danco MO-8 Faucet Cartridge functions as the core mechanism for controlling water flow and temperature in your Moen faucet. Once installed, the faucet handle manipulates the cartridge to mix hot and cold water to your desired temperature and to turn the water flow on or off.
Manteniment
- Inspecció periòdica: Periodically check your faucet for signs of leaks or drips. Early detection can prevent further damage.
- Neteja: If water flow becomes restricted, it may indicate mineral buildup in the faucet aerator or within the cartridge. While the cartridge itself is not typically cleaned, the aerator can be removed and cleaned.
- Substitució: Cartridges are wear-and-tear items. If you experience persistent drips, difficulty controlling temperature, or reduced water flow not attributable to other issues, the cartridge may need replacement.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Goteigs o fuites de l'aixeta | Improperly seated cartridge, damaged O-rings, or worn cartridge. | Ensure cartridge is fully seated and retaining nut/clip is tight. Inspect O-rings for damage; replace if necessary. If problem persists, the cartridge may be faulty or incompatible. |
| No Water Flow or Low Pressure | Water supply valves closed, clogged aerator, or debris in cartridge. | Check if water supply valves are fully open. Clean or replace faucet aerator. Re-install cartridge, ensuring no debris entered during installation. |
| Difficulty Controlling Temperature | Cartridge not properly aligned or internal damage. | Verify cartridge orientation during installation. If alignment is correct, the cartridge may be defective and require replacement. |
Especificacions
- Número de model: 9D0088431E
- Pes de l'article: 3.2 unces
- Dimensions del producte: 3.9 x 2 x 6.6 polzades
- Fabricant: DANCO INC
- Compatibilitat: Designed for Moen hot and cold water faucets (verify specific Moen model compatibility before purchase).
Garantia i Suport
For warranty information or technical support regarding your Danco MO-8 Faucet Cartridge, please contact Danco customer service directly. Refer to the Danco weblloc web o l'embalatge del producte per obtenir les dades de contacte i els termes de garantia més actualitzats.
Note: This product is a replacement part. Ensure compatibility with your specific faucet model before installation.
