Maxxima M20341YCL Amber Super Thin Profile LED Clearance Marker Light User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Maxxima M20341YCL Amber Super Thin Profile LED Clearance Marker Light. This light features 7 amber LEDs with a clear lens, designed for a sleek, low-profile style that fits tight areas. It is a P2PC combination clearance marker light, suitable for various vehicle applications. Please read this manual thoroughly before installation and use.

2. Característiques del producte

• Super Thin Profile: Re-designed for a sleek, low-profile style, ideal for tight spaces.
• Il·luminació LED: Equipped with 7 amber LEDs for bright and efficient lighting.
• Lent clara: Provides a clean aesthetic while emitting amber light.
• Opcions de muntatge: Supports two-hole surface mount or 3M adhesive tape for versatile installation.
• Disseny durador: Built to withstand various environmental conditions.
• Impermeable: Designed for reliable performance in wet conditions.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• 1 x Maxxima M20341YCL LED Clearance Marker Light Unit
• 1 x Instruction Guide (this document)

4. Informació de seguretat

Si us plau, observeu les següents precaucions de seguretat per evitar lesions o danys al producte:

• Always disconnect power to the vehicle's electrical system before installing or servicing any electrical components.
• Ensure proper wiring connections (positive to positive, negative to negative) to avoid short circuits or damage.
• Do not modify the light unit. Unauthorized modifications may void the warranty and create safety hazards.
• Feu servir equips de protecció individual adequats, com ara ulleres de seguretat, durant la instal·lació.
• Mantenir fora de l'abast dels nens.

5. Instruccions d'instal·lació

The Maxxima M20341YCL LED Clearance Marker Light offers flexible mounting options.

5.1 Opcions de muntatge

Choose one of the following methods for mounting:

1. Two-Hole Surface Mount:
   • Identify a suitable flat surface on your vehicle for mounting.
   • Mark the positions for the two mounting holes using the light unit as a template.
   • Drill pilot holes if necessary, ensuring they are appropriate for your mounting hardware (not included).
   • Secure the light unit to the surface using screws. Do not overtighten.
2. 3M Adhesive Tape Mount:
   • Clean the mounting surface thoroughly to ensure it is free of dirt, grease, and moisture.
   • Peel off the protective backing from the pre-applied 3M adhesive tape on the back of the light unit.
   • Carefully position the light unit on the desired surface and press firmly for at least 30 seconds to ensure good adhesion.
   • Allow the adhesive to cure for 24 hours before exposing to extreme conditions or washing.

5.2 Connexions de cablejat

This light operates on a 12-volt system.

• Connect the positive wire from the light (typically red) to a switched 12V positive power source on your vehicle.
• Connect the negative wire from the light (typically black or white) to a suitable ground point on your vehicle chassis.
• Assegureu-vos que totes les connexions estiguin ben fixades i aïllades per evitar curtcircuits i corrosió.

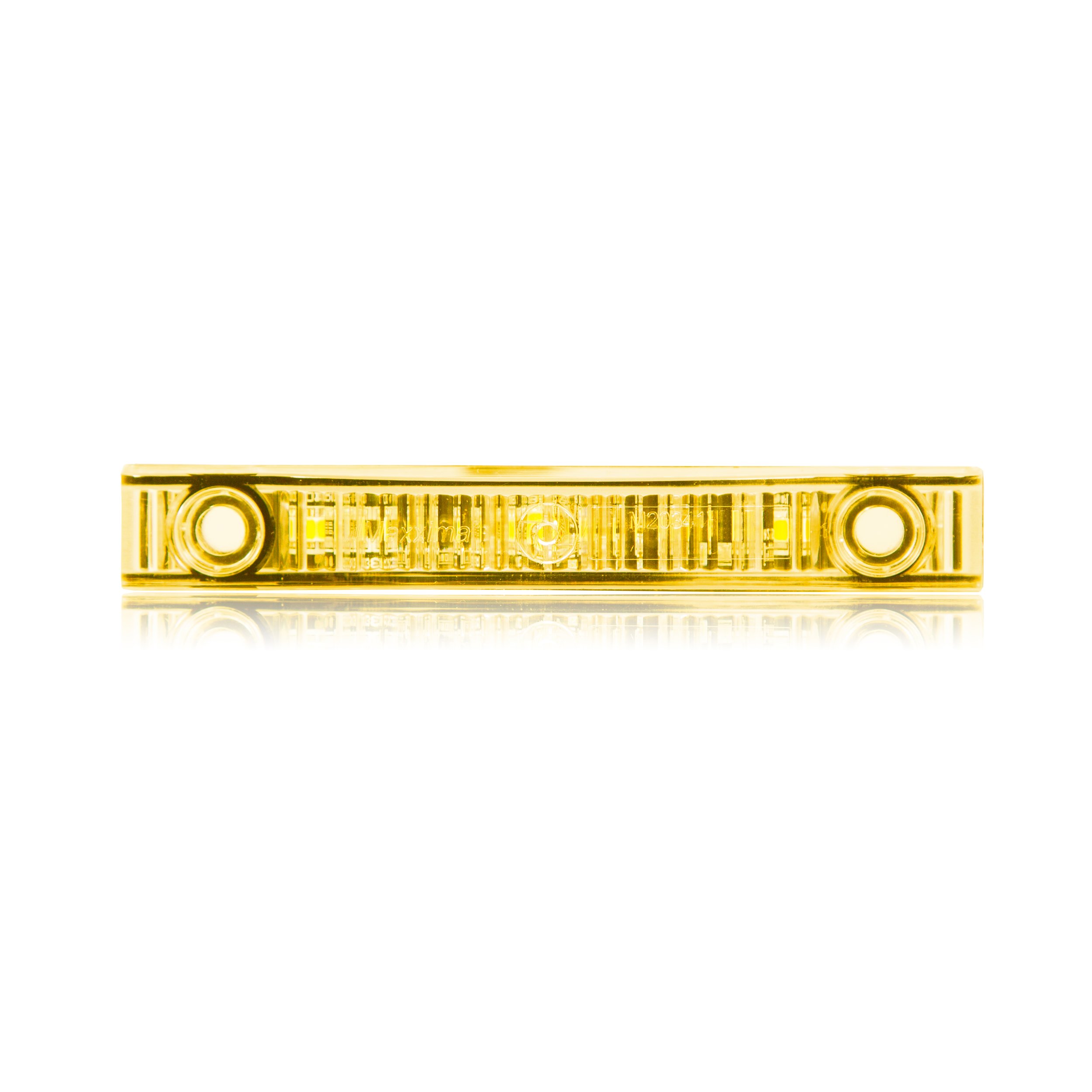

Figure 1: Maxxima M20341YCL Amber Super Thin Profile LED Clearance Marker Light. An amber LED clearance marker light with a clear lens, featuring a super thin profile suitable for various vehicle applications.

6. Funcionament

Once properly installed and wired, the Maxxima M20341YCL LED Clearance Marker Light will illuminate when power is supplied to its positive lead. This typically occurs when your vehicle's parking lights or headlights are activated, depending on how it was wired into your vehicle's electrical system.

7. Manteniment

The Maxxima M20341YCL LED Clearance Marker Light is designed for minimal maintenance.

• Neteja: Clean the lens periodically with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the lens or housing.
• Inspecció: Periodically check wiring connections for corrosion or damage. Ensure the light remains securely mounted.

8. Solució De Problemes

If your LED clearance marker light is not functioning as expected, consider the following:

• La llum no il·lumina:
  • Check all wiring connections to ensure they are secure and correctly polarized (positive to positive, negative to ground).
  • Verify that the vehicle's power source (e.g., parking light circuit) is active and providing 12V.
  • Inspect for any blown fuses in the circuit.
• La llum és tènue o parpelleja:
  • Ensure there is a stable 12V power supply. Voltage drops can cause dimming.
  • Check for loose or corroded connections that might impede current flow.
  • Verify the ground connection is solid.

If issues persist after troubleshooting, contact Maxxima customer support.

9. Especificacions

10. Garantia i Suport

This Maxxima M20341YCL LED Clearance Marker Light comes with a 5 anys de garantia del fabricant.

For warranty claims, technical support, or additional product information, please visit the official Maxxima store or contact their customer service directly.

Maxxima Store: MaxximaLEDLighting on Amazon
