SpeakerCraft SC Pro Commercial 6 6.5-inch Loudspeaker Instruction Manual

Introducció

This manual provides essential information for the proper installation, operation, and maintenance of your SpeakerCraft SC Pro Commercial 6 6.5-inch Loudspeaker. Please read these instructions thoroughly before installation and retain this manual for future reference. Adhering to these guidelines will ensure optimal performance and longevity of your loudspeaker.

Informació de seguretat

Observeu sempre les següents precaucions de seguretat per evitar danys al producte o lesions personals.

• Potència: Ensure all power to the amps'apaga abans de fer qualsevol connexió.
• Cablejat: Use appropriate gauge speaker wire for your installation. Incorrect wiring can lead to poor performance or damage.
• Muntatge: Ensure the mounting surface is structurally sound and can support the weight of the loudspeaker. Use appropriate mounting hardware.
• Medi ambient: This loudspeaker is designed for indoor commercial use. Do not expose it to moisture, extreme temperatures, or direct sunlight. It is not waterproof.
• Manteniment: No intenteu atendre aquest producte vosaltres mateixos. Consulteu tots els serveis a personal de servei qualificat.

Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• SpeakerCraft SC Pro Commercial 6 6.5-inch Loudspeaker (1 unit)
• Mounting hardware (pre-attached or included)
• Manual d'instruccions (aquest document)

Imatge: The SpeakerCraft SC Pro Commercial 6 loudspeaker shown alongside its original packaging box, illustrating the typical contents upon unboxing.

Configuració i instal·lació

Follow these steps for proper installation of your loudspeaker.

1. Planificació i col·locació

Determine the optimal location for your loudspeaker. Consider acoustic properties of the room and desired sound coverage. Ensure there is sufficient clearance behind the mounting surface for the speaker enclosure.

2. Muntatge

The SC Pro Commercial 6 is designed for in-ceiling or in-wall installation. It features integrated mounting clamps for secure attachment.

1. Retall: Carefully mark and cut the appropriate size hole in the ceiling or wall. Refer to the specifications section for exact dimensions.
2. Accés al cablejat: Ensure speaker wires are accessible through the cutout.
3. Inseriu un altaveu: Gently insert the loudspeaker into the cutout.
4. Assegureu-vos Clamps: Tighten the mounting screws (typically located on the front baffle) to engage the rotating clamps. Aquests clamps will pivot outwards and secure the speaker to the mounting surface. Do not overtighten.

Imatge: A view of the SpeakerCraft SC Pro Commercial 6 loudspeaker, highlighting the integrated mounting clips designed to secure the unit within a ceiling or wall opening.

3. Connexions de cablejat

Connecteu els cables dels altaveus del vostre amplifier or receiver to the terminals on the loudspeaker. Observe correct polarity (+ to + and - to -) for optimal sound performance.

• Identificar terminals: The loudspeaker will have clearly marked positive (+) and negative (-) terminals.
• Strip Wires: Carefully strip a small amount of insulation from the ends of your speaker wires.
• Connectar: Insert the stripped wire ends into the corresponding terminals and ensure a secure connection.

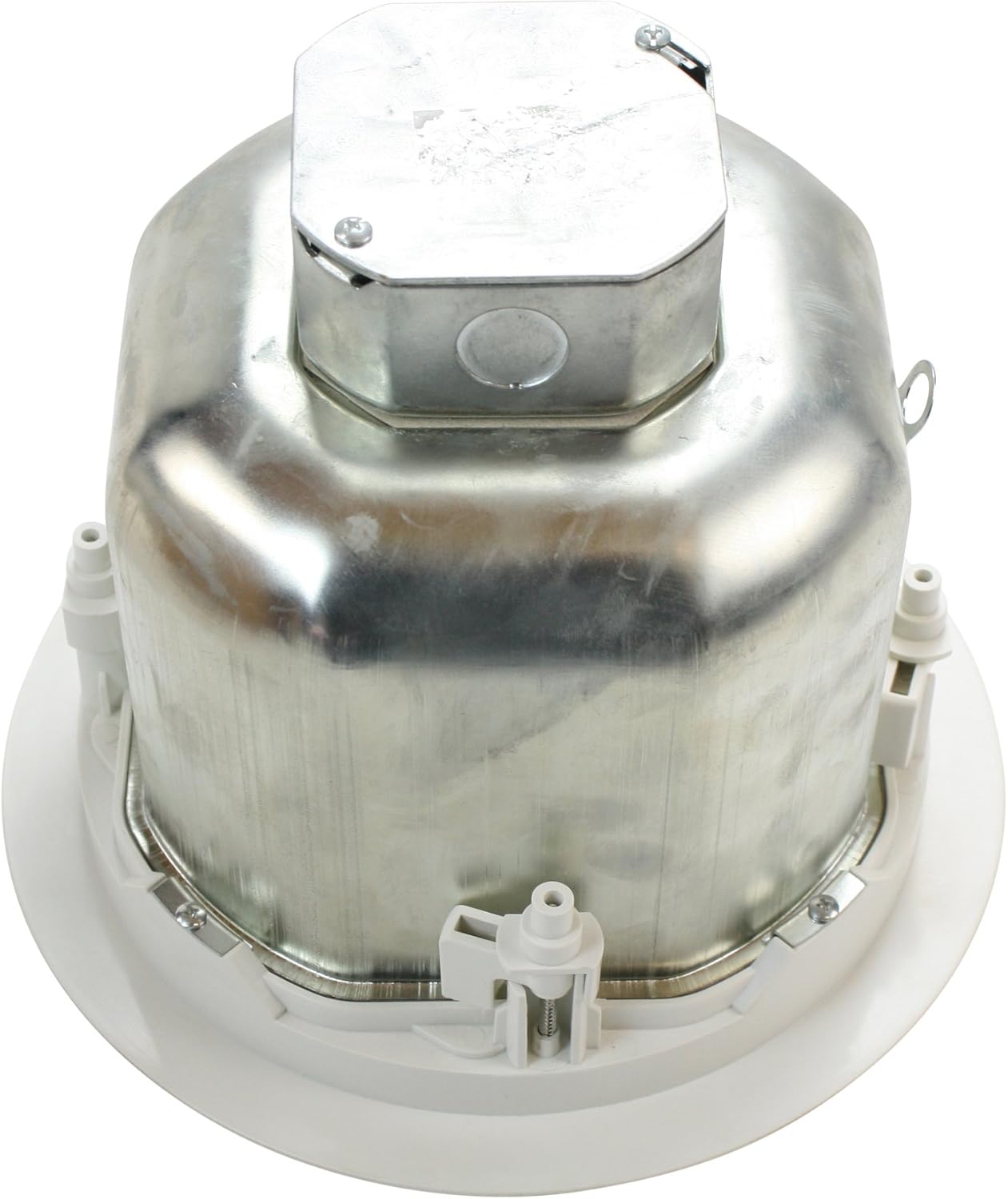

Imatge: The rear perspective of the SpeakerCraft SC Pro Commercial 6 loudspeaker, displaying the metal enclosure and the junction box where electrical connections are made.

4. Power Tap Settings

The SC Pro Commercial 6 features a selectable power tap for 70V/100V constant voltage systems. This allows you to adjust the wattage output of the speaker.

• Locate Selector: The power tap selector switch is typically found on the front baffle of the speaker, near the driver.
• Seleccioneu Wattage: Using a small screwdriver, rotate the selector to the desired wattage setting (e.g., 16W, 32W, 64W, or 8Ω for low impedance). Ensure the selected wattage matches the requirements of your audio system and the total load on your ampmés viu.

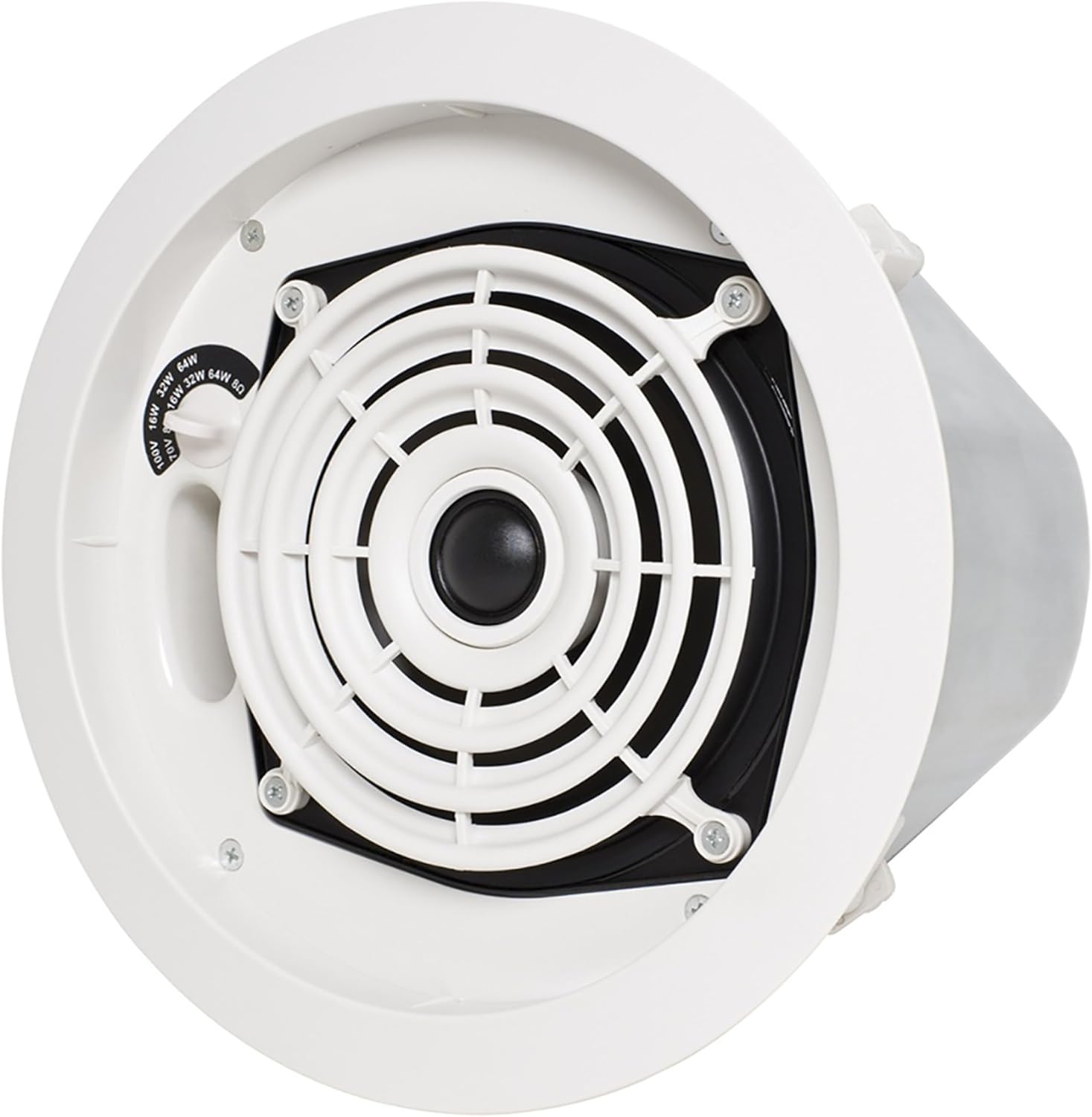

Imatge: Un front directe view of the SpeakerCraft SC Pro Commercial 6 loudspeaker, clearly showing the speaker grille and the power tap selector switch for adjusting wattage en vol constanttagsistemes electrònics.

Instruccions de funcionament

Once installed and connected, your SpeakerCraft SC Pro Commercial 6 loudspeaker is ready for operation.

• Encès: Enceneu el vostre amplificador o receptor.
• Control de volum: Comença amb el volum a un nivell baix i augmenta'l gradualment fins al nivell d'escolta desitjat.
• Prova de so: Verify that sound is coming from all connected loudspeakers and that the audio quality is as expected.

Manteniment

The SpeakerCraft SC Pro Commercial 6 loudspeaker requires minimal maintenance.

• Neteja: Dust the speaker grille and surrounding areas periodically with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Inspecció: Periodically check the mounting for security and the wiring connections for tightness.
• Eviteu la humitat: Keep the loudspeaker away from sources of moisture.

Resolució de problemes

If you encounter issues with your loudspeaker, refer to the following common problems and solutions:

Especificacions

Detailed technical specifications for the SpeakerCraft SC Pro Commercial 6 6.5-inch Loudspeaker:

Garantia i Suport

SpeakerCraft products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your product or visit the official SpeakerCraft website. For technical support or service inquiries, please contact SpeakerCraft customer service through their official channels.

Nota: Les reparacions o modificacions no autoritzades poden anul·lar la garantia.
