Dorman 624-997 Automatic Transmission Oil Cooler Hose Assembly

1. Introducció

This manual provides essential information for the Dorman 624-997 Automatic Transmission Oil Cooler Hose Assembly. This component is engineered as a direct replacement for the original equipment assembly on specified vehicles, ensuring proper transmission cooling and reliable performance. It is designed to address issues such as leaking or damaged lines caused by corrosion, collision, vibration, or fitting damage.

The assembly is constructed from quality materials to ensure durability and a long service life, backed by Dorman's extensive automotive experience.

2. Contingut del paquet

Upon opening the package, verify that all components are present and undamaged. The Dorman 624-997 Automatic Transmission Oil Cooler Hose Assembly includes:

• 1 x Automatic Transmission Oil Cooler Hose Assembly

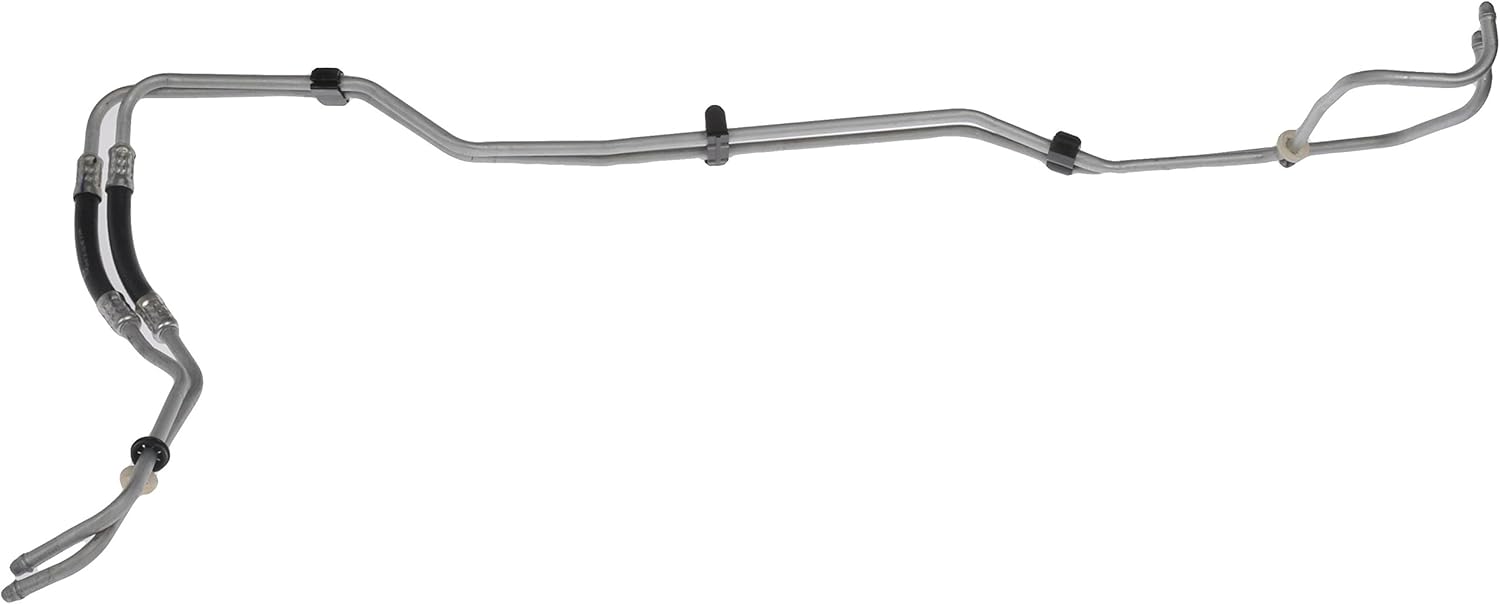

Figure 2.1: The Dorman 624-997 Automatic Transmission Oil Cooler Hose Assembly. This image displays the complete hose assembly, highlighting its form and connections.

3. Compatibilitat del vehicle

This automatic transmission oil cooler hose assembly is compatible with select Jeep models. It is crucial to confirm fitment for your specific vehicle before installation.

Vehicles compatibles:

• Jeep Wrangler: 2007, 2008, 2009, 2010, 2011

For precise fitment, it is recommended to use a vehicle fitment tool or consult your vehicle's service manual.

4. Pautes d'instal·lació

Installation of the automatic transmission oil cooler hose assembly requires mechanical knowledge and appropriate tools. If you are not confident in performing this installation, it is highly recommended to seek assistance from a qualified automotive technician.

Precaucions de seguretat:

• Utilitzeu sempre l'equip de protecció individual (EPI) adequat, incloent-hi ulleres i guants de seguretat.
• Assegureu-vos que el vehicle estigui ben recolzat sobre gats o un elevador abans de treballar a sota.
• Allow the engine and transmission to cool down completely before beginning work to prevent burns from hot fluids or components.
• Desconnecteu la bateria del vehicle per evitar curtcircuits elèctrics accidentals.
• Be prepared for fluid spills. Have a drain pan and absorbent materials ready.

Passos generals d'instal·lació:

1. Preparació: Park the vehicle on a level surface. Place a drain pan beneath the transmission cooler lines to catch any draining fluid.
2. Locate Old Assembly: Identify the existing automatic transmission oil cooler hose assembly.
3. Eliminar l'assemblea antiga: Carefully disconnect the old hose assembly from the transmission and the cooler. Be mindful of any retaining clips or fasteners. Dispose of the old assembly and fluid responsibly.
4. Inspeccionar connexions: Before installing the new assembly, inspect the mating surfaces and connections on the transmission and cooler for any debris, corrosion, or damage. Clean as necessary.
5. Instal·leu el nou muntatge: Route the new Dorman 624-997 assembly in the same manner as the original. Connect the ends securely to the transmission and the cooler. Ensure all connections are tight and properly seated to prevent leaks.
6. Secure Hoses: Use any provided or existing clips and hangers to secure the hose assembly, preventing chafing or contact with moving parts or hot surfaces.
7. Refill Transmission Fluid: Consult your vehicle's owner's manual for the correct type and amount of transmission fluid. Refill the transmission to the appropriate level.
8. Comproveu si hi ha fuites: Start the engine and allow it to reach operating temperature. Carefully inspect all new connections for any signs of leaks. Address any leaks immediately.
9. Comprovació final: Recheck the transmission fluid level after the vehicle has been driven for a short period and has reached operating temperature. Adjust as necessary.

Figura 4.1: Primer pla view of the hose ends and connections of the Dorman 624-997 assembly, illustrating the design for secure fitment.

5. Manteniment

Regular inspection of your automatic transmission oil cooler hose assembly can help prevent future issues and ensure optimal performance of your vehicle's transmission cooling system.

Manteniment recomanat:

• Inspecció visual: Periodically inspect the entire length of the hose assembly for any signs of wear, cracks, kinks, or damage. Check for corrosion around the fittings and connections.
• Detecció de fuites: Look for any signs of transmission fluid leaks around the hose and its connections. Even small drips can indicate a developing problem.
• Comprovació del nivell de líquid: Regularly check your transmission fluid level according to your vehicle manufacturer's recommendations. Low fluid levels can indicate a leak in the system, including the cooler lines.
• Muntatge segur: Ensure that the hose assembly remains securely mounted and is not rubbing against other components, which could lead to premature wear.

6. Solució De Problemes

This section addresses common issues that may arise with the automatic transmission oil cooler hose assembly.

7. Especificacions

Detailed technical specifications for the Dorman 624-997 Automatic Transmission Oil Cooler Hose Assembly:

Figure 7.1: Dorman's commitment to quality is demonstrated through rigorous testing processes for transmission lines, including corrosion, burst, dimensional scanning, and tensile testing.

8. Garantia i Suport

Dorman products are designed and manufactured to high-quality standards. For specific warranty information regarding the Dorman 624-997 Automatic Transmission Oil Cooler Hose Assembly, please refer to the warranty documentation included with your purchase or visit the official Dorman weblloc.

For technical support, installation assistance, or any product-related inquiries, please contact Dorman customer service directly. Their team of product experts is available to provide guidance and support.

You can find contact information on the Dorman weblloc web o a través del vostre distribuïdor de productes.
