Introducció
This instruction manual provides important information for the safe and effective use of your SunSun CUV-655 55W UV-C replacement lamp. This UV-C tube is designed specifically for use with SunSun CUV-655 sterilizers to maintain clear pond water and control algae growth. Please read these instructions carefully before installation and operation, and retain them for future reference.
Instruccions de seguretat
- UV Radiation Hazard: UV-C radiation is harmful to eyes and skin. Never look directly at an illuminated UV-C lamp. Assegureu-vos que lamp is always enclosed within its protective housing during operation.
- Seguretat elèctrica: Always disconnect the power supply to the UV sterilizer before handling or replacing the UV-C lamp.
- Fragile Component: The UV-C tube is made of glass and is fragile. Handle with care to prevent breakage.
- Ús previst: Aquesta lamp is designed exclusively for use in SunSun CUV-655 pond UV sterilizers. Do not use it for household lighting or any other purpose.
- Eliminació: Dispose of old UV-C lamps according to local environmental regulations, as they may contain mercury.
Components del producte
The SunSun CUV-655 UV-C replacement lamp consists of the following main parts:
- UV-C Glass Tube: The main component emitting UV-C radiation.
- Lamp Base: The electrical connection point with four pins.
Image: Close-up of the UV-C lamp base, showing the four electrical pins.
Image: The UV-C lamp, highlighting the glass tube and internal components.
Instal·lació i Configuració
This section outlines the steps for replacing the UV-C lamp in your SunSun CUV-655 sterilizer. Refer to your sterilizer's manual for specific instructions on opening the unit.
- Desconnexió d'alimentació: Ensure the UV sterilizer is completely disconnected from the power supply before beginning any maintenance.
- Accés Lamp Habitatge: Carefully open the UV sterilizer housing to access the old UV-C lamp. This usually involves unscrewing a cap or cover.
- Elimina la L antigaamp: Gently pull the old UV-C lamp straight out from its socket. Avoid twisting. If the lamp is stuck, check for any retaining clips or screws.
- Inspect Quartz Sleeve: Mentre que la lamp is out, inspect the quartz sleeve (the glass tube surrounding the UV-C lamp) for any cracks, damage, or excessive mineral buildup. Clean the quartz sleeve if necessary, using a soft cloth and a mild cleaning solution, then rinse thoroughly. Replace if damaged.
- Insereix una nova Lamp: Align the four pins of the new SunSun CUV-655 UV-C lamp with the corresponding slots in the lamp socket. Gently push the lamp straight into the socket until it is firmly seated. Do not force it.
- Habitatge segur: Carefully reassemble the UV sterilizer housing, ensuring all seals and caps are properly secured to prevent water leaks.
- Connexió d'alimentació: Once fully reassembled and secured, reconnect the UV sterilizer to the power supply.

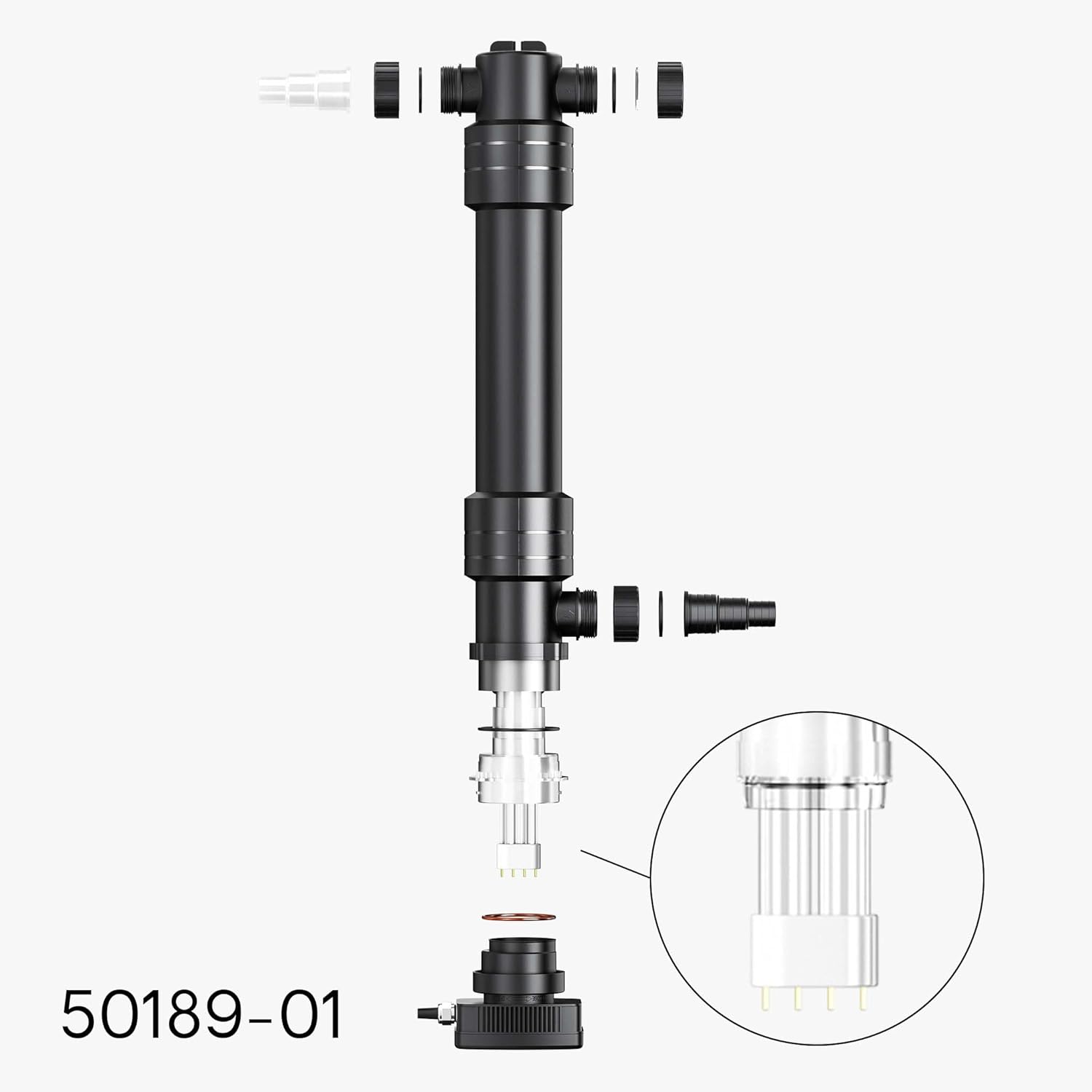

Imatge: Explosió view of the sterilizer, illustrating the location and assembly of the UV-C lamp.
Image: Illustration of the UV-C lamp insertion process into the sterilizer socket.
Funcionament
After successful installation, the UV-C lamp will begin operation once the sterilizer is powered on. The UV-C radiation works to clarify pond water by combating algae and harmful microorganisms.
- La UV-C lamp operates continuously when the sterilizer is powered.
- Do not attempt to operate the lamp outside of its designated sterilizer housing.
- A visible indicator light on your sterilizer (if equipped) may confirm the lampl'operació de.
Manteniment
Regular replacement of the UV-C lamp is crucial for maintaining optimal performance of your pond sterilizer.
- Horari de substitució: The effectiveness of the UV-C lamp diminishes over time, even if it still glows. For optimal algae control and water clarification, the UV-C lamp should be replaced after approximately 6,000 hores de funcionament.
- Reemplaçament anual: It is highly recommended to replace the UV-C lamp annually, ideally each spring, to ensure peak performance throughout the pond season.
- Neteja: Periodically clean the quartz sleeve surrounding the UV-C lamp to remove any mineral deposits or debris that can block UV-C light transmission. Always disconnect power before cleaning.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| UV-C lamp no s'il·lumina. | No power supply, faulty ballast, incorrect installation, or defective lamp. | Check power connection. Ensure lamp is correctly seated. Test with a new lamp if available. Consult sterilizer manual for ballast issues. |
| Pond water remains cloudy despite UV-C operation. | Lamp effectiveness reduced (old lamp), dirty quartz sleeve, sterilizer undersized for pond, or other water quality issues. | Substituïu UV-C lamp (if over 6000 hours or 1 year). Clean quartz sleeve. Ensure proper sterilizer sizing and flow rate. Check other pond parameters. |
| Water leakage from sterilizer. | Improperly sealed housing or damaged O-rings/gaskets. | Disconnect power. Check all seals and connections. Replace damaged O-rings or gaskets. Ensure housing is securely tightened. |
Especificacions
| Marca | SolSol |
| Número de model | 50189-01 |
| Tipus de llum | UV-C (Ultraviolet) |
| Consum d'energia | 55 watts |
| Voltage / Freqüència | 220 a 240 volts, 50 hertz |
| Vida mitjana | 6,000 hores |
| Dimensions (L x A x A) | 2.5 x 4.5 x 54.5 cm (130 grams) |
| Material | Vidre |
| Bulb Shape/Base | T-shape, E26 medium base (4-pin) |
| Ús específic | Pond UV Sterilizers (compatible with SunSun CUV-655) |
Garantia i Suport
For warranty information and technical support regarding your SunSun CUV-655 UV-C replacement lamp or compatible sterilizer, please refer to the documentation provided with your original sterilizer unit or contact SunSun customer service directly. Keep your purchase receipt as proof of purchase.
You can visit the official SunSun store for more information: SunSun Official Store
