Dorman 030-539 Oil Drain Plug & Gasket Assortment Instruction Manual

Introducció

This manual provides essential information for the proper use, identification, and maintenance of your Dorman 030-539 Oil Drain Plug & Gasket Assortment. This assortment is designed to provide a comprehensive selection of oil drain plugs and gaskets for various automotive applications, aiding in efficient and reliable vehicle maintenance.

Producte acabatview

The Dorman 030-539 Tech Tray contains 22 unique SKUs, totaling 44 pieces of oil drain plugs and gaskets. Each compartment is designed for organized storage and easy identification of components, making it a convenient solution for automotive repair and service.

Image 1: The Dorman 030-539 Oil Drain Plug & Gasket Assortment, showcasing the clear plastic tray with various plugs and gaskets organized in compartments.

Imatge 2: Una imatge de dalt a baix view of the Dorman 030-539 assortment, highlighting the variety of oil drain plugs and accompanying gaskets within their respective compartments.

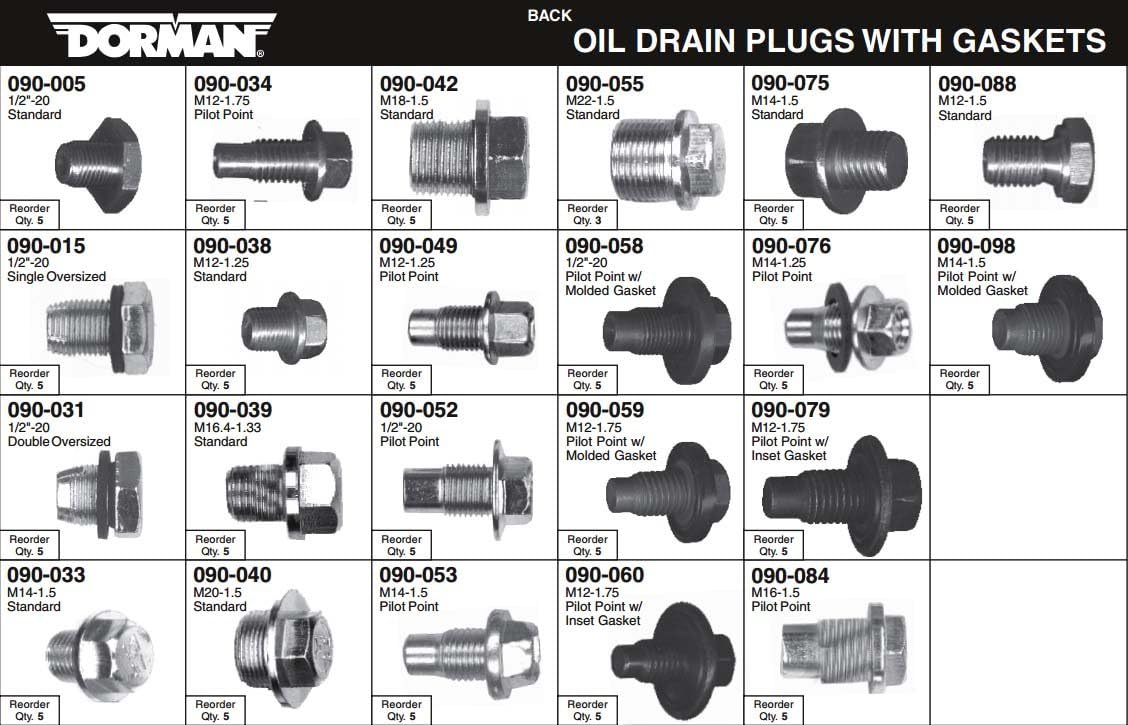

Image 3: The inside lid of the Dorman 030-539 assortment tray, featuring a detailed diagram that labels each type of oil drain plug with its corresponding Dorman part number and reorder quantity.

Component Identification and Selection

Before installation, it is crucial to identify the correct oil drain plug and gasket for your specific vehicle application. Refer to your vehicle's service manual or a reputable automotive parts catalog for the exact specifications required.

• Match Part Numbers: The tray lid provides a visual guide and part numbers for each plug type. Cross-reference these with the required part for your vehicle.
• Verifica les dimensions: Ensure the thread size, pitch, and length of the drain plug match the oil pan's specifications precisely.
• Gasket Compatibility: Always use a new gasket with each oil drain plug replacement to ensure a proper seal and prevent leaks. Match the gasket type (e.g., crush washer, O-ring) to the specific plug and application.

Pautes d'instal·lació

Proper installation of oil drain plugs and gaskets is essential for preventing oil leaks and ensuring engine integrity. Always follow these general guidelines and consult your vehicle's service manual for specific torque values and procedures.

1. Preparació: Ensure the engine is cool to avoid burns. Position a suitable oil drain pan beneath the oil pan.
2. Escórrer l'oli: Carefully remove the old drain plug and allow all engine oil to drain completely.
3. Clean Sealing Surface: Thoroughly clean the oil pan's drain plug opening and the surrounding area to remove any old gasket material or debris. A clean, smooth surface is critical for a leak-free seal.
4. Instal·leu una junta nova: Place the new, correct gasket onto the new oil drain plug. Ensure it is seated properly.
5. Insert New Plug: Hand-thread the new oil drain plug into the oil pan to ensure it starts correctly and avoids cross-threading. Do not force it.
6. Parell d'apretament segons les especificacions: Using a calibrated torque wrench, tighten the oil drain plug to the vehicle manufacturer's specified torque setting. Overtightening can damage the oil pan threads, while undertightening can lead to leaks.
7. Inspeccionar si hi ha fuites: After refilling the engine oil to the correct level, run the engine briefly and then inspect the drain plug area for any signs of leaks.

Manteniment i emmagatzematge

To ensure the longevity and usability of your Dorman Oil Drain Plug & Gasket Assortment:

• Mantingueu-vos organitzats: Store unused plugs and gaskets in their designated compartments within the tech tray to prevent mixing and damage.
• Neteja: Keep the tray and its contents free from dirt, oil, and moisture. Contaminants can affect the performance and sealing capabilities of the components.
• Entorn d'emmagatzematge: Store the assortment in a dry, temperate environment, away from direct sunlight or extreme temperatures, which could degrade gasket materials.

Especificacions

Informació de la garantia

Dorman products are manufactured to high-quality standards. For specific warranty details regarding the 030-539 Oil Drain Plug & Gasket Assortment, please refer to the official Dorman website or contact Dorman customer support directly. It is recommended to keep your purchase receipt as proof of purchase for any warranty claims.

Suport i informació de contacte

For technical assistance, product inquiries, or support related to your Dorman 030-539 Oil Drain Plug & Gasket Assortment, please visit the official Dorman website or contact their customer service department. Always provide the model number (030-539) when seeking support to ensure accurate assistance.

Dorman oficial Weblloc: www.dormanproducts.com
