Benro Mach3 TMA27A Aluminum Tripod Instruction Manual

1. Introducció

Thank you for choosing the Benro Mach3 TMA27A Aluminum Tripod. This professional-grade tripod is designed for stability, durability, and versatility, making it suitable for a wide range of photography and videography applications. This manual provides essential information for the proper setup, operation, and maintenance of your tripod.

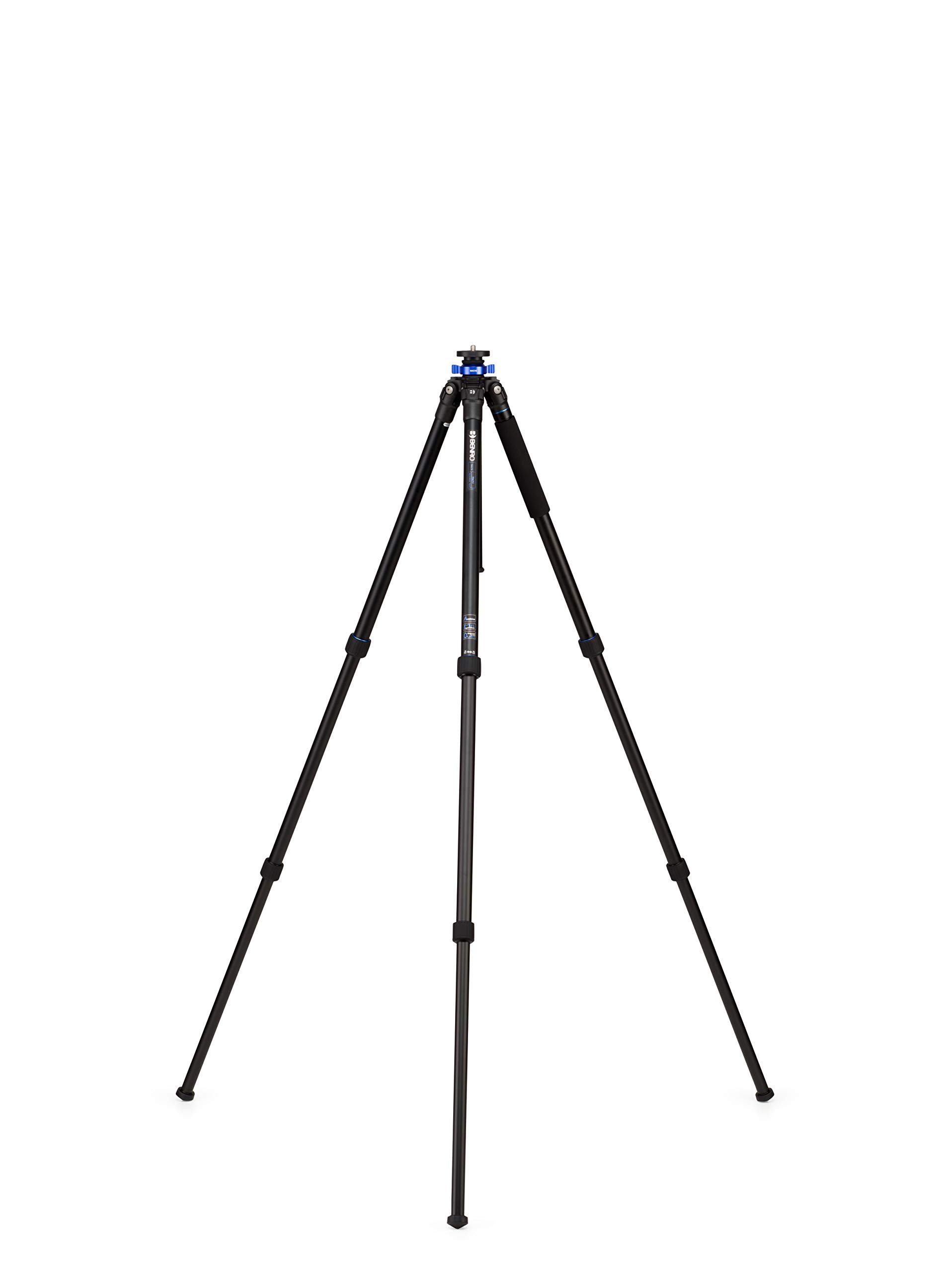

Image 1: The Benro Mach3 TMA27A Aluminum Tripod in its fully extended position, showcasing el seu disseny robust.

2. Característiques del producte

• Robust Aluminum Construction: Crafted from high-strength aluminum alloy for exceptional stability and durability.
• Alta capacitat de càrrega: Supports up to 30.9 lbs (14 kg) while weighing only 4.1 lbs (1.86 kg), ideal for various camera setups.
• 3-Section Twist-Lock Legs: Features weather-resistant twist locks for quick and secure height adjustments.
• Versatile & Adaptable Design: Includes a removable center column for low-angle and macro photography, and interchangeable rubber and spiked feet for diverse terrains.
• Professional Carry Kit: Comes with a padded carrying case and maintenance tools for convenient transport and upkeep.

3. Configuració

3.1 Desplegament del trípode

1. Col·loqueu el trípode sobre una superfície plana i estable.
2. Release the leg angle locks located at the top of each leg.
3. Extend each leg to your desired angle. The legs offer multiple angle stops for flexibility.
4. Twist the leg locks counter-clockwise to loosen each section, then pull to extend the leg sections. Twist clockwise to secure.

Image 2: The tripod with its legs fully extended, ready for use.

3.2 Attaching a Camera Head

The Benro Mach3 TMA27A features a standard 3/8"-16 threaded screw on the mounting plate, allowing compatibility with most tripod heads. To attach your camera head:

1. Ensure the mounting plate is clean and free of debris.
2. Carefully screw your camera head onto the 3/8"-16 thread until it is securely tightened.
3. Verify that the head is firmly attached before mounting any camera equipment.

4. Instruccions de funcionament

4.1 Ajust de l'alçada i els angles de les cames

• Seccions de cames: Loosen the twist locks on each leg section, extend to the desired height, and then firmly tighten the locks.
• Angles de les cames: Press the leg angle locks to adjust each leg independently to one of the preset angles. This allows for stable positioning on uneven terrain or for low-angle shots.
• Columna central: To extend the center column, loosen the center column locking knob, raise the column to the desired height, and then firmly tighten the knob.

Image 3: The center column of the tripod extended for additional height.

4.2 Reversible Center Column for Low-Angle Shooting

For extreme low-angle or macro photography, the center column can be reversed:

1. Fully extend and remove the center column by unscrewing the locking knob and pulling it out.
2. Invertiu la columna central i torneu-la a inserir al xassís del trípode des de baix.
3. Secure the center column by tightening the locking knob.

Image 4: The center column reversed, allowing for very low camera positioning.

4.3 Conversió de monopeu

One of the tripod legs can be detached and combined with the center column to form a full-size monopod:

1. Identify the leg with the foam grip. This leg is designed for monopod conversion.
2. Desenrosqueu aquesta pota del xassís del trípode.
3. Traieu la columna central del xassís del trípode.
4. Attach the detached leg to the bottom of the center column.
5. Your monopod is now ready for use.

4.4 Interchangeable Feet

The tripod comes with pre-installed rubber feet and a set of spiked feet for different shooting environments:

• Peus de goma: Ideal for indoor use or smooth, hard surfaces to prevent slipping and protect floors.
• Spiked Feet: Recommended for outdoor use on soft ground, grass, ice, or uneven terrain for maximum grip and stability.

To change the feet, simply unscrew the current feet and screw on the desired type.

Imatge 5: Primer pla view of the tripod leg, showing the interchangeable foot mechanism.

5. Manteniment

• Neteja: After each use, especially in dusty or wet conditions, wipe down the tripod with a soft, dry cloth. For stubborn dirt, use a damp drap i sabó suau, després assecar-lo bé.
• Lubricació: Periodically check the leg locks and center column for smooth operation. If they become stiff, apply a small amount of silicone-based lubricant. Avoid oil-based lubricants as they can attract dirt.
• Inspecció: Regularly inspect all screws, bolts, and moving parts for tightness. Use the provided tools to tighten any loose components.
• Emmagatzematge: Store the tripod in its padded carrying case in a cool, dry place when not in use to protect it from dust and moisture.

6. Solució De Problemes

• Legs not extending/retracting smoothly: Check for dirt or debris in the twist locks. Clean and apply a small amount of silicone lubricant if necessary. Ensure locks are fully loosened before adjusting.
• El trípode sembla inestable: Verify that all leg sections and the center column are fully extended and securely locked. Ensure leg angles are set appropriately for the terrain. Check for loose connections on the camera head.
• Camera head wobbles: Ensure the camera head is securely tightened onto the tripod's mounting plate. Check if the quick release plate is properly seated and locked onto the camera head.

7. Especificacions

8. Vídeo oficial del producte

Mireu aquest vídeo oficial per a més informacióview of the Benro Mach3 series tripods, highlighting key features and versatility.

9. Garantia i Suport

9.1 Garantia limitada

The standard limited warranty for your Benro Mach3 TMA27A Aluminum Tripod is 3 anys from the date of purchase for the original owner. If you register the product online, the warranty is extended by an additional 2 anys, totaling 5 anys in applicable regions.

For warranty claims or further support, please visit the official Benro weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
