Introducció
The Benro Travel Angel 2 Series Carbon Fiber Tripod with V1E Ball Head (Model FTA28CV1) is engineered for photographers seeking a compact, lightweight, and versatile camera support solution. This advanced tripod kit features 9X carbon fiber legs for optimal strength-to-weight ratio, magnesium castings, and secure twist locks. Designed for travel, it offers reverse-folding legs and the unique ability to convert one leg into a full-size monopod. The included V1E Ball Head provides precise control with separate pan, drag, and ball lock mechanisms, along with an Arca-Swiss style quick-release plate for efficient camera attachment.

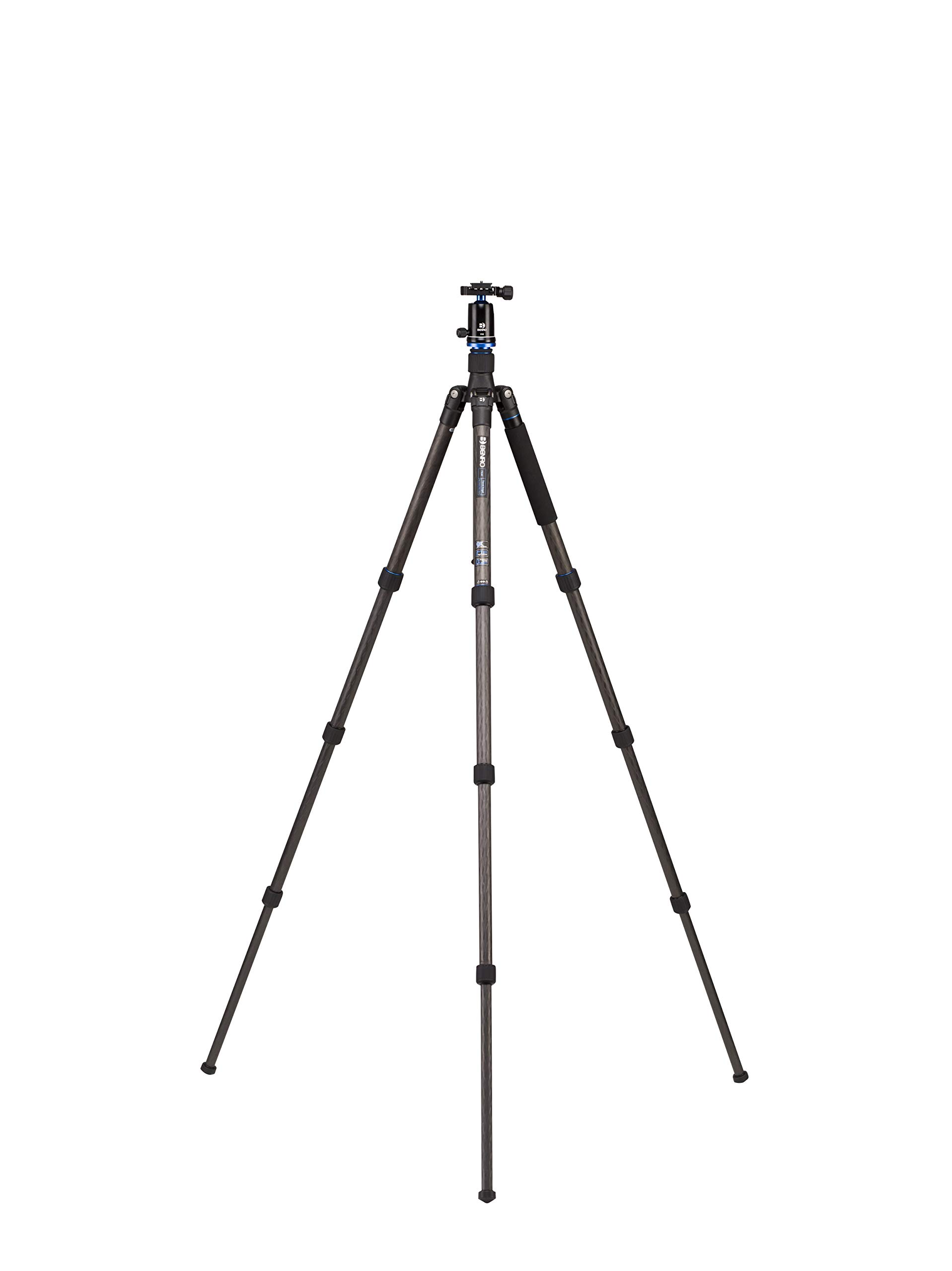

Image: The Benro Travel Angel 2 Series Carbon Fiber Tripod (FTA28CV1) fully extended with the V1E Ball Head attached.
Característiques del producte
- Disseny compacte i lleuger: Weighs approximately 3.98 lbs (1.81 kg) and supports up to 22 lbs (10 kg), making it ideal for travel.
- Alçada ajustable: Extends from a minimum height of 18.7 inches (47.5 cm) to a maximum height of 66.9 inches (170 cm).
- 4-Section Carbon Fiber Legs: Constructed from 9 layers of carbon fiber for durability and reduced weight. Legs feature twist locks for secure extension and retraction.
- Independent Leg Angle Adjustment: Each leg can be set to different angles for stability on uneven terrain.
- Peus intercanviables: Includes screw-in rubber feet for indoor use and stainless steel spiked feet for outdoor stability.
- Conversió de monopè: One of the tripod legs can be detached and combined with the center column to form a full-size monopod.
- V1E Ball Head: Features separate controls for pan lock, drag, and ball lock, allowing for precise camera positioning.
- Arca-Type Compatible Quick-Release Plate: Enables quick and secure attachment and detachment of your camera.
Què hi ha a la caixa
En desempaquetar, assegureu-vos que hi hagi tots els elements següents:
- Benro Travel Angel 2 Series Carbon Fiber Tripod (FTA28CV1)
- Benro V1E Ball Head
- Arca-Type Compatible Quick Release Plate
- Set of Interchangeable Rubber Feet
- Set of Interchangeable Stainless Steel Spiked Feet
- Padded Carrying Case with Shoulder Strap
Configuració
1. Desplegament del trípode
- Grasp the tripod legs and rotate them outwards from the center column until they are fully extended.
- Adjust each leg to your desired angle by pressing the leg angle adjustment lock near the top of each leg and moving the leg into one of the preset positions.
2. Estendre les potes del trípode
- To extend a leg section, twist the rubber twist lock counter-clockwise until it loosens.
- Estireu la secció de la cama cap a fora fins a la longitud desitjada.
- Twist the twist lock clockwise to secure the leg section firmly in place. Repeat for all leg sections and legs.
3. Attaching the V1E Ball Head
The V1E Ball Head is typically pre-attached. If not, screw the ball head onto the 3/8" threaded stud at the top of the center column until it is hand-tight. Ensure it is secure before mounting a camera.
Imatge: Una imatge detallada view of the Benro V1E Ball Head, showing the quick-release plate and control knobs.
4. Attaching the Camera to the Quick Release Plate
- Locate the quick-release plate and the 1/4"-20 camera screw.
- Screw the plate onto the bottom of your camera until it is secure.
- Obriu el clamp on the V1E Ball Head by turning the locking knob.
- Slide the quick-release plate with your camera into the clamp.
- Tighten the locking knob firmly to secure the camera. Ensure the camera is stable before releasinagafeu la vostra adherència.
5. Conversió de monopeu
- Identify the leg with the padded grip. This leg is designed for monopod conversion.
- Unscrew this leg from the tripod chassis by twisting it counter-clockwise.
- Desenrosqueu la columna central del xassís del trípode.
- Screw the detached leg onto the bottom of the center column.
- The V1E Ball Head remains attached to the top of the center column, completing the monopod assembly.
Image: One leg of the Benro Travel Angel 2 Series Tripod detached and configured as a monopod.
Instruccions de funcionament
1. V1E Ball Head Operation
- Maneta de bloqueig de bola: This is the main knob to control the movement of the ball. Loosen it to adjust the camera angle freely, and tighten it to lock the camera in position.
- Pan Lock Knob: This knob controls the horizontal rotation (panning) of the ball head. Loosen it to pan the camera 360 degrees, and tighten it to lock the panning movement.
- Drag Control: Some ball heads feature a separate drag control knob, which allows you to adjust the tension of the ball movement when the ball lock is loosened. This provides smoother adjustments and prevents sudden drops of the camera.
2. Using the Built-in Level
The V1E Ball Head includes a bubble level. Use this to ensure your camera is perfectly level for accurate horizons and compositions. Adjust the tripod legs or the ball head until the bubble is centered.
3. Reversing the Center Column
For low-angle photography or macro shots, the center column can be inverted. To do this, fully extend the center column, unscrew the locking collar at its base, remove the column, flip it upside down, and reinsert it. Secure the locking collar. This allows the camera to be mounted below the tripod's apex.
Image: The Benro Travel Angel 2 Series Tripod with the center column inverted, allowing for low-angle camera positioning.
Manteniment
- Neteja: After use, especially in dusty or sandy environments, wipe down the tripod legs and joints with a damp tela. Eviteu utilitzar productes químics aggressivs.
- Lubricació: Periodically check the twist locks and ball head for smooth operation. If they become stiff, a small amount of silicone-based lubricant can be applied to the threads or moving parts.
- Inspecció: Regularly inspect all screws, bolts, and connections to ensure they are tight. Check for any signs of wear or damage to the carbon fiber legs or ball head components.
- Emmagatzematge: Store the tripod in its padded carrying case in a dry, cool place to protect it from dust and impact.
Resolució de problemes
- Les seccions de les cames no s'estenen/retreuen suaument: Ensure twist locks are fully loosened. Clean any dirt or debris from the leg sections and apply a small amount of silicone lubricant if necessary.
- Camera not secure on ball head: Verify that the quick-release plate is correctly seated in the clamp and the locking knob is fully tightened. Ensure the plate is securely attached to the camera body.
- Inestabilitat del trípode: Ensure all leg sections are fully extended and locked. Check that the leg angle adjustments are engaged. On uneven surfaces, adjust individual leg lengths and angles to achieve maximum stability.
- Ball head movement is too loose or too stiff: Adjust the drag control knob (if present) to fine-tune the tension. Ensure the ball lock knob is not overtightened or too loose.
Especificacions
| Nom del model | FTA28CV1 |
| Marca | Benro |
| Material | Fibra de carboni |
| Color | Negre |
| Dimensions del producte | 24.6 x 5.7 x 56.02 polzades (62.5 x 14.5 x 142.3 cm) |
| Pes de l'article | 3.98 lliures (1.81 kg) |
| Límit de pes | 22 lliures (10 kg) |
| Altura màxima | 66.93 polzades (170 cm) |
| Altura mínima | 18.7 polzades (47.5 cm) |
| Tipus de capçal de trípode | V1E Ball Head |
| Seccions de cames | 4 |
| Dispositius compatibles | Càmera |
Vídeo oficial del producte
Video: This official product video demonstrates the key features, setup, and versatility of the Benro Travel Angel 2 Series Tripod, including its monopod conversion and compact folding design.
Garantia i Suport
For warranty information, technical support, or service inquiries regarding your Benro Travel Angel 2 Series Carbon Fiber Tripod FTA28CV1, please refer to the warranty card included with your product or visit the official Benro weblloc web. La informació de contacte del servei d'atenció al client normalment està disponible al lloc web del fabricant. weblloc.
