Cole-Parmer Labconco Echo 9579700 Filtered Fume Hood ADA Remote Control User Manual

1. Introducció

This manual provides essential instructions for the safe and efficient use of the Cole-Parmer Labconco Echo 9579700 Filtered Fume Hood ADA Remote Control. Please read this manual thoroughly before operating the device and retain it for future reference. This remote control is designed to enhance accessibility and control for compatible Labconco Echo Filtered Fume Hoods.

2. Producte acabatview

The Labconco Echo Filtered Fume Hood ADA Remote Control (Model AO-32535-30) is an accessory designed to provide convenient control over specific functions of compatible Labconco Echo Fume Hoods. It allows for remote operation, improving accessibility, particularly for users requiring ADA compliance.

Característiques principals:

• Remote operation for compatible Labconco Echo Fume Hoods.
• Designed to support ADA accessibility requirements.
• Disseny compacte i lleuger.

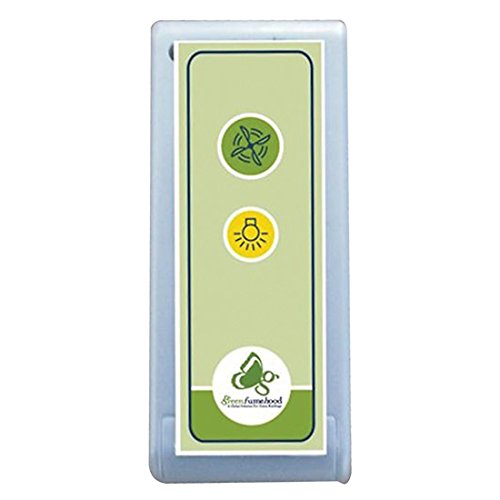

Figura 1: Frontal view of the Labconco Echo Fume Hood ADA Remote Control. The remote features a light green panel with two circular icons: an upper icon depicting a fan and a lower icon depicting a light bulb. Below these, a "Green fumehood" logo is visible. The remote is housed in a light gray casing.

3. Configuració

Before using the remote control, ensure it is properly set up and paired with your Labconco Echo Filtered Fume Hood.

1. Instal·lació de la bateria:
   • Localitzeu el compartiment de la bateria a la part posterior del comandament a distància.
   • Obriu la coberta del compartiment.
   • Insert the required batteries (e.g., 2x AAA) according to the polarity indicators (+/-).
   • Tanqueu bé la tapa del compartiment de la bateria.
2. Pairing with Fume Hood:

   Refer to your specific Labconco Echo Filtered Fume Hood manual for detailed pairing instructions. General steps may include:

   • Ensure the fume hood is powered on.
   • Activate the pairing mode on the fume hood (e.g., press and hold a button on the hood's control panel).
   • While the fume hood is in pairing mode, press and hold a designated button on the remote control (e.g., the fan button) until a confirmation indicator (e.g., LED flash, beep) is observed on either the remote or the fume hood.
   • Test the remote control functions to confirm successful pairing.

4. Instruccions de funcionament

Once the remote control is set up and paired, you can use it to control specific functions of your Labconco Echo Filtered Fume Hood.

• Control del ventilador:

  Premeu el botó amb icona del ventilador to control the fume hood's ventilation fan. This button typically toggles the fan ON/OFF or cycles through fan speed settings, depending on the fume hood model.
• Control de la llum:

  Premeu el botó amb icona de bombeta to control the fume hood's internal lighting. This button usually toggles the light ON/OFF.

Note: The exact functionality of each button may vary slightly based on the specific Labconco Echo Fume Hood model. Refer to your fume hood's manual for precise details.

5. Manteniment

Proper maintenance ensures the longevity and reliable operation of your remote control.

• Neteja:

  Netegeu el comandament a distància amb un drap suau i sec. Per a la brutícia resistent, netegeu lleugerament.amp Es pot utilitzar un drap amb sabó suau, seguit d'un drap sec. Eviteu productes de neteja o dissolvents abrasius.

• Substitució de la bateria:

  If the remote control becomes unresponsive or its range decreases, the batteries may need replacement. Follow the battery installation steps in Section 3.1. Dispose of old batteries according to local regulations.
• Emmagatzematge:

  Guardeu el comandament a distància en un lloc sec, allunyat de temperatures extremes i de la llum solar directa, quan no el feu servir durant períodes prolongats.

6. Solució De Problemes

Si teniu problemes amb el comandament a distància, proveu els passos següents per resoldre'ls:

• El comandament a distància no respon:
  • Comproveu i substituïu les piles si cal.
  • Ensure there are no obstructions between the remote and the fume hood.
  • Verify that the remote is within the effective operating range of the fume hood.
  • Re-pair the remote control with the fume hood (refer to Section 3.2).
• L'indicador lluminós no funciona:
  • This may indicate low batteries. Replace them.
  • Si les piles noves no solucionen el problema, poseu-vos en contacte amb el servei d'atenció al client.
• Funcionalitat parcial:

  If only some buttons work, ensure the remote is correctly paired and that the fume hood supports all functions. Consult the fume hood's manual.

7. Especificacions

8. Garantia i Suport

For warranty information, technical support, or service inquiries, please contact Cole-Parmer customer service. Ensure you have your product model number (AO-32535-30) and purchase details available when contacting support.

Fabricant: COLE-PARMER

Weblloc: Visit the Cole-Parmer Store on Amazon
