GIMA MT Base Plus Magnetotherapy Device User Manual

1. Introducció

The GIMA MT Base Plus is a low-frequency pulsed magnetotherapy device designed for home use. It generates an impulsive magnetic field.

The device incorporates a square-wave electric current generator with a variable frequency from 10 to 99 Hz and variable pulse duration, allowing for a pre-determinable field intensity from 10 to 80 Gauss.

It also includes an audible magnetic field detector and a safety system that blocks power delivery in case of a short circuit.

Therapeutic Effects

Els efectes principals dels camps magnètics de baixa freqüència inclouen:

• Anti-edematous (reduces swelling)
• Analgesic (pain relief)
• Antiinflamatori
• Regenerativa

These effects are primarily applied in traumatology, rheumatology, angiology, neurology, dermatology, and endocrinology.

2. Informació important de seguretat

Please read this manual carefully before using the GIMA MT Base Plus device. Failure to follow instructions may result in injury or device malfunction.

Precaucions generals de seguretat

• Utilitzeu el dispositiu només tal com es descriu en aquest manual.
• Mantingueu el dispositiu allunyat de l'aigua i altres líquids.
• No feu funcionar el dispositiu si ha estat danyat.
• Consult a medical professional before use, especially if you have pre-existing medical conditions, pacemakers, or are pregnant.
• Mantenir fora de l'abast dels nens.
• No intenteu obrir ni reparar el dispositiu vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat.
• Ensure the power supply matches the device's requirements (230V/50-60 Hz).

Compatibilitat electromagnètica (EMC)

This device complies with EN60601-1 (CE 162-5) safety standards. It is designed to minimize electromagnetic interference. However, avoid using it near other electronic devices that may cause or be susceptible to interference.

3. Contingut del paquet

Carefully unpack the device and check that all items are present and undamaged. If any items are missing or damaged, contact your supplier immediately.

• GIMA MT Base Plus Device
• Cable d'alimentació
• 2 Application Plates (70 x 120 cm)
• 1 Velcro Elastic Band (60 x 8 cm)
• 1 Velcro Elastic Band (100 x 8 cm)
• ABS Carrying Case
• Manual d'usuari (aquest document)

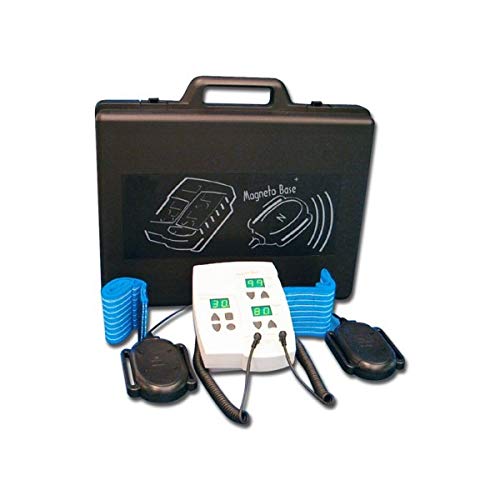

Image: The GIMA MT Base Plus device with its included accessories, such as application plates and elastic bands, neatly arranged.

4. Instruccions de configuració

Inspecció Inicial

Before first use, inspect the device and all accessories for any visible damage.

Potència de connexió

1. Place the GIMA MT Base Plus device on a stable, flat surface.
2. Assegureu-vos que el dispositiu estigui apagat.
3. Connect the power cable to the device's power input.
4. Plug the other end of the power cable into a standard 230V/50-60 Hz electrical outlet.

Attaching Application Plates

1. Identify the two application plates. These are the components that deliver the magnetic field.
2. Connect the application plates to the designated ports on the GIMA MT Base Plus device. Ensure a secure connection.
3. Use the provided Velcro elastic bands to comfortably secure the application plates to the desired treatment area on the body. Do not overtighten.

5. Funcionament del dispositiu

Encès/Apagat

1. To power on the device, press the power button. The display should illuminate.
2. Per apagar el dispositiu, manteniu premut el botó d'engegada fins que s'apagui la pantalla.

Setting Treatment Parameters

The GIMA MT Base Plus allows adjustment of magnetic field frequency and intensity.

1. Ajust de freqüència: Use the frequency control buttons (e.g., '+' and '-') to select the desired frequency between 10 and 99 Hz.
2. Ajust d'intensitat: Use the intensity control buttons to set the magnetic field intensity between 10 and 80 Gauss.
3. Durada del pols: The pulse duration is automatically adjusted based on the selected frequency and intensity to achieve the desired field.

Inici d'una sessió de tractament

1. After setting the desired frequency and intensity, press the 'Start' or 'Run' button to begin the treatment.
2. The device will emit an audible signal if the magnetic field is detected, confirming operation.
3. Monitor the treatment area and ensure comfort. If any discomfort occurs, stop the treatment immediately.

Detector de camp magnètic

The device includes an audible magnetic field detector. This feature provides confirmation that the magnetic field is being generated. If no sound is heard during operation, check connections and settings.

6. Manteniment i cura

Neteja

Desconnecteu sempre el dispositiu de la font d'alimentació abans de netejar-lo.

• Wipe the device's exterior with a soft, damp tela.
• No utilitzeu netejadors abrasius, dissolvents ni productes químics agressius.
• Ensure no liquid enters the device.
• Clean application plates with a mild disinfectant solution and allow them to air dry completely.

Emmagatzematge

• Store the device and its accessories in the provided ABS carrying case when not in use.
• Emmagatzemar en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Mantenir fora de l'abast dels nens.

Eliminació

This product should not be disposed of with household waste. Please follow local regulations for the disposal of electronic devices.

7. Solució De Problemes

If you encounter any issues not listed here or if the suggested solutions do not resolve the problem, please contact GIMA customer support.

8. Especificacions tècniques

9. Garantia i atenció al client

Informació de la garantia

GIMA products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official GIMA weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

Atenció al client

For technical assistance, troubleshooting, or service inquiries, please contact GIMA customer support.

You can find contact information on the official GIMA weblloc web o a través del vostre distribuïdor autoritzat.

When contacting support, please have your device model (MT Base Plus) and serial number (if applicable) ready.
