LaView LV-PB932F4 IP Bullet Security Camera User Manual

1. Introducció

This manual provides instructions for the LaView LV-PB932F4 IP Bullet Camera. This camera is designed for surveillance applications, offering 1080P HD resolution for both indoor and outdoor use. It features day and night vision capabilities, with infrared (IR) night vision up to 100 feet. The camera is weatherproof with an IP66 rating and operates in temperatures from -13°F to 140°F (-25°C to 60°C).

Image 1.1: LaView LV-PB932F4 IP Bullet Camera features.

2. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• 1 x LaView LV-PB932F4 2MP 1080P IP Bullet Camera
• (Additional accessories such as mounting screws, anchors, and Ethernet cable may vary by package and are often sold separately.)

3. Configuració i instal·lació

3.1 Abans de la instal·lació

Ensure your Network Video Recorder (NVR) system is compatible with IP 2MP cameras. Plan the camera's placement to maximize coverage and minimize obstructions.

3.2 Instal·lació física

The camera is designed for wall mounting. Select a suitable location that provides the desired field of view and protection from direct impact.

Passos de muntatge:

1. Mark drilling points using the camera's base as a template.
2. Drill pilot holes appropriate for your mounting surface.
3. Secure the camera to the mounting surface using appropriate screws and anchors (not included).
4. Ajusteu l'angle de la càmera per a una cobertura òptima.

3.3 Connexió

This camera utilizes Power over Ethernet (PoE) for simplified installation. A single network cable provides both power and data connection.

1. Connect one end of an Ethernet cable (Cat 5e or Cat 6 recommended) to the camera's Ethernet port.
2. Connect the other end of the Ethernet cable to a PoE-enabled port on your NVR or a PoE switch.
3. The camera should automatically power on and attempt to connect to your NVR system.

Nota: For systems that do not automatically configure, refer to your NVR's manual for adding IP cameras and network configuration.

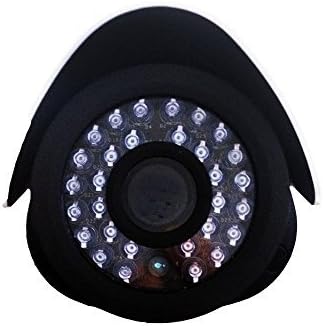

Imatge 3.1: Frontal view of the camera lens and IR LEDs.

4. Funcionament

4.1 Day/Night Vision

The camera automatically switches between day (color) and night (black and white, infrared) modes based on ambient light conditions. In night mode, the camera's infrared LEDs activate to provide visibility up to 100 feet in darkness.

4.2 Detecció de moviment

The camera supports motion detection. Configuration of motion detection zones and sensitivity settings is typically done through your connected NVR system's interface. Refer to your NVR's manual for detailed instructions on setting up motion alerts and recording triggers.

4.3 Enregistrament i reproducció de vídeo

Video recording and playback functions are managed by your NVR system. Consult your NVR's user manual for instructions on accessing live view, configuring recording schedules, and reviewing gravat footage.

5. Manteniment

To ensure optimal performance and longevity of your camera, follow these maintenance guidelines:

• Neteja: Netegeu periòdicament la lent de la càmera amb un drap suau i sec.amp cloth. Avoid abrasive cleaners or solvents that could damage the lens coating.
• Inspecció del cable: Regularly inspect all cables for damage, wear, or loose connections.
• Actualitzacions de firmware: Check the official LaView website for any available firmware updates for your camera model. Firmware updates can improve performance, enhance security, and add new features.
• Protecció del medi ambient: While the camera is IP66 weatherproof, extreme environmental conditions (e.g., direct lightning strikes, prolonged submersion, or corrosive environments) should be avoided.

6. Solució De Problemes

6.1 No Image/Video Signal

• Comproveu la potència: Ensure the camera is receiving power via the PoE connection. Verify the Ethernet cable is securely connected to both the camera and the PoE source (NVR/switch).
• Comproveu la connexió de xarxa: Confirm the Ethernet cable is not damaged. Try a different port on your NVR/switch.
• NVR Compatibility: Ensure your NVR system is compatible with 2MP IP cameras.
• Conflicte d'adreça IP: If manually configuring, check for IP address conflicts on your network.

6.2 Mala qualitat d'imatge

• Neteja la lent: Clean the camera lens for any dirt, dust, or smudges.
• Condicions d'il·luminació: Ensure adequate lighting for optimal image quality. In low light, the camera will automatically switch to IR night vision.
• Configuració de resolució: Verify the video resolution settings on your NVR are set to 1080P or higher, if supported by your NVR.

6.3 Night Vision Not Working

• LED IR: In dark conditions, check if the infrared LEDs are illuminating. They may emit a faint red glow.
• Obstruccions: Ensure there are no obstructions directly in front of the camera that could block the IR light.

6.4 Problemes de detecció de moviment

• Configuració de sensibilitat: Adjust the motion detection sensitivity on your NVR. High sensitivity can lead to false alarms (e.g., from insects, moving branches).
• Zones de detecció: Verify that the motion detection zones are correctly configured to cover the desired areas.

7. Especificacions tècniques

8. Garantia i Suport

8.1 Informació de la garantia

This LaView product is covered by a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.

8.2 Suport tècnic

For technical assistance or support, please visit the official LaView website or contact their customer service. Lifetime technical support is provided to assist with setup, operation, and troubleshooting.

LaView Oficial Weblloc: www.laviewsecurity.com
