Retevis USJ6247A

Retevis Six Way Multi Unit Charger Instruction Manual

Model: USJ6247A

1. Introducció

Thank you for choosing the Retevis Six Way Multi Unit Charger. This charger is designed to efficiently charge up to six two-way radio batteries or radios simultaneously, providing a convenient and organized charging solution for compatible models such as Baofeng UV-5R, BF-F8HP, Retevis RT-5R, RT-5RV, and TYT TH-F8. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your device.

2. Producte acabatview

2.1 Contingut del paquet

  • Retevis Six Way Multi Unit Charger Base
  • AC Power Adapter (100V-240V input)

2.2 Característiques clau

  • Càrrega simultània per a un màxim de sis ràdios o bateries.
  • Compatible with various two-way radio models.
  • Vol universaltage input (100V-240V) for global use.
  • Indicadors LED per a l'estat de càrrega.
  • Wall-mountable design for space-saving installation.

2.3 Identificació de components

Retevis Six Way Multi Unit Charger with AC Power Adapter
Figure 1: Retevis Six Way Multi Unit Charger with AC Power Adapter. The image shows the charger base and its power adapter, highlighting the 100V-240V input range and nail holes for wall mounting.
  • Ranures de càrrega: Six individual slots for radios or batteries.
  • Interfície d'alimentació: Port on the side of the charger for connecting the AC power adapter.
  • Indicadors LED: Located next to each charging slot, indicating charging status.
  • Forats de claus: Pre-drilled holes on the charger base for wall mounting.
  • Sliding Brackets: Located on the underside of the charger for stability or alternative mounting.
  • Base Wads: Rubber feet on the underside to prevent slipping and reduce wear.
Close-up of the power interface on the Retevis Six Way Multi Unit Charger
Figura 2: Primer pla view of the power interface on the charger, where the AC adapter connects.

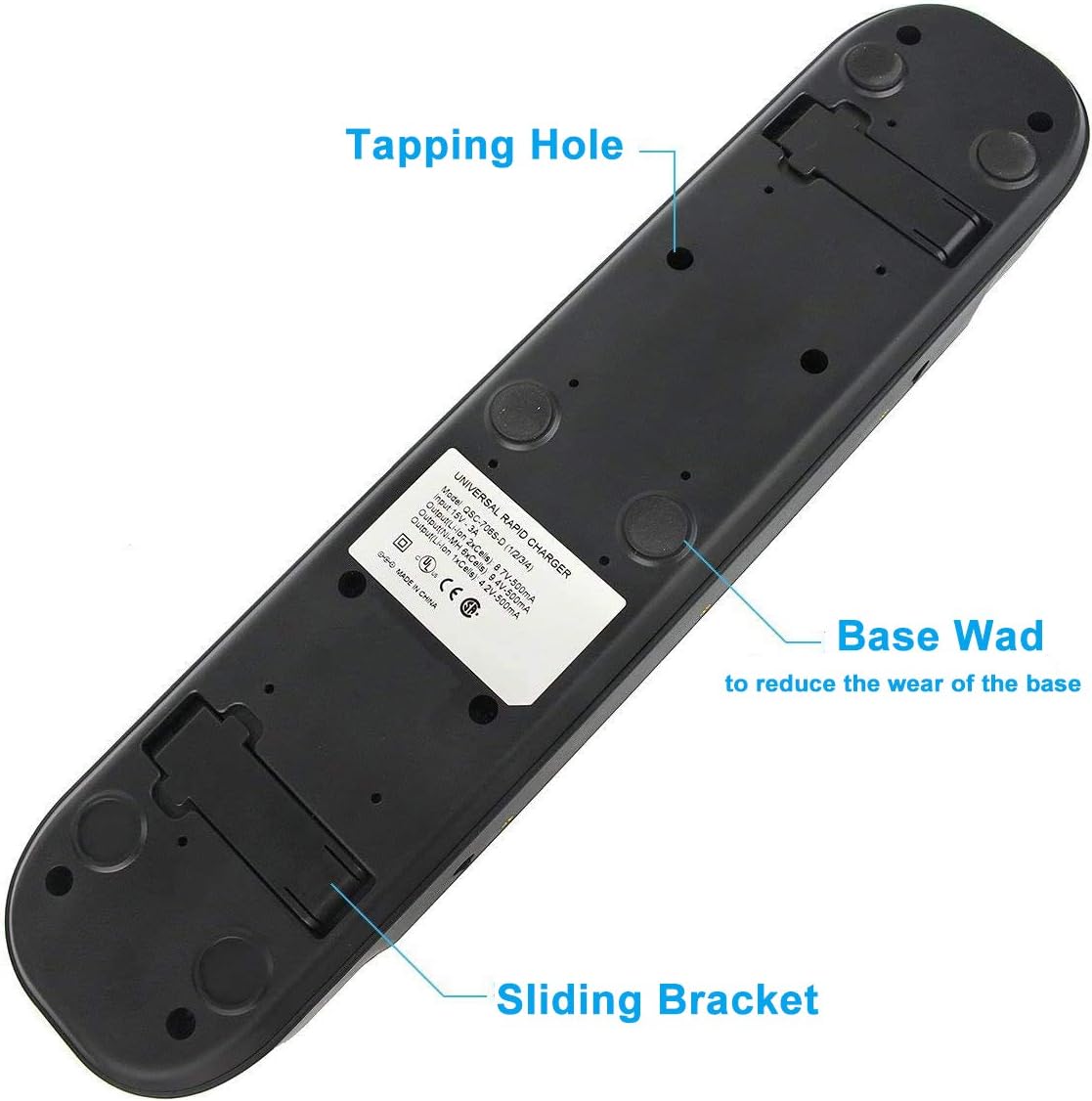

Part inferior view of the Retevis Six Way Multi Unit Charger showing sliding brackets and base wads
Figure 3: Underside of the charger, illustrating the sliding brackets for stability and base wads to protect the surface and prevent movement.

3. Instruccions de configuració

  1. Desembaleu el carregador: Carefully remove the charger base and AC power adapter from the packaging.
  2. Connecteu l'adaptador d'alimentació: Insert the DC plug of the AC power adapter into the power interface on the side of the charger base.
  3. Connecteu-vos a la presa de corrent: Plug the AC power adapter into a standard wall outlet (100V-240V).
  4. Col·locació: Place the charger on a flat, stable surface, ensuring adequate ventilation. Alternatively, the charger can be wall-mounted using the integrated nail holes.
Retevis Six Way Multi Unit Charger ready for use
Figure 4: The multi-unit charger connected to its power adapter, ready for radio or battery insertion.

4. Instruccions de funcionament

4.1 Càrrega de ràdios o bateries

  1. Assegureu-vos que el carregador estigui connectat correctament a una font d'alimentació.
  2. Carefully insert a compatible two-way radio or its battery pack into an available charging slot. Ensure the radio/battery is seated firmly and correctly aligned with the charging contacts.
  3. The LED indicator next to the slot will illuminate to show the charging status.
  4. Once charging is complete, the LED indicator will change color.
  5. Remove the radio or battery from the slot when fully charged.
Two-way radio and battery being charged in the Retevis Six Way Multi Unit Charger
Figure 5: A two-way radio and a separate battery pack inserted into the charging slots, demonstrating proper placement.

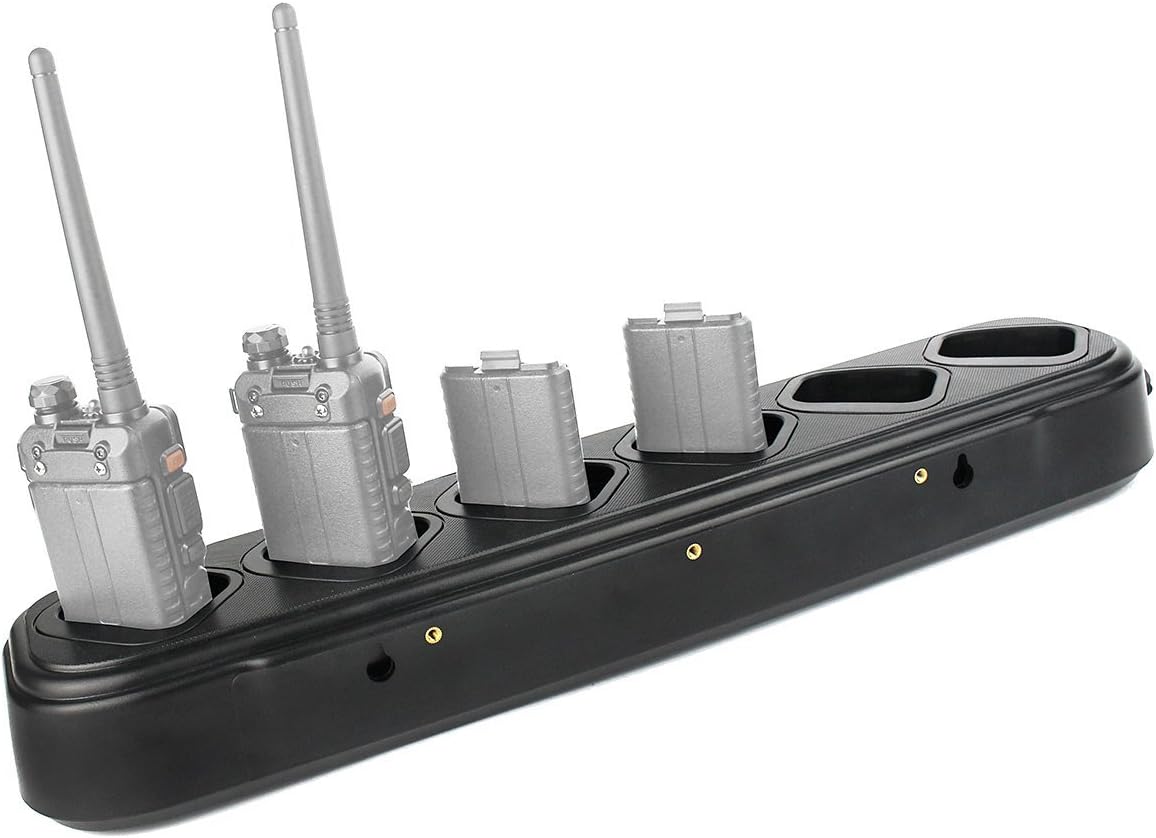

Multiple two-way radios and batteries charging in the Retevis Six Way Multi Unit Charger
Figure 6: The charger with multiple two-way radios and battery packs actively charging.

4.2 Estat dels indicadors LED

  • Llum vermella: Indica que la bateria s'està carregant actualment.
  • Llum verda: Indica que la bateria està completament carregada.
  • Yellow Light (if observed): Some users have reported observing a yellow light. This typically indicates a charging fault, an incompatible battery, or a battery that is not properly seated. If a yellow light persists, refer to the troubleshooting section.
Retevis Six Way Multi Unit Charger with red LED indicators showing active charging
Figure 7: The charger displaying red LED lights, indicating that the inserted batteries are actively charging.

5. Manteniment

  • Neteja: Desconnecteu el carregador de la presa de corrent abans de netejar-lo. Feu servir un drap suau i sec per netejar l'exterior del carregador. No utilitzeu netejadors líquids ni dissolvents.
  • Emmagatzematge: Quan no l'utilitzeu, emmagatzemeu el carregador en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
  • Inspecció: Periodically inspect the power adapter cord for any signs of damage. If damaged, discontinue use and replace with an authorized Retevis adapter.

6. Solució De Problemes

Problema Causa possible Solució
No LED light when radio/battery is inserted.
  • El carregador no té alimentació.
  • Radio/battery not properly seated.
  • Incompatible radio/battery.
  • Faulty charging slot.
  • Ensure power adapter is securely connected to charger and wall outlet.
  • Re-insert the radio/battery, ensuring firm contact.
  • Verify compatibility with the charger.
  • Try a different charging slot. If issue persists across multiple slots, contact support.
LED remains red after extended charging time.
  • La bateria no es carrega completament.
  • Bateria defectuosa.
  • Mal funcionament del carregador.
  • Ensure battery is compatible and not excessively old/damaged.
  • Prova de carregar una bateria diferent.
  • If multiple slots exhibit this behavior, contact support.
Yellow LED light appears.
  • Charging fault.
  • Incompatible battery.
  • Bateria no ben col·locada.
  • Traieu i torneu a inserir la bateria.
  • Verify battery compatibility.
  • Try a different charging slot. If the issue persists, contact support.
Radios do not fit into charging slots.
  • Model de ràdio incompatible.
  • Ensure your radio model is listed as compatible. This charger is designed for specific models like Baofeng UV-5R, BF-F8HP, Retevis RT-5R, RT-5RV, and TYT TH-F8.

7. Especificacions

Número de model USJ6247A
Dimensions del producte 19.29 x 2.36 x 4.33 polzades
Pes de l'article 2.09 lliures (950 grams)
Entrada Voltage 100-240 volts de corrent altern
Vol. De sortidatage 7.2 Volts DC
Color Negre
Fabricant Retevis

8. Garantia i Suport

Retevis products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your Retevis Six Way Multi Unit Charger, please contact Retevis customer service through their official website or the retailer where the product was purchased. Please have your model number (USJ6247A) and purchase details ready when contacting support.

Per a més informació, visiteu la botiga oficial de Retevis: Botiga Retevis a Amazon

© 2023 Retevis. Tots els drets reservats.
