VonShef Digital Air Fryer & Multi Cooker

1. Informació important de seguretat

Please read these instructions carefully before using your VonShef Digital Air Fryer & Multi Cooker. Retain this manual for future reference. Incorrect operation may cause damage to the appliance and injury to the user.

• Always ensure the appliance is placed on a stable, heat-resistant surface, away from walls and other appliances, to allow for adequate ventilation.
• No submergiu la unitat principal, el cable ni l'endoll en aigua ni en cap altre líquid.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
• Desconnecteu-lo de la presa de corrent quan no utilitzeu i abans de netejar-lo. Deixeu refredar abans de posar o treure peces i abans de netejar l'aparell.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• No utilitzeu accessoris no recomanats pel fabricant, ja que això pot causar lesions.
• No deixeu que el cable pengi de la vora d'una taula o taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
• No utilitzeu l'aparell per a res que no sigui l'ús previst.
• The appliance generates heat and steam during use. Do not block any ventilation openings.
• Always ensure the lid is properly closed before operation.

2. Producte acabatview

The VonShef Digital Air Fryer & Multi Cooker is designed for versatile cooking with minimal oil. It features multiple cooking functions and a digital control panel for precise operation.

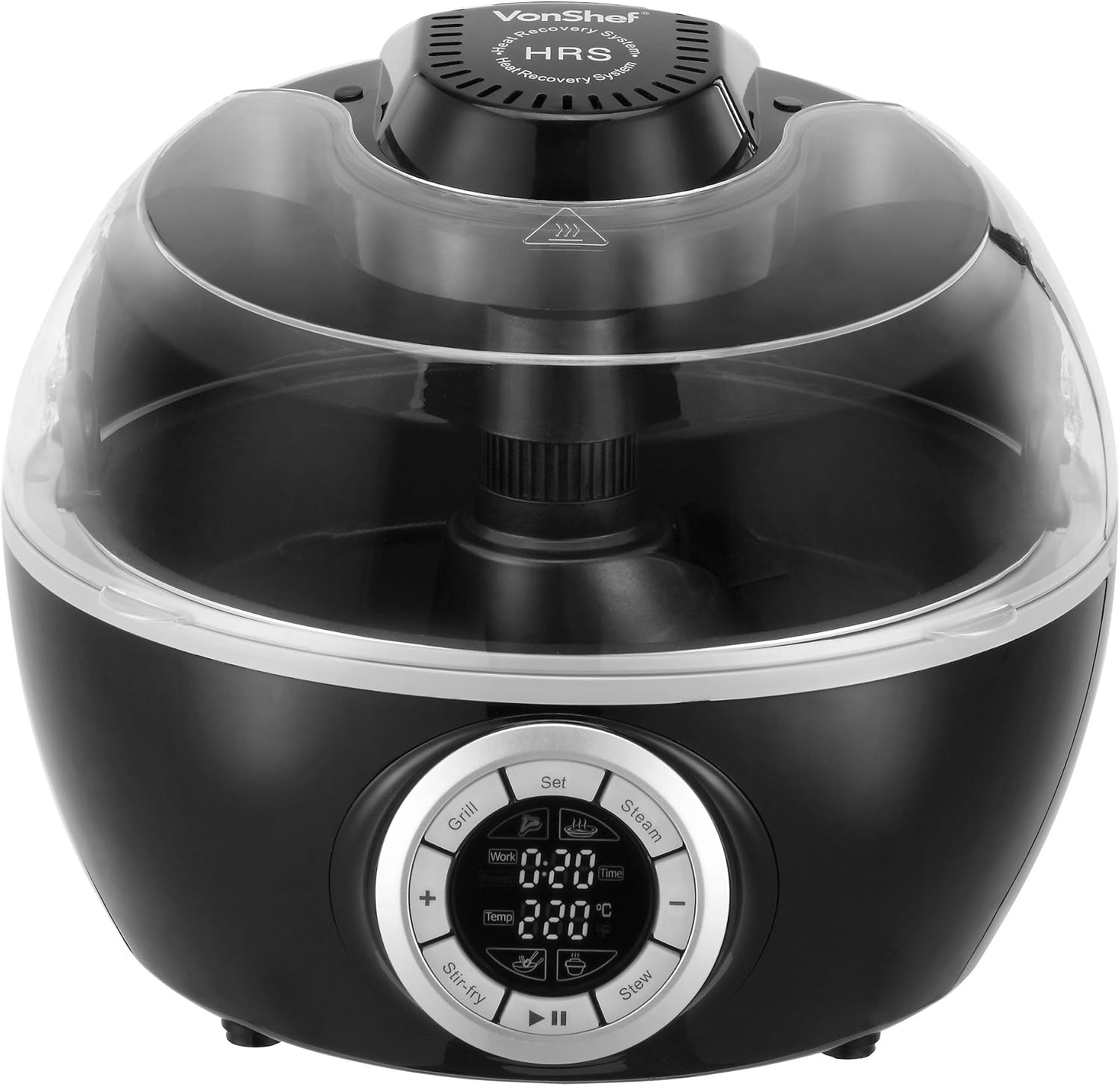

Figura 2.1: Frontal view of the VonShef Digital Air Fryer & Multi Cooker, showcasing its sleek black design and transparent lid.

Components:

• Unitat principal: Houses the heating element and motor.
• Tapa transparent: Permet controlar el progrés de la cocció.
• Olla extraïble: Non-stick for easy cleaning.
• Paleta d'agitació: For automatic stirring during certain cooking functions.
• Panell de control digital: For setting time, temperature, and cooking modes.
• Accessoris: Includes a grill rack, tongs, and spatula.

Figure 2.2: The VonShef Digital Air Fryer & Multi Cooker shown with its accompanying accessories, including a grill rack, tongs, and spatula.

3. Configuració

1. Desembalatge: Carefully remove all components from the packaging. Retain packaging for storage or return if necessary.
2. Neteja inicial: Before first use, wash the removable cooking pot, stirring paddle, and all accessories in warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp tela. No submergiu la unitat principal a l'aigua.
3. Col·locació: Place the appliance on a dry, level, heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clear space around the sides and back of the appliance for proper ventilation.
4. Connexió d'alimentació: Ensure the power cord is securely plugged into a grounded electrical outlet. The appliance operates at 1200W.

Figure 3.1: The power cord, which must be securely connected to a grounded electrical outlet for operation.

4. Instruccions de funcionament

The digital control panel allows for easy selection of cooking functions, time, and temperature.

Figure 4.1: The digital control panel with buttons for Grill, Steam, Stir-fry, Stew, Set, Time, and Temperature adjustments.

4.1 Funcions del tauler de control:

• Botó de configuració: Activates the display and allows selection of cooking modes.
• Botons de temps (+/-): Ajusta el temps de cocció.
• Temp Buttons (+/-): Ajusta la temperatura de cocció.
• Cooking Mode Buttons: Dedicated buttons for Grill, Steam, Stir-fry, and Stew.
• Botó Reproduir/Pausa: Starts or pauses the cooking process.

4.2 Funcionament general:

1. Preparar menjar: Place your ingredients into the removable cooking pot. For air frying, a small amount of oil may be added for crispier results. Ensure the stirring paddle is installed if automatic stirring is desired.
2. Tanca la tapa: Securely close the transparent lid. The appliance will not operate if the lid is not properly closed.
3. Seleccioneu la funció: Press the 'Set' button to activate the display. Choose your desired cooking function (e.g., Grill, Steam, Stir-fry, Stew) by pressing the corresponding button.
4. Ajustar la configuració: Use the 'Time' and 'Temp' buttons to adjust the cooking duration and temperature as needed for your recipe.
5. Comença a cuinar: Press the 'Play/Pause' button to begin the cooking process. The display will show the remaining time and current temperature.
6. Supervisar el progrés: You can observe the cooking through the transparent lid. For functions like Stir-fry, the paddle will rotate automatically.
7. Acabar la cocció: Once the cooking time elapses, the appliance will beep and automatically switch off. Carefully open the lid and remove food using heat-resistant utensils.

4.3 Specific Cooking Examples:

Figure 4.2: The air fryer in operation, cooking a batch of French fries to a golden crisp.

Figure 4.3: The multi cooker preparing a stir-fry dish, demonstrating the automatic stirring function.

Figure 4.4: A pizza being cooked inside the appliance, utilizing the grilling or baking function.

Figure 4.5: The multi cooker preparing a rice dish, showcasing its versatility beyond air frying.

5. Manteniment i Neteja

Una neteja i un manteniment regulars garantiran la longevitat i el rendiment òptim del vostre electrodomèstic.

1. Abans de la neteja: Desendolleu sempre l'aparell de la presa de corrent i deixeu-lo refredar completament abans de netejar-lo.
2. Parts desmuntables: The cooking pot, stirring paddle, and other accessories can be washed in warm, soapy water. Use a non-abrasive sponge to protect the non-stick coating. Rinse thoroughly and dry completely before reassembly or storage. These parts may also be dishwasher safe; refer to specific product labeling if available.
3. Unitat principal: Netegeu l'exterior de la unitat principal amb un drap suau i sec.amp drap. No utilitzeu productes de neteja abrasius ni fregalls, ja que poden danyar la superfície. No submergiu mai la unitat principal en aigua ni en cap altre líquid.
4. Tapa: The transparent lid can be wiped clean with a damp cloth. For stubborn stains, use a mild detergent. Ensure it is dry before closing.
5. Emmagatzematge: Store the appliance in a cool, dry place. Ensure all parts are clean and dry before storing. Do not wrap the power cord tightly around the appliance.

6. Solució De Problemes

If you encounter any issues with your VonShef Digital Air Fryer & Multi Cooker, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact VonShef customer support for further assistance.

7. Especificacions

8. Garantia i Suport

For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official VonShef weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

If you require further assistance, please contact VonShef customer service through their official channels.
