Char-Broil Charcoal Grill 580 (Model 16302038) Instruction Manual

1. Introducció

Thank you for choosing the Char-Broil Charcoal Grill 580. This manual provides essential information for the safe assembly, operation, and maintenance of your new grill. Please read all instructions carefully before use to ensure optimal performance and longevity of your product.

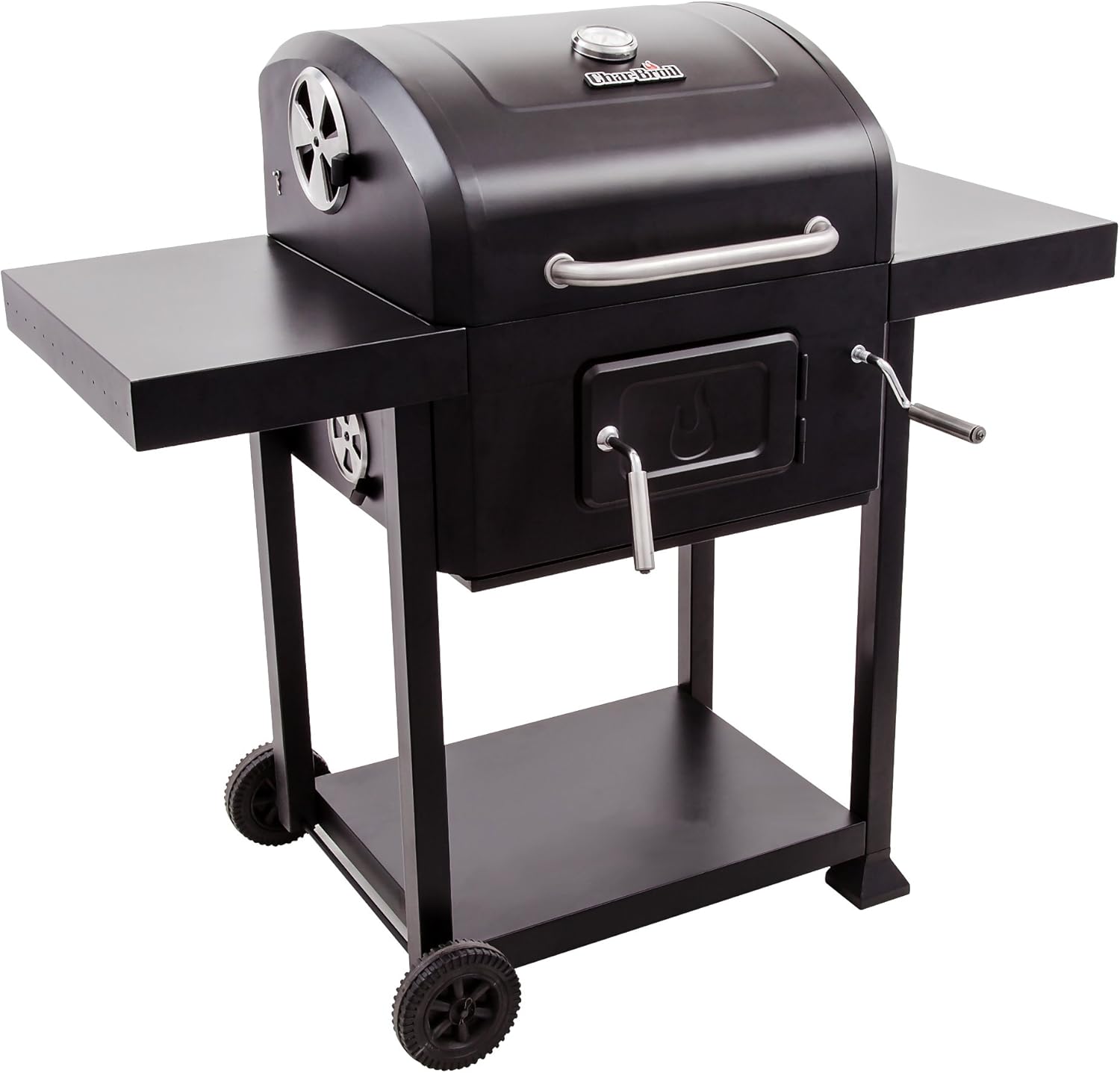

Image 1: The Char-Broil Charcoal Grill 580, showcasing its overall design with side tables and wheels.

2. Informació de seguretat

Always adhere to these safety guidelines when operating your charcoal grill:

• Només per a ús exterior: Never operate this grill indoors or in an enclosed area. Carbon monoxide can accumulate and cause serious injury or death.
• Superfície estable: Place the grill on a level, stable, non-combustible surface.
• Liquidació: Maintain a minimum distance of 3 feet (1 meter) from combustible materials (e.g., walls, fences, trees).
• Nens i animals de companyia: Mantingueu els nens i les mascotes allunyats de la graella en tot moment, especialment durant el funcionament.
• Superfícies calentes: The grill surfaces become extremely hot during use. Use heat-resistant gloves and appropriate tools.
• Charcoal Lighter Fluid: Use only charcoal lighter fluid specifically designed for charcoal grills. Never use gasoline or kerosene.
• Eliminació de cendres: Allow ashes to cool completely before disposing of them. Never dispose of hot ashes in combustible containers.
• Supervisió: No deixeu mai una graella encesa sense vigilància.

3. Muntatge i muntatge

Assembly of the Char-Broil Charcoal Grill 580 is required. While not overly complex, it involves multiple parts. It is recommended to follow the detailed assembly instructions provided in the separate assembly guide that accompanies your product. Ensure all components are present and undamaged before beginning assembly.

Els passos clau generalment inclouen:

1. Desembaleu tots els components i verifiqueu-los amb la llista de peces.
2. Assemble the main grill body and stand.
3. Attach the side tables and wheels.
4. Install the charcoal tray, cooking grates, and warming rack.
5. Assegureu-vos que tots els elements de fixació estiguin ben ajustats.

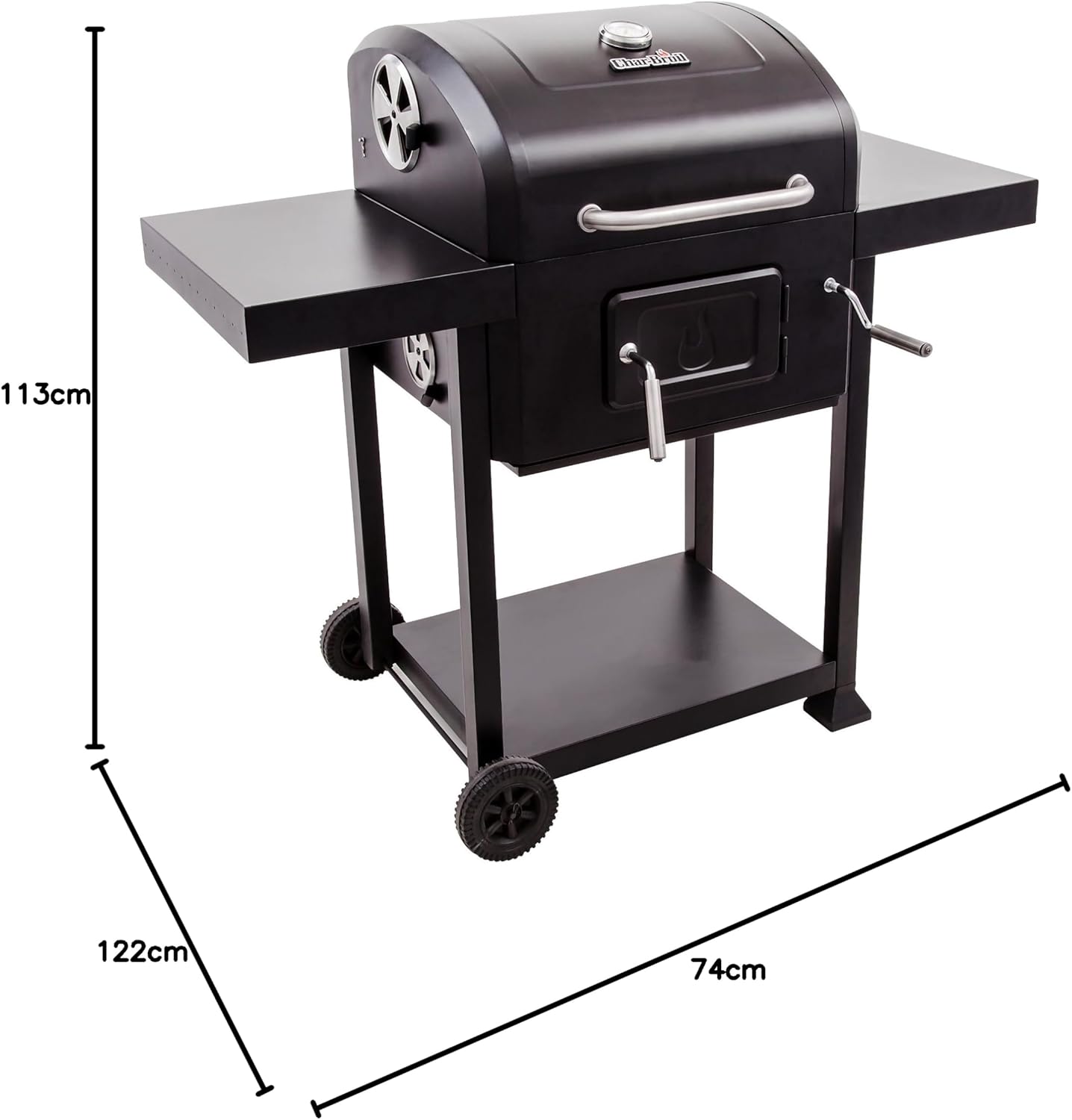

Image 2: The Char-Broil Charcoal Grill 580 with key dimensions indicated, useful for planning placement.

4. Instruccions de funcionament

4.1. Fueling the Grill

The Char-Broil Charcoal Grill 580 is designed for use with charcoal briquettes or lump charcoal. Open the main lid and carefully place the desired amount of charcoal onto the charcoal tray. Do not overfill.

Imatge 3: Interior view of the grill showing charcoal briquettes placed on the charcoal tray, ready for ignition.

4.2. Encendre el carbó vegetal

Use a charcoal chimney starter or an approved charcoal lighter fluid to ignite the charcoal. Follow the instructions provided with your chosen lighting method. Allow the charcoal to ash over (turn gray) before placing food on the grates.

4.3. Control de temperatura

The grill features adjustable vents to control the internal temperature. Opening the vents allows more oxygen, increasing the temperature and burning hotter. Partially closing the vents restricts airflow, lowering the temperature. Adjust the side vents and the lid vent as needed.

Image 4: Close-up of the grill lid, showing the integrated thermometer for temperature monitoring and a side vent for airflow control.

4.4. Ús de la reixeta d'escalfament

The removable warming rack can be used to keep cooked foods warm, toast bread, or provide an indirect cooking surface for delicate items. Position it above the main cooking grates as required.

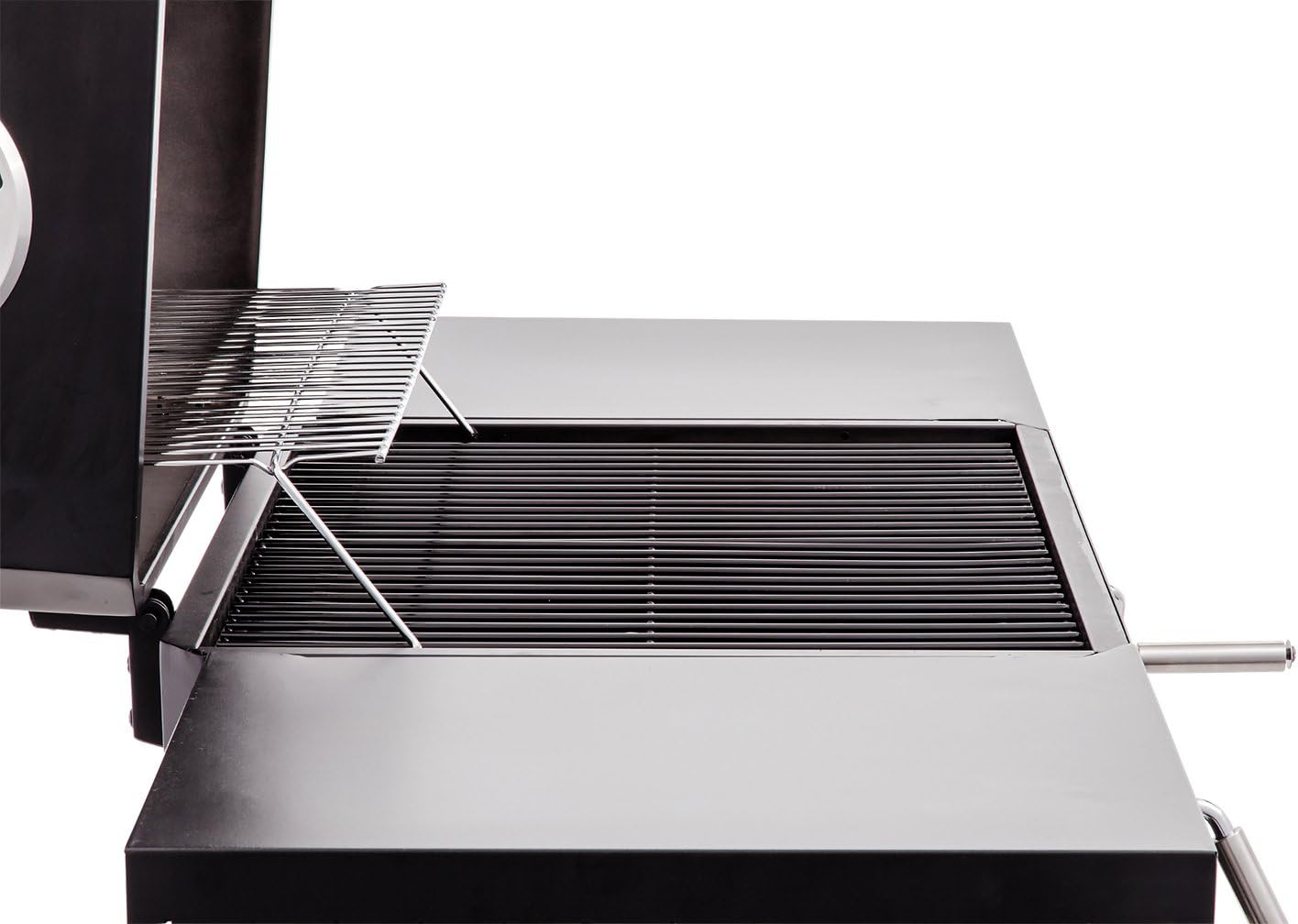

Image 5: The grill's interior, highlighting the main cooking grates and the elevated warming rack.

4.5. Adding Charcoal During Cooking

The grill features a convenient clean-out door at the front, which also allows for easy addition of charcoal during longer cooking sessions without removing the main cooking grates. Open the door carefully and add charcoal as needed.

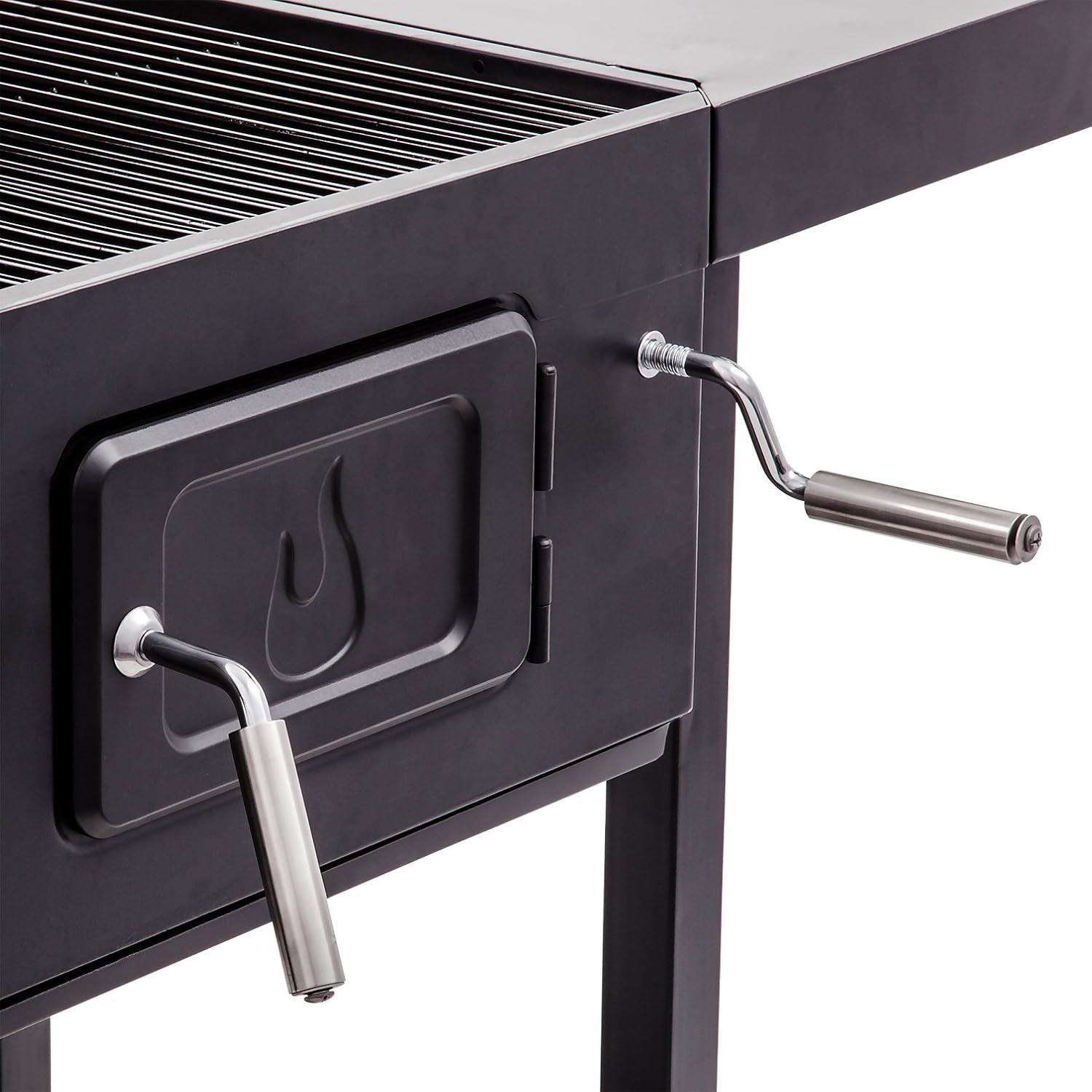

Image 6: Front panel of the grill, showing the ash clean-out door and the crank handles for adjusting charcoal height.

Image 7: The ash clean-out door opened, revealing the charcoal tray inside, facilitating easy charcoal addition.

5. Manteniment i Neteja

Una neteja i un manteniment regulars allargaran la vida útil de la barbacoa i garantiran un funcionament segur.

• Eliminació de cendres: After each use, allow the grill to cool completely. The inner ash pan is fully removable from the top for easy cleaning. Carefully remove the ash pan and dispose of cooled ashes responsibly.


Image 8: The removable ash pan, shown detached from the grill for convenient cleaning and ash disposal.

• Reixes de cuina: The porcelain-coated cooking grates are non-stick and easy to clean. Use a grill brush to remove food residue after each use, preferably while the grates are still warm.


Image 9: The charcoal tray and cooking grates, shown removed from the grill for thorough cleaning.

• Exterior: Netegeu les superfícies exteriors amb un anunciamp drap i detergent suau. Eviteu els netejadors abrasius.
• Emmagatzematge: Store the grill in a dry, protected area when not in use. Consider using a grill cover to protect it from the elements.

6. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra barbacoa de carbó.

• Dificultat per encendre carbó vegetal:
  • Ensure charcoal is dry.
  • Use sufficient lighter fluid or a chimney starter.
  • Ensure vents are fully open during ignition to provide maximum airflow.
• Temperature Too Low:
  • Open all vents fully to increase airflow.
  • Add more charcoal if the existing charcoal is mostly burned out.
  • Ensure the lid is closed to retain heat.
• Temperatura massa alta:
  • Partially close the vents to reduce airflow.
  • Avoid opening the lid frequently, as this introduces oxygen and increases temperature.
• Cocció desigual:
  • Distribute charcoal evenly across the charcoal tray.
  • Rotate food on the grates for consistent cooking.
  • Ensure the grill is on a level surface.

7. Especificacions

8. Informació de la garantia

Specific warranty details for the Char-Broil Charcoal Grill 580 are not provided within this manual. For information regarding product warranty, please refer to the warranty card included with your purchase or contact Char-Broil customer service directly. You may also consult the retailer from whom you purchased the product.

9. Atenció al client

Should you require assistance with assembly, operation, or troubleshooting beyond the scope of this manual, please contact Char-Broil customer support. Contact details can typically be found on the manufacturer's official website or on the product packaging. Please have your model number (16302038) and purchase date available when contacting support.
