Scotsman HD22B-1 Hotel Ice Dispenser User Manual

1. Informació important de seguretat

Read all instructions carefully before installing, operating, or performing maintenance on this ice dispenser. Failure to follow these instructions may result in property damage, personal injury, or death. Keep this manual for future reference.

• Desconnecteu sempre l’alimentació abans de donar servei a la unitat.
• Assegureu-vos de posar a terra correctament per evitar descàrregues elèctriques.
• No feu funcionar la unitat amb cables d'alimentació o endolls danyats.
• Utilitzeu només aigua potable per a la producció de gel.
• Keep hands and foreign objects out of the ice dispensing area.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .

2. Producte acabatview

The Scotsman HD22B-1 is a robust hotel ice dispenser designed for commercial use, offering convenient and sanitary ice access for guests. It features a 120 lb storage capacity and is built for durability and ease of use.

2.1 Característiques clau

• Model: HD22B-1
• Ice Storage Capacity: 120 lbs
• Electrical Requirements: 115 Volts, 1 Phase, 60 Watts
• Dimensions (approximate): 22 inches (Width) x 34 inches (Depth) x 54 inches (Height)
• Pes: 199 lliures
• Certifications: UL, NSF, ARI

2.2 Imatge del producte

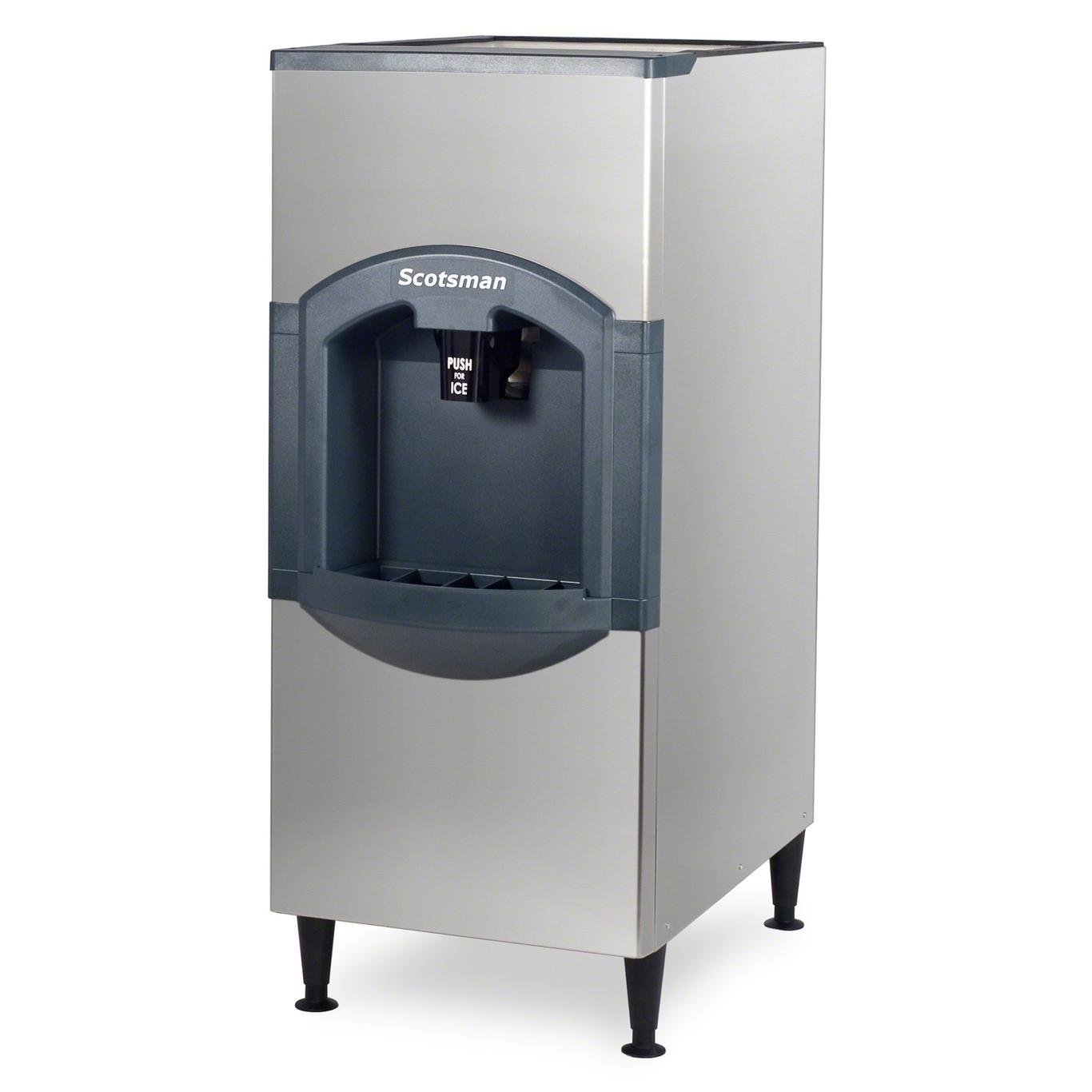

Figura 1: Frontal view of the Scotsman HD22B-1 Hotel Ice Dispenser. This image shows the main body of the dispenser with its ice dispensing chute and control panel.

3. Configuració i instal·lació

Proper installation is crucial for the safe and efficient operation of your ice dispenser. It is recommended that installation be performed by a qualified technician.

3.1 Requisits del lloc

• Ubicació: Choose a level, sturdy surface capable of supporting the unit's weight (199 lbs empty, plus ice). Ensure adequate clearance around the unit for ventilation and servicing.
• Elèctrica: A dedicated 115 Volt, 1 Phase, 60 Hz electrical outlet with proper grounding is required. Do not use extension cords.
• Subministrament d'aigua: A potable cold water supply with a shut-off valve is necessary. Water pressure should be between 20-80 psi.
• Drenatge: A floor drain or suitable drainage system must be available for water discharge.
• Temperatura ambient: Operate the unit in an environment where the ambient temperature is between 50°F (10°C) and 100°F (38°C).

3.2 Desembalatge

1. Traieu amb cura el dispensador del seu embalatge.
2. Inspect the unit for any shipping damage. Report any damage immediately to the carrier and your dealer.
3. Remove all packing materials, tape, and protective films from the exterior and interior of the unit.

3.3 Connexió elèctrica

Connect the dispenser's power cord to the dedicated 115 Volt, 1 Phase, 60 Hz grounded electrical outlet. Ensure the circuit breaker is off before connecting and on after connection.

3.4 Water Supply and Drain Connection

Connect the water inlet line to the potable cold water supply. Connect the drain line from the dispenser to the floor drain, ensuring proper slope for gravity drainage. Consult local plumbing codes.

3.5 Anivellació de la unitat

Use a level to ensure the dispenser is perfectly level from front to back and side to side. Adjust the leveling feet as necessary to prevent operational issues and ensure proper drainage.

4. Instruccions de funcionament

This section provides basic instructions for operating your Scotsman HD22B-1 ice dispenser.

4.1 Inici inicial

1. Ensure all installation steps are complete and verified.
2. Obriu el subministrament d'aigua a la unitat.
3. Plug the unit into the electrical outlet or turn on the circuit breaker.
4. The ice machine (sold separately, typically mounted on top) will begin producing ice, which will then fill the dispenser's storage bin.

4.2 Dispensing Ice

1. Place an ice bucket or container under the ice dispensing chute.
2. Press and hold the dispense lever or button. Ice will be dispensed into your container.
3. Release the lever/button to stop dispensing ice.

4.3 Apagar la unitat

For temporary shutdown, simply turn off the ice machine connected to the dispenser. For extended periods or servicing:

1. Turn off the ice machine.
2. Apagueu el subministrament d’aigua a la unitat.
3. Desconnecteu la unitat de la font d'alimentació elèctrica.

5. Manteniment

Regular maintenance ensures optimal performance and longevity of your ice dispenser. Always disconnect power before performing any maintenance.

5.1 Neteja regular

• Exterior: Wipe down the exterior surfaces with a soft cloth and mild soap and water solution. Rinse thoroughly and dry. Do not use abrasive cleaners or pads.
• Ice Chute: Regularly clean the ice dispensing chute to prevent mold or bacterial growth. Use a food-safe sanitizer solution.
• Safata de degoteig: Buidar i netejar la safata de goteig regularment.

5.2 Sanitització

The interior of the ice storage bin and dispensing mechanism should be sanitized periodically (e.g., every 6 months) using a Scotsman-approved sanitizer solution. Follow the sanitizer manufacturer's instructions carefully.

5.3 Substitució del filtre d'aigua (si escau)

If your ice machine system includes a water filter, replace it according to the manufacturer's recommendations, typically every 6 months or when ice quality diminishes.

5.4 Emmagatzematge a llarg termini

If the unit will be stored for an extended period, ensure it is thoroughly cleaned, sanitized, and dried. Disconnect water and power, and drain all water from the system.

6. Solució De Problemes

Abans de trucar al servei tècnic, consulteu la taula següent per conèixer els problemes habituals i les seves solucions.

7. Especificacions

• Model: HD22B-1
• Marca: escocès
• Capacitat: 120 Pounds (Ice Storage)
• Voltage: 115 Volts
• Fase: 1 Fase
• Freqüència: 60 Hz
• Consum d'energia: 60 Watts (Dispenser only)
• Pes de l'article: 199 lliures
• Amplada: 22 polzades
• Profunditat: 34 polzades
• Alçada: 54 polzades
• Certificacions: UL, NSF, ARI

8. Garantia i Suport

This Scotsman HD22B-1 ice dispenser comes with a standard manufacturer's warranty. Please refer to the separate warranty document provided with your purchase for specific terms and conditions, including coverage duration and limitations.

For technical support, parts, or warranty claims, please contact your authorized Scotsman dealer or visit the official Scotsman weblloc web per obtenir informació de contacte del servei d'atenció al client.
