Bosch GSH 500 Demolition Hammer User Manual

1. Introducció

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Bosch GSH 500 Corded Electric Demolition Hammer. Please read these instructions carefully before using the tool and keep them for future reference.

The Bosch GSH 500 is a powerful demolition hammer designed for chipping and breaking tasks. It features a 1100W motor, delivering 7.8 joules of impact energy at 2,900 bpm. Its low vibration design aims to reduce user fatigue during extended use. The tool incorporates a patented grease sealing ring and improved dust protection for enhanced durability. A 17 mm hex shank allows for quick and easy chisel changes.

Image 1.1: Bosch GSH 500 Demolition Hammer Hex, designed for tough jobs.

Image 1.2: The Bosch GSH 500 Professional HEX in action, highlighting its heavy-duty demolition capabilities.

2. Instruccions de seguretat

Seguiu sempre els avisos i les instruccions generals de seguretat de les eines elèctriques per evitar descàrregues elèctriques, incendis i lesions greus.

2.1 Seguretat de l'àrea de treball

• Mantenir la zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden a accidents.
• No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables. Les eines elèctriques generen espurnes que poden encendre la pols o els fums.
• Mantingueu els nens i els espectadors allunyats mentre feu servir una eina elèctrica. Les distraccions poden fer que perdis el control.

2.2 Seguretat elèctrica

• Els endolls de les eines elèctriques han de coincidir amb la presa de corrent. No modifiqueu mai l'endoll de cap manera.
• Eviteu el contacte corporal amb superfícies connectades a terra com ara canonades, radiadors, estufes i refrigeradors. Hi ha un major risc de descàrrega elèctrica si el vostre cos està connectat a terra o a terra.
• No exposar les eines elèctriques a la pluja o a condicions humides. L'entrada d'aigua en una eina elèctrica augmentarà el risc de descàrrega elèctrica.
• No abuseu del cordó. No utilitzeu mai el cable per transportar, estirar o desconnectar l'eina elèctrica. Mantingueu el cable allunyat de la calor, l'oli, les vores afilades o les peces mòbils. Els cables danyats o enredats augmenten el risc de descàrrega elèctrica.

2.3 Seguretat personal

• Always wear appropriate personal protective equipment (PPE). This includes safety glasses, hearing protection, gloves, and a dust mask.
• Estigueu alerta, observeu el que feu i feu servir el sentit comú quan utilitzeu una eina elèctrica. No utilitzeu una eina elèctrica mentre esteu cansat o sota els efectes de drogues, alcohol o medicaments.
• Eviteu l'arrencada no intencionada. Assegureu-vos que l'interruptor estigui a la posició apagada abans de connectar-lo a la font d'alimentació, agafar o portar l'eina.
• Mantenir un bon peu i un equilibri en tot moment. Això permet un millor control de l'eina elèctrica en situacions inesperades.
• Utilitzeu clamps o una altra manera pràctica d'assegurar i recolzar la peça a una plataforma estable. Aguantar l'obra amb la mà o contra el cos és inestable i pot provocar la pèrdua de control.

3. Contingut del paquet

Upon opening the package, verify that all components are present and undamaged. The standard package for the Bosch GSH 500 Demolition Hammer includes:

• 1x Bosch GSH 500 Professional Demolition Hammer
• 1x Pointed Hex Chisel (17 mm shank, 280 mm length)
• 1x estoig de transport

Image 3.1: Visual representation of the Bosch GSH 500 Demolition Hammer and its included accessories.

4. Especificacions

The following table details the technical specifications of the Bosch GSH 500 Demolition Hammer:

Image 4.1: Diagram illustrating key technical data points of the Bosch GSH 500 Demolition Hammer.

Image 4.2: Technical data presented in a table format for the Bosch GSH 500 Demolition Hammer.

5. Configuració

Proper setup ensures safe and efficient operation of your demolition hammer.

5.1 Chisel Installation

1. Ensure the tool is disconnected from the power supply before installing or removing accessories.
2. Insert the 17 mm hex chisel securely into the tool holder. Push and rotate the chisel until it locks firmly in place.
3. Verify the chisel is properly seated by gently pulling on it. It should not come out easily.

Image 5.1: Step-by-step guide for inserting the chisel into the Bosch GSH 500 Demolition Hammer.

6. Instruccions de funcionament

Follow these steps for effective and safe operation of the demolition hammer.

6.1 Funcionament general

1. Ensure all safety precautions are followed, including wearing appropriate PPE.
2. Connect the tool to a suitable power supply (220 Volts).
3. Position the chisel on the surface to be broken or chipped.
4. Press the trigger to start the tool. Apply steady, firm pressure. Allow the tool to perform the impact work; excessive force is not required and can reduce efficiency.
5. Guide the tool along the desired path for demolition.
6. Deixeu anar el disparador per aturar l'eina.

6.2 Aplicacions

The Bosch GSH 500 Demolition Hammer is suitable for various applications, including:

• Construction: Breaking concrete, masonry, and other hard materials.
• Renovation: Chipping tiles, plaster, and removing old flooring.
• Electrical Work: Creating channels for conduits in walls.

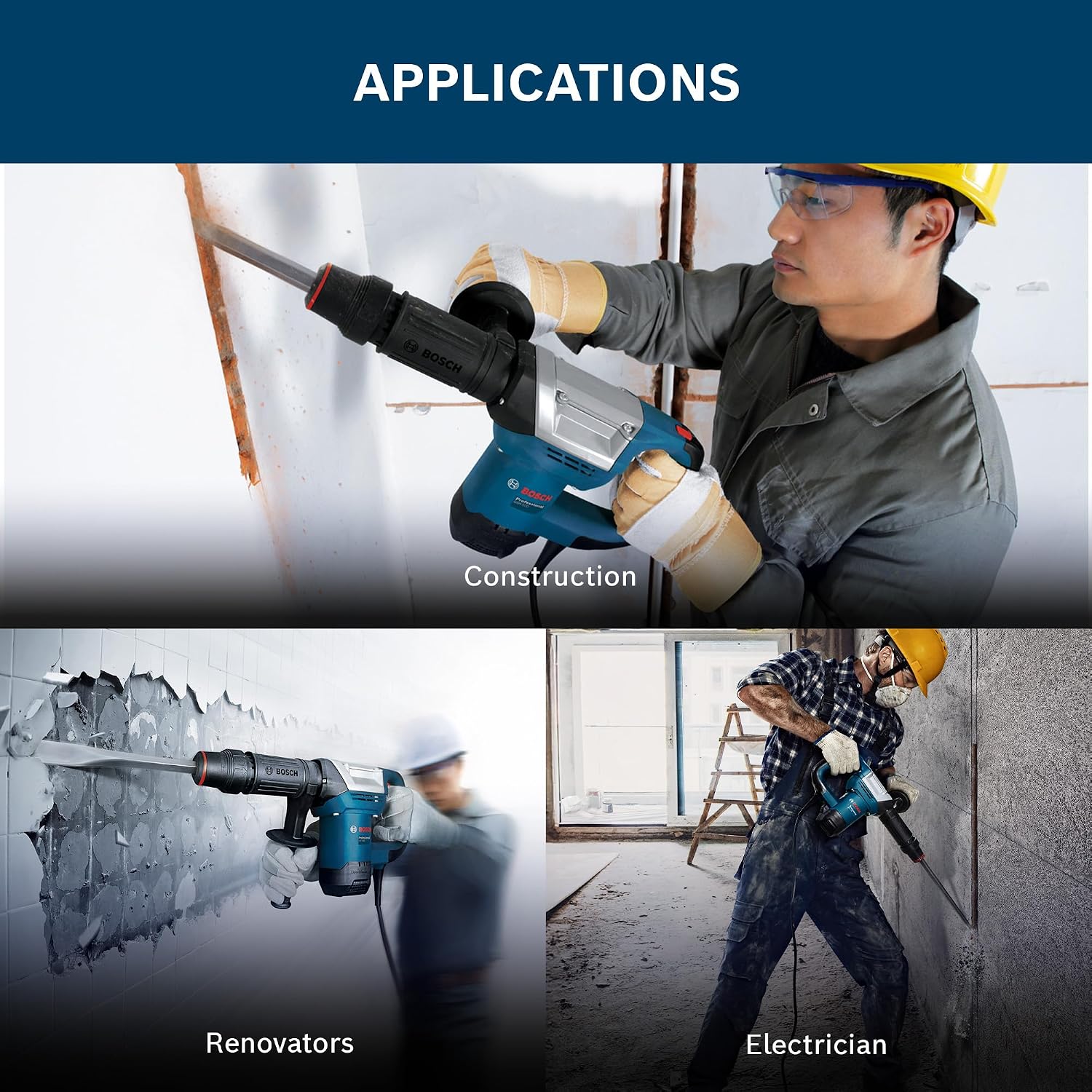

Imatge 6.1: Ex.amples of the Bosch GSH 500 Demolition Hammer being used in construction, renovation, and electrical applications.

7. Manteniment

Regular maintenance helps ensure the longevity and optimal performance of your tool.

7.1 Neteja

• Desconnecteu sempre l'eina de la xarxa elèctrica abans de netejar-la.
• Netegeu les obertures de ventilació regularment per evitar el sobreescalfament.
• Netegeu la carcassa de l'eina amb un drap suau iamp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• The tool features dust-proof construction and a patented grease sealing ring to prevent leakage and protect internal components.

7.2 Emmagatzematge

• Store the tool in its carrying case in a dry, secure location, out of reach of children.
• Eviteu emmagatzemar l'eina sota la llum solar directa o a temperatures extremes.

8. Solució De Problemes

If you encounter issues with your Bosch GSH 500, refer to the following common troubleshooting steps:

8.1 Tool Not Starting

• Comproveu si el cable d'alimentació està ben connectat a una presa de corrent funcional.
• Assegureu-vos que l'interruptor d'alimentació estigui a la posició "ON".
• Inspect the power cord for any visible damage. If damaged, do not use the tool and contact customer service.

8.2 Reduced Performance / Weak Impact

• Verify that the chisel is correctly inserted and locked into the tool holder.
• Check the chisel for wear or damage. A dull or damaged chisel will reduce efficiency.
• Ensure you are applying appropriate pressure. Too little or too much pressure can affect impact performance.

8.3 Vibració excessiva

• Confirm the chisel is properly seated and not loose.
• Inspect the tool for any loose components or damage.
• The tool features a damping ring system to provide low vibration. If vibration is unusually high, discontinue use and contact customer service.

9. Garantia i Suport

Your Bosch GSH 500 Demolition Hammer comes with a manufacturer's warranty and dedicated customer support.

9.1 Informació de la garantia

The product includes a 1-year warranty from the date of invoice. To claim warranty service, please provide a copy of your purchase invoice.

9.2 Atenció al client

For any queries, service, or warranty claims, please contact Bosch Power Tools India Customer Service:

• Número gratuït: 18004258665
• Contacte del fabricant: Bosch Power Tools (China) Ltd, No. 567 Binkang Road, Binjiang District, Hangzhou, China, 310052, 400-826-8484
• Packer/Importer Contact: Bosch Ltd., Apartat de correus núm.: 3000, Hosur Road, Adugodi, Bangalore - 560030, Índia

You may also consider joining Bosch BeConnected for extended warranty and rewards, where applicable.
