Tamiya 1/12 Repsol Honda RC213V '14 Motorcycle Plastic Model Kit Instruction Manual

1. Introducció

This instruction manual provides detailed guidance for the assembly of the Tamiya 1/12 Repsol Honda RC213V '14 Motorcycle Plastic Model Kit. This kit allows enthusiasts to recreate the iconic 2014 Repsol Honda RC213V motorcycle, famously ridden by Marc Marquez. The model features authentic details specific to the '14 RC213V, including its merged front air intake duct, and offers a rewarding building experience.

Please read all instructions carefully before beginning assembly. Familiarize yourself with the parts, tools, and materials required to ensure a smooth and accurate build.

2. Informació de seguretat

ADVERTIMENT: This product contains small parts and is not suitable for children under 14 years of age. Adult supervision is recommended for younger builders.

• Always use tools carefully. Sharp blades and pointed tools can cause injury.
• Work in a well-ventilated area when using paints, adhesives, and thinners. Avoid inhaling fumes.
• Keep all chemicals away from open flames and heat sources.
• Wear appropriate personal protective equipment, such as gloves and safety glasses, when handling chemicals.
• Dispose of waste materials responsibly according to local regulations.

3. Contingut del kit

The Tamiya 1/12 Repsol Honda RC213V '14 Motorcycle Plastic Model Kit includes all necessary plastic parts for assembly, clear parts for the windshield and tank grips, synthetic rubber racing slick tires, and a detailed decal sheet. Minute screws are provided for precise assembly, allowing for detachable front, side, and tail cowls, as well as the tank cover. A cowl-mounted camera is also depicted using separate parts.

Imatge 3.1: acabatview of the Tamiya 1/12 Repsol Honda RC213V '14 Model Kit box and its contents, including sprues, instruction sheet, and decals.

4. Eines i materials necessaris

Successful model assembly requires a selection of basic tools and materials. The following are generally recommended:

4.1 Eines recomanades

• Side Cutters (Nippers): For cleanly removing parts from sprues.
• Hobby Knife/Cutter: For trimming excess plastic and fine detailing.
• Tweezers: For handling small parts and applying decals.
• Files/Sanding Sticks: For smoothing cut surfaces.
• Small Screwdrivers: For minute screws used in assembly.
• Paint Brushes: Various sizes for detailed painting.
• Masking Tape: For precise painting and holding parts.

Image 4.1: A selection of recommended tools for plastic model assembly, including nippers, hobby knife, tweezers, and various adhesives.

4.2 Recommended Paints and Adhesives

• Plastic Cement/Adhesive: Specifically designed for plastic models.
• Acrylic Paints: Tamiya XF (flat) and X (gloss) acrylic paints are recommended for various components.
• Spray Paints (TS-Paint): For larger areas and a smooth finish.
• Fluorescent Paints: Specific fluorescent red and orange paints may be required for accurate color representation, as noted by experienced builders.
• Decal Softener/Setter: To help decals conform to irregular surfaces.

Image 4.2: A chart detailing recommended Tamiya XF (flat), X (gloss) acrylic paints, and TS (spray) paints, along with their corresponding art numbers, for the Repsol Honda RC213V '14 model.

5. Instruccions de muntatge

Follow the detailed, step-by-step diagrams provided in the instruction sheet included with your kit. The following general steps apply:

1. Preparació de la peça: Carefully remove parts from the sprues using side cutters. Trim any excess plastic (flash) with a hobby knife or file.
2. Sub-Assembly: Assemble smaller components first, such as the engine, frame, and suspension. Pay close attention to the orientation of parts.
3. Engine and Frame: The kit authentically captures the powerful 1,000cc Honda 4-stroke V4 engine. Assemble the engine components and integrate them with the aluminum double-tube frame.

Imatge 5.1: Un primer pla view of the assembled engine and chassis components, showcasing intricate details and connections.
4. Rodes i pneumàtics: Assemble the wheels and mount the synthetic rubber racing slick tires.
5. Handlebars and Controls: Attach the handlebars and control levers.

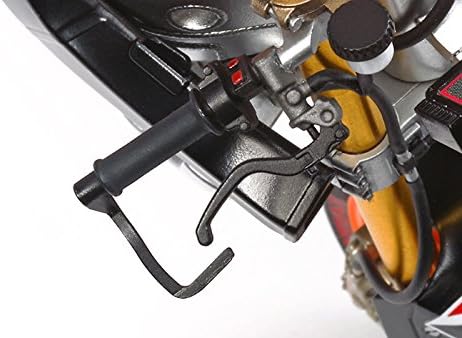

Image 5.2: A detailed shot of the model's handlebar assembly, including brake levers and throttle grip.

6. Carrosseria: The kit features detachable front, side, and tail cowls, along with a removable tank cover. These can be attached using minute screws for a precise fit. Clear parts are included for the windshield and tank grips, which do not require cementing.
7. Detalls finals: Attach the cowl-mounted camera and any other small detail parts.

Always test-fit parts before applying adhesive or paint. Use only a small amount of adhesive to avoid damaging the plastic or obscuring details.

6. Painting and Decal Application

6.1 Pintura

Refer to the included paint guide for specific color recommendations for each part. Apply paint in thin, even coats to achieve a smooth finish. Allow each coat to dry completely before applying the next. For best results, consider priming parts before painting.

6.2 Decal Application

The kit includes decals to recreate the No. 93 motorcycle ridden by 2014 champion Marc Marquez. Carefully cut out each decal. Dip the decal in lukewarm water for a few seconds until it can slide freely from the backing paper. Position the decal on the model using tweezers, then gently slide the backing paper away. Use a soft cloth or cotton swab to carefully blot away excess water and air bubbles. For decals on curved or irregular surfaces, a decal softener can be applied to help them conform to the shape of the model.

7. Exposició i cura

Once assembled and painted, your Tamiya Repsol Honda RC213V '14 model is ready for display. To maintain its appearance:

• Display the model in a cool, dry place away from direct sunlight to prevent fading and warping.
• Eviteu els canvis extrems de temperatura.
• Dust regularly with a soft, dry brush or a gentle air blower. Avoid using abrasive cleaners or solvents, which can damage paint and plastic.
• Handle the model carefully to prevent accidental breakage of delicate parts.

8. Solució De Problemes

• Les peces no s'ajusten: Ensure all excess plastic (flash) has been removed. Check the instruction diagrams carefully for correct part orientation. Sometimes, a small amount of sanding or filing may be necessary for a perfect fit.
• Paint Issues: If paint appears uneven or clumpy, it may be too thick or applied in too few coats. Thin paint slightly and apply multiple thin coats. If paint peels, ensure the surface was clean and dry before application.
• Decal Silvering: This occurs when air is trapped under the decal, making it look silvery. Apply a decal setting solution to help the decal conform better and eliminate air. Ensure the surface is glossy before applying decals.
• Peces trencades: Small parts can be delicate. If a part breaks, use plastic cement to reattach it. For structural breaks, consider reinforcing with a small piece of plasticard or wire if possible.

9. Especificacions

10. Garantia i Suport

This Tamiya product is manufactured to high-quality standards. For specific warranty information or technical support regarding missing or defective parts, please refer to the documentation included in your kit or contact Tamiya customer service directly through their official weblloc web. Si us plau, conserveu el comprovant de compra per a qualsevol reclamació de garantia.
