ESPRIT Chronograph Black Dial Men's Watch - ES000T31020-N User Manual

1. Introducció

This manual provides comprehensive instructions for the operation, maintenance, and care of your ESPRIT Chronograph Black Dial Men's Watch, model ES000T31020-N. Please read this manual thoroughly to ensure proper use and to maximize the lifespan of your timepiece.

2. Característiques del producte

• Color de l'esfera: Negre
• Forma de la caixa: Ronda
• Color de la banda: Negre
• Material de la banda: Cuir
• Tipus de moviment: Quars
• Tipus de visualització: Cronògraf
• Profunditat de resistència a l'aigua: 30 metres (3 ATM)

3. Identificació de components i peces

Familiarize yourself with the various parts of your ESPRIT Chronograph watch:

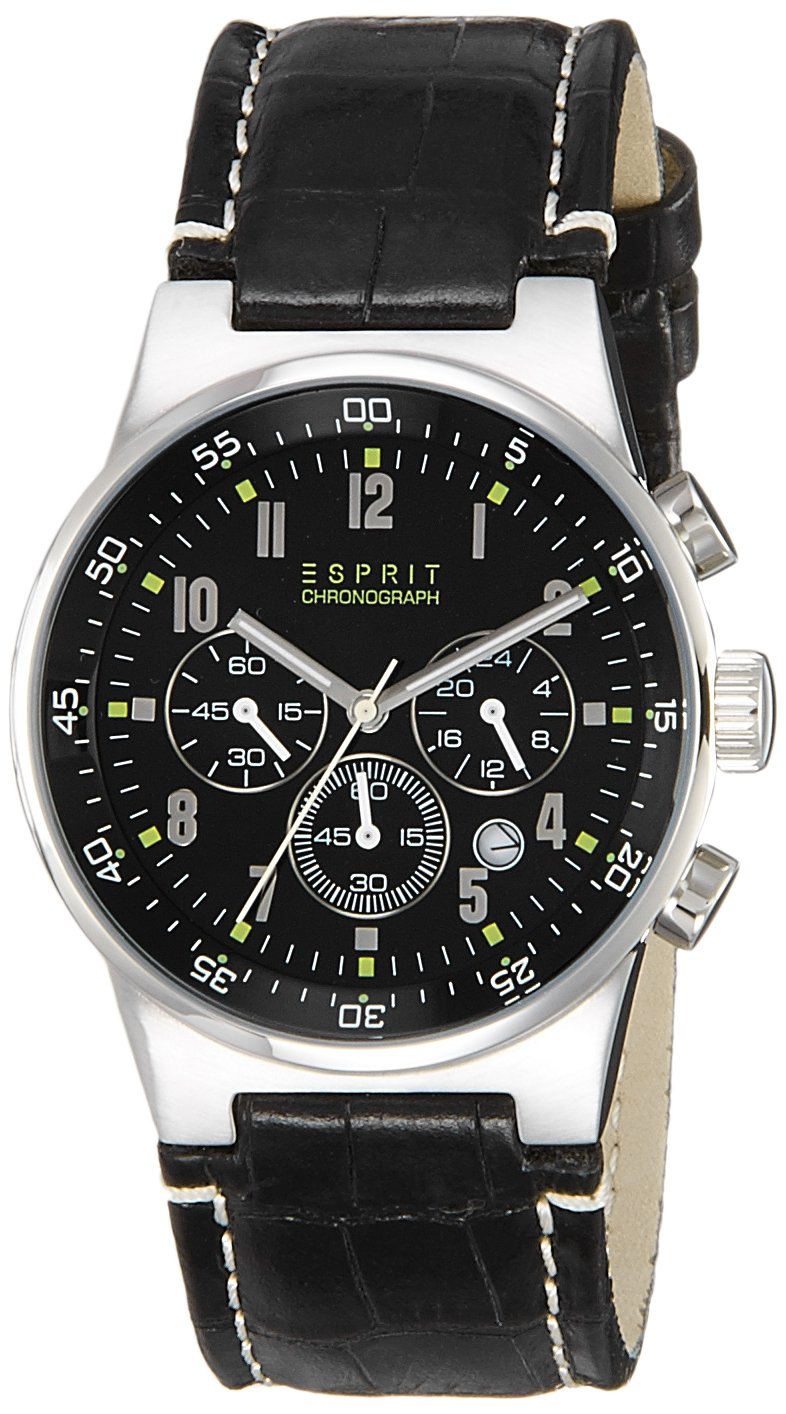

Figura 3.1: Frontal View del Rellotge. This image displays the watch face, including the main hour, minute, and second hands, the chronograph subdials, and the date window. The black dial features luminous hour markers and hands for visibility.

• Corona: Used for setting time and date. Located on the right side of the watch case.
• Empenyedors (A i B): Buttons used to operate the chronograph functions. Located above and below the crown.
• Agulles de les hores, els minuts i els segons: Main time display.
• Chronograph Subdials: Typically measure elapsed time (e.g., 60-second, 60-minute, 24-hour).
• Finestra de data: Mostra la data actual.
• Estoig del rellotge: The main body of the watch, made of stainless steel.
• Corretja de cuir: The black leather band with a buckle closure.

Figura 3.2: lateral View with Crown and Pushers. This image highlights the crown and the two chronograph pushers on the right side of the watch case, essential for setting and operating the watch's functions.

Figura 3.3: posterior View del Rellotge. This image shows the stainless steel case back, which typically includes engravings such as water resistance rating, material, and brand logo.

4. Configuració i funcionament inicial

5. Funcionament de la funció de cronògraf

Your watch features a chronograph (stopwatch) function for measuring elapsed time.

1. Inici del cronògraf: Press pusher A (top pusher) to start the chronograph. The chronograph second hand will begin to move.
2. Stopping the Chronograph: Press pusher A again to stop the chronograph. The elapsed time will be indicated by the chronograph hands on the subdials.
3. Reinicialització del cronògraf: After stopping, press pusher B (bottom pusher) to reset all chronograph hands to their zero positions.
4. Measuring Intermediate Times (Split Time): While the chronograph is running, press pusher B to measure an intermediate time. The chronograph hands will stop, allowing you to read the time. Press pusher B again to resume the chronograph measurement.

6. Manteniment i cura

• Neteja: Netegeu la caixa i la corretja del rellotge regularment amb un drap suau i sec. Per a la corretja de cuir, eviteu la humitat excessiva.
• Resistència a l'aigua: Aquest rellotge és resistent a l'aigua fins a 30 metres (3 ATM). Això vol dir que és adequat per a l'ús diari i pot suportar esquitxades o immersió breu en aigua. És no suitable for swimming, showering, or diving. Do not operate the crown or pushers when the watch is wet.
• Temperatura: Eviteu exposar el rellotge a temperatures extremes (calor o fred) o canvis sobtats de temperatura.
• Camps magnètics: Keep the watch away from strong magnetic fields, as they can affect the accuracy of the quartz movement.
• Substitució de la bateria: The watch is powered by a quartz battery. When the battery runs low, the second hand may start to jump in 2-second intervals (End-of-Life indicator). It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and function.
• Cura de la corretja: Leather straps can wear over time. Avoid prolonged exposure to direct sunlight, water, and chemicals to preserve their condition.

7. Solució De Problemes

If you encounter issues not listed here or if solutions do not resolve the problem, please contact an authorized service center.

8. Especificacions

9. Garantia i Suport

Your ESPRIT Chronograph watch comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage period and what is covered.

For technical support, service, or warranty claims, please contact an authorized ESPRIT service center. Keep your proof of purchase for warranty validation.

10. Informació de seguretat

• Do not attempt to open the watch case back yourself, as this may void the warranty and damage the internal components.
• Mantingueu el rellotge fora de l'abast dels nens petits per evitar la ingestió accidental de peces petites.
• Avoid direct contact with solvents, detergents, perfumes, and cosmetic products, as they may damage the watch case, strap, or seals.
• If the watch glass breaks, avoid touching the broken pieces and seek professional repair immediately.
