EGO Power+ LM2000-S 20-Inch 56-Volt Cordless Walk Behind Lawn Mower User Manual

1. Informació important de seguretat

Llegiu i comprengueu sempre tots els avisos i instruccions de seguretat abans de fer servir la tallagespa. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

• Precaució: Keep hands and feet clear of the mowing area.
• Avís: The blade is sharp. Do not touch or attempt to remove debris from the blade while the engine is running.
• Precaució: Engine exhaust is hot. Avoid contact with hot surfaces.
• Utilitzeu equips de protecció individual adequats, com ara protecció ocular, protecció auditiva i calçat resistent.
• Ensure the battery and charger are compatible with the EGO Power+ system.
• No feu servir la tallagespa en condicions humides o amb pluja.

2. Producte acabatview

The EGO Power+ LM2000-S is a 20-inch 56-volt lithium-ion cordless walk-behind lawn mower designed for efficient lawn care. It offers the performance of a gas mower without the associated noise, fumes, or maintenance.

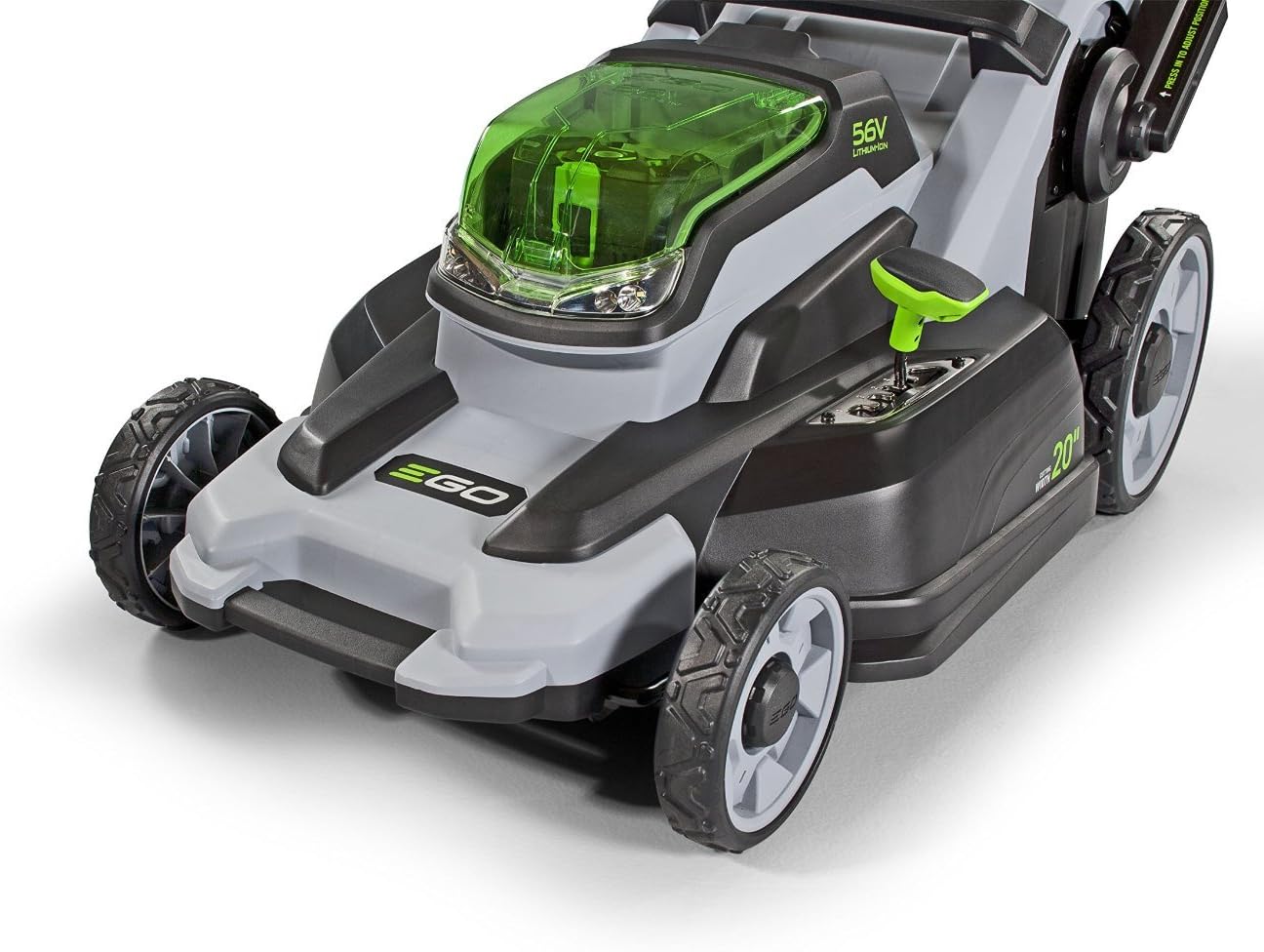

Davant view of the EGO Power+ LM2000-S lawn mower.

Característiques principals:

• 20-Inch Cut Capacity: Allows for cutting more grass in less time.
• True 3-in-1 Function: Provides superior performance for mulching, rear bagging, and side discharge.
• 600W High-Torque Magnetic Motor: Engineered for powerful, gas-like performance at 3300 RPM.
• Compact, Foldable Design: Enables quick and easy folding for convenient upright storage and cleaning.
• Fars LED: Facilitate mowing during early morning or evening hours.
• Convenient Push-Button Start: Eliminates the need for a pull cord, starting easily with a button press.
• Weather-Resistant Construction (IPX4): Ensures durability in various outdoor conditions.
• Compatibilitat: Works with all EGO Power+ ARC Lithium™ batteries (sold separately).

3. Configuració

3.1 Desembalatge i muntatge

The mower comes largely pre-assembled. Unfold the handle by releasing the quick-release levers on the sides. Ensure the handle locks securely into place at your desired height.

Close-up of the handle adjustment mechanism.

3.2 Instal·lació de la bateria

Open the battery compartment cover located on top of the mower. Insert a fully charged EGO Power+ ARC Lithium™ battery into the compartment until it clicks into place. Close the cover securely.

Video demonstrating the installation of the battery into the EGO Power+ lawn mower.

3.3 Ajust de l'alçada de tall

The mower features a single-point height adjustment lever. To change the cutting height, pull the lever outwards and move it to the desired position (1-7). Ensure the lever locks firmly into place before operation.

Close-up of the cutting height adjustment lever.

3.4 Attaching Grass Bag, Mulching, or Side Discharge

The mower supports 3-in-1 functionality. For bagging, lift the rear discharge flap and hook the grass bag onto the designated points. For mulching, ensure the mulching plug is inserted. For side discharge, attach the side discharge chute to the side opening.

EGO Power+ lawn mower with the grass collection bag attached.

EGO Power+ lawn mower with the side discharge chute in use.

4. Instruccions de funcionament

4.1 Engegar la tallagespa

To start the mower, ensure the battery is installed and the safety key is inserted. Press and hold the safety button, then pull the bail lever towards the handle. The mower will start. Release the safety button once the mower is running.

Video demonstrating the starting procedure of the EGO Power+ lawn mower.

4.2 Tècniques de sega

For best results, mow when the grass is dry. Overlap cutting swaths slightly to ensure even coverage. Avoid cutting more than one-third of the grass blade length at a time. For thick or tall grass, consider making two passes or using a higher cutting height.

Video showing the EGO Power+ lawn mower in operation, cutting grass.

5. Manteniment

5.1 Cura de la fulla

Regularly inspect the mower blade for sharpness and damage. A dull or damaged blade can tear grass, leading to an unhealthy lawn. Sharpen or replace the blade as needed. Always disconnect the battery before performing any maintenance on the blade.

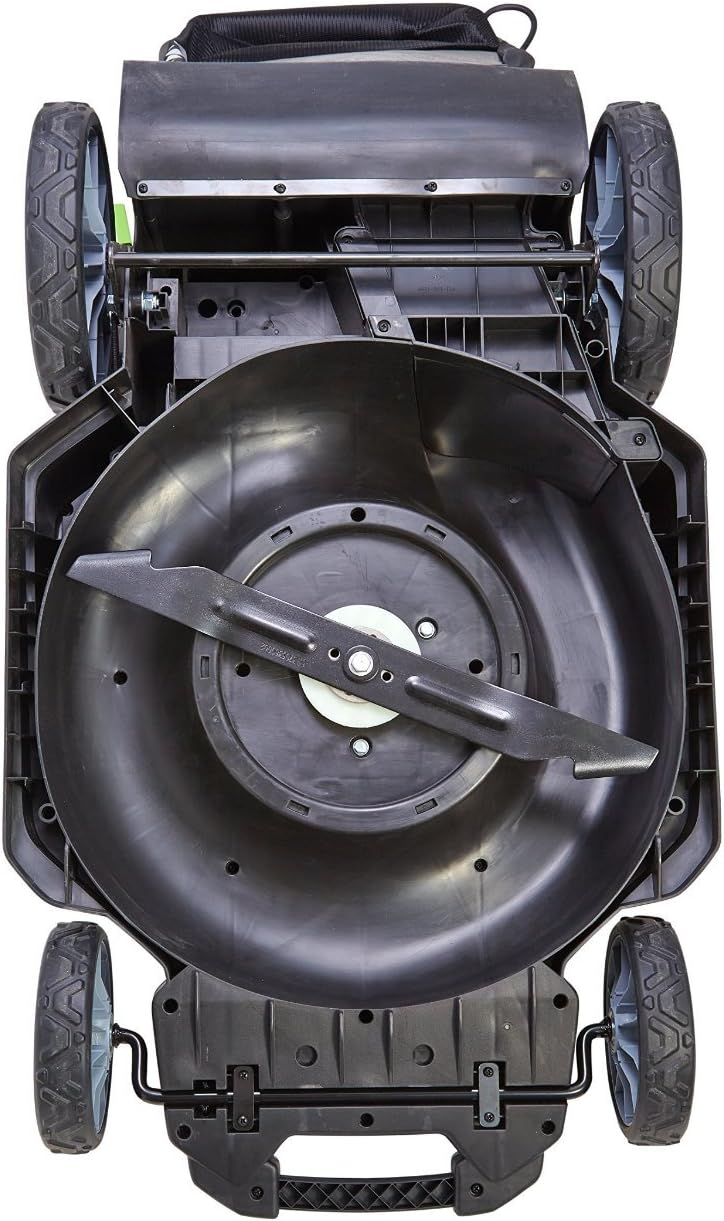

Part inferior view of the mower, showing the cutting blade.

5.2 Neteja

After each use, clean the mower deck and discharge chute to prevent grass buildup, which can affect performance. Use a damp cloth to wipe down the exterior. Do not use high-pressure water or immerse the mower in water.

5.3 Emmagatzematge

For compact storage, the EGO Power+ LM2000-S can be folded upright. Ensure the battery is removed before storing. Store the mower in a dry, secure location away from direct sunlight and extreme temperatures.

The EGO Power+ lawn mower folded into an upright position for compact storage.

6. Solució De Problemes

If the mower fails to start or operate correctly, check the following:

• Ensure the battery is fully charged and properly seated in the compartment.
• Verify the safety key is fully inserted.
• Check for any obstructions around the blade or in the discharge chute.
• Confirm the handle is fully extended and locked into the operating position.
• If the issue persists, consult the full product manual or contact EGO Power+ customer support.

7. Especificacions

8. Garantia i Suport

For warranty information, technical support, or to purchase replacement parts, please refer to the official EGO Power+ weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.
