Vivitar VIV-QCB-308 Rapid Travel Charger Instruction Manual

Introducció

This manual provides essential instructions for the safe and efficient use of your Vivitar VIV-QCB-308 Rapid Travel Charger. This charger is designed for use with Nikon EN-EL23 batteries, offering versatile charging options for both wall outlets and vehicle power sources.

Informació important de seguretat

Si us plau, llegiu atentament tots els avisos de seguretat abans d'utilitzar aquest producte.

• To prevent potential fire or risk of electric shock, do not expose this unit to water or moisture.
• Do not disassemble the unit. Disassembly voids warranty and may cause electric shock or fire.
• Mantenir fora de l'abast dels nens.
• Do not use the charger if it has been damaged in any way.
• Ensure the charger is used within the specified input voltagrangs e.

Contingut del paquet

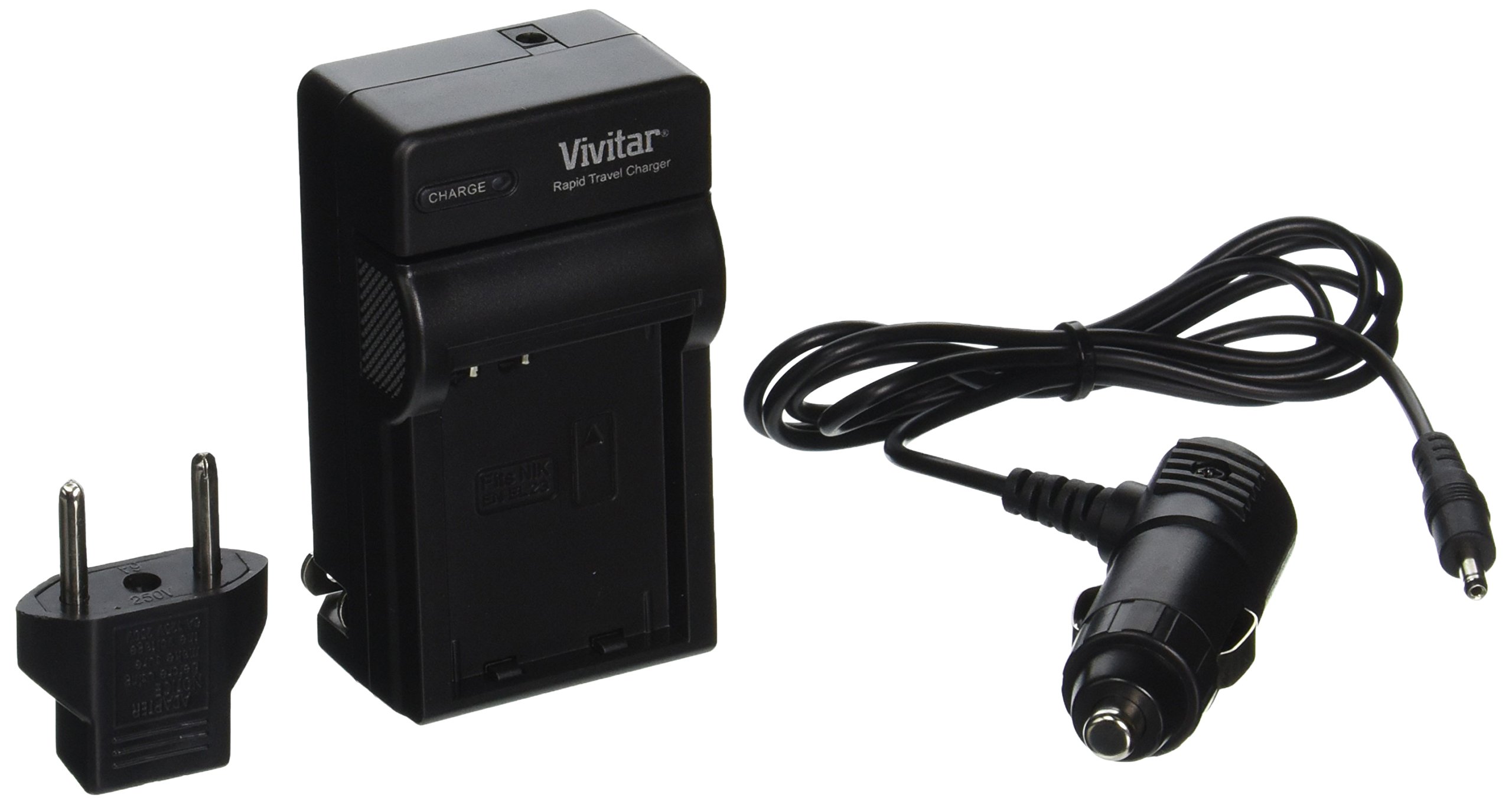

• Vivitar VIV-QCB-308 Rapid Travel Charger
• 12V DC Car Charger Adapter

Configuració

The Vivitar VIV-QCB-308 charger offers two primary methods for power input: standard wall outlet and a 12V DC car power source.

Càrrega de paret

1. Locate the foldable prongs on the back of the charger.
2. Flip out the prongs until they are fully extended.
3. Plug the charger directly into a standard AC wall outlet (100V-240V, 50/60Hz).

Càrrega de cotxes

1. Connect the included 12V DC car charger adapter cable into the designated input port on the side of the Vivitar charger.
2. Insert the other end of the 12V DC car charger adapter into your vehicle's cigarette lighter socket or 12V power outlet.

This image shows the Vivitar VIV-QCB-308 Rapid Travel Charger. The charger is black and compact, featuring a label that details its model number (VIV-QCB-308), compatibility with Nikon EN-EL23 batteries, and electrical specifications for both AC (100V-240V, 50/60Hz, Max 150mA) and DC (12V-24V car charger) input, as well as DC 4.2V, 600mA output. Safety warnings regarding exposure to water/moisture and disassembly are also visible. The foldable prongs for wall outlets are extended at the bottom.

Instruccions de funcionament

Follow these steps to charge your Nikon EN-EL23 battery:

1. Insereix la bateria: Carefully slide your Nikon EN-EL23 battery into the charging slot on the Vivitar charger. Ensure it is seated correctly and securely.
2. Connecteu-vos a l'alimentació: Plug the charger into a suitable power source (either a wall outlet or a 12V DC car outlet as described in the Setup section).
3. Càrrega del monitor: The charger typically features an indicator light (not explicitly detailed on the product label, but common for such devices) that will illuminate to show the charging status. This light may change color or turn off when charging is complete. Refer to the charger's specific indicator behavior if available.
4. Traieu la bateria: Once the battery is fully charged, disconnect the charger from the power source and carefully remove the battery.

Manteniment

Proper maintenance ensures the longevity and performance of your charger:

• Neteja: Feu servir un drap suau i sec per netejar l'exterior del carregador. No utilitzeu netejadors líquids ni dissolvents.
• Emmagatzematge: Guardeu el carregador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes quan no l'utilitzeu.
• Inspecció: Periodically inspect the charger and cables for any signs of damage. If damage is found, discontinue use immediately.

Resolució de problemes

Si teniu problemes amb el carregador, consulteu els següents problemes i solucions habituals:

Especificacions

Informació de la garantia

This Vivitar product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Vivitar weblloc web per obtenir els termes i condicions detallats sobre la cobertura de la garantia, la durada i el procés de reclamacions.

Atenció al client

For technical assistance, troubleshooting, or any questions regarding your Vivitar VIV-QCB-308 Rapid Travel Charger, please contact Vivitar customer support. Contact information can typically be found on the product packaging or the official Vivitar weblloc.
