PetSafe SmartDoor Electronic Pet Door - Large

Introducció

The PetSafe SmartDoor Electronic Pet Door provides selective access for your pets, allowing them to enter and exit while keeping unwanted animals out. This large-sized door features programmable modes and is designed for energy efficiency. It operates by detecting a unique SmartKey worn on your pet's collar, granting access only to authorized pets.

• Selective Entry: The door unlocks only when it detects your pet's unique collar key, preventing stray animals from entering your home.
• Multiple Pet Compatibility: Program up to 5 SmartKeys, making it suitable for households with multiple dogs or cats.
• 3 Programmable Modes: Choose between Automatic, Open, or Closed modes for flexible control over pet access.

Informació important de seguretat

ADVERTIMENT:

• If children are present in the household, ensure the pet door is securely locked when not in use. Children may misuse the pet door and expose themselves to dangers outside.
• Pool owners must be particularly vigilant and continuously monitor the use of the pet door. Ensure proper barriers are in place to secure pool access.
• If any new hazardous situation arises, either inside or outside your home, to which a child could be exposed due to the pet door, Radio Systems Corporation strongly recommends taking all necessary measures to secure access or removing the pet door.
• The security barrier or lock available on some pet door models is for aesthetic and energy-saving purposes only. They cannot be considered security systems.
• Radio Systems Corporation cannot be held responsible if this product is used for purposes other than those intended. The buyer agrees to use this product responsibly.

Avís legal

Before installing the pet door, the user must be aware of any restrictions that may apply to the installation of such a door in their home. It is also advisable to consult with a certified contractor regarding the suitability of placing such a door in a given location. The pet door is not a fire door. Furthermore, the owner and contractor must consider all existing risks both inside and outside the pet door, any risks that may arise during future property modifications, and the consequences of the presence and use, correct or incorrect, of the pet door on these risks.

Configuració i instal·lació

The PetSafe SmartDoor is designed for easy installation in wood or uPVC doors and walls with a thickness between 3.2 cm and 5.1 cm. It is not compatible with glass installations. For thicker walls, extension tunnels and wall adapters are available separately.

Passos d'instal·lació acabatsview:

1. Prepara l'obertura: Use the provided cutting template to mark the desired location on your door or wall. Ensure the height is appropriate for your pet.
2. Perforar forats pilot: Drill pilot holes at the marked corners of the template.
3. Talla l'obertura: Carefully cut out the opening using a suitable saw.
4. Assemble the Door: Insert the SmartDoor into the prepared opening. If necessary, use extension tunnels or a wall adapter (sold separately) for proper fit.
5. Assegura la porta: Fasten the door securely using the provided screws.

Imatge: Installation accessories including a tunnel extension (CPA00-12021) and a wall adapter (MPA11-12020) for various door and wall thicknesses. These are sold separately.

Instruccions de funcionament

The PetSafe SmartDoor offers three operating modes and uses a SmartKey for selective entry.

SmartKey Functionality:

The SmartDoor detects the unique SmartKey worn on your pet's collar. When an authorized pet approaches, the door's locking mechanism disengages, allowing the pet to pass through. The door then re-locks automatically.

Imatge: The electronic SmartKey (RFA-67) that attaches to your pet's collar. The door unlocks only when this unique key is detected, preventing unwanted animals from entering. Up to 5 SmartKeys can be programmed.

Programming SmartKeys:

The SmartDoor can activate and store programming for up to 5 individual SmartKeys. Refer to your detailed user guide for specific steps on how to program each SmartKey to the door.

Imatge: The SmartDoor with its flap, illustrating the selective entry feature. Additional SmartKeys are sold separately.

Selecció de modes de funcionament:

The SmartDoor features a control dial to select one of three operating modes:

• Automàtic: The door unlocks only for pets wearing a programmed SmartKey.
• Obert: The door remains unlocked and allows any animal to pass through freely.
• Tancat: The door remains locked at all times, preventing any access.

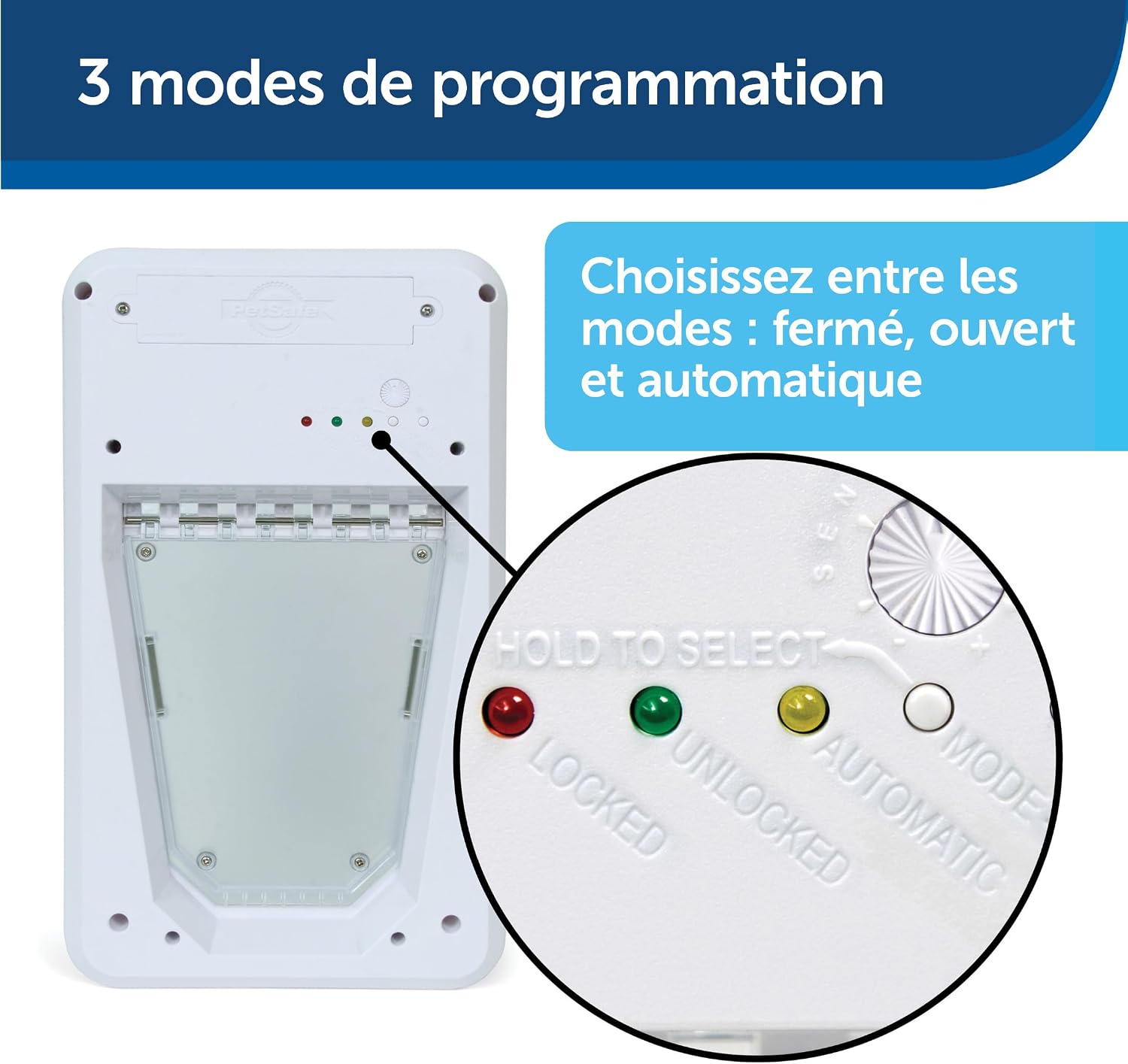

Imatge: The control dial on the SmartDoor, allowing selection between Locked (red LED), Unlocked (green LED), and Automatic (yellow LED) modes.

Imatge: A dog wearing a SmartKey collar tag approaches the SmartDoor, which unlocks upon detection. This illustrates the door's automatic function.

Manteniment

Neteja:

Regularly clean the pet door's frame and flap with a damp cloth and mild soap. Avoid abrasive cleaners that could damage the plastic. Ensure the flap moves freely and is free of debris.

Substitució de la bateria:

The SmartDoor requires D-cell (LR20) batteries for operation. The SmartKey also uses a replaceable battery. Monitor the indicator lights on the door for low battery warnings. Replace batteries promptly to ensure continuous functionality. Battery life can vary depending on usage frequency.

Resolució de problemes

• Door Not Opening:
  • Check if the SmartKey battery is dead or low. Replace if necessary.
  • Ensure the SmartDoor itself has fresh D-cell batteries.
  • Verify the operating mode is set to 'Automatic' or 'Open'.
  • Confirm the SmartKey is properly programmed to the door.
• Slow Detection:
  • Adjust the sensitivity setting of the SmartDoor (refer to the full user manual for specific instructions).
  • Ensure there are no obstructions near the door that could interfere with the signal.
• Animals no desitjats que entren:
  • Ensure the door is in 'Automatic' mode and only programmed SmartKeys are granting access.
  • Check if the SmartKey is securely attached to your pet's collar and functioning correctly.

Especificacions

Imatge: Detailed dimensions for the Large SmartDoor, including flap opening (28 cm width, 40.5 cm height), frame (41 cm width, 60 cm height), and door cut-out (39.5 cm width, 59 cm height).

Garantia i Suport

Garantia del fabricant:

This PetSafe SmartDoor Electronic Pet Door comes with a Garantia del fabricant de 3 anys. Please retain your proof of purchase for warranty claims. The full terms and conditions of the warranty can be found in the official documentation provided with your product or on the PetSafe weblloc.

Atenció al client:

For further assistance, technical support, or to inquire about replacement parts and accessories, please visit the official PetSafe website or contact their customer service department. Contact information can typically be found in the packaging or on the brand's weblloc.
