FERVE F-2520 Automatic Lead-Acid Battery Charger

1. Introducció

This manual provides essential information for the safe and effective operation of your FERVE F-2520 Automatic Lead-Acid Battery Charger. Please read these instructions carefully before use and retain them for future reference.

The FERVE F-2520 is an automatic charger designed for all types of 12-volt lead-acid batteries, including AGM, GEL, LIQUID, and START-STOP batteries. It offers multiple charging options, making it suitable for a wide range of vehicles. It is recommended for batteries with a capacity between 4 and 230 Ah. The stabilized charging system protects the vehicle's electronic components.

2. Informació de seguretat

ADVERTIMENT: Always follow these safety precautions to prevent injury or damage to the charger or battery.

• Llegiu totes les instruccions abans d'utilitzar el carregador.
• Utilitzeu el carregador en una zona ben ventilada.
• No exposeu el carregador a la pluja o la humitat.
• Assegureu-vos que el carregador estigui desconnectat de la font d'alimentació abans de fer o tallar connexions a la bateria.
• Utilitzeu protecció ocular i roba protectora quan treballeu amb piles.
• Keep sparks, flames, and smoking materials away from batteries. Batteries produce explosive gases during charging.
• No carregueu mai una bateria congelada.
• No utilitzeu el carregador si s'ha caigut o s'ha fet malbé.
• Mantenir fora de l'abast dels nens.

3. Producte acabatview

The FERVE F-2520 is an intelligent battery charger featuring a plastic casing with controlled ventilation and a display screen for monitoring charging parameters.

Característiques principals:

• HF Charger 12 V / 24 V operation.
• Selectable charging currents: 2A, 10A, 20A for 12V; 2A, 10A for 24V.
• Compatible with lead-acid batteries (AGM, GEL, LIQUID, START-STOP) from 4 to 230 Ah.
• Integrated display for volts, amperes, and charge percentage.
• Stabilized charging system to protect vehicle electronics.

Components del producte:

Imatge 1: Davant view of the FERVE F-2520 charger, showing the control panel with buttons for voltage selection (12V/24V), current selection (2A/10A/20A), and display mode. The digital display shows '12.5' volts. The unit is red and black with a carrying handle.

Imatge 2: Diagram illustrating the 3-in-1 functions of the FERVE F-2520: Automatic Charging, Battery Test, and Alternator Test. The charger is shown in the foreground with icons representing each function below.

Imatge 3: Image highlighting the compatibility of the FERVE F-2520 with various battery types: LIQ (Liquid), GEL, AGM, and START-STOP. It also indicates compatibility with 12V and 24V systems. Below the charger, icons of different vehicles (motorcycle, cars, truck, van) illustrate its broad application.

4. Configuració

1. Desembalatge: Traieu amb cura el carregador del seu embalatge. Inspeccioneu-lo per veure si hi ha signes de danys.
2. Ventilació: Col·loqueu el carregador sobre una superfície estable i plana en una zona ben ventilada, allunyada de la llum solar directa, de fonts de calor i de la humitat.
3. Preparació de la bateria:
   • Assegureu-vos que els terminals de la bateria estiguin nets i sense corrosió.
   • If charging a battery installed in a vehicle, ensure the vehicle's ignition is off and all accessories are disconnected.
   • For batteries with removable caps, check electrolyte levels and top up with distilled water if necessary (for liquid lead-acid batteries).
4. Connexió a la bateria:
   • Connect the RED (+) charger clamp al terminal positiu (+) de la bateria.
   • Connect the BLACK (-) charger clamp to the negative (-) battery terminal. If charging a battery in a vehicle, connect the BLACK (-) clamp al xassís del vehicle lluny de la bateria i la línia de combustible.
   • Assegureu-vos que les connexions siguin segures.
5. Connexió a l'alimentació: Plug the charger's power cord into a suitable electrical outlet.

5. Instruccions de funcionament

Procés de càrrega:

1. Encès: Once connected to the battery and power outlet, the charger will power on.
2. Seleccioneu Voltage: Utilitza el 12V/24V button to select the appropriate voltage for your battery. The display will show the selected voltage.
3. Select Current: Utilitza el 2A/10A/20A button to select the desired charging current.
   • For 12V batteries, options are 2A, 10A, 20A.
   • For 24V batteries, options are 2A, 10A.
   • Choose a lower current for smaller batteries or maintenance charging, and a higher current for faster charging of larger batteries. Refer to your battery manufacturer's recommendations.
4. Comença a carregar: The charger will automatically begin the charging process based on the selected settings and battery type. The display will show the current voltage, amperage, and charge percentage.
5. Seguiment: Periodically check the display to monitor the charging progress. The charger will automatically switch to maintenance mode once the battery is fully charged.
6. End of Charge: Once charging is complete, the charger will indicate a full charge (e.g., 100% on the display).
7. Desconnexió:
   • Primer, desendolleu el carregador de la presa de corrent.
   • Then, disconnect the BLACK (-) clamp from the battery (or vehicle chassis).
   • Finally, disconnect the RED (+) clamp de la bateria.

Modes de visualització:

Utilitza el MODE DE PANTALLA button to cycle through different information displayed on the screen, such as voltage (V), amperage (A), and charge percentage (%).

Battery and Alternator Test Functions:

The FERVE F-2520 includes functions for testing the battery and the vehicle's alternator. Refer to the display and specific indicators for these tests. Detailed instructions for performing these tests are typically provided on the device's interface or in a separate quick-start guide.

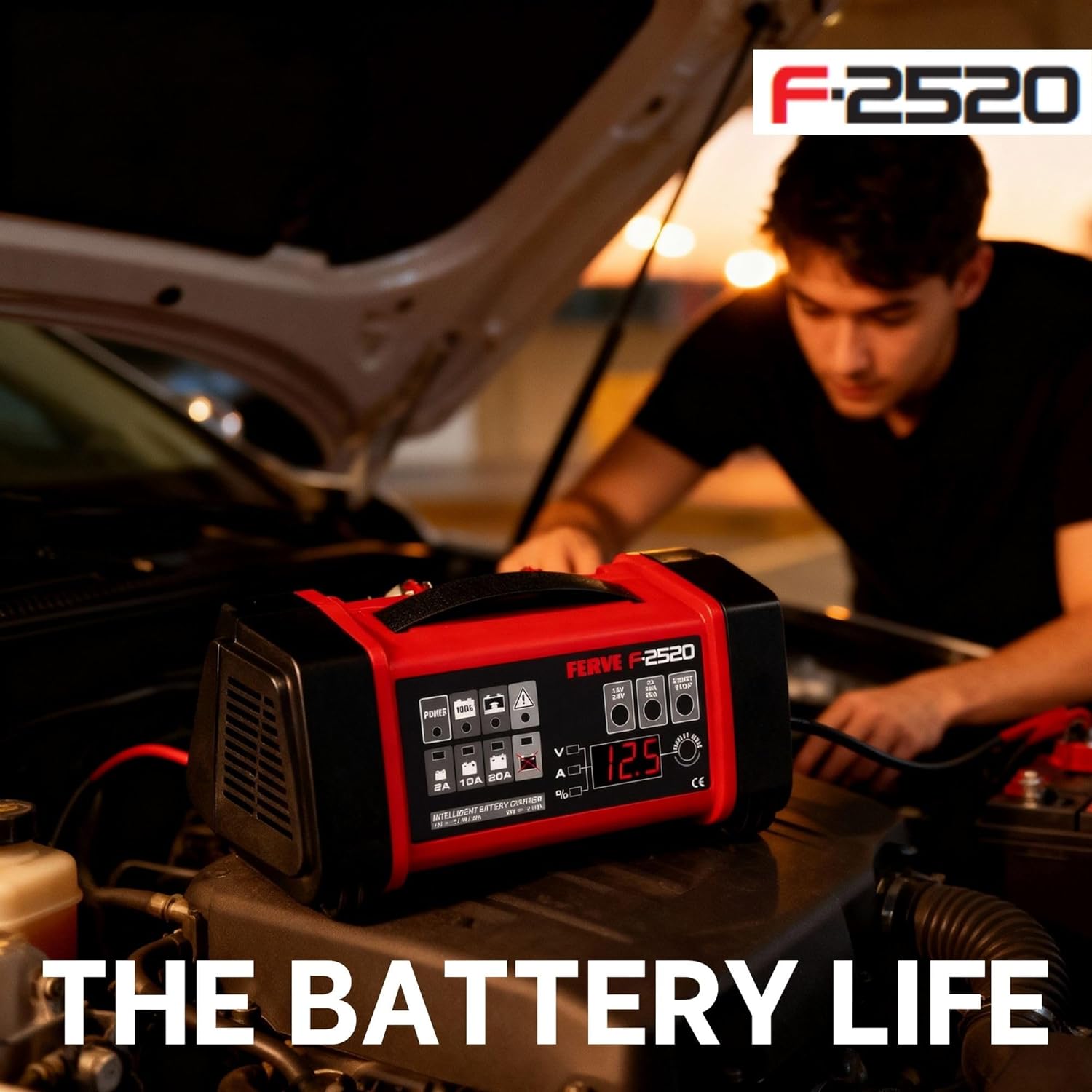

Imatge 4: The FERVE F-2520 battery charger connected to a car battery under the hood of a vehicle, demonstrating its practical application. The charger's display is visible, indicating active operation.

6. Manteniment

• Neteja: Disconnect the charger from power and battery before cleaning. Wipe the casing with a soft, dry cloth. Do not use solvents or abrasive cleaners.
• Emmagatzematge: Store the charger in a cool, dry place when not in use. Keep cables neatly coiled.
• Inspecció del cable: Inspeccioneu regularment els cables de càrrega i el clampsi hi ha signes de danys, desfiladura o corrosió. Substituïu-los si cal.
• Ventilació: Ensure the ventilation openings on the charger are clear of dust and debris to prevent overheating.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

The FERVE F-2520 battery charger comes with a 3-year warranty, as indicated by the manufacturer. For warranty claims, technical support, or service inquiries, please contact FERVE S.A. directly or your authorized dealer.

FERVE S.A. specializes in the manufacture of chargers, starters, and battery testers. For further assistance, refer to the contact information provided with your product packaging or visit the official FERVE weblloc.
