VOLT Polska IPS-500/1000 Power Inverter User Manual

1. Introducció

Thank you for choosing the VOLT Polska IPS-500/1000 Power Inverter. This device is designed to convert 12V DC power from your vehicle's battery into 230V AC power, allowing you to operate standard household appliances and charge sensitive USB devices such as MP3 players and digital cameras while on the go. Please read this manual thoroughly before use to ensure safe and efficient operation.

2. Informació de seguretat

Instruccions importants de seguretat:

• Read all instructions before operating the inverter.
• No obriu l'inversor casing. No hi ha peces que l'usuari pugui reparar a l'interior.
• Keep the inverter away from moisture, water, and flammable materials.
• Ensure adequate ventilation around the inverter to prevent overheating. Do not block the fan or vents.
• Connect the inverter only to a 12V DC power source. Connecting to a 24V or higher source will damage the unit.
• Always connect the inverter to the battery terminals correctly: positive to positive, negative to negative. Reverse polarity can cause damage.
• Do not connect the inverter to AC distribution wiring.
• Desconnecteu l'inversor de la font d'alimentació quan no l'utilitzeu.
• Avoid overloading the inverter. The continuous power output is 500W, with a peak power of 1000W.

3. Producte acabatview

The VOLT Polska IPS-500/1000 power inverter is a compact and efficient device designed for mobile power needs. Familiarize yourself with its components:

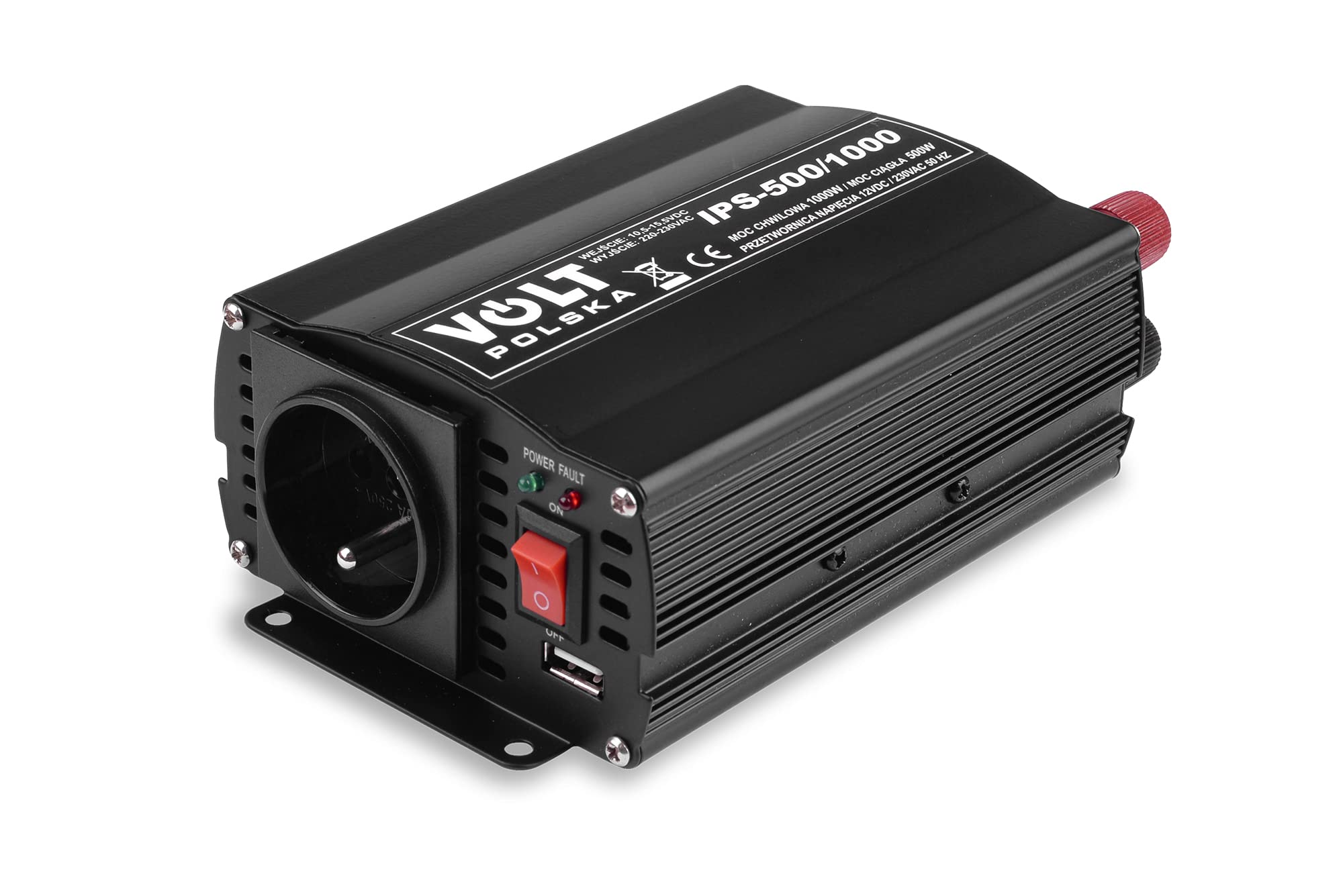

Figura 3.1: En general view of the VOLT Polska IPS-500/1000 Power Inverter. This image shows the compact black casing with branding and specifications printed on the top surface, along with the input and output ports on either end.

3.1. DC Input Side

Figura 3.2: The DC input side of the inverter. This end features the positive (red) and negative (black) terminals for connecting to a 12V DC power source, a replaceable fuse, and a cooling fan for thermal management.

• Positive (+) Terminal (Red): Connects to the positive terminal of the 12V battery.
• Negative (-) Terminal (Black): Connects to the negative terminal of the 12V battery.
• Portafusibles: Contains a replaceable fuse for overcurrent protection.
• Ventilador de refrigeració: S'activa automàticament per dissipar la calor durant el funcionament.

3.2. AC Output Side

Figura 3.3: The AC output side of the inverter. This end includes a universal AC outlet, a power switch, and USB charging ports.

• Presa de corrent altern (230 V): Standard European-style AC socket for connecting appliances.
• Interruptor d'alimentació (ON/OFF): Controla l'alimentació de l'inversor.
• Power/Fault Indicators (LEDs): Green for power ON, Red for fault conditions.
• Ports de càrrega USB: Per carregar dispositius alimentats per USB.

3.3. Accessoris inclosos

Figura 3.4: The cables included with the inverter. These typically include battery clamp cables for direct connection to a car battery and a cigarette lighter adapter cable for lower power applications.

• Bateria Clamp cables: Per a connexió directa a una bateria de cotxe de 12V.
• Cigarette Lighter Adapter Cable: For connecting to a vehicle's 12V cigarette lighter socket (suitable for loads up to approximately 150W).

4. Configuració

Follow these steps to properly set up your power inverter:

1. Trieu una ubicació: Place the inverter in a dry, well-ventilated area, away from direct sunlight, heat sources, and flammable materials. Ensure the cooling fan is not obstructed.
2. Assegureu-vos que l'alimentació estigui apagada: Make sure the inverter's power switch is in the "OFF" position before making any connections.
3. Connecteu-vos a una font d'alimentació de 12 V CC:
   • Ús de la bateria Clamp Cables (for loads > 150W or direct battery connection):
     1. Connecteu el cable vermell clamp al terminal positiu (+) de la bateria de 12 V.
     2. Connecteu el cable negre clamp al terminal negatiu (-) de la bateria de 12 V.
     3. Connect the other end of the red cable to the red (+) terminal on the inverter.
     4. Connect the other end of the black cable to the black (-) terminal on the inverter.
     5. Assegureu-vos que totes les connexions estiguin estretes i segures.
   • Using Cigarette Lighter Adapter Cable (for loads up to 150W):
     1. Plug the cigarette lighter adapter into your vehicle's 12V accessory socket.
     2. Connect the other end of the cable to the appropriate input terminals on the inverter (usually a single plug or specific terminals designed for this cable).
4. Connect AC Appliances: Plug your 230V AC appliances into the AC outlet on the inverter. For USB devices, use the USB charging ports. Ensure the total wattage of connected devices does not exceed the inverter's continuous power rating (500W).

5. Instruccions de funcionament

Once the inverter is properly set up, follow these steps to operate it:

1. Engegueu l'inversor: Flip the power switch on the inverter to the "ON" position. The green "POWER" indicator light should illuminate.
2. Indicadors del monitor:
   • Green LED (POWER): Indicates the inverter is operating normally and providing AC power.
   • Red LED (FAULT): Indicates a fault condition such as overload, overheating, or low battery voltage. The inverter will typically shut down automatically under these conditions.
3. Use Appliances: Operate your connected AC and USB devices as normal.
4. Límits de potència:
   • Potència contínua: 500W. This is the maximum power the inverter can supply continuously.
   • Potència màxima: 1000W. This is the maximum power the inverter can supply for a very short duration (e.g., during appliance startup).
   • Do not exceed the continuous power rating to avoid triggering overload protection or damaging the inverter.
5. Apagueu l'inversor: When finished, turn off all connected appliances, then flip the inverter's power switch to the "OFF" position. Disconnect the inverter from the 12V power source if not needed for an extended period.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre inversor:

• Neteja: Periodically clean the exterior of the inverter with a soft, dry cloth. Do not use liquid cleaners or solvents. Ensure the cooling fan and vents are free from dust and debris.
• Connexions: Regularly check all electrical connections (battery clamps, terminals) to ensure they are tight and free from corrosion. Loose connections can cause overheating and poor performance.
• Substitució de fusibles: The inverter is equipped with an internal fuse for protection. If the inverter stops working and the fault indicator is on, the fuse might need replacement. This should ideally be done by a qualified technician. Refer to specifications for fuse type.
• Emmagatzematge: When storing the inverter for extended periods, ensure it is clean, dry, and disconnected from any power source. Store in a cool, dry place.

7. Solució De Problemes

Si teniu problemes amb l'inversor, consulteu els següents problemes i solucions habituals:

8. Especificacions

Technical specifications for the VOLT Polska IPS-500/1000 Power Inverter:

9. Garantia i assistència

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Volt Polska customer service directly. Keep your proof of purchase for any warranty claims.

Informació de contacte: Please visit the official Volt Polska website or refer to your purchase receipt for the most up-to-date contact details for support.
