BSIDE ELM02 Digital Lux/FC Meter User Manual

1. Introducció

The BSIDE ELM02 is an auto-ranging digital lux/FC meter designed for measuring light illuminance. It provides accurate and easy-to-read measurements across a wide range, suitable for various applications requiring light level assessment. This manual provides detailed instructions for the proper use, setup, operation, and maintenance of your ELM02 meter.

2. Informació de seguretat

• Llegiu atentament totes les instruccions abans d'utilitzar el dispositiu.
• Do not expose the meter to extreme temperatures, humidity, or direct sunlight.
• Avoid dropping or subjecting the meter to strong impacts.
• Do not attempt to open or modify the meter; this will void the warranty and may cause damage.
• Remove the battery if the meter is not used for an extended period to prevent leakage.
• Keep the sensor clean and free from obstructions for accurate readings.

3. Producte acabatview

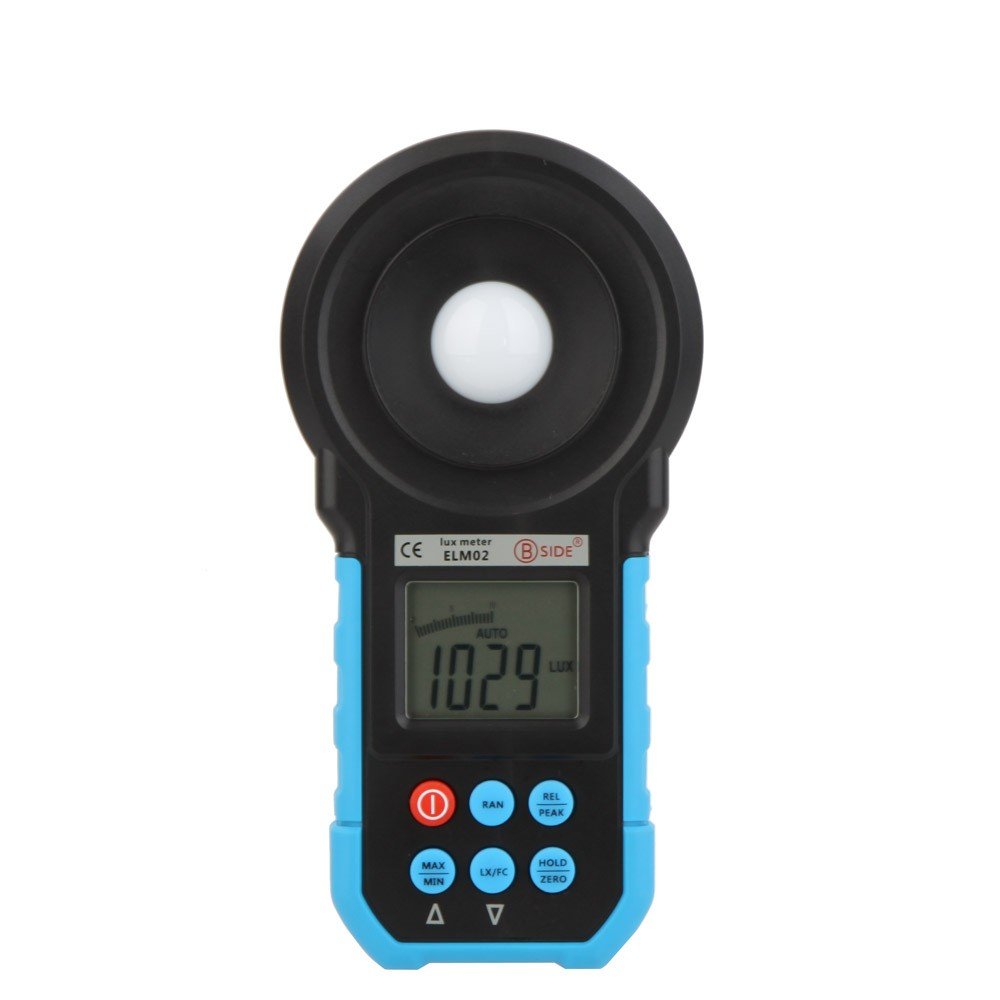

Figura 3.1: Frontal view of the BSIDE ELM02 Digital Lux/FC Meter, showing the light sensor, LCD display, and control buttons.

3.1 Components

• Sensor de llum: Detects ambient light levels.
• Pantalla LCD: Shows measurement readings, units, and various indicators.
• Botons de control: For operating different functions of the meter.
• Compartiment de la bateria: Located at the rear for 9V battery installation.

3.2 botons de control

Figura 3.2: Primer pla view of the BSIDE ELM02 control buttons, including Power, RAN, REL/PEAK, MAX/MIN, LX/FC, and HOLD/ZERO.

• Botó d'engegada (1.): Turns the meter ON or OFF.
• RAN (Range) Button: Toggles between auto-ranging and manual ranging modes. The ELM02 primarily operates in auto-range.
• REL/PEAK Button: Short press for Relative mode, long press for Peak value display.
• Botó MAX/MIN: Displays the maximum or minimum measured value.
• LX/FC Button: Switches the measurement unit between Lux and Foot-Candles (FC).
• HOLD/ZERO Button: Short press to hold the current reading, long press for Zero Calibration.

4. Configuració

4.1 Instal·lació de la bateria

1. Localitzeu la tapa del compartiment de la bateria a la part posterior del mesurador.
2. Slide or unscrew the cover to open it.
3. Insert one 9V (6F22) battery, observing the correct polarity (+/-).
4. Col·loqueu la coberta del compartiment de la bateria amb seguretat.

The meter will display a low battery indicator on the LCD when the battery needs replacement.

5. Instruccions de funcionament

5.1 Engegada/apagada

• To turn ON the meter, press the 1. Botó (engegada).
• To turn OFF the meter, press and hold the 1. (Power) button until the display turns off.

5.2 Prendre mesures

1. Enceneu el comptador.
2. Ensure the light sensor is clean and pointed towards the light source you wish to measure.
3. The meter will automatically select the appropriate range for measurement (Auto Range function).
4. The current illuminance value will be displayed on the LCD.

5.3 Unit Selection (Lux/FC)

Premeu el botó LX/FC button to toggle between Lux and Foot-Candle (FC) measurement units. The selected unit will be indicated on the LCD.

5.4 Funció de retenció de dades

Premeu el botó MANTENIM/ZERO button briefly to freeze the current reading on the display. Press it again to release the hold function and resume live measurements.

5.5 Peak Value Display

Manteniu premut el botó REL/PUNT button to enter Peak mode. The meter will display the maximum light intensity detected during the measurement period. Press and hold again to exit Peak mode.

5.6 Relative Mode Measurement

Premeu el botó REL/PUNT button briefly to enter Relative mode. The current reading becomes the reference value, and subsequent measurements are displayed as the difference from this reference. Press again to exit Relative mode.

5.7 Funció MÀX/MÍN

Premeu el botó MAX/MIN button to cycle through the maximum, minimum, and current readings recorded since the function was activated. Press and hold to clear the recorded MAX/MIN values.

5.8 Calibració zero

En un entorn fosc (per exemple, amb la tapa del sensor posada), premeu i manteniu premut el botó MANTENIM/ZERO button to perform zero calibration. This ensures accuracy by setting the baseline reading to zero in the absence of light.

5.9 Apagat automàtic

The meter features an auto power-off function to conserve battery life. If no button is pressed for approximately 15 minutes, the meter will automatically shut down. To disable this feature temporarily, refer to the full user manual if available (not detailed in provided data).

6. Especificacions

7. Manteniment

7.1 Neteja

• Netegeu l'exterior del mesurador amb un drap suau i sec.
• No utilitzeu netejadors abrasius ni dissolvents.
• Keep the light sensor clean and free of dust or smudges for accurate readings. Use a soft brush or lens cloth if necessary.

7.2 Emmagatzematge

• Guardeu el mesurador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• If storing for an extended period, remove the battery to prevent leakage and potential damage to the device.
• Utilize the provided carrying bag for protection during storage and transport.

Figure 7.1: The BSIDE ELM02 meter, carrying bag, and user manual.

8. Solució De Problemes

9. Contingut del paquet

• 1 x BSIDE ELM02 Digital Lux/FC Meter
• 1 x manual en anglès
• 1 x bossa de transport

10. Garantia i Suport

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
