OASE 45422 Waterfall Pump 2300 Instruction Manual

Introducció

Thank you for choosing the OASE 45422 Waterfall Pump 2300. This pump is designed to create exquisite waterfalls and streams, enhancing the tranquility and aesthetic appeal of your water feature. It is engineered for energy efficiency, reliability, and ease of maintenance, ensuring a long-lasting and beautiful water display.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your OASE waterfall pump. Please read all instructions carefully before use and retain this manual for future reference.

Instruccions de seguretat

WARNING: To avoid serious injury, always disconnect the pump from the power supply before performing any maintenance or installation procedures.

• Ensure the pump is always fully submerged in water during operation to prevent overheating.
• The pump is equipped with a grounding plate to provide protection against electrical hazards. Do not bypass or remove this feature.
• Only connect the pump to a properly grounded outlet protected by a Ground Fault Circuit Interrupter (GFCI).
• Do not operate the pump if the power cord or plug is damaged. Contact qualified personnel for repair or replacement.
• Keep children and pets away from the water feature during pump operation and maintenance.
• No aixequeu ni transporteu mai la bomba pel cable d'alimentació.

Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

• OASE 45422 Waterfall Pump 2300
• Hose adapter/connector
• Manual d'instruccions (aquest document)

Note: The pump is the primary component. Additional fittings or hoses may be required for your specific installation and are sold separately.

Configuració i instal·lació

The OASE 45422 Waterfall Pump 2300 is designed for submersible use. Follow these steps for proper installation:

1. Col·locació: Position the pump discreetly within your pond or water feature. It can be placed directly on the pond bottom or within a skimmer box. Ensure it is stable and will not tip over.
2. Connexió de la mànega: Attach the appropriate hose (not included) to the pump's outlet connector. Secure the hose with a clamp (not included) to prevent leaks. Route the hose to your waterfall or stream feature.
3. Immersió: Ensure the pump is fully submerged in water before connecting it to power. The pump is designed to handle coarse debris up to 1/6 inch, which helps in continuous cleaning of shafts and bearings.
4. Connexió d'alimentació: The pump features a 20 ft. power cord with a smaller plug size for discreet placement. Connect the plug to a properly grounded electrical outlet protected by a GFCI.

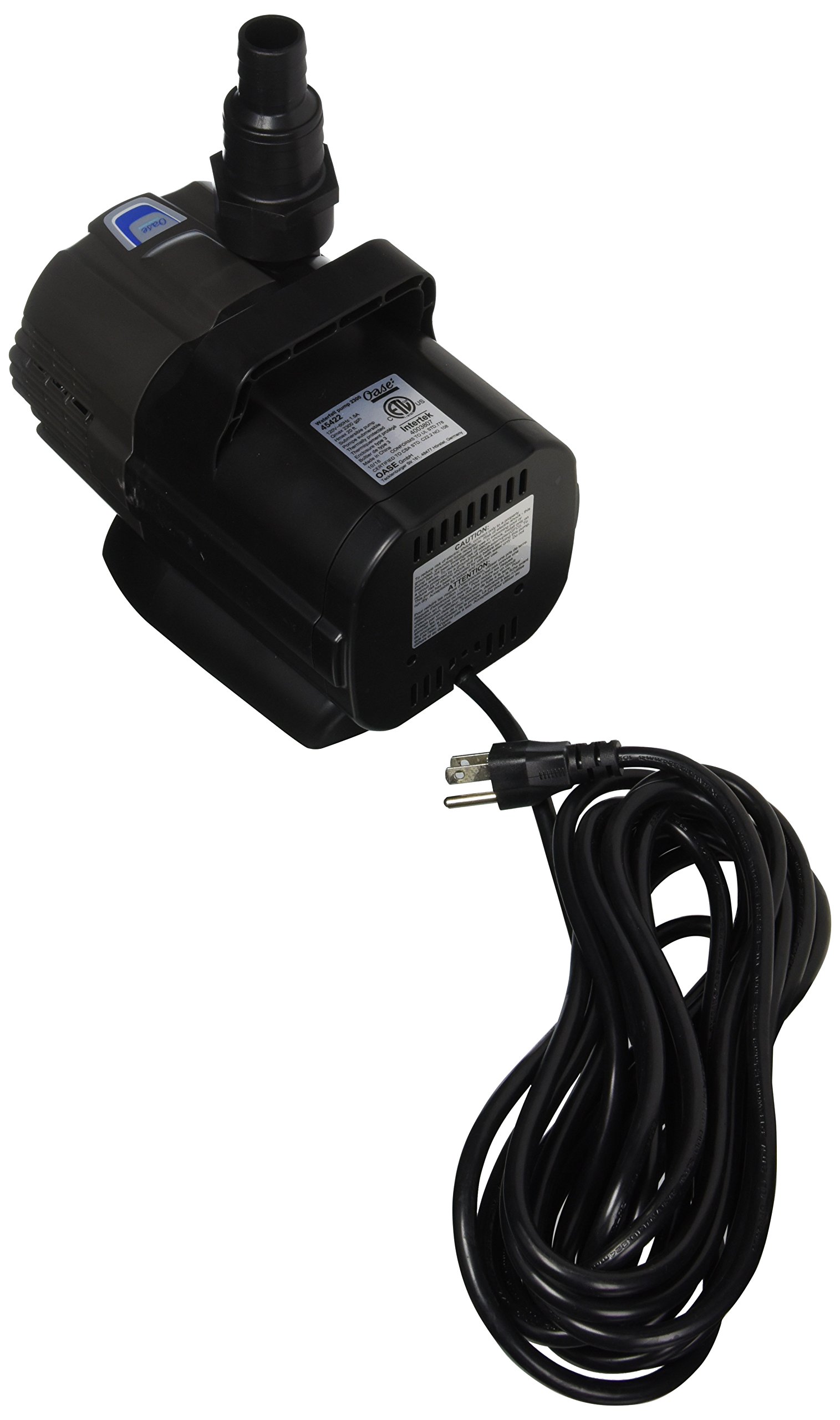

Figura 1: OASE 45422 Waterfall Pump 2300. This image shows the pump unit with its integrated handle, the hose adapter connected to the outlet, and the coiled 20-foot power cord with a standard two-prong plug. The OASE logo is visible on the pump body.

Instruccions de funcionament

Once installed and connected to power, the OASE 45422 Waterfall Pump 2300 will begin operation. This pump is designed for continuous use in water features.

• Funcionament continu: The pump is built for reliable, continuous operation, providing consistent water flow for your waterfall or stream.
• Debris Handling: The pump is capable of handling coarse debris up to 1/6 inch (approximately 4 mm) in size. This feature helps prevent clogging and ensures the internal components remain clean.
• Self-Cooling: The 2300 model, along with 1250, 3600, and 5000 models, incorporates a back-spitting feature for self-cooling, contributing to its robust design and maximum durability.
• Eficiència energètica: This pump is designed to be energy-efficient, reducing power consumption while maintaining strong performance for waterfalls up to 20 feet.

Manteniment

Regular maintenance ensures the longevity and optimal performance of your OASE waterfall pump. Always disconnect power before performing any maintenance.

1. Neteja de la bomba: Periodically remove the pump from the water feature. The design allows for quick, no-tool access to all moving parts. Open the pump housing to inspect and clean the impeller and pump chamber. Remove any accumulated debris, algae, or mineral deposits.
2. Inspecció de l'impel·lent: Check the impeller for any signs of wear or damage. Ensure it spins freely. Replace if necessary.
3. Eix i coixinets: The pump's design continuously cleans the shafts and bearings by allowing finer particles to flow out of the rear. However, a visual inspection during cleaning is recommended.
4. Inspecció del cable d'alimentació: Regularly inspect the power cord for any cuts, abrasions, or damage. Do not use the pump if the cord is compromised.
5. Hivernització: In regions with freezing temperatures, remove the pump from the water feature before the first frost. Clean it thoroughly and store it in a frost-free location, fully submerged in water or in a bucket of water to keep seals moist, or completely dry.

Resolució de problemes

Especificacions

• Model: OASE 45422 Waterfall Pump 2300
• Marca: OASIS
• Color: Negre
• Material: Acer inoxidable, metall
• Estil: Submergible
• Font d'alimentació: Elèctric amb cable
• Alçada màxima d'elevació: 20 peus
• Voltage: 120 Volts
• Longitud del cable d'alimentació: 20 peus
• Debris Handling: Up to 1/6 inch (approx. 4 mm)
• Certificacions: Conforms to UL STD 778, Certified to CSA STD C22.2 NO 108 (Intertek 4003807)
• Fabricant: GeoGlobal
• UPC: 871980009235

Garantia i Suport

The OASE 45422 Waterfall Pump 2300 comes with a Garantia del fabricant de 3 anys. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For warranty claims, technical assistance, or to purchase replacement parts, please contact OASE customer support. Keep your proof of purchase for warranty validation.

OASE Customer Support:

• Refer to the official OASE weblloc web per obtenir informació de contacte actualitzada.
• When contacting support, please have your pump's model number (45422) and purchase date available.
