Dorman 601-165 HID Headlight Igniter Instruction Manual

1. Introducció i finalview

This manual provides essential information for the proper installation, operation, and maintenance of your Dorman 601-165 High Intensity Discharge (HID) Headlight Igniter. This component is engineered to match the fit and function of the original igniter in specified vehicle applications, ensuring reliable performance and durability for your vehicle's HID headlight system.

The Dorman 601-165 igniter serves as a direct replacement for an original part that may have failed due to electrical or mechanical issues, restoring proper headlight functionality. It is constructed from quality materials to ensure a long service life.

2. Informació de seguretat

• Desconnecteu sempre la bateria del vehicle abans de realitzar qualsevol treball elèctric per evitar descàrregues elèctriques o danys als components.
• HID systems operate at very high voltages. Exercise extreme caution when handling HID components.
• Utilitzeu l'equip de protecció individual adequat, incloent-hi ulleres i guants de seguretat, durant la instal·lació.
• Assegureu-vos que el vehicle estigui aparcat en una superfície plana amb el fre d'estacionament accionat.
• Si teniu dubtes sobre algun pas del procés d'instal·lació, consulteu un tècnic d'automoció qualificat.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents i no estiguin danyats abans de començar la instal·lació.

• 1 x Dorman 601-165 HID Headlight Igniter (Refurbished Control Ballast)

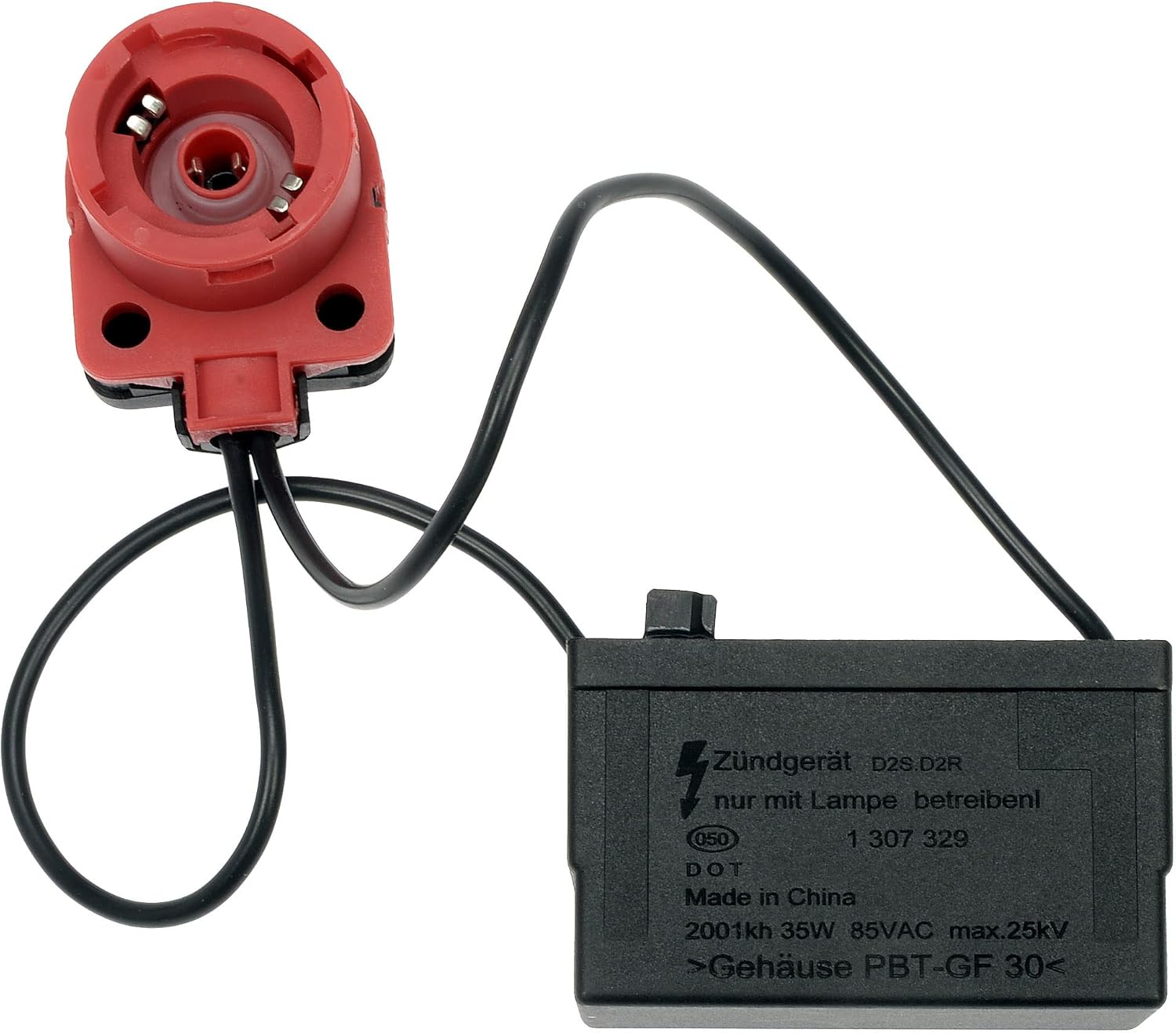

Figura 3.1: The Dorman 601-165 HID Headlight Igniter, showing the main control unit and the connected bulb igniter with wiring.

4. Configuració i instal·lació

This igniter is designed for vehicle-specific fitment. Before installation, confirm compatibility with your vehicle's make, model, and trim level using the manufacturer's fitment guide.

Passos generals d'instal·lació:

1. Preparació: Ensure the vehicle is off and the battery is disconnected. Allow the headlight system to cool down if it was recently in use.
2. Accés: Gain access to the headlight assembly. This may involve removing other components such as the bumper, fender liner, or other engine bay parts, depending on the vehicle model.
3. Locate Old Igniter: Identify the existing HID headlight igniter. It is typically connected directly to the HID bulb and the ballast.
4. Desconnecta l'encenedor antic: Carefully disconnect the wiring harness and the igniter from the HID bulb. Note the orientation for reinstallation.
5. Treure l'encenedor antic: Unmount the old igniter from its housing or mounting bracket.
6. Instal·leu un nou encenedor: Mount the Dorman 601-165 igniter in the same location and orientation as the original part. Ensure it is securely fastened.
7. Connecteu el cablejat: Connect the wiring harness to the new igniter. Ensure all connections are firm and properly seated.
8. Connect to Bulb: Carefully connect the igniter to the HID bulb. Ensure the connection is secure and the bulb is properly seated in the headlight assembly.
9. Remuntatge: Reinstall any components removed to gain access to the headlight assembly.
10. Prova: Reconnect the vehicle's battery and test the headlight functionality before fully closing up the access points.

Figura 4.1: posterior view of the Dorman 601-165 igniter, showing the bulb connection point and product labeling. The label indicates compatibility with D2S/D2R bulbs and specifies electrical parameters.

Figura 4.2: Un detallat view of the red connector on the Dorman 601-165 igniter, which interfaces directly with the HID bulb. Proper connection is crucial for operation.

5. Instruccions de funcionament

Once properly installed, the Dorman 601-165 HID Headlight Igniter operates automatically as part of your vehicle's headlight system. When the headlights are activated, the igniter receives a signal from the ballast and generates a high-voltage pulse to ignite the xenon gas within the HID bulb. After ignition, the ballast regulates the power to maintain the arc and light output.

• Ensure all connections are secure to prevent intermittent operation.
• If the headlight does not illuminate, refer to the troubleshooting section.

6. Manteniment

The Dorman 601-165 HID Headlight Igniter is designed for long-term, maintenance-free operation. Regular maintenance of the igniter itself is not required. However, periodic inspection of the surrounding headlight components can help ensure optimal performance:

• Cablejat: Periodically check all wiring and connections for signs of wear, corrosion, or damage.
• Habitatge: Ensure the igniter and ballast are securely mounted and protected from excessive moisture or physical impact.
• Condició de la bombeta: A failing HID bulb can sometimes mimic igniter issues. Inspect bulbs for signs of discoloration or flickering.

7. Solució De Problemes

If your HID headlight system is not functioning correctly after installing the Dorman 601-165 igniter, consider the following troubleshooting steps:

If these steps do not resolve the issue, professional diagnosis by a qualified automotive technician is recommended.

8. Especificacions

9. Garantia i Suport

The Dorman 601-165 HID Headlight Igniter is backed by Dorman's team of product experts, leveraging over a century of automotive experience. For specific warranty details or technical assistance, please refer to the official Dorman website or contact Dorman customer support directly. Ensure you have your product model number (601-165) and vehicle information available when seeking support.
