Balboa Water Group HydroAir Hydroflow 3-Way Valve 3/4" Instruction Manual

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Balboa Water Group HydroAir Hydroflow 3-Way Valve, 3/4". Please read these instructions thoroughly before beginning any procedures to ensure proper function and longevity of the product. Retain this manual for future reference.

2. Informació de seguretat

Observeu sempre les precaucions de seguretat següents per reduir el risc de lesions, descàrrega elèctrica, incendi o danys al producte.

• Instal·lació professional: Installation should be performed by a qualified professional in accordance with all local and national plumbing and electrical codes.
• Desconnexió d'alimentació: Always disconnect power to the system before installing, servicing, or performing any maintenance on the valve.
• Alliberament de pressió: Ensure all system pressure is relieved before opening or servicing the valve.
• Compatibilitat química: Verify that the valve material is compatible with any chemicals used in the system.
• Protecció ocular: Wear appropriate eye protection during installation and maintenance.

3. Producte acabatview

The Balboa Water Group HydroAir Hydroflow 3-Way Valve is designed to control the flow of water in various applications, commonly found in pool and spa systems. Its 3-way design allows for diverting or mixing fluid streams.

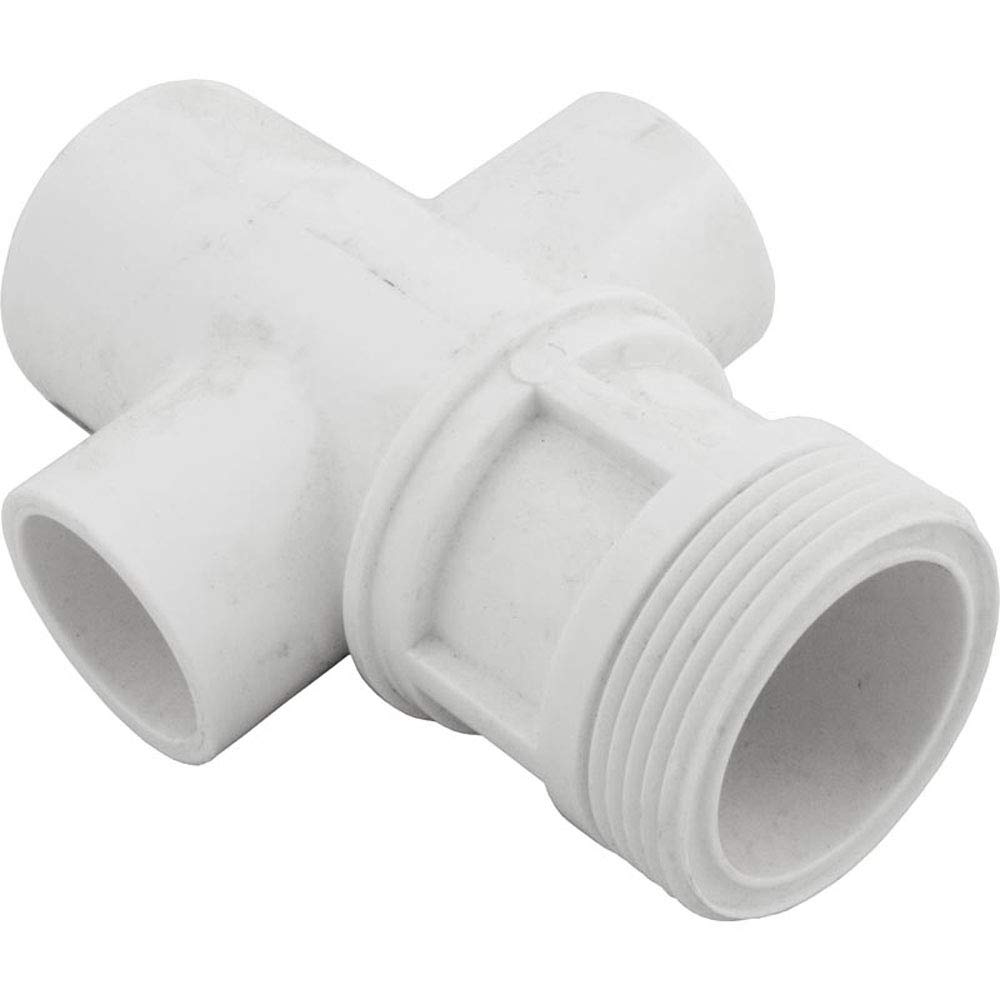

This image displays the Balboa Water Group HydroAir Hydroflow 3-Way Valve, 3/4 inch, showing its compact design and connection points. The valve body is typically made of durable PVC or similar material, designed for fluid control in pool and spa systems.

Característiques principals:

• Funcionalitat bidireccional: Allows for diverting flow between two outlets or mixing flow from two inlets.
• Construcció duradora: Engineered for reliable performance in demanding environments.
• 3/4" Connections: Standard sizing for compatibility with common plumbing systems.
• Fàcil operació: Simple handle mechanism for flow control.

4. Configuració i instal·lació

Careful installation is crucial for the proper function of the valve.

Eines necessàries:

• PVC cement and primer (if applicable)
• Pipe cutters or saw
• Cinta mètrica
• Draps nets

Passos d'instal·lació:

1. Preparació del sistema: Turn off all pumps and disconnect power to the system. Close any upstream and downstream valves to isolate the installation area. Drain the lines if necessary.
2. Selecció d'ubicació: Choose a suitable location for the valve, ensuring easy access for operation and maintenance.
3. Tall de canonades: Measure and cut the existing plumbing to accommodate the valve. Ensure clean, straight cuts.
4. Ajust en sec: Temporarily assemble the valve and pipes to confirm proper alignment and fit.
5. Gluing (if applicable): Apply PVC primer to the pipe ends and valve sockets, then apply PVC cement. Quickly join the pipes and valve, twisting slightly to ensure even distribution of cement. Hold firmly for 30 seconds.
6. Temps de curat: Allow adequate curing time for the PVC cement as recommended by the manufacturer before pressurizing the system.
7. System Restart: Once cured, slowly open upstream and downstream valves, then restore power and restart the pump. Check for leaks.

5. Instruccions de funcionament

The HydroAir Hydroflow 3-Way Valve features a simple handle for controlling water flow. The handle typically indicates the direction of flow or the port that is open/closed.

• Diverting Flow: Rotate the handle to direct water from a single inlet to one of two outlets.
• Mixing Flow: Position the handle to combine water from two inlets into a single outlet.
• Posició fora: Some 3-way valves may have an 'off' or 'closed' position that stops flow to all ports, or to specific ports depending on the design. Refer to the markings on your specific valve for precise control.

Always turn the handle smoothly and avoid excessive force to prevent damage to the internal components.

6. Manteniment

Regular maintenance ensures optimal performance and extends the life of your valve.

Manteniment rutinari:

• Inspecció visual: Periodically inspect the valve for any signs of leaks, cracks, or damage to the body or handle.
• Inspecció de la junta tòrica: If the valve can be disassembled, inspect the O-rings for wear or damage. Replace if necessary.
• Lubricació: If the handle becomes stiff, apply a small amount of silicone-based lubricant (safe for pool/spa use) to the O-rings or moving parts, if accessible.
• Neteja: Keep the exterior of the valve clean from dirt and debris.

Winterization (for outdoor/seasonal use):

• Drenatge d'aigua: Ensure all water is drained from the valve and associated plumbing to prevent freezing and cracking.
• Posició oberta: Leave the valve in a partially open position to allow for expansion if any residual water freezes.

7. Solució De Problemes

This section addresses common issues you might encounter with your 3-way valve.

8. Especificacions

Technical details for the Balboa Water Group HydroAir Hydroflow 3-Way Valve, 3/4".

• Model: HydroAir Hydroflow 3-Way Valve
• Mida de la connexió: 3/4 polzada
• Dimensions (L x A x A): Aproximadament 4.15 x 3.05 x 1.9 polzades
• Pes: Aproximadament 0.2 lliures
• Material: Typically durable PVC or similar plastic for pool/spa applications
• Fabricant: Hydro Air (for Balboa Water Group)
• UPC: 605380885812
• ASIN: B01N9O3VVF

9. Garantia i Suport

For warranty information and technical support regarding your Balboa Water Group HydroAir Hydroflow 3-Way Valve, please contact Balboa Water Group directly or refer to their official weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
