Somfy Oximo WT 30/17 Roller Shutter Motor Instruction Manual

1. Introducció

The Somfy Oximo WT 30/17 is an electronic tubular motor designed for roller shutters. It integrates into standard roller shutter systems and offers precise electronic limit switching. This motor is equipped with advanced features for enhanced protection and durability, ensuring reliable operation for your roller shutters.

2. Continguts del producte

The package for your Somfy Oximo WT 30/17 roller shutter motor includes the following components:

• Somfy Oximo WT 30/17 Electronic Roller Shutter Motor (Art. No. 1045483)
• Coixinet del motor
• Connection Cable (3 meters)
• SW 60 Adapter/Driver
• Manual d'usuari

Additionally, for effective burglar protection, the system supports the use of patented SecuBlock high-slide security devices from Selve.

Imatge 2.1: acabatview of the Somfy Oximo WT 30/17 motor, SecuBlock, SW 60 adapter, and universal drive bearing.

3. Característiques

The Somfy Oximo WT 30/17 motor incorporates several advanced features for optimal performance and protection:

• Electronic Torque Monitoring (Somfy Drive Control): Provides continuous monitoring to protect the motor from overload.
• Detecció d'obstacles: Automatically stops the motor if an obstacle is encountered during closing, preventing damage to the roller shutter or the obstacle.
• Protecció contra les gelades: Detects freezing conditions during opening and stops the motor to prevent damage.
• Precise Limit Switching: Offers highly accurate and repeatable end limit settings, whether mechanical or electronic.
• Double Disc Brakes: Ensures precise stopping of even large and heavy roller shutters without dangerous overrun.
• Funcionament silenciós: The encapsulated transmission and plastic adapter between the drive and roller shutter shaft significantly reduce noise and vibrations.
• Disseny sense manteniment: All components are designed for long-term, maintenance-free operation.
• Durabilitat: Engineered for thousands of operational cycles and subjected to 18 quality controls per drive.

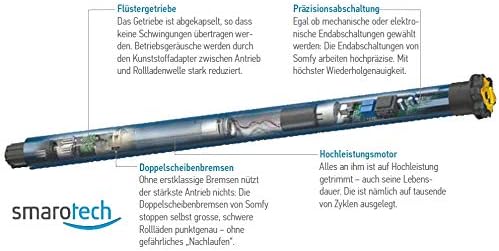

Image 3.1: Diagram illustrating key features of the Somfy Oximo WT motor, including quiet drive, precision switching, high-performance motor, and double disc brakes.

4. Configuració i instal·lació

Proper installation is crucial for the safe and effective operation of your Somfy Oximo WT 30/17 motor. Please follow these guidelines:

4.1. Instal·lació general

• The Oximo WT motor can be integrated into all common roller shutter systems.
• Up to 3 drives can be connected in parallel, depending on the total torque required.

4.2. End Limit Settings

• Lower End Limit: For this drive, fixed connectors are necessary for hanging the roller shutters.
• Upper End Limit: The installation of a fixed stop on the roller shutter is required for the upper end position.
• End limits can be set automatically (with cyclic correction) or fixed. Refer to the detailed manual for specific programming steps.

4.3. SecuBlock Installation (Optional for Enhanced Security)

For effective burglar protection, install SecuBlock high-slide security devices:

• Mount 1 SecuBlock per 50 cm of shaft length. For example, a roller shutter with a shaft width of 120 cm requires 3 SecuBlocks.
• It is recommended to use one high-slide security device per 4 Nm of motor power.

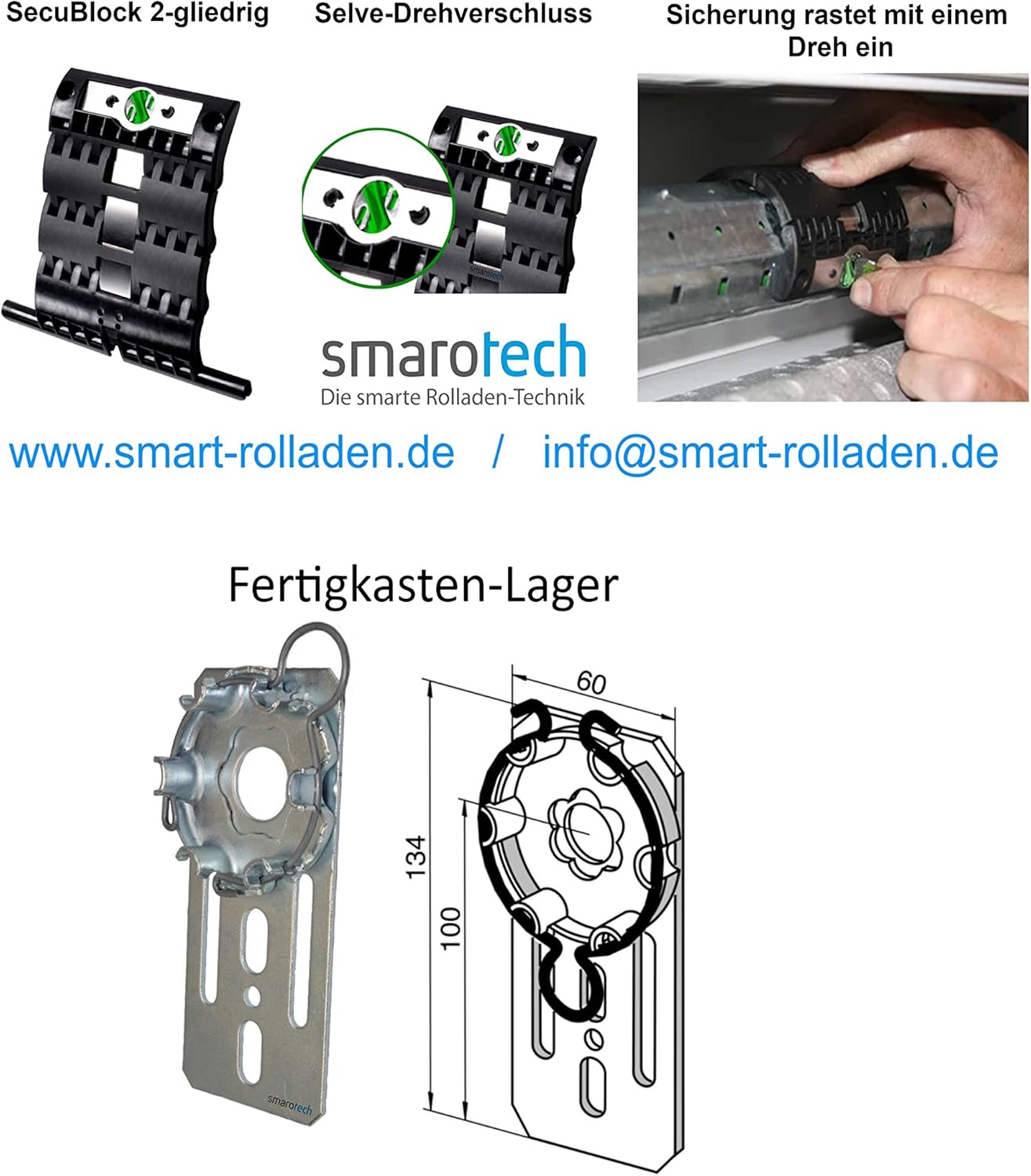

Image 4.1: Illustration of SecuBlock installation, showing the two-part design and how it locks into place.

5. Instruccions de funcionament

Once installed and configured, the Somfy Oximo WT 30/17 motor operates automatically based on its programmed end limits. Manual control can typically be achieved via a connected wall switch or remote control, depending on your system setup.

• Obertura/tancament: Use your control device to send commands to the motor.
• Protecció automàtica: The motor's obstacle detection and frost protection features will automatically intervene to prevent damage during operation.
• End Limit Correction: If set to automatic, the motor will periodically correct its end limits to maintain precision.

6. Manteniment

The Somfy Oximo WT 30/17 motor is designed to be maintenance-free. All internal components are robust and require no regular servicing. Ensure the roller shutter system itself is kept clean and free of obstructions to allow the motor to operate smoothly.

7. Solució De Problemes

The Somfy Oximo WT 30/17 motor includes self-protective features to prevent common issues. If you experience problems, consider the following:

• Motor Stops Unexpectedly: This may indicate obstacle detection or frost protection has been activated. Check for obstructions in the roller shutter path or ice formation.
• Roller Shutter Not Moving: Verify power supply to the motor and check connections. Ensure the control device is functioning correctly.
• Incorrect End Positions: If end limits are not precise, refer to the detailed programming instructions in the full manual to reset or adjust them.

For persistent issues, contact qualified technical support.

8. Especificacions

Image 8.1: Technical data table for various Somfy tubular motors, including the Oximo WT series.

9. Garantia i Suport

Somfy products are known for their durability and quality. For specific warranty information, please refer to the documentation provided with your purchase or visit the official Somfy website. For technical support, installation assistance, or troubleshooting beyond this manual, please contact your authorized Somfy dealer or Somfy customer service.
