Total Control WM1451 TV Wall Mount User Manual

Introducció

This user manual provides detailed instructions for the installation, operation, and maintenance of your Total Control WM1451 TV Wall Mount. Please read this manual thoroughly before installation and keep it for future reference.

The Total Control WM1451 is designed for TV units ranging from 32 to 55 inches and supports VESA mounting patterns from 100x100mm to 400x400mm. It offers a tilt angle of up to 30 degrees and a swivel angle of up to 180 degrees, providing optimal viewflexibilitat.

Informació de seguretat

Instruccions importants de seguretat:

• Ensure the wall structure can support the combined weight of the mount and the TV.
• Use appropriate tools and follow all installation steps carefully.
• No estrenyeu massa els cargols per evitar danys.
• Si teniu dubtes sobre alguna part de la instal·lació, consulteu un professional qualificat.
• Mantingueu els nens i les mascotes allunyats durant la instal·lació.

Contingut del paquet

The WM1451 package includes all necessary mounting hardware. Please verify that all components are present before beginning installation.

• TV Wall Mount Assembly
• Cargols i ancoratges de muntatge a la paret
• TV Mounting Screws (various sizes)
• Espaciadors i volanderes
• Manual d'instruccions

Image: The retail packaging for the Total Control WM1451 TV Wall Mount, displaying the mount itself and key specifications like screen size compatibility (32-65 inches), max weight (30 kg), distance to wall, and VESA sizes. The box indicates "TURN / LCD / LED" and highlights TILT 30° and TURN 180° capabilities.

Configuració i instal·lació

Follow these steps carefully to install your TV wall mount.

Step 1: Prepare the Wall and TV

1. Determineu l'alçada desitjada per al vostre televisor.
2. Locate wall studs if mounting on a drywall with wood studs. Use a stud finder for accuracy.
3. Identifiqueu els forats de muntatge VESA a la part posterior del vostre televisor.

Imatge: Un front directe view of the Total Control WM1451 TV Wall Mount, showing the central mounting plate with various screw holes and the four adjustable arms extending outwards, ready to attach to a television. The arms have multiple slots for VESA compatibility.

Pas 2: enganxeu la placa de paret a la paret

1. Hold the wall plate against the wall at the desired height and mark the drilling locations.
2. Drill pilot holes according to the recommended drill bit size for your wall type (wood stud, concrete, brick).
3. Insert wall anchors if required (for concrete/brick walls).
4. Secure the wall plate to the wall using the provided screws. Ensure it is level.

Pas 3: connecteu els suports del televisor al televisor

1. Attach the TV brackets to the back of your TV using the appropriate VESA screws and spacers.
2. Ensure the brackets are securely fastened and evenly spaced.

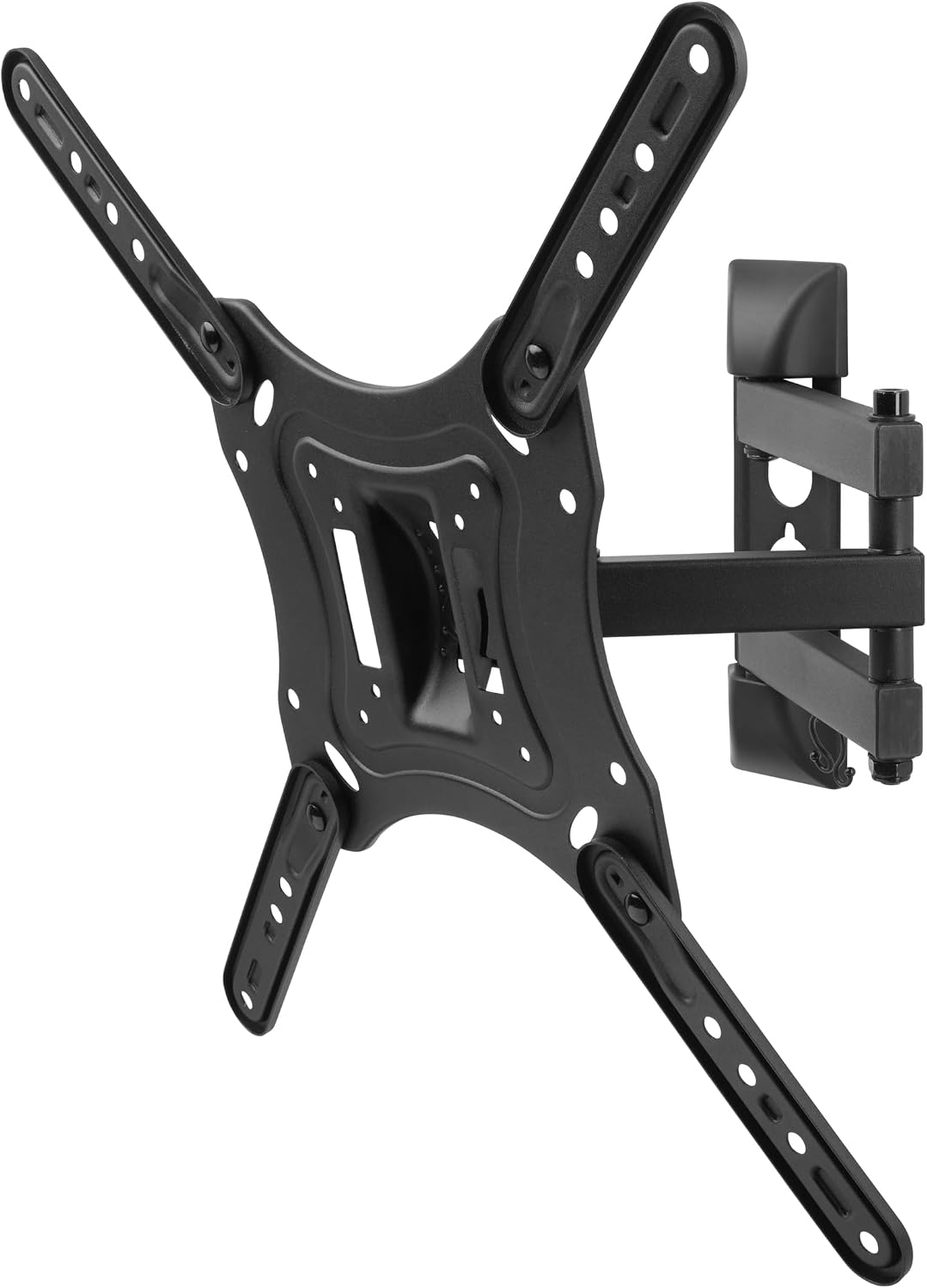

Imatge: Un costat view of the Total Control WM1451 TV Wall Mount, showing its articulated arm fully extended. This view highlights the swivel mechanism and the robust construction of the mount, ready to hold a television away from the wall for flexible viewangles d'ajust.

Pas 4: Muntar el televisor a la placa de paret

1. Carefully lift the TV with the attached brackets and hook them onto the wall plate.
2. Ensure the TV is securely seated on the wall plate.
3. Engage any safety locks or screws to prevent accidental dislodgement.

Instruccions de funcionament

Once installed, your Total Control WM1451 TV Wall Mount allows for flexible TV positioning.

Adjusting Swivel Angle

Gently push or pull the TV to the desired left or right angle. The mount supports up to 180 degrees of swivel, depending on TV size and wall clearance.

Ajust de l'angle d'inclinació

To adjust the vertical tilt, loosen the tilt adjustment knobs (if present) on the TV brackets, tilt the TV to the desired angle (up to 30 degrees), and then re-tighten the knobs to secure the position.

Manteniment

The Total Control WM1451 TV Wall Mount requires minimal maintenance.

• Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats i segurs.
• Netegeu el suport amb un drap suau i sec. Eviteu netejadors o dissolvents abrasius.
• Do not lubricate moving parts unless specifically instructed by the manufacturer.

Resolució de problemes

Si teniu problemes amb el suport de paret del televisor, consulteu els problemes i solucions més comuns següents:

Especificacions

• Model: WM1451
• Mides de TV compatibles: 32 - 55 polzades
• Compatibilitat VESA: 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
• Capacitat de pes màxim: 30 kg (66 lliures)
• Angle d'inclinació: Fins a 30 graus
• Angle de gir: Up to 180 degrees (depending on TV size)
• Material: Metall
• Dimensions del producte: Aproximadament 42.8 x 6.2 x 42.8 cm
• Pes del producte: 2.27 kg

Image: The retail packaging for the Total Control WM1451 TV Wall Mount, providing a clear overview of its features and specifications. It highlights screen size compatibility (32-65 inches), maximum weight capacity (30 kg / 66 lbs), distance to wall (1.9-15.6 inches / 49-395 mm), and various VESA mounting patterns from 100x100 to 400x400. The box also prominently displays the TILT 30° and TURN 180° capabilities.

Garantia i Suport

This product comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support or further assistance, please contact Total Control customer service.

Note: The provided JSON data does not contain specific warranty duration or direct support contact information. Please refer to the physical product packaging or manufacturer's weblloc web per obtenir els detalls més actualitzats.
