Ultra-Tow 40in. x 48in. Aluminum Utility Trailer Kit

Introducció

This manual provides essential instructions for the assembly, safe operation, and maintenance of your Ultra-Tow 40in. x 48in. Aluminum Utility Trailer Kit. Please read this manual thoroughly before attempting assembly or operation to ensure proper use and to prevent injury or damage. Keep this manual for future reference.

Figure 1: Assembled Ultra-Tow Aluminum Utility Trailer Kit

Informació de seguretat

Always prioritize safety during assembly, operation, and maintenance. Failure to follow safety guidelines can result in serious injury or property damage.

• Llegeix totes les instruccions: Ensure you understand all assembly and operating instructions before beginning.
• Utilitzeu equip de protecció: Use appropriate personal protective equipment, including safety glasses, gloves, and sturdy footwear, during assembly and maintenance.
• Eines adequades: Use only the correct tools for assembly and maintenance.
• Càrregues segures: Always secure cargo properly to prevent shifting during transport.
• Respecteu els límits de pes: Do not exceed the trailer's stated load capacity or Gross Vehicle Weight Rating (GVWR).
• Comproveu les connexions: Before each use, verify that all connections, including the coupler, safety chains, and electrical wiring, are secure and functional.
• Límits de velocitat: Adhere to recommended towing speed limits, typically not exceeding 45 mph for this type of utility trailer.

Muntatge i muntatge

The Ultra-Tow Utility Trailer Kit requires assembly. Carefully unpack all components and verify that all parts are present before beginning. Refer to the detailed assembly diagrams and parts list provided with your kit.

• Verificació de components: Before starting, check all components against the parts list. If any parts are missing, contact customer support immediately.
• Muntatge del marc: Assemble the aluminum frame components according to the provided diagrams. Ensure all fasteners are tightened to the specified torque.
• Axle and Wheel Installation: Install the axle, leaf springs, and wheels. Ensure wheel bearings are properly greased and adjusted. Consider upgrading wheel bearings for extended high-speed use if desired.
• Coupler Attachment: Securely attach the coupler to the trailer tongue. Ensure there is no excessive play in the connection. Some users may opt to replace the standard coupler with a 2-inch size to match existing towing equipment.
• Cablejat elèctric: Install the wiring harness for the tail lights and turn signals. Note that the white wire typically serves as the ground for all lights. For enhanced durability and reliability, it is recommended to solder all light connections and seal them with waterproof heat shrink tubing, rather than relying solely on provided splices. When routing wires through the frame, use grommets to prevent chafing and potential shorts. Secure ground wires with stainless steel bolts and nuts instead of self-tapping screws for a more robust connection.
• Fender and Light Installation: Attach the fenders and tail lights. Be aware that the original fender and tail light brackets may be prone to fracture if mounting holes are too close to the material edge. Consider reinforcing or replacing these components if concerns arise.
• Deck Installation (Optional): If adding a wooden deck, ensure it is securely fastened to the trailer frame using appropriate hardware, such as stainless steel bolts. When drilling through the frame for accessories, always verify the location to avoid damaging the wiring harness.

Figure 2: Trailer frame and wheel assembly

Instruccions de funcionament

Proper operation ensures safety and extends the life of your trailer.

• Capacitat de càrrega: The trailer has a 1060-lb. payload capacity and a 1200-lb. maximum Gross Vehicle Weight Rating (GVWR). Do not exceed these limits.
• Bed Dimensions: The trailer features a 40in. x 48in. bed, suitable for various cargo types such as mulch, dirt, or machinery.

Figure 3: Trailer bed dimensions

• Distribució de pes: Distribute the load evenly over the trailer bed, with approximately 60% of the weight positioned towards the front of the trailer (over the axle or slightly forward) to maintain proper tongue weight and stability.
• Pneumàtics: The trailer is equipped with 4.80-12 inch tires. Ensure tires are properly inflated to the recommended pressure before each use.

Figure 4: Trailer wheel and tire

• Velocitat de remolc: For optimal safety and trailer longevity, it is recommended not to exceed 45 mph, especially when carrying heavy loads or on uneven terrain.
• Inspecció prèvia al viatge: Before each trip, perform a thorough inspection: check tire pressure, lug nut tightness, light functionality, coupler connection, safety chains, and load security.

Manteniment

Regular maintenance is crucial for the safe and efficient operation of your trailer.

• Cura del marc: The trailer features a rustproof aluminum frame, requiring minimal maintenance. Periodically inspect the frame for any signs of damage or stress.

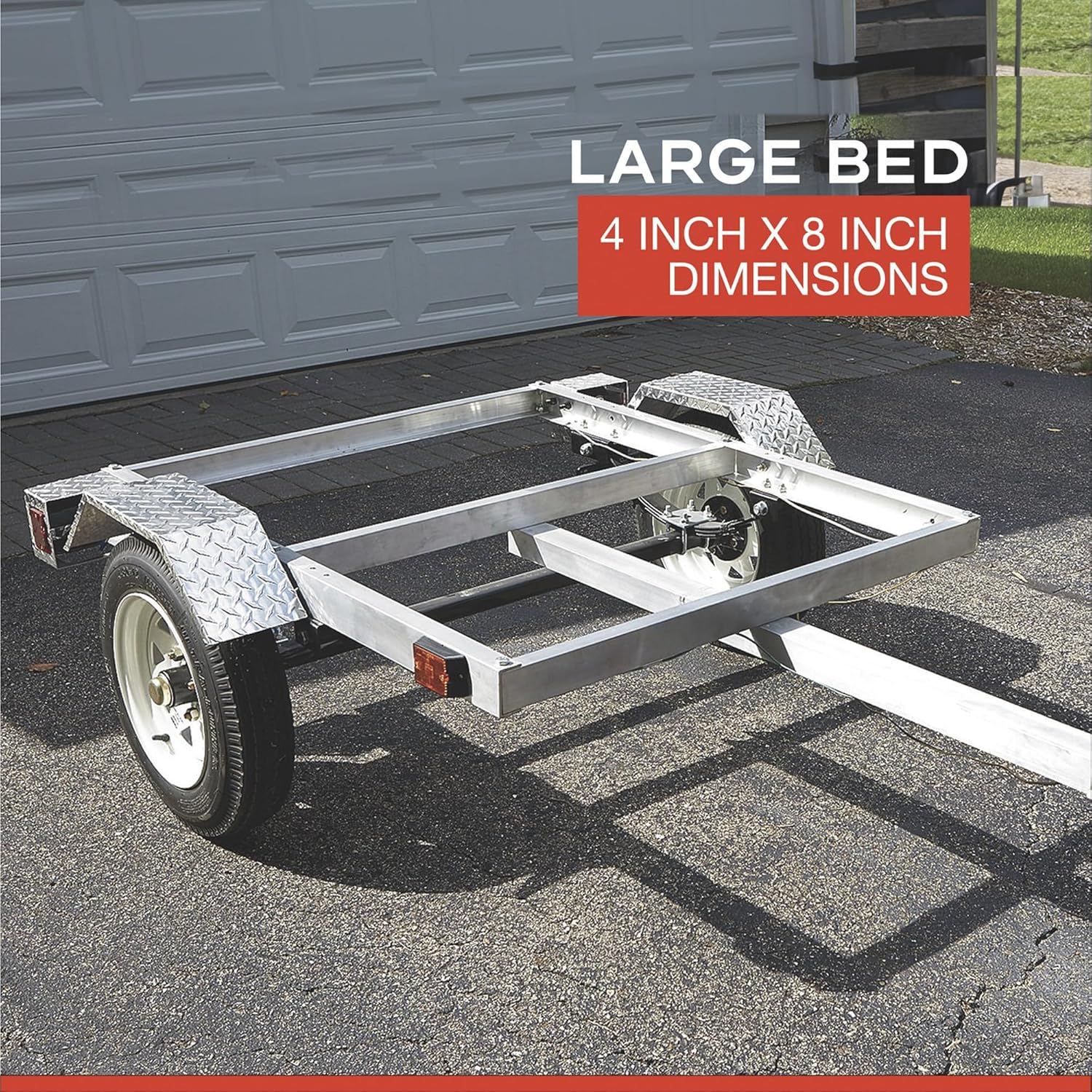

Figure 5: Rustproof aluminum frame

• Rodaments de rodes: Inspect and repack wheel bearings annually or every 12,000 miles, whichever comes first. Consider installing bearing protectors for added longevity and ease of maintenance.
• Manteniment de pneumàtics: Check tire pressure before each use. Inspect tires for wear, cuts, or punctures. Replace worn or damaged tires promptly.
• Sistema elèctric: Periodically inspect all wiring for fraying, corrosion, or loose connections. Ensure all lights (tail lights, brake lights, turn signals) are functioning correctly. Clean electrical contacts as needed.
• Elements de fixació: Regularly check all bolts, nuts, and other fasteners for tightness. Re-tighten any loose fasteners to prevent component separation during travel.

Resolució de problemes

This section addresses common issues you might encounter with your utility trailer.

• Lights Not Working/Flickering:
  • Check the trailer's electrical plug connection to the tow vehicle.
  • Inspect the wiring harness for cuts, pinches, or loose connections. Ensure ground wires are securely attached.
  • Verify that the tow vehicle's electrical system is functioning correctly.
• Trailer Sway:
  • Ensure the load is properly distributed, with adequate tongue weight (typically 10-15% of the total trailer weight).
  • Check tire pressure on both the trailer and tow vehicle.
  • Reduce towing speed.
• Excessive Play at Coupler:
  • Inspect the coupler mechanism for wear or damage.
  • Ensure the coupler is correctly latched onto the hitch ball and the locking pin is in place.
  • Verify that the hitch ball size matches the coupler size.
• Fender or Tail Light Detachment:
  • Regularly inspect mounting hardware for tightness.
  • If brackets are damaged, replace them with more robust alternatives or reinforce existing ones.

Especificacions

Garantia i Suport

For specific warranty information regarding your Ultra-Tow 40in. x 48in. Aluminum Utility Trailer Kit, please refer to the documentation included with your purchase or contact Ultra-Tow directly. Warranty terms and conditions may vary.

For customer support, technical assistance, or to inquire about replacement parts, please visit the official Ultra-Tow store or contact their customer service department. You can find more information at the Ultra-Tow Store on Amazon.
