Taurus Smart Bagless Vacuum Cleaner Instruction Manual

Informació important de seguretat

Please read this instruction manual carefully before using the appliance and keep it for future reference. Incorrect use may lead to electric shock, fire, or serious injury.

• Always unplug the vacuum cleaner from the power outlet before cleaning or performing any maintenance.
• Do not use the appliance to vacuum water or other liquids, hot ashes, sharp objects, or flammable substances.
• Ensure the dust container and filters are correctly installed before operation.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• Aquest aparell és només per a ús domèstic. No l'utilitzeu a l'aire lliure ni sobre superfícies humides.
• No feu servir l'aspiradora amb un cable o endoll danyats.

Producte acabatview

The Taurus Smart Bagless Vacuum Cleaner is designed for efficient cleaning of various surfaces. Familiarize yourself with its components before use.

Figura 1: Main vacuum cleaner unit. This image shows the compact blue and grey body of the vacuum cleaner, featuring the transparent dust container with the "TurboCyclone System" label, the flexible hose connected to the unit, and the large rear wheels.

Components inclosos:

• Unitat principal de buit
• Mànega flexible
• Raspall de terra
• Eina per esquerdes
• Small Brush Attachment
• Non-telescopic Tube

Figura 2: Floor brush. This image displays the main floor brush attachment, suitable for various floor types, with the "taurus Smart" logo visible.

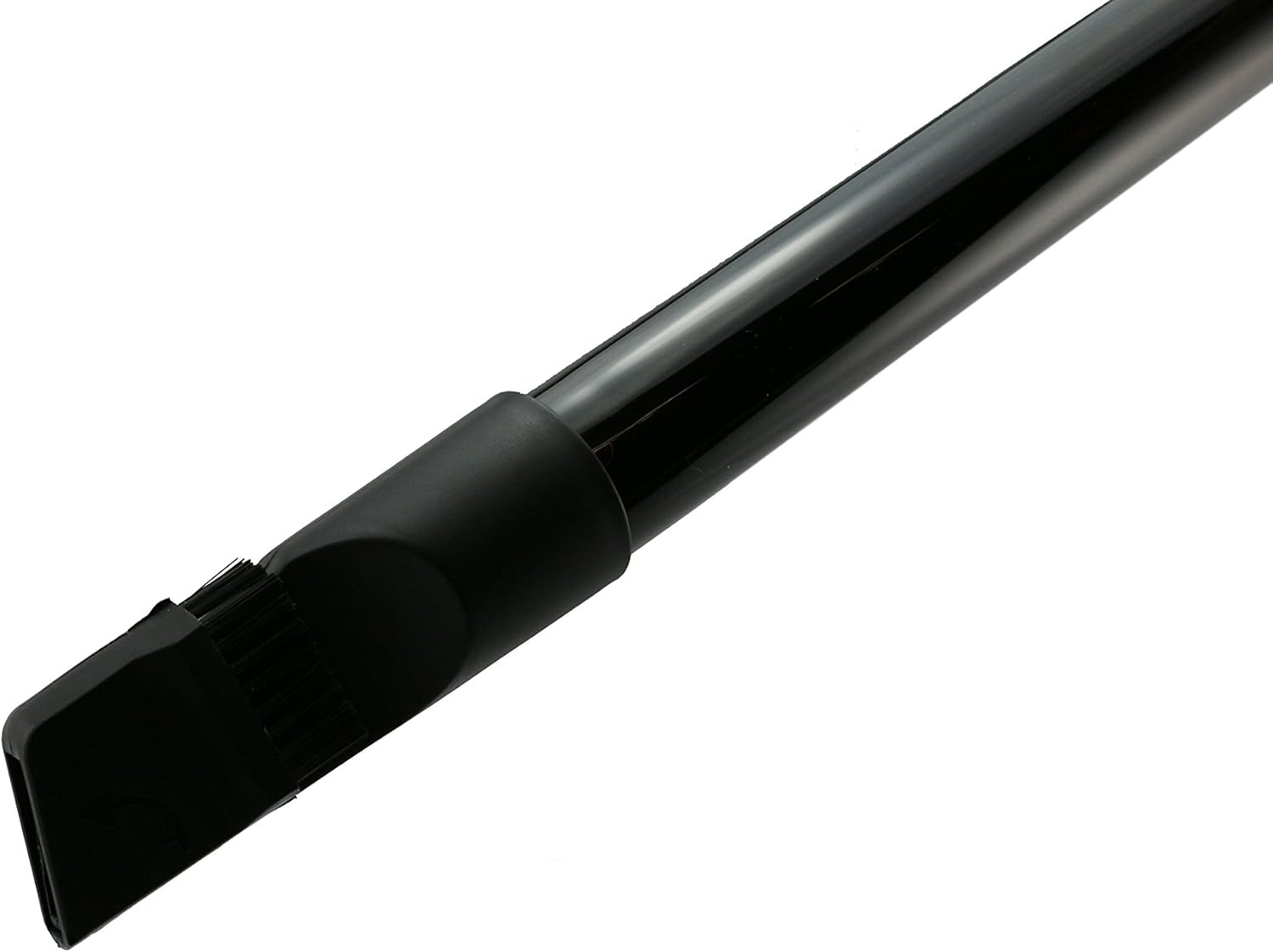

Figura 3: Crevice tool. This image shows the narrow crevice tool, designed for reaching tight spaces and corners.

Figura 4: Crevice tool with brush attachment. This image illustrates the crevice tool with a small brush extended, useful for dusting and cleaning delicate surfaces.

Configuració

1. Desembalar: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per a emmagatzematge o transport futur.
2. Connecteu la mànega: Introduïu la mànega flexible a l'entrada d'aspiració de la unitat principal d'aspiració fins que encaixi correctament al seu lloc.
3. Assemble Tube and Attachment: Connect the non-telescopic tube to the handle end of the flexible hose. Then, attach your desired cleaning accessory (floor brush, crevice tool, or small brush) to the end of the tube.
4. Connexió d'alimentació: Extend the power cord from the automatic rewind mechanism. Plug the power cord into a suitable electrical outlet.

Instruccions de funcionament

1. Encès: Press the ON/OFF button located on the main unit to start the vacuum cleaner.
2. Neteja: Guide the cleaning attachment over the surface to be cleaned. The rubber wheels on the main unit protect delicate floors and allow for easy movement.
3. Ús d'accessoris:
   • Utilitza el raspall de terra for general cleaning of carpets and hard floors.
   • Adjunta el eina escletxa for narrow gaps, corners, and edges.
   • Utilitzeu el small brush attachment (on the crevice tool) for dusting furniture, curtains, or delicate items.
4. Apagar: Press the ON/OFF button again to stop the vacuum cleaner.
5. Rebobinat del cable: Press the automatic cord rewind button to retract the power cord into the unit. Guide the cord manually to prevent whipping.

Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner. Always unplug the appliance before any maintenance.

Buidar el contenidor de pols:

1. Assegureu-vos que l'aspiradora estigui desconnectada.
2. Premeu el botó d'alliberament per separar el contenidor de pols de la unitat principal.
3. Position the container over a waste bin. Open the bottom lid of the dust container to empty its contents.
4. Tanqueu bé la tapa i torneu a col·locar el contenidor de pols a l'aspiradora fins que encaixi al seu lloc.

Neteja dels filtres:

The Taurus Smart vacuum cleaner features a TurboCyclone System and a HEPA filter. Regular cleaning of these filters is crucial for maintaining suction power and air purification.

1. With the dust container removed, locate the filters. There is typically a pre-motor filter (often foam or mesh) and a post-motor HEPA filter.
2. Remove the filters according to the diagrams in your specific product manual (not provided here, general instruction).
3. Tap the filters gently over a waste bin to remove loose dust. For washable filters, rinse them under cold running water until the water runs clear. Do not use detergents.
4. Allow filters to air dry completely for at least 24 hours before reinserting them. Do not use a hairdryer or other heating devices.
5. Reinstall the dry filters and reattach the dust container.

Nota: Replace the HEPA filter periodically, typically every 6-12 months, depending on usage, to ensure optimal performance.

Resolució de problemes

Si teniu problemes amb l'aspiradora, consulteu els següents problemes i solucions habituals:

If the problem persists after trying these solutions, please contact Taurus customer support.

Especificacions

Garantia i Suport

This product is covered by the standard manufacturer's warranty. For warranty claims, technical support, or spare parts, please contact Taurus customer service.

Please refer to the official Taurus website or the documentation included in your product packaging for specific contact details and warranty terms applicable to your region.
