Ergotron LX Vertical Stacking Dual Monitor Arm (Model 45-549-026) Instruction Manual

1. Producte acabatview

The Ergotron LX Vertical Stacking Dual Monitor Arm is designed to enhance your workspace by providing flexible and ergonomic positioning for two monitors. This VESA desk mount system supports two screens up to 40 inches and weighing between 7 to 22 pounds each. It features a tall pole and is finished in polished aluminum.

Característiques principals:

• Àmplia compatibilitat: Supports two screens up to 40 inches and 7 to 22 pounds each, compatible with VESA patterns 75x75mm and 100x100mm.
• Paquet complet: Includes two LX arms and extensions, a 23-inch pole, a heavy-duty two-piece desk clamp for surfaces 0.63 to 2.6 inches thick, a grommet mount plate, and all necessary hardware.
• Espai de treball còmode: Offers 13 inches of lift, rising 31.7 inches from the desktop. Customize your view with 360 degrees of rotation and 75 degrees of tilt.
• Flexible Working: Easily stack screens one over the other or position them side-by-side. Expand to three or four displays with an optional LX Arm, Extension, and Collar Kit accessory (97-940-026).
• Organized Desk: Features thoughtful cable management to keep your workspace tidy.
• Construcció duradora: Built to last with extensive quality testing and backed by a 10-year warranty.

2. Contingut del paquet

Before beginning installation, verify that all components are present and undamaged. The package includes:

• 2 x LX Arms and Extensions
• 1 x 23-inch Pole
• 1 x Heavy-duty Two-piece Desk Clamp (for surfaces 0.63 to 2.6 inches thick)
• 1 x Grommet Mount Plate and Hardware
• 2 x Pole Collars
• 2 x Gorres
• Mounting Hardware (screws, washers, tools)

Image: All components included in the Ergotron LX Vertical Stacking Dual Monitor Arm package.

3. Configuració i instal·lació

The Ergotron LX Dual Monitor Arm offers two primary mounting options: desk clamp and grommet mount. Choose the method best suited for your desk.

3.1 Escriptori Clamp Instal·lació

The heavy-duty two-piece desk clamp is suitable for desk surfaces between 0.63 inches (1.5 cm) and 2.6 inches (6.6 cm) thick.

1. Col·loca l'escriptori clamp de la base a la vora de l'escriptori.
2. Assegureu-vos el clamp using the provided screws and tightening mechanism. Ensure it is firmly attached to prevent movement.
3. Insert the 23-inch pole into the clamp base and secure it.

Image: Illustration of desk clamp i opcions de muntatge amb ulleres.

Image: Close-up of the desk clamp instal·lació.

3.2 Instal·lació del muntatge amb passador

For desks with a pre-drilled hole, the grommet mount provides a secure and flush installation. This method is suitable for desk surfaces between 0.3 inches (0.8 cm) and 2 inches (5 cm) thick, with a minimum hole diameter of 3 inches (7.6 cm).

1. Insert the grommet mount plate and bolt through the desk hole.
2. Secure the plate from underneath the desk using the provided hardware.
3. Attach the 23-inch pole to the grommet mount and tighten.

3.3 Attaching Monitor Arms

1. Slide the LX arms onto the 23-inch pole at your desired heights. Secure them with the pole collars.
2. Attach the VESA plates to the back of your monitors using the appropriate screws.
3. Carefully slide the monitors (with VESA plates attached) onto the ends of the LX arms. Ensure they click securely into place.

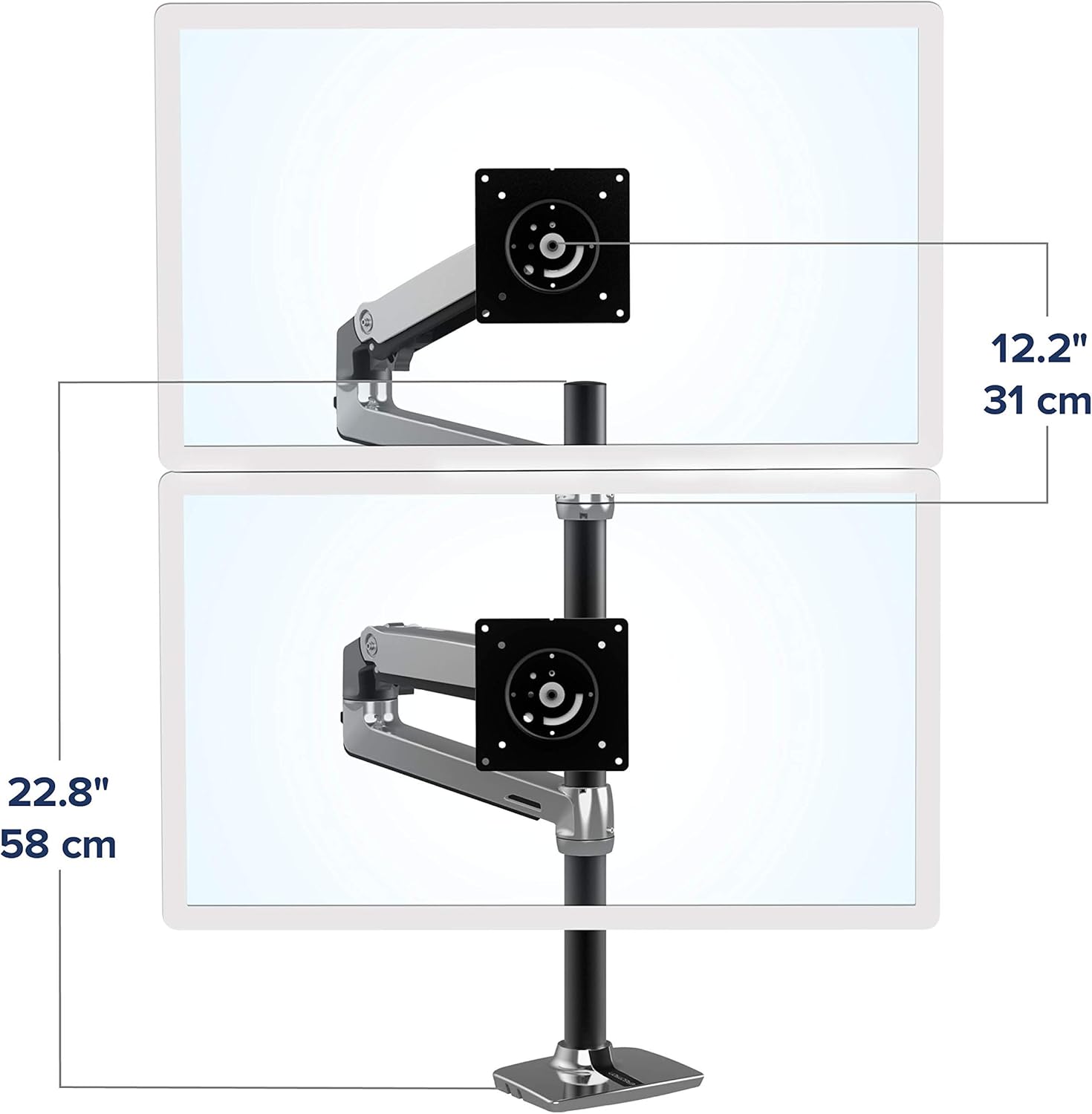

Image: The Ergotron LX Dual Stacking Monitor Arm with two monitors in a vertical configuration.

Image: The Ergotron LX Dual Stacking Monitor Arm with two monitors in a horizontal side-by-side configuration.

4. Funcionament i ajustos

The LX Dual Monitor Arm allows for extensive adjustments to achieve an ergonomic and comfortable viewexperiència.

4.1 Ajust d'alçada

The arms can be moved up and down the 23-inch pole to set the initial height. Fine-tune the monitor height by adjusting the tension in the arm joints. The system provides 13 inches (33 cm) of vertical lift.

Image: The monitor arm's vertical lift range of 13 inches (33 cm).

4.2 Tilt and Rotation

Each monitor can be tilted up to 75 degrees and rotated 360 degrees. This allows for easy switching between landscape and portrait orientations, or adjusting the viewangle per reduir l'enlluernament.

Image: Detailed illustration of the arm's articulation, tilt, and rotation capabilities.

4.3 Ajust de la tensió

If monitors sag or are difficult to move, adjust the tension screws on the arm joints using the provided hex key. Turn clockwise to increase tension for heavier monitors, and counter-clockwise to decrease tension for lighter monitors. Ensure monitors remain stable at your desired position.

5. Gestió de cables

The LX Dual Monitor Arm includes integrated cable management features to keep your workspace organized and clutter-free. Route monitor cables through the designated channels along the underside of the arms and down the pole.

Image: Illustration of proper cable routing through the arm's integrated channels.

6. Especificacions

7. Manteniment

To ensure the longevity and optimal performance of your Ergotron LX Dual Monitor Arm, follow these maintenance guidelines:

• Neteja regular: Wipe down the arm and pole surfaces with a soft, damp tela. Eviteu netejadors abrasius que puguin danyar l'acabat.
• Comproveu les connexions: Periodically inspect all screws and connections to ensure they remain tight. Re-tighten if necessary, especially after making significant adjustments to monitor positions.
• Lubricació: The articulating joints are designed for smooth movement and generally do not require lubrication. If you notice stiffness or squeaking, consult Ergotron support before applying any lubricants.
• Inspecció del cable: Ensure cables routed through the management channels are not pinched or excessively bent, which could lead to damage.

8. Solució De Problemes

If you encounter issues with your monitor arm, refer to the following common troubleshooting tips:

• Monitor Sagging or Drifting: This is typically due to insufficient tension for the monitor's weight. Use the provided hex key to increase the tension in the arm joints (clockwise rotation). Refer to the "Tension Adjustment" section for guidance.
• Difficulty Moving Monitor: If the arm is too stiff, the tension might be too high. Decrease the tension in the arm joints (counter-clockwise rotation) using the hex key.
• Unstable Mount: Assegureu-vos que l'escriptori clamp or grommet mount is securely fastened to the desk. Check for any wobbling at the base and tighten all connections. If using a desk clamp, verify your desk thickness is within the supported range.
• Cables Not Fitting: Double-check that cables are routed correctly through the designated channels. Avoid forcing cables, and ensure they have enough slack for full arm movement.

If these steps do not resolve the issue, please contact Ergotron customer support for further assistance.

9. Garantia i Suport

The Ergotron LX Vertical Stacking Dual Monitor Arm comes with a 10 any de garantia, reflecting the manufacturer's commitment to quality and durability. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your product, please visit the official Ergotron weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
