Tier1 RWF1100 Refrigerator Water Filter Instruction Manual

1. Introducció

The Tier1 RWF1100 Refrigerator Water Filter is designed to provide clean, fresh-tasting water and clear ice directly from your refrigerator dispenser. This filter utilizes advanced coconut carbon filtration to reduce common impurities, ensuring a better drinking experience for your household.

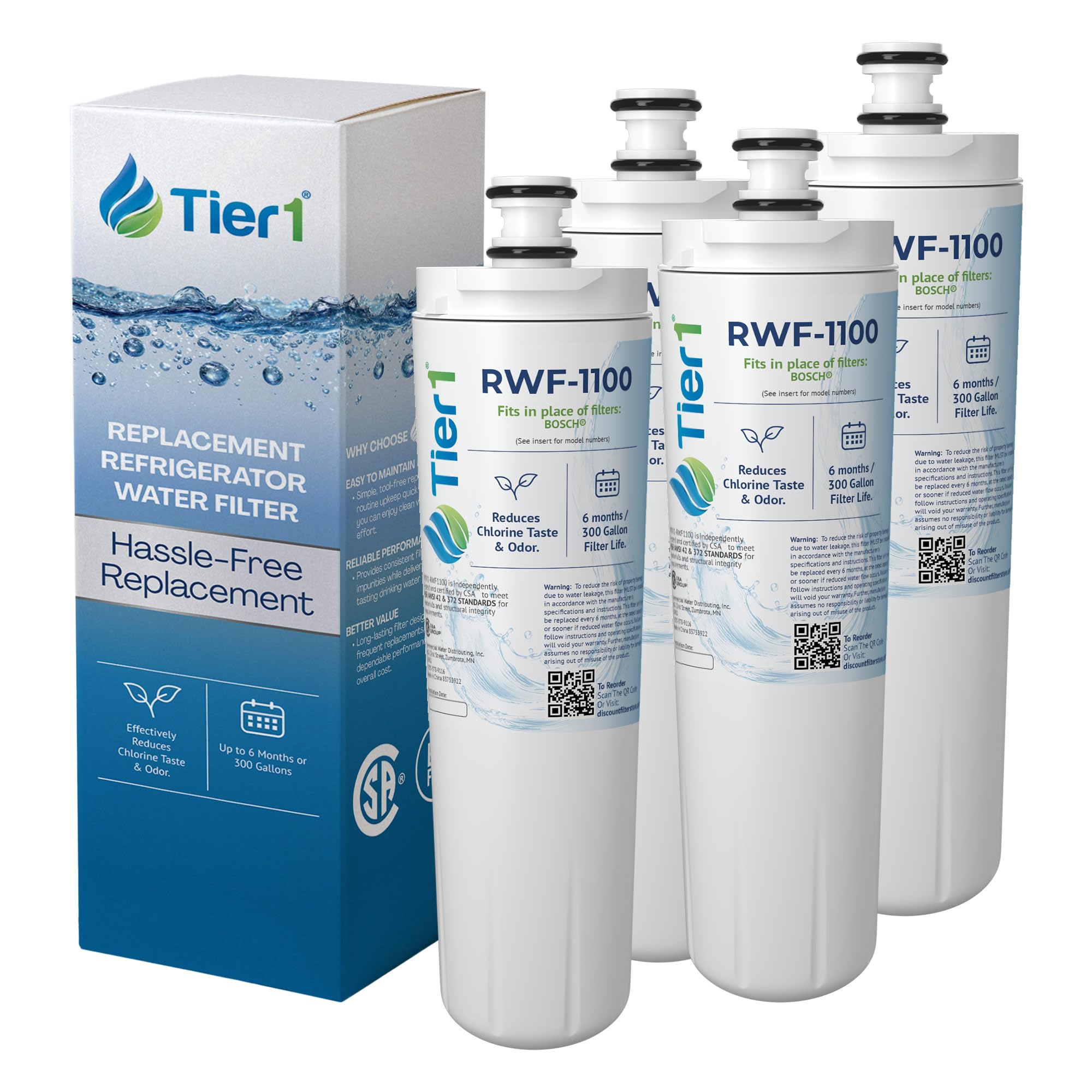

Image 1.1: The Tier1 RWF1100 Refrigerator Water Filter, designed for cleaner water and ice.

2. Característiques del producte

• Advanced Coconut Carbon Filtration: Activated coconut carbon block media helps reduce chlorine taste and odor, rust, sand, sediment, and turbidity at a 0.5 gpm flow rate for cleaner drinking water and clearer ice.
• Long-Lasting Service Life: Each filter is designed to filter up to 300 gallons or about six months of typical household use. Includes a date sticker to track replacement.
• Fàcil instal·lació: Designed for quick, tool-free replacement, offering a reliable connection to replace the original equipment manufacturer (OEM) filter.
• Tested & Certified: Meets NSF/ANSI Standards 42 and 372 for material safety, structural integrity, and reduction of chlorine taste & odor.

3. Compatible Replacement Models

The Tier1 RWF1100 is a compatible replacement for various refrigerator water filter models, including but not limited to:

Image 3.1: The Tier1 RWF1100 filter alongside a list of its compatible models.

• CS-52, Bosch 640565
• Whirlpool WHKF-R-PLUS, EVOLFLTR10
• RWF1100, RWF2700A, CS-51
• AP3961137, EFF-6026A, WSB-1, WSQ-1, SGF-BO50
• EAP8729485, 3M Cuno CS-52, OCS CS-52
• CS-450, CS-451, CS-452, CS-512, CS-522, CS-532, CS-562
• 1257074, 56932, 2168701, 70020002518, W1085590
• 5553629, 55866-05, 5586605, 55866-06, 5586606
• WHKFR-PLUS, WHCF-IMTOS, WHCF-IMPLUS, WHCF-R-PLUS
• 8668597, C00094379, C00097913, D846181, WF297, RFC1800A

4. Configuració i instal·lació

The Tier1 RWF1100 filter is designed for quick and easy, tool-free installation. Refer to your refrigerator's specific manual for exact filter location and removal instructions, as these can vary by model. Generally, the process involves removing the old filter and inserting the new one until it locks into place.

Image 4.1: The Tier1 RWF1100 filter is designed for easy, tool-free installation.

Passos generals d'instal·lació:

1. Locate your refrigerator's water filter compartment. This is typically inside the refrigerator, in the grille at the bottom, or in the top right corner.
2. Twist the old filter counter-clockwise to unlock and remove it. Some water may drip out, so have a towel ready.
3. Remove the protective cap from the new Tier1 RWF1100 filter.
4. Insert the new filter into the housing and twist clockwise until it is securely locked. You may feel a slight resistance as the O-rings engage.
5. Run water through the dispenser for approximately 3-5 minutes (about 2-3 gallons) to flush out any air and loose carbon particles. This ensures optimal filtration and clear water.
6. Check for leaks around the filter housing.
7. Reset your refrigerator's 'change filter' indicator, if applicable. Refer to your refrigerator manual for specific instructions on resetting the indicator.

5. Funcionament

The Tier1 RWF1100 filter operates by passing water through an activated coconut carbon block. This filtration medium is highly effective at adsorbing various impurities from your tap water.

Imatge 5.1: Una secció transversal view illustrating the coconut carbon block filtration within the Tier1 RWF1100 filter.

Procés de filtració:

• Reducció de clor: The activated carbon effectively captures chlorine, significantly improving the taste and odor of your water.
• Sediment Removal: The filter's fine pores trap rust, sand, silt, and other particulate matter, preventing them from entering your drinking water and ice.
• Turbidity Reduction: By removing suspended solids, the filter reduces turbidity, resulting in clearer water and ice.

Image 5.2: Diagram illustrating how 0.5 micron filtration captures fine particles like rust, silt, sand, and other impurities.

6. Manteniment

Regular replacement of your water filter is crucial for maintaining optimal water quality and refrigerator performance. The Tier1 RWF1100 filter has a recommended service life.

Image 6.1: The Tier1 RWF1100 filter lasts up to 6 months or 300 gallons, whichever comes first.

Programa de substitució del filtre:

• Substituïu el filtre cada cop 6 mesos o després de filtrar 300 galons of water, whichever comes first.
• Use the included date sticker to mark the installation date on the filter or a visible location on your refrigerator.
• If water flow significantly decreases before the recommended replacement interval, it may indicate high sediment levels in your water, and the filter should be replaced sooner.

7. Solució De Problemes

If you encounter issues after installing your new filter, consider the following common troubleshooting steps:

• Cabal d'aigua reduït: Ensure the filter is fully seated and twisted into place. Flush the filter for a longer period (5-10 minutes) to remove trapped air. If the issue persists, the filter may be clogged due to high sediment, requiring replacement.
• Fuga: Remove and re-install the filter, ensuring it is properly aligned and twisted until snug. Check that the O-rings are not damaged or dislodged.
• Cloudy Water or Air Bubbles: This is common immediately after installation and usually resolves after flushing 2-3 gallons of water through the dispenser. The cloudiness is typically air trapped in the system.
• Gust/olor inusual: Ensure the filter has been adequately flushed. If a taste or odor persists, verify the filter is the correct model for your refrigerator and that it is installed correctly.

If these steps do not resolve the issue, please contact Tier1 customer support.

8. Especificacions

9. Safety and Certification

The Tier1 RWF1100 filter is rigorously tested to ensure safety and performance.

Image 9.1: The Tier1 RWF1100 filter is independently tested and certified to NSF/ANSI standards.

• Estàndard NSF/ANSI 42: Certified for the reduction of chlorine taste and odor.
• Estàndard NSF/ANSI 372: Certified for lead-free compliance, ensuring the product does not leach lead into drinking water.
• Tested for material safety and structural integrity.

10. Informació de suport

For further assistance, technical support, or warranty inquiries, please contact Tier1 customer service.

• Assistència en línia: Visit the official Tier1 website or Amazon Brand Store for FAQs and product information. Tier1 Amazon Store
• Atenció al client: Refer to the packaging or the Tier1 weblloc per a mètodes de contacte directe.
