1. Introducció

The Santamedical PM-470 is a compact, portable, micro-computer controlled Transcutaneous Electrical Nerve Stimulation (TENS) device designed to provide temporary relief from muscle and nerve pain. It utilizes electrical pulses to stimulate nerves and muscles, which may help alleviate discomfort and promote relaxation. This manual provides essential information for the safe and effective use of your PM-470 TENS unit.

Característiques principals:

• Multifuncional: Designed to help ease pain, reduce tiredness, promote blood circulation, and enhance sleep quality.
• Scientifically Designed: Incorporates body simulation, bionic, bio-electric, and intelligent microcomputer control technologies for effective muscle penetration.
• Configuració ajustable: Features 20 intensity levels and adjustable treatment times from 10 to 60 minutes.
• Pre-Programmed Modes: Includes 6 pre-programmed massage modes: Knocking, Kneading, Shiatsu, and Vibration, along with manual mode options.
• Bateria recarregable: Equipped with an internal lithium battery for convenient, cordless operation.

2. Informació important de seguretat

Please read all safety warnings and instructions before using the Santamedical PM-470 TENS Unit. Improper use can lead to injury or adverse reactions.

Advertències generals:

• No utilitzi: On the head, face, neck, or chest. Avoid placing electrodes near the heart or across the chest.
• Consulteu un metge: If you have a pacemaker, heart condition, epilepsy, are pregnant, or have any other medical condition, consult your doctor before use.
• Irritació de la pell: Discontinue use if skin irritation or redness occurs.
• No per a nens: Mantenir fora de l'abast dels nens.
• Eviteu ambients humits: Do not use in the bath, shower, or in excessively humid conditions.
• Not a Substitute for Medical Care: This device is for temporary pain relief and is not intended to diagnose, treat, cure, or prevent any disease or health condition.

Avís legal: Les declaracions sobre els suplements dietètics no han estat avaluades per la FDA i no tenen com a objectiu diagnosticar, tractar, curar o prevenir cap malaltia o afecció mèdica.

3. Contingut del paquet

Verify that all items listed below are included in your Santamedical PM-470 package:

• Santamedical PM-470 TENS Unit (handheld controller)
• 4 Electrode Pads
• 2 Sets of Electrode Wires
• Wall Unit Charger
• Cable USB
• Pad and Wires Collector
• Manual de funcionament (aquest document)

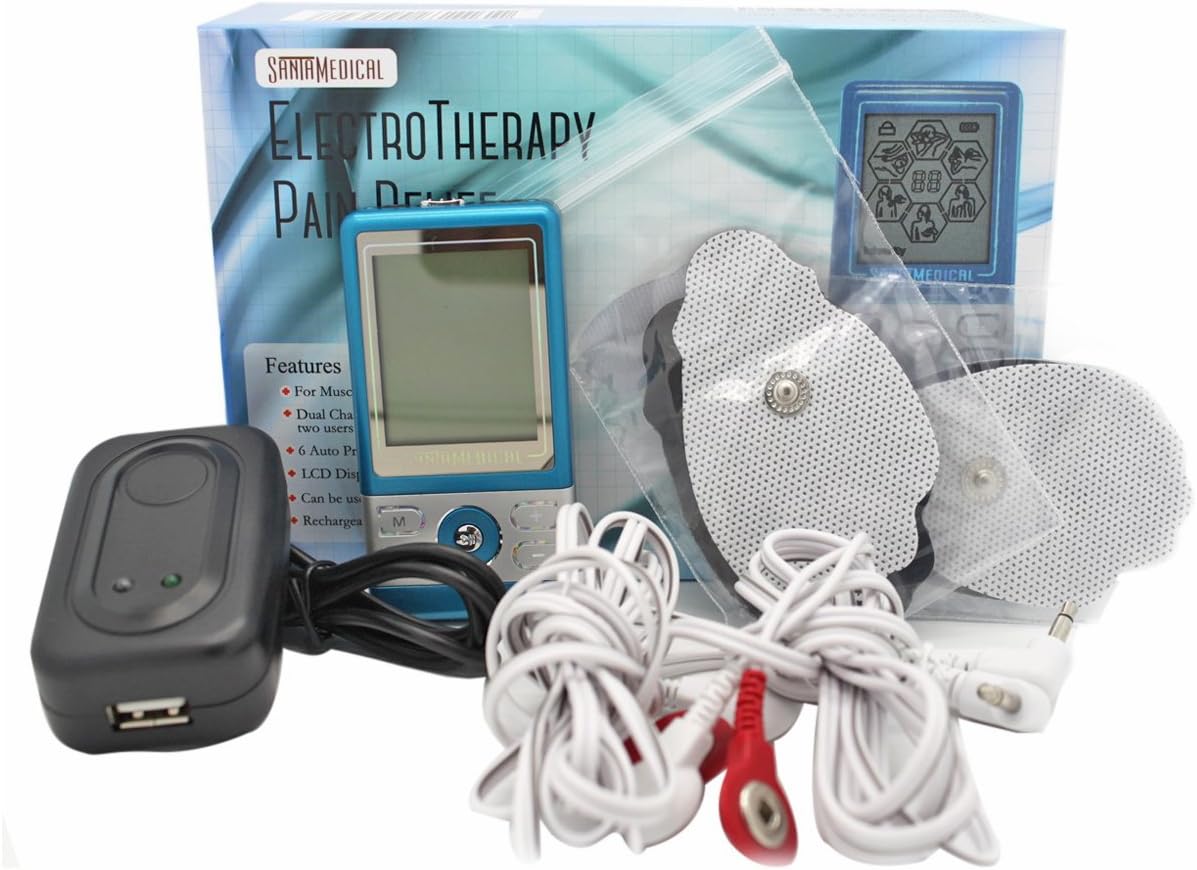

This image displays all items included in the Santamedical PM-470 TENS Unit package: the TENS unit, electrode pads, electrode wires, USB cable, wall charger, and pad/wires collector.

4. Dispositiu acabatview

The Santamedical PM-470 TENS Unit features an intuitive design for ease of use. Familiarize yourself with the components and controls:

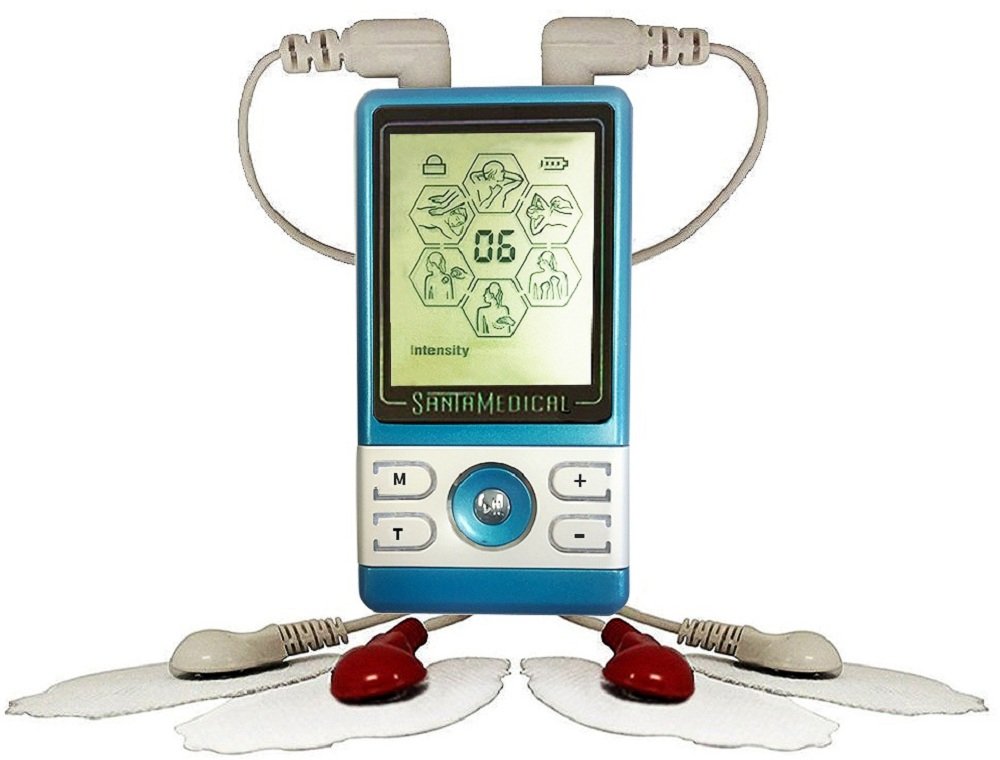

This image shows the front of the Santamedical PM-470 TENS Unit, highlighting its digital display, mode selection, intensity controls, and the Santamedical branding.

Controls i visualització:

• Pantalla digital: Shows current mode, intensity level, and remaining treatment time.
• Botó d'encesa: Encén o apaga el dispositiu.
• Botó Mode (M): Cycles through the 6 pre-programmed massage modes.
• Botó de temps (T): Adjusts the treatment duration.
• Intensity Buttons (+/-): Increases or decreases the intensity of the electrical pulses.

5. Setup and Electrode Placement

Càrrega del dispositiu:

1. Connect the USB cable to the TENS unit and the wall charger.
2. Connecteu el carregador de paret a una presa de corrent estàndard.
3. The battery indicator on the display will show charging status. A full charge typically takes approximately 1 hour.
4. Disconnect the charger once fully charged. The device can also be charged via a computer USB port.

Connecting Electrodes:

1. Ensure the TENS unit is turned off before connecting or disconnecting electrodes.
2. Insert the pin connectors of the electrode wires into the output jacks on the top of the TENS unit.
3. Attach the snap connectors of the electrode wires to the electrode pads.

The Santamedical PM-470 TENS Unit is shown with its two output channels connected to four electrode pads, illustrating how the device is prepared for use.

Pautes de col·locació d'elèctrodes:

Proper electrode placement is crucial for effective therapy. Always place pads on clean, dry, healthy skin. Avoid placing pads over open wounds, rashes, or irritated skin.

• Col·loqueu les compreses sobre o al voltant de la zona del dolor.
• Assegureu-vos que les compreses estiguin separades per almenys una polzada.
• For larger areas, use all four pads. For smaller areas, two pads may suffice.
• Avoid placing pads directly over joints that bend frequently, as this can cause them to detach.

Aquesta imatge proporciona exempcions visualsamples of how to correctly place electrode pads on different body areas such as the buttocks, thighs, and back for effective TENS therapy.

This diagram illustrates different body parts where the Santamedical PM-470 TENS Unit can be applied for pain relief, including the back, shoulders, neck, arms, chest, and legs.

6. Instruccions de funcionament

Inici d'una sessió:

1. Ensure the electrode pads are securely attached to your skin and the wires are connected to the unit.
2. Premeu el botó Botó d'engegada to turn on the device. The screen will illuminate.
3. Premeu el botó Botó Mode (M). to cycle through the 6 available massage modes. Select the desired mode.
4. Premeu el botó Time (T) Button to set the desired treatment duration. The default time is typically 10 minutes, adjustable up to 60 minutes.
5. Gradually increase the intensity by pressing the Botó '+'. Start with the lowest setting and increase slowly until you feel a comfortable, strong pulse. Avoid increasinintensitat g fins a un nivell incòmode.
6. To decrease intensity, press the Botó '-'.

Finalització d'una sessió:

• The device will automatically shut off once the set treatment time has elapsed.
• You can manually end a session by pressing the Botó d'engegada per apagar el dispositiu.
• After turning off the unit, carefully remove the electrode pads from your skin.

7. Cura i Manteniment

Neteja de la unitat:

• Netegeu la unitat TENS amb un drap suau iamp drap. No utilitzeu productes de neteja abrasius ni submergiu la unitat en aigua.
• Assegureu-vos que la unitat estigui completament seca abans de guardar-la.

Cura dels coixinets d'elèctrode:

• After each use, place the electrode pads back onto the provided pad and wires collector or the plastic film they came with to preserve their adhesive quality.
• Si les compreses perden la seva adherència, netegeu suaument la superfície adhesiva amb un anunci.amp cloth and allow to air dry. Replace pads when they no longer adhere well.

Emmagatzematge:

• Store the TENS unit and accessories in a cool, dry place, away from direct sunlight and extreme temperatures.
• Keep the device and all components out of reach of children.

8. Solució De Problemes

If you experience issues with your Santamedical PM-470, refer to the following common problems and solutions:

9. Especificacions tècniques

• Nom del model: PM-470
• Font d'alimentació: Alimentat per bateria (1 bateria de ions de liti, inclosa)
• Temps de càrrega: Aproximadament 1 hora
• Nivells d'intensitat: 20
• Pre-Programmed Modes: 6 (Knocking, Kneading, Shiatsu, Vibration, etc.)
• Temporitzador ajustable: 10-60 minuts
• Factor de forma: Handheld Wand
• Nivell de resistència a l'aigua: No resistent a l'aigua
• Fabricant: Santamedical

10. Assistència i garantia

For technical support, warranty information, or any questions regarding your Santamedical PM-470 TENS Unit, please contact Santamedical customer service. Refer to the product packaging or the official Santamedical weblloc web per obtenir les dades de contacte més actualitzades.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
