STIGA Snow Kick Sledge Snow Bike User Manual

1. Introducció

This manual provides essential instructions for the safe assembly, operation, maintenance, and troubleshooting of your STIGA Snow Kick Sledge Snow Bike, Model 75-1118-51. Please read this manual thoroughly before using the product to ensure proper function and user safety. Retain this manual for future reference.

The STIGA Snow Kick is designed for recreational use on snow-covered surfaces. It features a lightweight steel/aluminum frame, durable HDPE molded skis, and an adjustable, foldable design for convenient transport and storage.

2. Instruccions de seguretat

WARNING: Failure to follow these safety instructions may result in serious injury.

• Always wear appropriate safety gear, including a helmet, gloves, and protective clothing, when operating the Snow Kick.
• Assegureu-vos que tots els elements de fixació estiguin ben ajustats abans de cada ús.
• Do not exceed the maximum rider weight of 50 kg (110 lbs).
• Use the Snow Kick only on designated snow-covered areas, free from obstacles, ice, or other hazards.
• Es recomana la supervisió d'un adult per als usuaris més joves.
• Avoid using the Snow Kick in low visibility conditions or at night.
• No modifiqueu el producte de cap manera. Les modificacions no autoritzades poden comprometre la seguretat i anul·lar la garantia.
• Be aware of your surroundings and other individuals on the slope. Maintain a safe distance.

3. Contingut del paquet

Verify that all components are present and undamaged upon opening the package. If any parts are missing or damaged, contact customer support.

• STIGA Snow Kick main frame with handlebar
• Front ski
• Rear skis (2 units)
• Assembly hardware (bolts, nuts, washers)
• Manual d'instruccions (aquest document)

4. Muntatge i muntatge

Follow these steps to assemble your STIGA Snow Kick. A wrench may be required for some fasteners (not included).

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i plana.
2. Attach Front Ski: Align the front ski with the fork at the bottom of the main frame. Insert the provided bolt through the fork and ski, securing it with a nut and washer. Tighten firmly.
3. Attach Rear Skis: Connect the two rear skis to the rear axle of the frame using the designated bolts, nuts, and washers. Ensure both skis are oriented correctly and move freely. Tighten all fasteners securely.
4. Ajustar l'alçada del manillar: The handlebar is adjustable to three different heights. Locate the quick-release clamp or adjustment pins on the handlebar stem. Loosen the clamp or pull the pins, adjust the handlebar to the desired height, and then secure the clamp or re-engage the pins. Ensure the handlebar is locked firmly in place before use.
5. Mecanisme de plegat: To fold the Snow Kick for storage or transport, locate the folding mechanism near the base of the handlebar stem. Follow the instructions on the mechanism to release the lock and fold the handlebar down towards the skis. Ensure it locks in the folded position. To unfold, reverse the process, ensuring the handlebar is securely locked in the upright position.

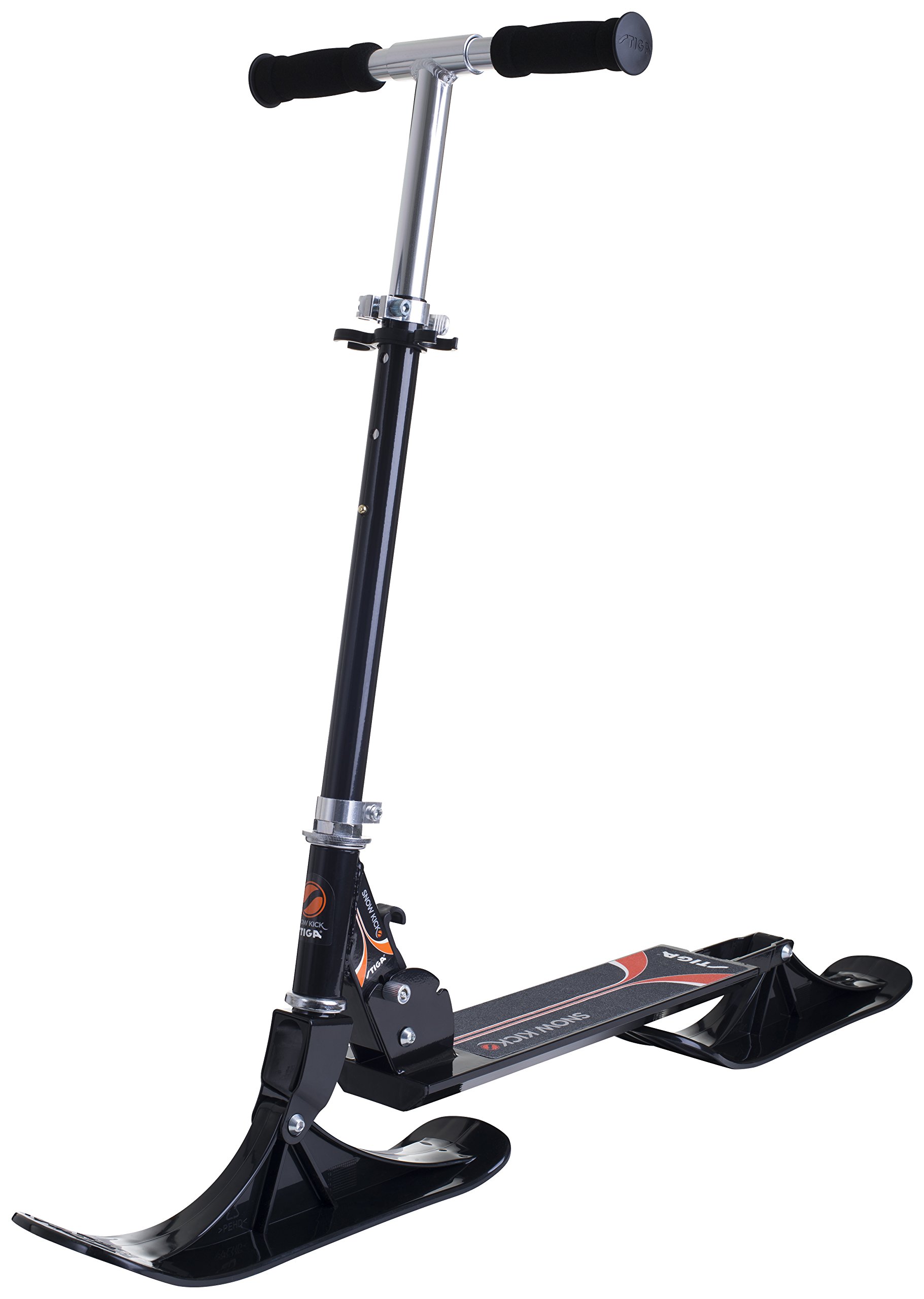

Image 1: Fully assembled STIGA Snow Kick Sledge Snow Bike. This image shows the product with its handlebar extended and skis attached, ready for use.

5. Instruccions de funcionament

5.1 Primers passos

1. Comprovació prèvia a la conducció: Before each use, inspect the Snow Kick for any loose parts, damage, or wear. Ensure all bolts and the handlebar adjustment mechanism are secure.
2. Col·locació del peu: Place one foot on the footboard of the Snow Kick.
3. Propulsió: Use your other foot to push off the snow, similar to a traditional kick scooter. Once momentum is gained, place both feet on the footboard.
4. Direcció: Steer by leaning your body and turning the handlebar in the desired direction.
5. Frenatge: The Snow Kick does not have a mechanical brake. To slow down or stop, drag your foot on the snow or gradually reduce speed by turning.

5.2 Ajust de l'alçada del manillar

The handlebar height can be adjusted to suit different riders. To adjust:

1. Localitza el tancament ràpidamp or adjustment pins on the handlebar stem.
2. Afluixa el clamp or pull out the pins.
3. Slide the handlebar up or down to one of the three available height settings.
4. Securely fasten the quick-release clamp or re-engage the pins until the handlebar is firmly locked in position.

5.3 Plegat per a emmagatzematge

To fold the Snow Kick for compact storage or transport:

1. Ensure the Snow Kick is on a stable, flat surface.
2. Localitza el mecanisme de plegat a la base de la tija del manillar.
3. Activate the release lever or button as per the mechanism's design.
4. Gently fold the handlebar down towards the skis until it clicks into its locked, folded position.
5. To unfold, reverse these steps, ensuring the handlebar is fully extended and securely locked before use.

6. Manteniment

6.1 Neteja

After each use, especially in wet or snowy conditions, clean the Snow Kick to prevent corrosion and maintain performance.

• Wipe down the frame and skis with a damp cloth to remove snow, dirt, and salt residue.
• Dry all metal components thoroughly to prevent rust.
• Do not use harsh chemicals or abrasive cleaners, as these can damage the materials.

6.2 Emmagatzematge

When not in use, store the Snow Kick in a dry, sheltered location, away from direct sunlight and extreme temperatures.

• Ensure the product is clean and dry before storing.
• Folding the Snow Kick will reduce its footprint for easier storage.

6.3 Inspecció

Periodically inspect the Snow Kick for signs of wear or damage:

• Check all bolts and fasteners for tightness. Tighten if necessary.
• Examine the skis for cracks, deep scratches, or excessive wear.
• Inspect the frame for any bends, cracks, or corrosion.
• Ensure the handlebar adjustment and folding mechanisms operate smoothly and lock securely.

7. Solució De Problemes

This section addresses common issues you might encounter with your STIGA Snow Kick.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact STIGA customer support for further assistance.

8. Especificacions

9. Garantia i Suport

STIGA products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official STIGA weblloc.

For technical support, replacement parts, or any questions not addressed in this manual, please contact STIGA customer service. Contact details can typically be found on the product packaging or the official STIGA weblloc.

STIGA Official Weblloc: www.stigasports.com
