TOPCHANCES Multi-function Compound Slide Table and Drill Bracket User Manual

1. Introducció

This manual provides essential information for the safe and effective use of your TOPCHANCES Multi-function Compound Slide Table and Drill Bracket. Please read these instructions carefully before assembly, operation, or maintenance to ensure proper function and to prevent injury or damage.

The compound slide table is designed for precise X-Y axis adjustment, making it suitable for various drilling, milling, and positioning tasks, particularly when used with a bench drill or similar machine.

2. Instruccions de seguretat

Always observe basic safety precautions to reduce the risk of personal injury and damage to the equipment.

• Llegeix el manual: Familiarize yourself with all instructions and warnings before operating the equipment.
• Porteu equip de seguretat: Always wear appropriate personal protective equipment, including safety glasses, gloves, and hearing protection.
• Peça de treball segura: Assegureu-vos que la peça de treball estigui ben ferma clamped to the compound slide table before beginning any operation.
• Muntatge estable: Mount the compound slide table securely to a stable workbench or drill press base.
• Àrea de treball neta: Keep the work area clean and well-lit. Remove any clutter that could interfere with operation.
• Desconnexió d'alimentació: Disconnect power from any attached machinery (e.g., drill press) before making adjustments or performing maintenance on the slide table.
• Eviteu la sobrecàrrega: Do not exceed the recommended capacity or apply excessive force to the slide table.

3. Components del producte

The TOPCHANCES Compound Slide Table consists of several key parts designed for precise movement and secure workpiece holding.

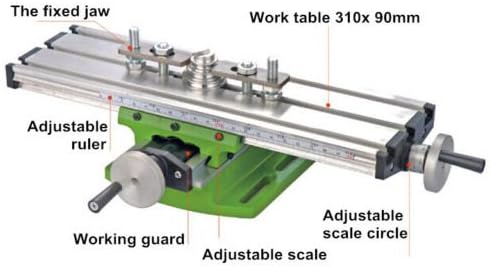

Figura 3.1: Labeled diagram illustrating the main components of the compound slide table.

• Taula de treball: The main surface where the workpiece is clamped. Features T-slots for securing clamps.
• Mandíbula fixa: A stationary component for clamping workpieces.
• Adjustable Ruler: Provides measurement reference for movement.
• Working Guard: Protects internal mechanisms.
• Adjustable Scale: Fine-tuning scale for precise positioning.
• Adjustable Scale Circle: Provides rotational measurement for precise adjustments.
• X-Y Adjustment Knobs: Control the linear movement along the X and Y axes.
• Base de muntatge: The bottom section used to secure the slide table to a workbench or drill press.

Figura 3.2: Compound Slide Table with included accessories.

Figura 3.3: Detallada view del clampaccessoris.

4. Configuració

Una configuració adequada garanteix l'estabilitat i la precisió durant el funcionament.

4.1 Mounting the Compound Slide Table

1. Trieu una superfície estable: Select a sturdy workbench or the base of a compatible drill press for mounting.
2. Col·loca la taula: Place the compound slide table on the chosen surface, aligning its mounting slots with any available bolt holes on the base.
3. Secure with Bolts: Use appropriate bolts and nuts (often included or supplied with your drill press) to firmly attach the slide table to the base. Ensure all fasteners are tightened securely to prevent movement during operation.

Figura 4.1: Compound slide table mounted on a stable base.

Figura 4.2: Detail of the mounting slots for secure attachment.

4.2 clampen la peça de treball

1. Posició de la peça: Place your workpiece on the work table.
2. Use T-slot Clamps: Insert the T-slot bolts into the T-grooves on the work table. Position the clamping blocks over the workpiece.
3. Estrenyeu bé: Hand-tighten the nuts on the T-slot bolts to hold the workpiece firmly in place. Ensure the workpiece cannot shift during operation.

5. Funcionament

The compound slide table allows for precise linear movement along two axes.

5.1 X-Y Axis Adjustment

1. Identify Adjustment Knobs: Locate the two adjustment knobs, one for X-axis movement (left-right) and one for Y-axis movement (front-back).
2. Ajust aproximat: For larger movements, turn the respective knob to slide the table to the desired approximate position.
3. Ajust fi: Use the adjustable scale and scale circle for precise positioning. Each full rotation of the knob corresponds to a specific travel distance (e.g., 1.25mm per circle). The smaller markings (e.g., 0.05mm per cell) allow for very fine adjustments.
4. Monitor Scales: Refer to the adjustable ruler and scale markings to track your position and ensure accuracy.

Figura 5.1: Detail of the adjustment knob and scale for fine positioning.

Figura 5.2: Acabatview of the work table with X-Y scales.

5.2 Using with a Drill Press

When using the compound slide table with a drill press, ensure the drill bit is centered over the desired starting point on your workpiece. Use the X-Y adjustments to precisely position the workpiece for each drilling operation.

6. Manteniment

Regular maintenance will prolong the life and accuracy of your compound slide table.

• Neteja: After each use, clean the work table and slide mechanisms to remove chips, dust, and debris. Use a brush or compressed air.
• Lubricació: Periodically apply a light machine oil to the lead screws and sliding surfaces to ensure smooth operation and prevent rust. Do not over-lubricate.
• Inspecció: Regularly inspect all fasteners for tightness. Check for any signs of wear or damage to the scales or moving parts.
• Emmagatzematge: Store the compound slide table in a clean, dry environment when not in use.

7. Solució De Problemes

Si teniu problemes, consulteu els següents problemes i solucions habituals:

• Movement is Stiff or Jerky:
  • Check for debris in the sliding mechanisms. Clean thoroughly.
  • Apply a small amount of machine oil to the lead screws and sliding surfaces.
  • Ensure no clamps or workpieces are obstructing movement.
• Posicionament incorrecte:
  • Verifiqueu que la peça de treball estigui ben subjectadaamped and not shifting.
  • Ensure the compound slide table itself is firmly mounted to its base.
  • Check for any play in the adjustment knobs or lead screws.
• Clamps Not Holding Workpiece:
  • Ensure the T-slot bolts are correctly seated in the T-grooves.
  • Premeu les femelles amb força.
  • Comproveu que el clamping blocks are making proper contact with the workpiece.

8. Especificacions

9. Garantia i Suport

Specific warranty details for this product are not provided in the available product information. For warranty claims, technical support, or replacement parts, please contact TOPCHANCES directly through their official channels or the retailer where the product was purchased.

Podeu visitar el TOPCHANCES Store on Amazon per a més informació.
