Marshall MG10G 10W Guitar AmpManual d'instruccions de lifier

1. Introducció

The Marshall MG10G is a compact 10-watt solid-state guitar amplifier designed for practice and home use. It features two channels (Clean and Overdrive), a Contour control for tone shaping, an auxiliary input for connecting external audio devices, and a headphone output for silent practice. This manual provides essential information for the safe and effective operation of your MG10G ampmés viu.

2. Informació de seguretat

WARNING: SHOCK HAZARD. DO NOT OPEN. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Assegureu-vos sempre el amplifier is connected to a grounded power outlet. Do not expose the amplifier to rain or moisture. Disconnect the power cord before cleaning or if the unit will be unused for extended periods. Ensure adequate ventilation around the ampmés viu.

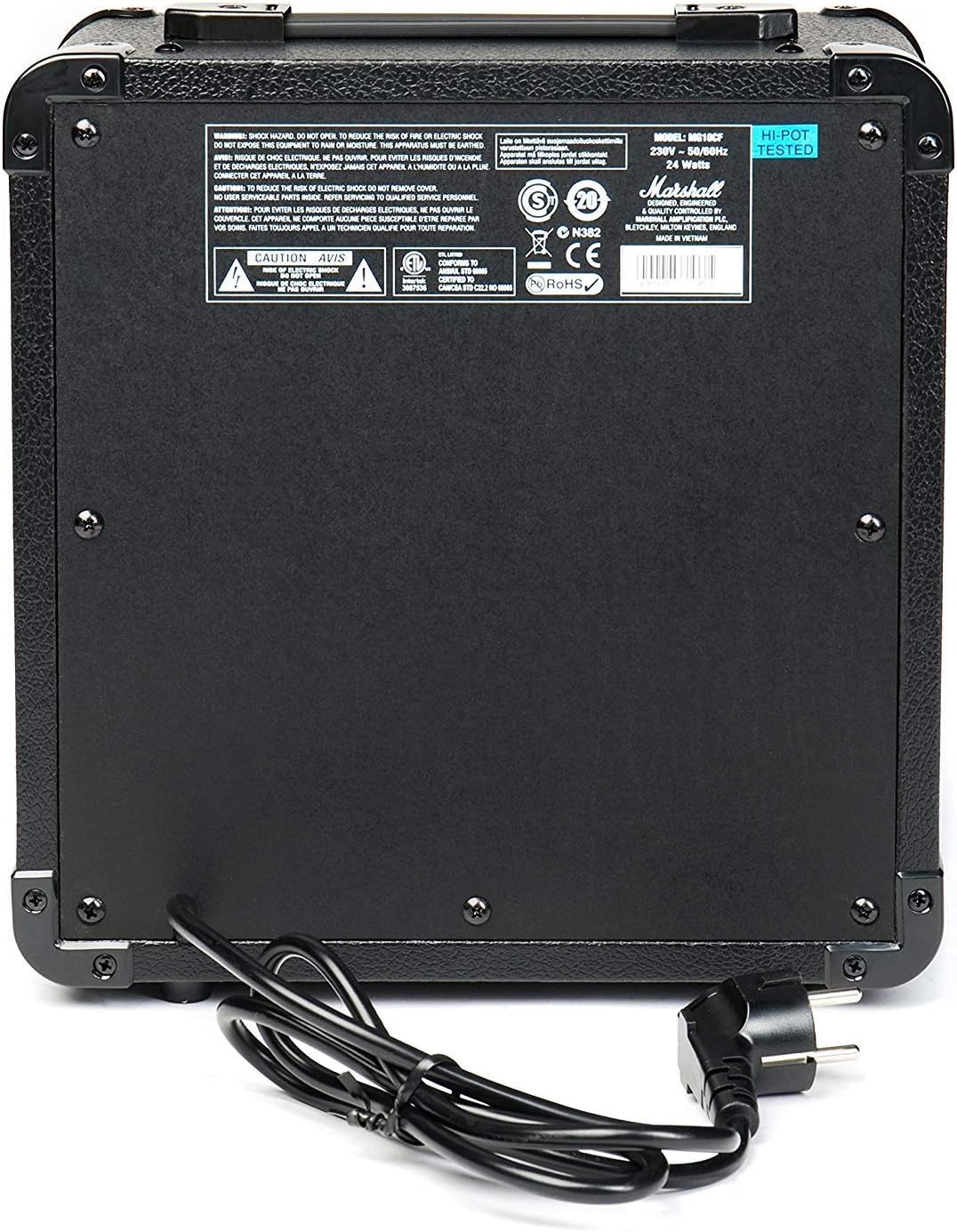

Figure 2.1: Rear panel of the MG10G amplifier, displaying safety warnings and power specifications.

3. Producte acabatview

The MG10G amplifier features a straightforward control layout for ease of use. Familiarize yourself with the front panel controls and rear panel connections before operation.

Figure 3.1: Front panel of the MG10G ampmés viu.

Controls del panell frontal:

1. ENTRADA: 1/4" jack for connecting your electric guitar.
2. VOLUM NET: Controls the volume of the Clean channel.
3. SELECCIÓ DEL CANAL: Button to switch between Clean and Overdrive channels.
4. GUANY OVERDRIVE: Adjusts the amount of distortion on the Overdrive channel.
5. VOLUM OVERDRIVE: Controls the volume of the Overdrive channel.
6. CONTORN: Shapes the mid-range frequencies of your tone. Turning it clockwise scoops the mids, while counter-clockwise adds mids.
7. MP3/LINE IN: 3.5mm jack for connecting external audio sources (e.g., MP3 player, phone).
8. AURICULARS: 3.5mm jack for connecting headphones for silent practice. Connecting headphones mutes the main speaker.
9. POTÈNCIA: Interruptor d'encesa/apagada per a ampmés viu.

Connexions del panell posterior:

• ENTRADA DE POTÈNCIA: Connects the supplied power cable to a suitable mains power supply.

4. Configuració

1. Assegureu-vos el amplifier's POWER switch is in the OFF position.
2. Connect the power cable to the POWER INPUT on the rear panel of the amplifier and then to a grounded electrical outlet.
3. Connect your electric guitar to the ENTRADA jack on the front panel using a standard 1/4" instrument cable.
4. If desired, connect an external audio device (e.g., MP3 player) to the MP3/LINE IN jack using a 3.5mm stereo cable.
5. If desired, connect headphones to the AURICULARS jack for silent practice.
6. Gireu el VOLUM NET i VOLUM OVERDRIVE controls to their minimum settings (fully counter-clockwise).
7. Canvia el amplificadors PODER to the ON position. The power indicator light will illuminate.

5. Instruccions de funcionament

5.1 Clean Channel

To use the Clean channel, ensure the SELECCIÓ DE CANAL button is disengaged (out position). Adjust the VOLUM NET control to achieve your desired output level. This channel provides a clear, un-distorted guitar tone.

5.2 Overdrive Channel

To engage the Overdrive channel, press the SELECCIÓ DE CANAL button (in position). Use the GUANY OVERDRIVE control to adjust the amount of distortion, from a subtle crunch to a heavier, saturated sound. The VOLUM OVERDRIVE control sets the output level for this channel.

5.3 Tone Shaping with Contour

El CONTORN control allows you to sculpt the mid-range frequencies of your tone. Experiment with this control to find your preferred sound:

• Girant CONTORN clockwise will scoop the mid-range, often resulting in a more modern, aggressive tone.
• Girant CONTORN counter-clockwise will boost the mid-range, providing a warmer, fuller sound that can help your guitar cut through a mix.

5.4 Using MP3/LINE IN

Connect an external audio device to the MP3/LINE IN jack. The volume of the external device is controlled by its own volume output. This feature allows you to play along with backing tracks or music.

5.5 Sortida d'auriculars

Connecteu els auriculars al AURICULARS jack for silent practice. The amplifier's main speaker will be muted automatically. Adjust the volume using the respective channel volume controls (Clean or Overdrive) or the volume control on your external audio device if using the MP3/LINE IN.

6. Manteniment

• Neteja: Desconnecteu el amplifier from the power supply before cleaning. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
• Emmagatzematge: Emmagatzemar el amplificador en un ambient sec i fresc, allunyat de la llum solar directa i de temperatures extremes.
• Transport: En transportar el amplifier, ensure it is securely packed to prevent damage.

7. Solució De Problemes

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb personal de servei qualificat.

8. Especificacions

Figure 8.1: Dimensions of the MG10G ampmés viu.

9. Garantia i Suport

9.1 Informació de la garantia

This Marshall MG10G amplifier ve amb a Garantia del fabricant de 1 anys. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

9.2 Atenció al client

For technical assistance, service, or warranty inquiries, please contact your authorized Marshall dealer or visit the official Marshall Amplificació weblloc web per a recursos de suport i informació de contacte.
