KRAUSE Corda Aluminum Scaffolding Ladder User Manual

1. Introducció

This manual provides essential instructions for the safe assembly, operation, and maintenance of your KRAUSE Corda Aluminum Scaffolding Ladder. Please read this manual thoroughly before initial use and retain it for future reference. Proper use ensures safety and extends the product's lifespan. This product complies with EN 131-1 standards.

2. Producte acabatview

The KRAUSE Corda Aluminum Scaffolding Ladder is a versatile, multi-functional system designed for various tasks. It can be configured as a work platform (scaffolding), a stepladder, or a single ladder. It features two ladder sections (2x6 or 2x7 rungs) with wide crossbars for enhanced stability and a non-slip, waterproof work platform.

Característiques principals:

• Quick and easy tool-free assembly.
• Work platform height is adjustable rung-by-rung.
• Adaptable for use on uneven surfaces, such as stairs.
• Capacitat de càrrega màxima: 150 kg.
• Wide crossbars with two-component foot caps for stability.

3. Instruccions de seguretat

Always prioritize safety when using this equipment. Failure to follow these instructions may result in serious injury or death.

• Inspecció: Before each use, inspect all components for damage, wear, or deformation. Do not use if any part is damaged.
• Superfície estable: Always set up the scaffolding or ladder on a firm, level, and non-slip surface. Ensure all feet are securely placed.
• Capacitat de càrrega: Do not exceed the maximum load capacity of 150 kg. This includes the user, tools, and materials.
• Muntatge: Ensure all connections are secure and locked into place before climbing. Follow assembly instructions carefully.
• Excés d'abast: Avoid overreaching. Always maintain your center of gravity within the base of the ladder/scaffolding.
• One Person: Only one person should be on the work platform or ladder at a time.
• Condicions meteorològiques: Do not use in strong winds, storms, or icy conditions.
• Riscos elèctrics: Be aware of overhead power lines and other electrical hazards. Maintain a safe distance.
• Calçat: Wear appropriate, non-slip footwear.

4. Muntatge i muntatge

The KRAUSE Corda scaffolding ladder is designed for quick and easy assembly without the need for special tools. The system consists of two ladder sections and a work platform.

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge. Verifiqueu que tots els components siguin presents i no estiguin danyats.
2. Position Ladder Sections: Place the two ladder sections on a flat, stable surface, ensuring the wide crossbars are at the base for maximum stability.
3. Attach Platform: Connect the work platform to the desired rung height on both ladder sections. Ensure the platform hooks securely engage with the rungs and the locking mechanisms are fully engaged. The platform is adjustable rung-by-rung.
4. Verifica l'estabilitat: Before use, gently shake the assembled unit to confirm all connections are secure and the structure is stable.

Figura 1: Image showing the KRAUSE Corda scaffolding in its assembled work platform configuration, alongside a stepladder and a single ladder configuration. This illustrates the multi-functional capabilities of the product.

5. Modes de funcionament

The KRAUSE Corda system offers three primary operating modes:

5.1. Work Platform (Scaffolding)

This configuration provides a stable and spacious work surface. The platform dimensions are 147 x 50 cm. The working height for this mode is approximately 2.75 meters.

5.2. Stepladder

The unit can be folded into a stable stepladder configuration. The working height for the stepladder mode is approximately 2.95 meters.

5.3. Single Ladder

Each ladder section can be used independently as a single ladder. The working height for a single ladder is approximately 3.75 meters.

The design also allows for use on varying height levels, such as stairs, by adjusting the height of the individual ladder sections.

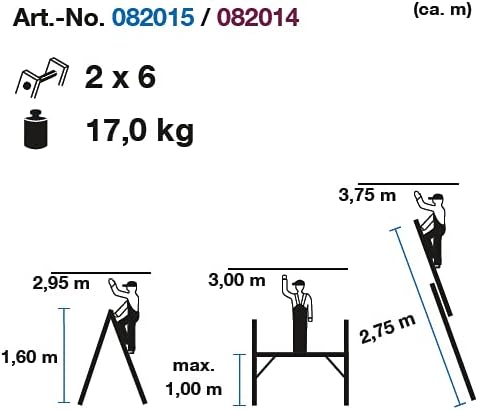

Figura 2: Diagram illustrating the different working heights and configurations of the KRAUSE Corda system, including stepladder (2.95m working height), scaffolding (2.75m working height), and single ladder (3.75m working height) modes with corresponding dimensions.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your KRAUSE Corda scaffolding ladder.

• Neteja: Clean the aluminum frame and platform with a damp drap i detergent suau. Eviteu productes de neteja o dissolvents abrasius.
• Inspecció: Periodically check all rungs, joints, hinges, and the platform for any signs of damage, cracks, loose fasteners, or excessive wear. Pay close attention to the foot caps for integrity.
• Emmagatzematge: Store the scaffolding ladder in a dry, protected area, away from extreme temperatures and corrosive substances. Ensure it is stored in a way that prevents accidental falls or damage.
• Parts danyades: Do not attempt to repair damaged components yourself. Contact KRAUSE customer support or an authorized service center for replacement parts or professional repair.

7. Solució De Problemes

If you encounter issues with your KRAUSE Corda scaffolding ladder, consider the following:

• Inestabilitat: If the unit feels unstable, re-check that it is placed on a firm, level surface. Ensure all crossbars are fully extended and foot caps are making full contact with the ground. Verify all locking mechanisms are engaged.
• Difficulty in Assembly/Disassembly: Ensure that all components are correctly aligned. Do not force parts together. Refer to the setup instructions.
• Platform Not Level: Re-adjust the platform height, ensuring it is securely seated on the same rung level on both ladder sections.

For persistent issues or concerns about structural integrity, discontinue use immediately and contact customer support.

8. Especificacions

9. Garantia i Suport

For warranty information, please refer to the terms and conditions provided at the point of purchase or contact KRAUSE directly. Spare parts availability information is currently unavailable through this manual. For technical support, service, or inquiries regarding replacement parts, please contact your retailer or the manufacturer's customer service department.
