Generic RKH-BG-1163288 LED Flashlight User Manual

1. Producte acabatview

The Generic RKH-BG-1163288 is a compact and versatile LED flashlight designed for everyday carry (EDC). Featuring an Xp-l Hi V3 LED, it delivers up to 700 lumens of bright illumination, powered by a 14500 battery. Its robust construction and multiple lighting modes make it suitable for various tasks and environments.

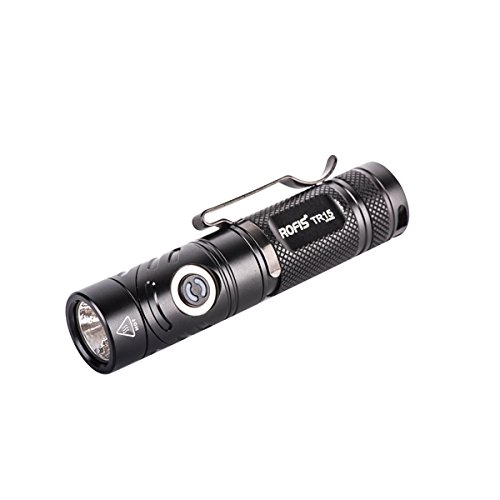

Figure 1: Generic RKH-BG-1163288 LED Flashlight. This image shows the compact design of the flashlight, highlighting its main body and head.

2. Informació de seguretat

• Seguretat ocular: Do not shine the flashlight directly into eyes. The powerful LED beam can cause temporary vision impairment or permanent eye damage.
• Calor: The flashlight head may become hot during prolonged use, especially on high brightness modes. Handle with care to avoid burns.
• Seguretat de la bateria:
  • Use only recommended 14500 batteries.
  • No barregeu piles velles i noves, o diferents tipus de piles.
  • No llenceu les piles al foc. Poden explotar.
  • Mantingueu les piles fora de l'abast dels nens.
• Desmuntatge: Do not attempt to disassemble the flashlight. This may damage the device and void the warranty.
• Resistència a l'aigua: While designed for general use, avoid submerging the flashlight in water unless explicitly stated as waterproof.

3. Què hi ha a la caixa

En obrir el paquet, comproveu que hi hagi tots els elements:

• Generic RKH-BG-1163288 LED Flashlight
• 14500 Rechargeable Battery (if included with purchase)
• Cable de càrrega USB (si escau)
• Juntes tòriques de recanvi
• Corda
• Manual d'usuari (aquest document)

4. Configuració

4.1 Instal·lació de la bateria

1. Desenrosqueu la tapa posterior de la llanterna girant-la en sentit antihorari.
2. Insert one 14500 battery with the positive (+) terminal facing towards the flashlight head (LED end).
3. Screw the tail cap back on clockwise until it is securely tightened. Ensure the O-ring is properly seated to maintain water resistance.

4.2 Initial Charging (if applicable)

If your flashlight includes a rechargeable battery and a charging port (e.g., USB-C), follow these steps:

1. Locate the charging port, usually covered by a rubber flap on the flashlight body or head.
2. Open the rubber flap and connect the provided USB charging cable to the port.
3. Connect the other end of the USB cable to a suitable USB power source (e.g., computer, wall adapter).
4. An indicator light will typically show charging status (e.g., red for charging, green for fully charged).
5. Once fully charged, disconnect the cable and securely close the rubber flap to protect the port from dust and moisture.

5. Instruccions de funcionament

The Generic RKH-BG-1163288 flashlight typically operates via a single tail switch or side switch.

5.1 Encès/Apagat

• Encendre: Fully press the tail switch (or side switch) until it clicks.
• Apagar: Fully press the switch again until it clicks.

5.2 Selecció del mode

Most flashlights offer multiple brightness levels and special modes. The method to cycle through modes may vary:

• Nivells de brillantor: With the flashlight ON, lightly tap the tail switch (without clicking) or press and hold the side switch to cycle through brightness levels (e.g., Low → Medium → High). Release the switch to select the desired level.
• Special Modes (Strobe/SOS): From the ON position, a quick double-tap or triple-tap of the switch may activate special modes like Strobe or SOS. Refer to specific product documentation for exact sequences.
• Funció de memòria: Some flashlights remember the last used brightness level and will turn on in that mode.

6. Manteniment

6.1 Neteja

• Netegeu el cos de la llanterna amb un drap net i suau.
• For the lens, use a lens cleaning cloth and solution to avoid scratches.
• No utilitzeu productes químics o materials abrasius.

6.2 Cura de la bateria

• Traieu les piles si no fareu servir la llanterna durant un període prolongat per evitar fuites.
• Guardeu les piles en un lloc fresc i sec.
• Properly dispose of depleted or damaged batteries according to local regulations.

6.3 O-ring Lubrication

To maintain water resistance, periodically inspect and lubricate the O-rings:

1. Unscrew the tail cap and carefully remove the O-ring.
2. Apply a thin layer of silicone grease (not petroleum-based) to the O-ring.
3. Reinstall the O-ring and screw the tail cap back on securely.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase or contact the seller/manufacturer directly. If you encounter any issues or require technical assistance, please reach out to the customer support channels provided by the retailer or manufacturer.

Manufacturer: RADHAKRISHNA HUT
