EPEVER Solar Charge Controller 45A VS4524AU User Manual

1. Introduction and Features

The EPEVER VS-AU series solar charge controller is a Pulse Width Modulation (PWM) charge controller equipped with a built-in LCD display. It incorporates advanced digital techniques to efficiently manage solar panel battery charging. Its versatile load control modes make it suitable for various applications, including solar home systems, traffic signals, solar street lights, and solar garden lamps.

Característiques principals:

• 3-StagCàrrega PWM intel·ligent: a granel, augmentar / igualar, flotar.
• Supports three charging options: Sealed, Gel, and Flooded batteries.
• LCD display dynamically shows device operating data and working conditions.
• Dual USB ports (5V/2.4A output) for charging electronic equipment.
• User-friendly button settings for comfortable and convenient operation.
• Multiple load control modes.
• Energy statistics function.
• Funció de compensació de temperatura de la bateria.
• Protecció electrònica àmplia.

2. Informació de seguretat

Please read all instructions and warnings carefully before installation and operation. Keep this manual for future reference. Always ensure proper polarity and connections to prevent damage to the controller, battery, or other connected devices. Disconnect all power sources before performing any maintenance or wiring changes.

Proteccions electròniques:

• Protecció de polaritat inversa PV
• Bateria sobre voltage protecció
• Protecció de sobre descàrrega de la bateria
• Protecció de polaritat inversa de la bateria
• Protecció contra el sobreescalfament de la bateria
• Protecció de sobrecàrrega de càrrega
• Protecció contra curtcircuits de càrrega
• Protecció contra el sobreescalfament del controlador

3. Components del producte i mésview

Figura 3.1: Davant view of the EPEVER VS4524AU Solar Charge Controller, showing the LCD display, control buttons, and USB ports.

Figura 3.2: Detallada view of the controller's front panel with labels for the LCD display, Menu button, Set button, USB output ports (5VDC/2.4A), RTS port, PV terminals, Battery terminals, and Load terminals.

Figura 3.3: posterior view of the EPEVER VS4524AU Solar Charge Controller, highlighting the heat sink for efficient heat dissipation.

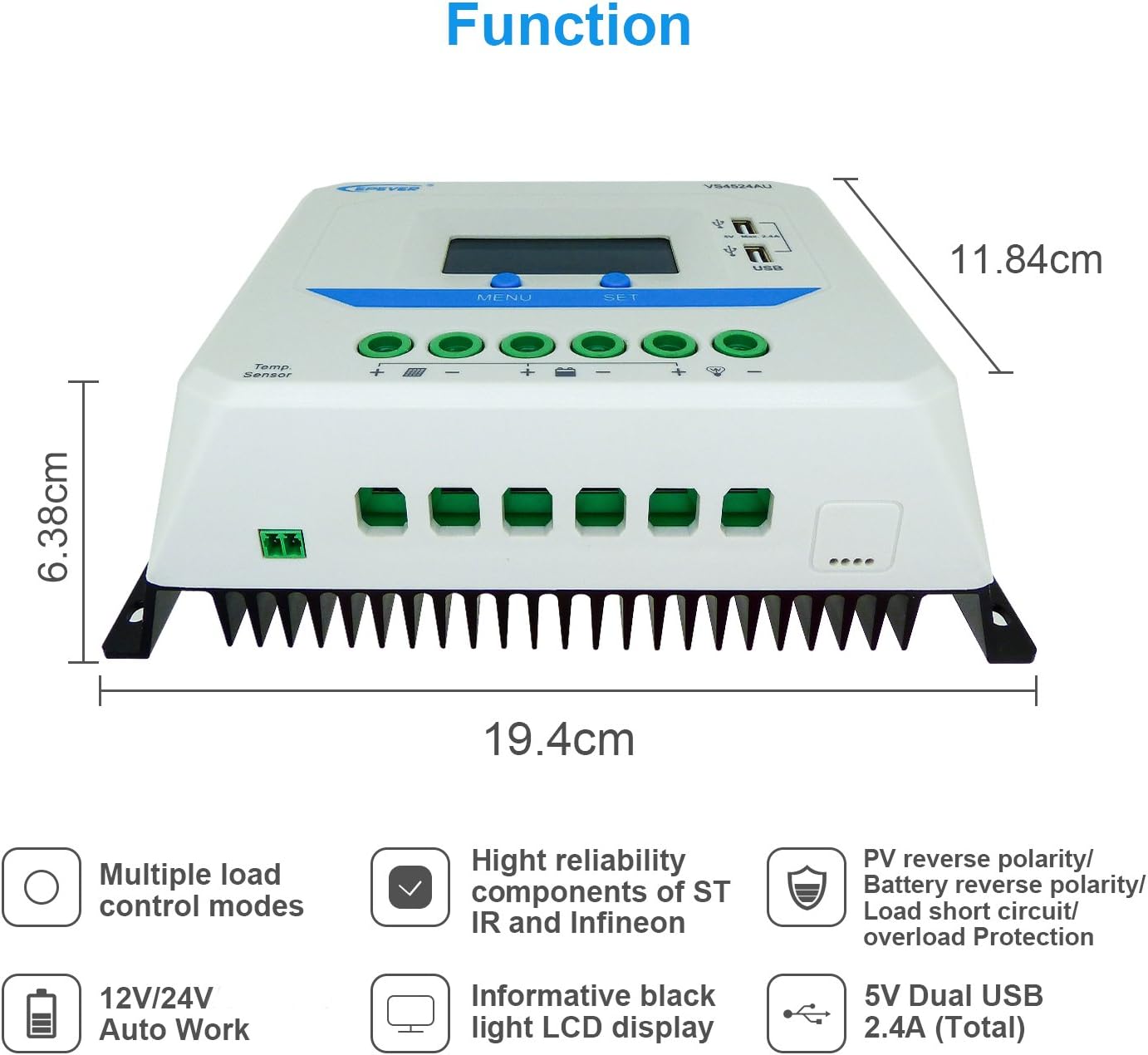

Figura 3.4: Dimensions of the controller (19.4cm x 11.84cm x 6.38cm) and a summary of its functions including multiple load control modes, high reliability components, informative black light LCD display, 12V/24V auto work, 5V dual USB 2.4A (Total) output, and various protections.

4. Instal·lació

Important: Always connect the battery first. Do not use an electric screwdriver for connections. Please read the complete installation instructions to familiarize yourself with the steps before proceeding.

Diagrama de connexió:

Figura 4.1: Wiring diagram showing the connection order: 1. Battery, 2. Load, 3. Solar panel (PV array). Also illustrates optional inverter and USB charging for devices like phones and pads.

Passos de connexió:

1. Connecteu la bateria: Connect the battery to the controller's battery terminals. Ensure correct polarity (positive to positive, negative to negative). The controller will power on and display battery voltage.
2. Connect the Load: Connect the load to the controller's load terminals. Ensure correct polarity.
3. Connect the Solar Panel (PV Array): Connect the solar panel to the controller's PV terminals. Ensure correct polarity.

Disconnecting Steps (Reverse Order):

1. Desconnecteu la càrrega.
2. Disconnect the Solar Panel (PV array).
3. Disconnect the Battery.

5. Instruccions de funcionament

Funcions de la pantalla LCD i dels botons:

The controller features an LCD display that shows real-time operating data. The "MENU" and "SET" buttons are used to navigate and configure settings.

• Botó MENÚ: Used to browse through different display interfaces (e.g., PV parameters, Battery parameters, Load parameters).
• Botó SET: Used to confirm settings or to enter setting modes by holding for 5 seconds.
• Pantalla de retroil·luminació: The LCD has a backlight for visibility in low light conditions.
• Sortida USB: Provides 5V, Max 2.4A output for charging external devices.

Figura 5.1: Table describing the icons and their corresponding status on the LCD display, including PV array status (Day, Night, No charging, Charging), Battery status (Battery capacity, In Charging, Battery voltage, current, temperature, Battery type), and Load status (Load ON, Load OFF, Load Voltage, Current, Load mode).

Configuració del tipus de bateria:

Sota la bateria voltage interface, press and hold the SET button for 5 seconds to enter the battery type setting. After choosing the desired battery type by pressing the MENU button, wait for 5 seconds or press the SET button again to confirm the modification. The supported battery types are: 1. Sealed (Default), 2. Gel, 3. Flooded.

Modes de control de càrrega:

The controller supports multiple load control modes. Under the load mode setting interface, press and hold the SET button for 5 seconds until the number begins flashing. Then, press the MENU button to set the parameter, and press the SET button to confirm.

• Timer 1 (100-117):
  • 100: Light ON/OFF
  • 101: Load will be on for 1 hour since sunset
  • 102: Load will be on for 2 hours since sunset
  • 103-113: Load will be on for 3-13 hours since sunset
  • 114: Load will be on for 14 hours since sunset
  • 115: Load will be on for 15 hours since sunset
  • 116: Test mode
  • 117: Manual mode (Default Load ON)
• Timer 2 (200-217):
  • 2^^: Timer 2 disabled
  • 201: Load will be on for 1 hour since sunrise
  • 202: Load will be on for 2 hours since sunrise
  • 203-213: Load will be on for 3-13 hours since sunrise
  • 214: Load will be on for 14 hours since sunrise
  • 215: Load will be on for 15 hours since sunrise
  • 216: Test mode
  • 217: Manual mode (Default Load ON)

NOTE: Please set Light ON/OFF, Test mode and Manual mode via Timer1. Timer2 will be disabled and display "2n".

6. Manteniment

To ensure optimal performance and longevity of your EPEVER Solar Charge Controller, regular maintenance is recommended:

• Neteja els terminals: Periodically check and clean all terminals to ensure tight connections and prevent corrosion. Loose connections can cause excessive heat and damage.
• Inspeccioneu el cablejat: Examine all wiring for any signs of wear, fraying, or damage. Replace any compromised wiring immediately.
• Comproveu la ventilació: Ensure the controller's heat sink and ventilation openings are free from dust and debris to allow for proper heat dissipation.
• Monitoritzar el rendiment: Regularly check the LCD display for normal operating parameters (battery voltage, charging current, load status) to identify any anomalies early.
• Salut de la bateria: For optimal battery life, ensure the correct battery type is selected in the controller settings and monitor battery health as per battery manufacturer guidelines.

7. Solució De Problemes

This section provides solutions to common issues you might encounter with your solar charge controller.

8. Especificacions tècniques

Below are the detailed technical specifications for the EPEVER VS4524AU Solar Charge Controller:

Nota: The parameters above are in 12V system at 25℃, twice in 24V system, triple in 36V system and quadruple in 48V system. Rated charge/discharge current temp. range is -25 to 55℃.

Figura 8.1: Comprehensive table of technical specifications for various VS-AU series models, including VS1024AU, VS2024AU, VS3024AU, VS4524AU, and VS6024AU.

9. Garantia i Suport

EPEVER products are distributed by authorized sales agents like GolandCentury. GolandCentury is committed to providing high-quality products and excellent customer service.

• Suport tècnic: Free technical support is available from GolandCentury's service centers.
• Product Authenticity: Ensure you purchase from authorized sellers to receive genuine products and valid warranty support.
• Devolucions: This product typically has a 30-day return policy. Please refer to your purchase platform for specific return details.
• Plans de protecció: Extended protection plans may be available for purchase to cover your product beyond the standard warranty.

For further assistance or inquiries, please contact your authorized dealer or refer to the official EPEVER weblloc.
