Introducció
The Britax Advocate ClickTight Convertible Car Seat with Cool Flow is designed to provide safety and comfort for your child. This manual provides essential information for proper installation, operation, and maintenance of your car seat. It features an innovative fabric and provides stylish safety. The ventilated mesh fabric improves air flow and the padded seat and headrest ensures added comfort, along with the 7-position recline. The Anti-Rebound Bar minimizes forces associated with crashes by stabilizing the car seat when installed rear-facing.
Image: The Britax Advocate ClickTight Convertible Car Seat, showcasing el seu disseny i les seves característiques.
Característiques clau
- Cool Flow Ventilated Mesh Fabric: Improves air flow for enhanced comfort.
- ClickTight Installation System: Simplifies car seat installation, making it as easy as buckling a seat belt.
- SafeCell Impact Protection: Features 3 layers of side impact protection, quick-adjust head protection, a steel frame, and an impact-absorbing base.
- Anti-Rebound Bar: Stabilizes the car seat when installed rear-facing to minimize crash forces.
- Ús versàtil: Supports rear-facing for children 5 to 40 pounds and forward-facing for children 20 to 65 pounds, with a maximum standing height of 49 inches.
- Adjustable Harness & Recline: 14-position easy-adjust harness and 7-position quick-push recline.
- Click & Safe Snug Harness Indicator: Provides an audible click to confirm proper harness tightness.
Configuració i instal·lació
The Britax Advocate ClickTight car seat offers a straightforward installation process. The ClickTight system ensures a secure installation with minimal effort.
ClickTight Installation Steps
- Push Dial, Turn & Lift: Open the ClickTight compartment by pushing the dial, turning it, and lifting the seat base.
- Thread & Buckle: Route the vehicle's seat belt through the designated path and buckle it.
- Click It Closed: Close the ClickTight compartment until it clicks securely into place.
Image: Visual guide demonstrating the three simple steps for ClickTight car seat installation.
Installation Video: ClickTight System
Video: A demonstration of the Britax ClickTight installation system, showing how to securely install the car seat using the vehicle's seat belt.
Car Seat Modes
The car seat can be used in two modes:
- Mirant cap enrere: For children weighing 5 to 40 pounds.
- Mirant cap endavant: For children weighing 20 to 65 pounds.
Image: The Britax Advocate ClickTight Car Seat shown in both rear-facing (5-40 lbs) and forward-facing (20-65 lbs) configurations.
Instruccions de funcionament
Ajust de l'arnès i del reposacaps
The car seat features a 14-position quick-adjust harness and headrest system. This allows you to easily adjust the harness height as your child grows without rethreading.
Image: The 14-position quick-adjust harness and headrest system, illustrating how it moves to accommodate a growing child.
Click & Safe Snug Harness Indicator
The Click & Safe Snug Harness Indicator provides an audible click when the harness is tightened to the appropriate snugness, ensuring your child is properly secured.

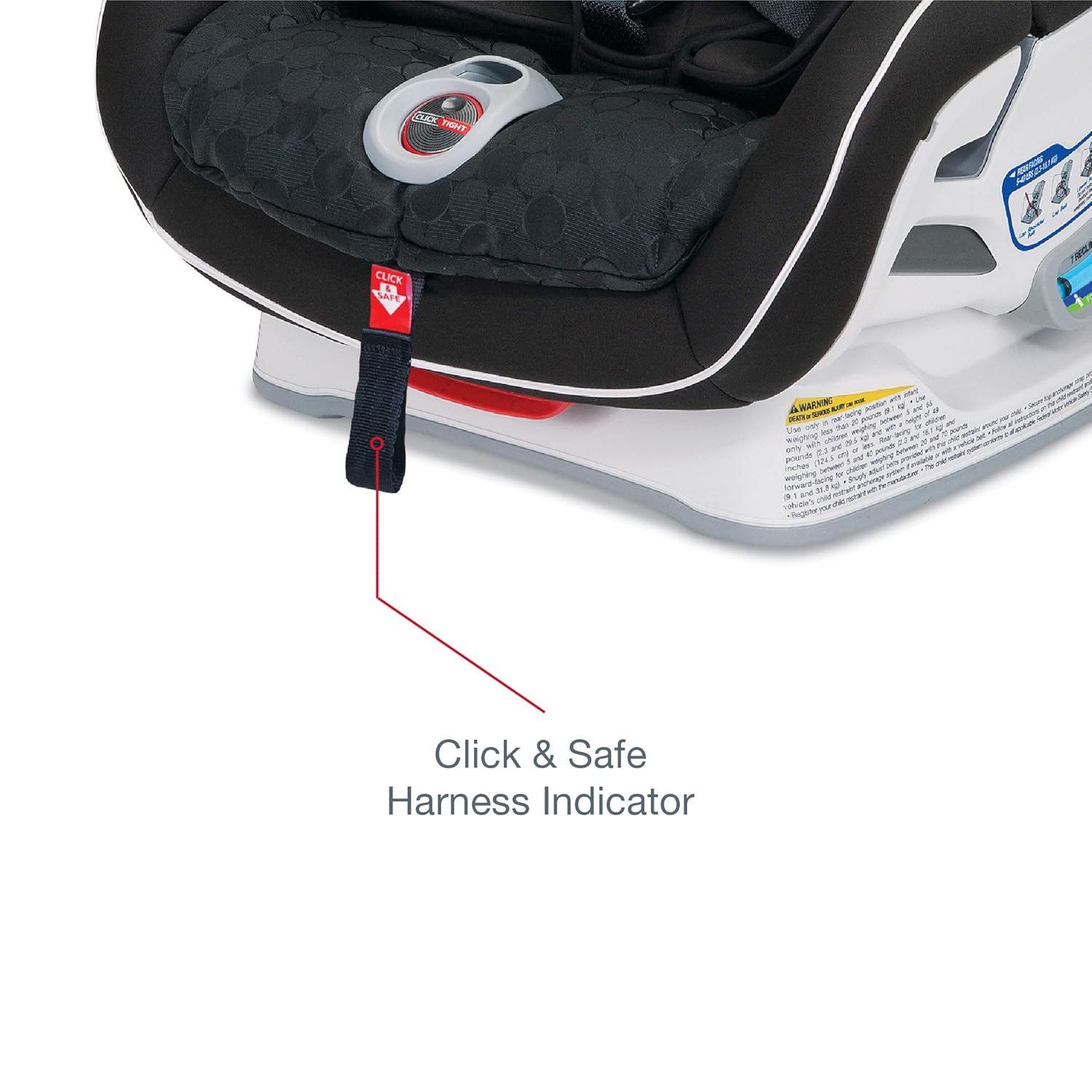

Image: Close-up of the Click & Safe Harness Indicator, a red tab that provides an audible click when the harness is correctly tightened.
Ajust de reclinació
The car seat offers a 7-position quick-push recline feature, allowing you to adjust the seat angle for your child's comfort and proper installation. Easy-read level indicators assist in achieving the correct recline angle for both rear-facing and forward-facing installations.
Image: The 7-position quick-push recline mechanism and easy-read level indicators, showing how to adjust the seat angle.
Image: A child seated comfortably in the Britax Advocate ClickTight Car Seat, demonstrating proper use.
Característiques de seguretat
The Britax Advocate ClickTight car seat is engineered with advanced safety features to protect your child.
- 3 Layers of Side Impact Protection: A deep foam-lined shell, side cushions, and head protection shield your child from severe collisions.
- Anti-Rebound Bar: When installed rear-facing, this bar stabilizes the car seat and reduces rebound movement in a crash.
- High Strength Steel Frame: Provides structural integrity and strength to the car seat.
- Patented V-Shaped Tether: Minimizes seat rotation and slows forward movement in the event of a crash.
- Impact Absorbing Base: Designed to compress and absorb crash forces.
Imatge: Un cop mésview of the car seat pointing out key features like 3 layers of side impact protection, anti-rebound bar, flip-forward buckle, and nap-friendly padding with Cool Flow fabric.
Imatge: Una imatge detallada view of the car seat's structure, highlighting the high strength steel frame and patented V-shaped tether as part of the SafeCell Impact Protection system.
Cura i Manteniment
Proper care and maintenance will extend the life of your car seat and ensure its continued safety and comfort.
- Cura del teixit: The Cool Flow ventilated mesh fabric and other soft goods should be hand washed with mild soap and cold water. Allow to air dry. Do not use bleach or harsh detergents.
- Sistema d'arnès: Netegeu les corretges de l'arnès amb anunciamp cloth. Do not machine wash or immerse the harness in water, as this can weaken the webbing.
- Closca i base: Clean the car seat shell and base with a damp drap i sabó suau.
- Sivella: Periodically check the buckle for debris. Clean with a damp tela si cal.
Imatge: Un primer pla view of the Cool Flow ventilated mesh fabric, illustrating its breathable texture for improved air circulation.
Resolució de problemes
If you encounter any issues with your Britax Advocate ClickTight car seat, please refer to the following general troubleshooting tips:
- Instal·lació solta: Ensure the ClickTight system is fully engaged. Re-read the installation instructions carefully and watch the installation video if needed. Make sure the vehicle seat belt is pulled taut before closing the ClickTight compartment.
- Harness Too Loose/Tight: Adjust the harness straps using the quick-adjust mechanism. Listen for the 'click' from the Click & Safe Snug Harness Indicator to confirm proper tightness.
- Recline Issues: Verify that the recline mechanism is free of obstructions and that the seat is on a level surface before adjusting. Check the easy-read level indicators for correct positioning.
- Stuck Buckle: Check for any food crumbs or debris inside the buckle. Clean as per the 'Care and Maintenance' section.
For further assistance, please contact Britax Customer Service or consult the full product manual.
Especificacions
| Especificació | Valor |
|---|---|
| Marca | Britax |
| Model | Advocate ClickTight Anti-Rebound Bar Convertible Car Seat |
| ASIN | B07962ZKK8 |
| UPC | 652182733056 |
| Recomanació de pes mínim | 5 lliures |
| Recomanació de pes màxim | 65 lliures |
| Rear Facing Minimum Weight | 5 lliures |
| Rear Facing Maximum Weight | 40 lliures |
| Maximum Height Recommended | 49 polzades |
| Dimensions de l'article (D x W x H) | 23 "P x 20.5" W x 23.5" H |
| Pes de l'article | 30.1 lliures |
| Tipus de material | Acer d'aliatge |
| Color | Cool Flow Gray |
| Tipus d'instal·lació | Sense eines |
| Number of Height Positions (Harness) | 14 |
| Number of Recline Positions | 7 |
Image: Diagram showing the dimensions (23"D x 20.5"W x 23.5"H) of the Britax Advocate ClickTight Car Seat.
Garantia i Suport
For detailed warranty information, product registration, or to contact customer support, please visit the official Britax website or refer to the warranty card included with your purchase. Keeping your proof of purchase is recommended for warranty claims.
Britax Official Weblloc: Visit the Britax Store on Amazon
