JOYOUNG Soymilk and Baby Food Maker DJ06U-DS920SG 0.6L Instruction Manual

1. Introducció

Thank you for choosing the JOYOUNG Soymilk and Baby Food Maker DJ06U-DS920SG. This appliance is designed for preparing fresh soymilk, baby food, and various other blended beverages and purees. Please read this manual carefully before use to ensure safe and efficient operation. Keep this manual for future reference.

Figure 1: JOYOUNG Soymilk and Baby Food Maker DJ06U-DS920SG. This image shows the compact design of the appliance with its transparent pitcher and pink top.

2. Instruccions de seguretat importants

Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones, incloses les següents:

1. Llegiu totes les instruccions abans d’utilitzar l’aparell.
2. No toqueu superfícies calentes. Utilitzeu nanses o poms.
3. Per protegir-se de les descàrregues elèctriques, no submergiu el cable, els endolls o l'aparell en aigua o cap altre líquid.
4. És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
5. Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
6. No feu funcionar cap aparell amb el cable o l'endoll danyats, o després que l'aparell no funcioni correctament o s'hagi danyat de qualsevol manera. Poseu-vos en contacte amb el servei d'atenció al client per a la seva revisió, reparació o ajust.
7. L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
8. No utilitzar a l'aire lliure.
9. No deixeu que el cable pengi de la vora d'una taula o taulell, ni toqui superfícies calentes.
10. No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
11. Connecteu sempre primer l'endoll a l'aparell i després connecteu el cable a la presa de corrent. Per desconnectar, gireu qualsevol control a "apagat" i, a continuació, traieu l'endoll de la presa de corrent.
12. No utilitzeu l'aparell per a un altre ús que el previst.
13. Aneu amb extrema precaució quan traslladeu un aparell que contingui oli calent o altres líquids calents.
14. This appliance has a grounded plug. Ensure the wall outlet is properly grounded.
15. L'aparell té una funció d'apagada automàtica per seguretat.

3. Components del producte

Familiarize yourself with the parts of your JOYOUNG Soymilk and Baby Food Maker:

• Unitat principal: Contains the motor and heating element.
• Container/Pitcher: The main blending and cooking vessel (0.6 Liters capacity).
• Tapa: Covers the container during operation.
• Conjunt de fulles d'acer inoxidable: Located at the bottom of the container for grinding and blending.
• Tauler de control: Touch-sensitive interface for selecting functions.
• Cable d'alimentació: Per connectar a una presa de corrent.
• cullera: Included for measuring or serving.

Figure 2: Stainless Steel Blade Assembly. This image highlights the durable stainless steel cutting blade designed for fine grinding.

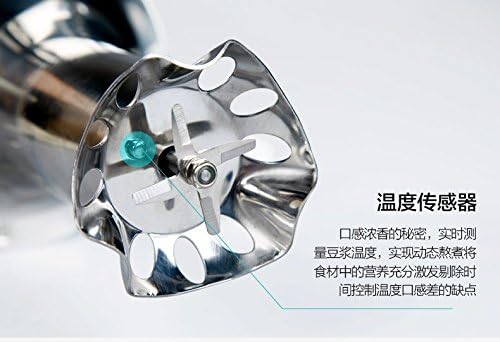

Figure 3: Temperature Sensor. This image shows the integrated temperature sensor, crucial for precise cooking and optimal flavor extraction.

4. Configuració i primer ús

1. Desembalar: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
2. Neteja: Before first use, wash the container, lid, and spoon with warm, soapy water. Rinse thoroughly and dry. Wipe the main unit with a damp tela. No submergiu la unitat principal a l'aigua.
3. Col·locació: Place the appliance on a stable, flat, heat-resistant surface, away from water sources and direct heat.
4. Muntar: Ensure the container is properly seated on the main unit. Place the lid securely on the container.
5. Connexió d'alimentació: Plug the power cord into a standard 110V AC electrical outlet. The appliance will emit a beep, and the indicator lights on the control panel may illuminate briefly.

5. Instruccions de funcionament

The JOYOUNG Soymilk and Baby Food Maker features a multifunctional touch panel for easy operation.

Figure 4: Multifunctional Touch Panel. This image displays the touch control interface with various function icons for different food preparations like soymilk, baby food, and purees.

5.1 Funcionament general

1. Add ingredients to the container according to your recipe. Do not exceed the maximum fill line (0.6L).
2. Col·loqueu de manera segura la tapa al recipient.
3. Plug in the appliance. The control panel will light up.
4. Select your desired function by touching the corresponding icon on the control panel. Available functions include Soymilk, Baby Food, Puree, and more.
5. Press the Start/Stop button to begin the program. The appliance will automatically process the ingredients, including heating and blending cycles.
6. Once the program is complete, the appliance will beep and automatically shut off.
7. Unplug the appliance and carefully remove the lid. Pour out the contents.

5.2 Making Soymilk

1. Soak soybeans for at least 6-8 hours, or as per recipe.
2. Drain and rinse the soaked soybeans.
3. Add the soaked soybeans and water to the container. Refer to your recipe for precise ratios, ensuring not to exceed the 0.6L capacity.
4. Secure the lid and select the 'Soymilk' function on the touch panel.
5. Press Start. The appliance will grind, heat, and cook the soymilk.
6. Once finished, carefully pour the soymilk. For smoother soymilk, you may strain it through a fine-mesh sieve or cheesecloth.

5.3 Making Baby Food/Purees

1. Prepare your ingredients (e.g., cooked vegetables, fruits, or grains). Cut them into small pieces if necessary.
2. Add the prepared ingredients and a small amount of liquid (water, broth, breast milk, or formula) to the container.
3. Secure the lid and select the 'Baby Food' or 'Puree' function.
4. Press Start. The appliance will blend and, if applicable, heat the ingredients to the desired consistency and temperature.
5. Always check the temperature of baby food before serving.

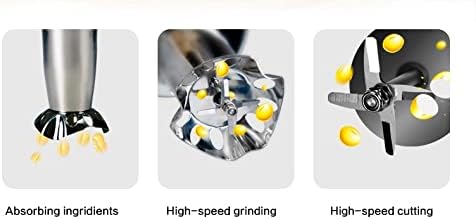

Figure 5: Grinding and Cutting Process. This illustration demonstrates the high-speed grinding and cutting action of the blades, ensuring thorough processing of ingredients.

6. Manteniment i Neteja

Una neteja i un manteniment adequats allargaran la vida útil del vostre electrodomèstic.

1. Desconnecta sempre: Abans de netejar-lo, assegureu-vos que l'aparell estigui desendollat ​​de la presa de corrent i que s'hagi refredat completament.
2. Recipient i tapa: Wash the container, lid, and spoon with warm, soapy water immediately after use to prevent food residue from drying. Use a soft brush for hard-to-reach areas around the blade. Rinse thoroughly.
3. DO NOT Dishwash: The container and lid are NOT dishwasher safe. Hand wash only.
4. Unitat principal: Netegeu l'exterior de la unitat principal amb anuncisamp drap. No submergiu la unitat principal en aigua ni en cap altre líquid.
5. Assecat: Assegureu-vos que totes les peces estiguin completament seques abans de tornar a muntar o emmagatzemar.
6. Emmagatzematge: Guardeu l'aparell en un lloc net i sec.

7. Solució De Problemes

If you encounter any issues, please refer to the following common problems and solutions:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

8. Especificacions del producte

9. Informació de la garantia

This JOYOUNG Soymilk and Baby Food Maker DJ06U-DS920SG comes with a 1 anys de garantia limitada from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, alteration, neglect, unauthorized repair, or commercial use.

Please retain your proof of purchase for warranty claims. For service under warranty, please contact JOYOUNG customer support.

10. Atenció al client

For any questions, technical assistance, or warranty claims, please contact JOYOUNG customer support through the retailer where the product was purchased or visit the official JOYOUNG weblloc per obtenir informació de contacte.

Please have your model number (DJ06U-DS920SG) and proof of purchase ready when contacting support.
