1. Introducció
This manual provides essential information for the safe and efficient operation of your TOPCHANCES HSPY 400-01 Adjustable 400V/1A Programmable DC Power Supply. This device combines the advantages of both switching and linear power supplies, offering high accuracy, low ripple, high stability, and high efficiency without high-frequency radiation interference. It is designed for use in scientific research, laboratories, automatic test equipment, and various electronic component testing applications.
Key features include continuous adjustment of voltage and current, automatic conversion between steady flow and regulator modes, and a high-precision DC stable power supply. The output voltage and current settings are displayed simultaneously on an LCD screen. The unit also features improved overload, short circuit, and overheat protection circuits, a fanless design for quiet operation, and microcomputer control for setting values via PC connection.
2. Informació de seguretat
- Connecteu sempre la font d'alimentació a una presa de corrent amb connexió a terra.
- No utilitzeu el dispositiu en mullat o damp condicions.
- Assegureu-vos una ventilació adequada al voltant de la unitat per evitar el sobreescalfament.
- No obriu la c.asing; no hi ha peces a l'interior que l'usuari pugui reparar. Demaneu el servei tècnic a personal qualificat.
- Verifiqueu el vol d'entradatage matches the device's requirements (220V).
- Eviteu curtcircuitar els terminals de sortida.
- Desconnecteu l'alimentació abans de fer o canviar connexions.
3. Producte acabatview
The HSPY 400-01 is a compact and robust DC power supply featuring an LCD display for voltage and current readings, control buttons, and output terminals.

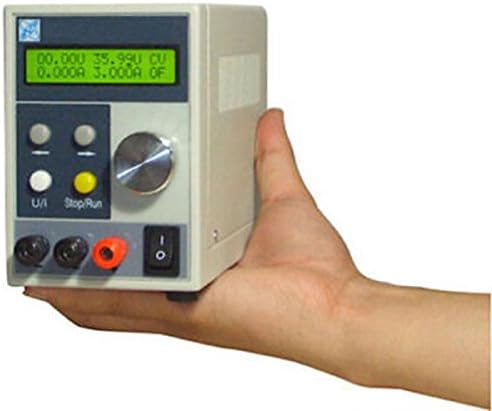

Figura 3.1: Frontal view of the TOPCHANCES HSPY 400-01 DC Power Supply. This image shows the compact design, the LCD display, control buttons, rotary encoder, power switch, and output terminals.
Figure 3.2: The TOPCHANCES HSPY 400-01 DC Power Supply in operation, connected to a strip of LEDs. This demonstrates the unit's ability to power external loads, with the display showing active voltage i sortida de corrent.
4. Configuració
- Desembalatge: Carefully remove the power supply and all accessories from the packaging. Verify that all components listed in the package contents are present: 1 x Adjustable DC Power Supply, 1 x Power line, 1 x Communication Serial Line, 1 x Tester line.
- Col·locació: Place the unit on a stable, level surface with adequate ventilation. Ensure that the air vents are not obstructed.
- Connexió d'alimentació: Connect the provided power line to the AC input on the rear of the power supply and then to a grounded 220V AC power outlet.
- Comprovació inicial: Before connecting any load, ensure the power switch on the front panel is in the OFF position.
5. Instruccions de funcionament
5.1 Engegada/apagada
- To power on, flip the power switch on the front panel to the ON position. The LCD display will illuminate.
- Per apagar-lo, gireu l'interruptor d'alimentació a la posició OFF.
5.2 Configuració Voltage i Actual
- Ensure no load is connected or the load is safely disconnected before adjusting settings.
- Use the rotary encoder (shuttle design) to adjust the desired voltage and current values. The LCD display will show the set values.
- The power supply allows continuous adjustment of both voltage (0-400V) and current (0-1A) within its rated range.
- Connect your load to the output terminals (red for positive, black for negative).
- La pantalla mostrarà el volum de sortida realtage i corrent.
5.3 Programmable Control (PC/PLC)
This power supply supports external control via a PC or PLC. Use the provided Communication Serial Line to connect the unit to a computer. With the dedicated software, you can remotely set output voltage and current values and monitor the power supply's working status in real-time. This feature is useful for automated testing and precise load characteristic analysis.
6. Manteniment
- Neteja: Desconnecteu l'alimentació de la presa de corrent abans de netejar-lo. Feu servir un drap suau i sec per netejar l'exterior. No utilitzeu netejadors líquids ni dissolvents.
- Ventilació: Regularly check that the ventilation openings are clear of dust and debris to ensure proper airflow and prevent overheating.
- Emmagatzematge: Quan no la feu servir durant períodes prolongats, guardeu la font d'alimentació en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense engegada/Pantalla apagada | Power cord disconnected; Power switch off; No AC power from outlet. | Check power cord connection; Turn power switch ON; Check AC outlet with another device. |
| Sense sortida voltage/actual | Output terminals not connected; Voltage/current set to zero; Overload protection active. | Ensure load is properly connected; Adjust voltage/current settings; Reduce load or check for short circuit. |
| Vol incorrectetaglectura de corrent electrònic | Faulty connection; Calibration issue. | Check all connections; If problem persists, contact support. |
| La unitat es sobreescalfa | Blocked ventilation; Excessive ambient temperature; Prolonged operation at maximum load. | Ensure clear ventilation; Operate in a cooler environment; Reduce load or operating time. |
If the problem persists after attempting these solutions, please contact TOPCHANCES customer support.
8. Especificacions
| Paràmetre | Valor |
|---|---|
| Entrada Voltage | 220 V |
| Vol. De sortidatage Rang | 0-400V (ajustable) |
| Interval de corrent de sortida | 0-1A (continuously adjustable) |
| Poder | 400W |
| Voltage / Current Display | LCD display (four digits) |
| Load Regulation (Voltage) | 0.02% + 2mV |
| Load Regulation (Current) | 0.02% + 2mA |
| Setting Accuracy (Voltage) | 0.1% |
| Setting Accuracy (Current) | 0.1% |
| Display Accuracy (Voltage) | 0.1% |
| Display Accuracy (Current) | 0.1% |
| Setting Resolution (Voltage) | 10mV |
| Setting Resolution (Current) | 1 mA |
| Resolució de pantalla (Volum)tage) | 10mV |
| Resolució de pantalla (actual) | 1 mA |
| Ripple and Noise (Voltage) | ≤ 2 mVrms |
| Ripple and Noise (Current) | ≤ 3 mArms |
| Readback Value Temperature Coefficient | 50 ppm |
| Dimensions | 185 x 85 x 120 mm |
| Pes | 1.45 kg |
9. Garantia i Suport
For warranty information, technical support, or service inquiries, please contact TOPCHANCES customer service. You can find more information and contact details on the official TOPCHANCES store page:
