Dorman 601-256 Battery Current Sensor User Manual

Introducció

This manual provides essential information for the Dorman 601-256 Battery Current Sensor, designed as a direct replacement for select BMW models. This sensor is a critical component in modern vehicle electrical systems, measuring battery temperature and regulating voltage to ensure the vehicle charging system functions correctly.

Figure 1: Dorman 601-256 Battery Current Sensor, showing the main assembly.

Què hi ha a la caixa

En obrir el paquet, comproveu que hi hagi tots els components:

• 1 x Dorman 601-256 Battery Current Sensor
• 1 x Cable Assembly

Configuració i instal·lació

The Dorman 601-256 Battery Current Sensor is designed for direct replacement and features a plug-and-play installation. Prior to installation, it is crucial to confirm that this part is compatible with your specific vehicle's make, model, and trim level. Refer to your vehicle's service manual for detailed instructions on battery current sensor replacement.

Passos d'instal·lació (orientació general):

1. Assegureu-vos que el vehicle estigui apagat i que la bateria estigui desconnectada per evitar riscos elèctrics.
2. Locate the existing battery current sensor in your vehicle.
3. Carefully disconnect the electrical connector and remove the old sensor.
4. Install the new Dorman 601-256 sensor, ensuring all connections are secure and properly seated.
5. Reconnect the vehicle battery according to manufacturer specifications.
6. Test the vehicle's electrical system to confirm proper function.

Figura 2: Davant i darrere views of the sensor, illustrating connection points.

Funcionament

Once installed, the Dorman 601-256 Battery Current Sensor operates automatically as part of your vehicle's electrical management system. Its primary function is to accurately measure the battery's temperature and current flow. This data is then used by the vehicle's charging system to regulate voltage, ensuring optimal battery performance and longevity. The sensor plays a vital role in preventing overcharging or undercharging, which can extend the life of the battery and other electrical components.

Manteniment

The Dorman 601-256 Battery Current Sensor is constructed from durable materials designed to withstand the harsh engine environment and provide long-lasting performance. Regular user maintenance is generally not required for this component. However, it is recommended to periodically inspect all electrical connections in your vehicle, including those to the battery and sensor, to ensure they are clean, tight, and free from corrosion. If any signs of damage or wear are observed on the sensor or its cable assembly, replacement may be necessary.

Resolució de problemes

If you experience issues with your vehicle's charging system or battery performance after installing the Dorman 601-256 Battery Current Sensor, consider the following general troubleshooting steps:

• Comproveu les connexions: Ensure all electrical connections to the sensor and battery are secure and free of corrosion.
• Diagnòstic de vehicles: Consult your vehicle's owner's manual or a qualified mechanic for diagnostic trouble codes (DTCs) related to the charging system.
• Salut de la bateria: Verify the overall health and charge level of your vehicle's battery.
• Assistència professional: If problems persist, it is advisable to seek assistance from a certified automotive technician.

Especificacions

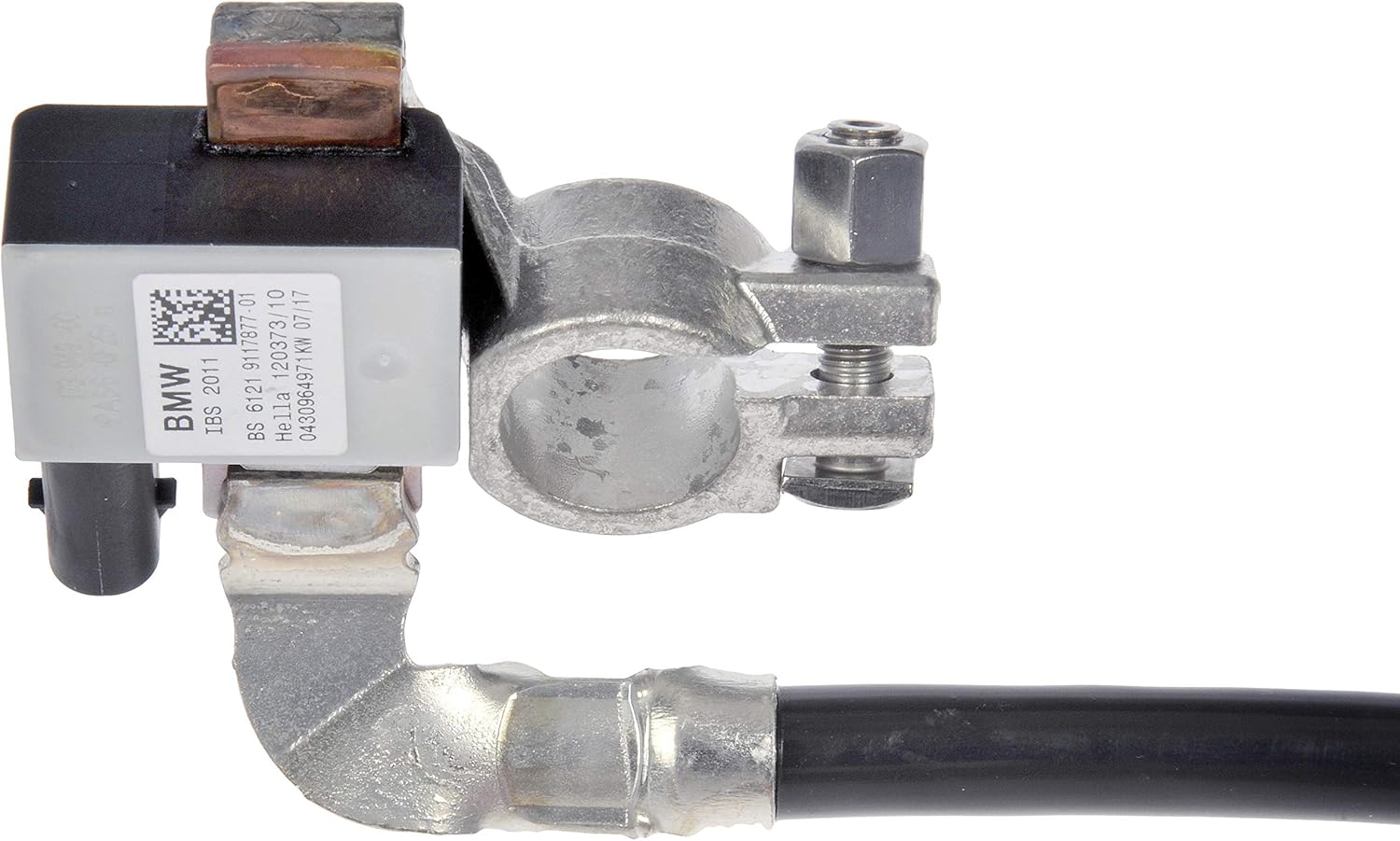

Figura 3: Detallada views of the sensor module and cable terminal.

Garantia i Suport

For detailed warranty information and customer support regarding your Dorman 601-256 Battery Current Sensor, please refer to the official Dorman Products weblloc web o contacteu directament amb el seu servei d'atenció al client. També podeu visitar el Botiga Dorman a Amazon per obtenir informació i recursos addicionals sobre el producte.
