Nobsound NS-01G Pro

Nobsound NS-01G Pro Bluetooth 5.0 Power AmpManual d'usuari més viu

Model: NS-01G Pro

1. Introducció

Gràcies per la compraasing the Nobsound NS-01G Pro Bluetooth 5.0 Power Amplificador. Aquest compacte però potent amplifier is designed to deliver high-fidelity audio for your speakers, offering versatile input options including Bluetooth 5.0, AUX, and USB. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the best performance from your device.

2. Producte acabatview

2.1 Característiques clau

  • Disseny 2 en 1: Functions as both a Bluetooth receiver and a power ampmés viu.
  • Connectivitat sense fils: Seamlessly connect to smartphones and other devices via Bluetooth 5.0.
  • Alta potència de sortida: Despite its mini size, it delivers up to 100W output power.
  • Múltiples entrades: Supports AUX, USB, and Bluetooth audio inputs.
  • Controls de to: Features Bass, Middle, and Treble tone controls for sound customization.

2.2 Contingut del paquet

  • 1 × Nobsound NS-01G Pro Ampmés viu
  • 1 × DC 19V Power Adapter
  • 1 cable USB
  • 1 × Cable RCA
  • 1 cable d'àudio de 3.5 mm
  • 1 × Manual d'usuari
Nobsound NS-01G Pro amplifier with dimensions and package contents
Figure 1: Nobsound NS-01G Pro amplifier with dimensions and included accessories.

2.3 Disposició del panell frontal

Front panel of Nobsound NS-01G Pro showing volume knob, Bluetooth indicator, power switch, USB sound input, and AUX input
Figure 2: Front panel of the NS-01G Pro, detailing the volume knob, Bluetooth indicator, power switch, USB sound input, and AUX input.

2.4 Disseny del panell posterior

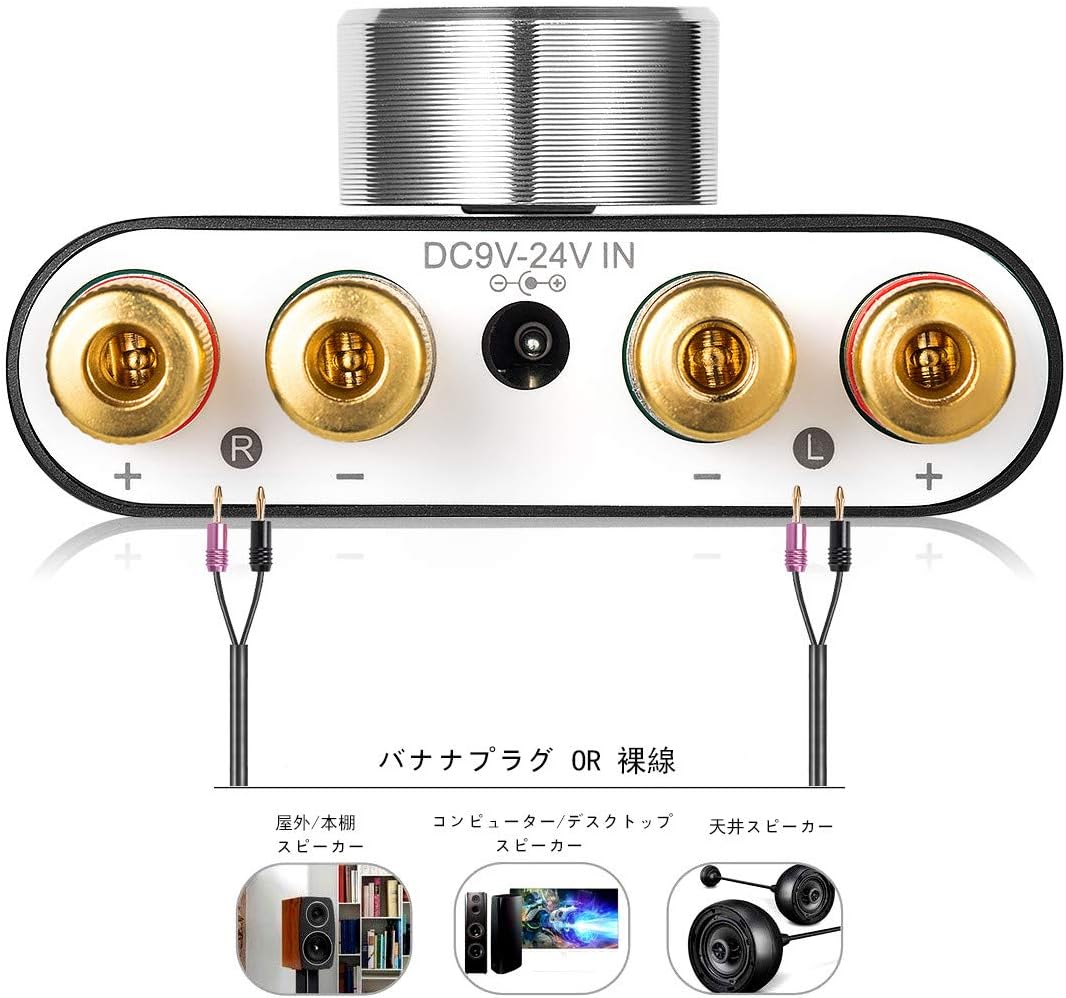

Rear panel of Nobsound NS-01G Pro showing speaker terminals and DC power input
Figure 3: Rear panel of the NS-01G Pro, showing the speaker output terminals and DC power input.

3. Instruccions de configuració

3.1 Connexió dels altaveus

  1. Assegureu-vos el ampel lificador està apagat.
  2. Connect your passive speakers to the speaker output terminals on the rear panel. Pay attention to polarity: connect the red (+) terminal on the amplifier to the red (+) terminal on the speaker, and the black (-) terminal on the amplifier to the black (-) terminal on the speaker.
Rear panel of Nobsound NS-01G Pro showing speaker terminals and DC power input
Figure 4: Connect passive speakers to the rear terminals, observing correct polarity.

3.2 Connexió de la font d'entrada

The NS-01G Pro supports three input methods: AUX, USB, and Bluetooth.

Nobsound NS-01G Pro showing various input options: Bluetooth, AUX, and USB
Figura 5: El/La/Els/Les amplifier supports Bluetooth, AUX, and USB inputs.

3.2.1 Entrada AUX

  • Connect your audio source (e.g., smartphone, CD player, TV) to the AUX input jack on the front panel using a 3.5mm audio cable.

3.2.2 Entrada USB

  • Connect your computer to the USB sound input port on the front panel using a USB cable. No drivers are typically required for this plug-and-play connection.
Nobsound NS-01G Pro with USB input highlighted, connected to a computer
Figure 6: Connect your computer via the USB input for digital audio playback.

3.2.3 Entrada Bluetooth

  1. Attach the Bluetooth antenna to the RF connector on the rear panel.
  2. Switch the input selector on the front panel to 'BT' mode.
  3. Al dispositiu mòbil, activeu el Bluetooth i cerqueu
