CGOLDENWALL YFX-611 Automatic SMD/SMT Component Counter User Manual

1. Introducció

The CGOLDENWALL YFX-611 is an automatic SMD/SMT component counting machine designed for efficient and accurate counting of surface-mount device components on reels. This device features leak detection, forward and backward counting capabilities, and a built-in memory for presetting count quantities. Its user-friendly interface and robust design ensure reliable performance in various industrial and scientific applications.

2. Informació de seguretat

Please read and understand all safety instructions before operating the YFX-611 component counter. Failure to follow these instructions may result in injury or damage to the equipment.

• Assegureu-vos que la font d'alimentació voltage matches the machine's requirements (AC110V/220V, 50/60Hz).
• No feu funcionar la màquina en llocs humits o secs.amp condicions.
• Mantingueu les mans i la roba solta allunyades de les peces mòbils durant el funcionament.
• Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
• Only use authorized replacement parts and accessories.
• Do not attempt to modify the machine.

3. Producte acabatview

The CGOLDENWALL YFX-611 component counter is designed for ease of use and precision. Familiarize yourself with the main components shown below.

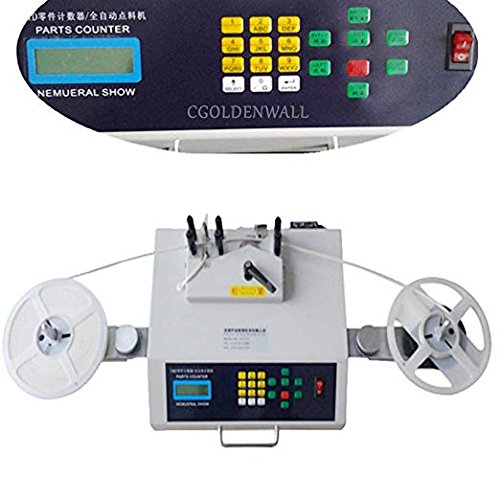

Figura 3.1: Davant view of the CGOLDENWALL YFX-611 Automatic SMD/SMT Component Counter. This image displays the main unit with two reel holders, the control panel, and the component feeding mechanism.

Figura 3.2: De dalt a baix view of the YFX-611, highlighting the LCD screen, keypad, power switch, and the two reel spindles for component tape. The central component feeding area is also visible.

Components clau:

• Pantalla LCD: Displays counting information, settings, and operational status.
• Teclat: Used for inputting settings, controlling operations, and navigating menus.
• Reel Holders: Spindles on either side for mounting SMD component reels.
• Component Feeding Mechanism: Area where the component tape passes through for counting.
• Interruptor d'alimentació: Controla l'alimentació principal de la unitat.
• Nansa de transport: Integrated handle for portability.

4. Configuració

Follow these steps to set up your CGOLDENWALL YFX-611 component counter for initial use.

4.1 Desembalatge i col·locació

• Traieu amb cura la màquina del seu embalatge.
• Col·loqueu la màquina sobre una superfície estable i anivellada en una zona ben ventilada.
• Ensure adequate space around the machine for reel placement and operation.

4.2 Connexió d'alimentació

• Verifiqueu que el volum de la màquinatage setting matches your local power supply. The machine supports AC110V/220V, 50/60Hz.
• Connect the provided power cord to the machine's power input and then to a grounded electrical outlet.

4.3 Installing Reel Pallets

The machine requires the installation of reel pallets to hold the component tapes securely. Refer to the visual guide below for proper installation.

Figura 4.1: Visual instructions for installing the reel pallets. This sequence of six images demonstrates how to attach the pallet base, secure it, and then place the reel onto the spindle for counting.

1. Pas 1-3: Attach the pallet support arm to the side of the machine using the provided Allen wrench. Ensure it is securely fastened.
2. Pas 4: Place the empty reel pallet onto the spindle of the support arm.
3. Pas 5: Secure the pallet in place, typically by tightening a knob or locking mechanism.
4. Pas 6: Repeat for the other side if using two reels (one for source, one for take-up).

5. Funcionament

This section details the operational procedures for the YFX-611 component counter.

5.1 Loading Component Reels

• Mount the SMD component reel onto one of the reel holders.
• Thread the component tape through the counting mechanism, ensuring it is properly aligned.
• Attach the leading end of the tape to an empty take-up reel on the other reel holder.

5.2 Basic Counting

• Turn on the power switch. The LCD screen will illuminate.
• Use the keypad to select the desired counting mode (e.g., continuous count, preset count).
• Press the START button to begin counting. The machine will automatically feed the tape and display the count on the LCD.
• To stop counting, press the STOP button.

5.3 Funcions avançades

• Detecció de fuites: The machine is equipped with a leak detection feature. If an empty slot on the component tape is detected, the machine will automatically stop, preventing inaccurate counts.
• Forward and Backward Counting: The YFX-611 can count components in both forward and backward directions, allowing for double-checking and ensuring accuracy. Refer to the keypad for directional controls.
• Preset Count Quantity: Utilize the built-in memory to preset a target count quantity. The machine will automatically stop once the preset number of components has been counted. Instructions for setting the preset count are typically found in the on-screen menu accessed via the keypad.
• Tape Protection: The design minimizes the risk of tape dropping, protecting both the components and the tape reels during operation.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your YFX-611 component counter.

• Neteja: Periodically clean the machine's exterior with a soft, dry cloth. For the counting mechanism, use a soft brush or compressed air to remove dust and debris. Ensure the power is off and unplugged before cleaning.
• Inspecció: Regularly inspect the reel holders, tape path, and power cord for any signs of wear or damage.
• Emmagatzematge: When not in use, store the machine in a clean, dry environment away from direct sunlight and extreme temperatures.

7. Solució De Problemes

This section provides solutions to common issues you might encounter with the YFX-611 component counter.

Problemes comuns i solucions:

• La màquina no s'encén:
  • Check if the power cord is securely connected to both the machine and the power outlet.
  • Comproveu que la presa de corrent funcioni.
  • Assegureu-vos que l'interruptor d'alimentació estigui a la posició "ON".
• Counting is inaccurate:
  • Ensure the component tape is properly threaded through the counting mechanism and aligned.
  • Clean the counting sensor area to remove any dust or obstructions.
  • Check if the tape pitch setting (if adjustable) matches the component tape being used.
• Machine stops unexpectedly during counting:
  • This may be due to the leak detection feature. Check the component tape for empty slots.
  • Ensure the tape is not jammed or obstructed.
  • Verify that the take-up reel is not full or jammed.
• El teclat no respon:
  • Turn the machine off and then on again to reset the system.
  • Ensure no foreign objects are lodged under the keys.

Si trobeu problemes que no figuren aquí o si les solucions suggerides no resolen el problema, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

The following table outlines the technical specifications for the CGOLDENWALL YFX-611 Automatic SMD/SMT Component Counter.

Figura 8.1: Detailed specifications for the component counter, including capacity, power, counting volume, and reel dimensions.

9. Garantia i Suport

For technical assistance, warranty claims, or service inquiries, please contact CGOLDENWALL customer support. Refer to your purchase documentation for specific warranty terms and contact details.

Política de devolució: The product typically includes a 30-day return policy for refund or replacement, as per standard retail terms.

Fabricant: CGOLDENWALL

Número de model: YFX-611 (Part Number: XQ 85 2)
